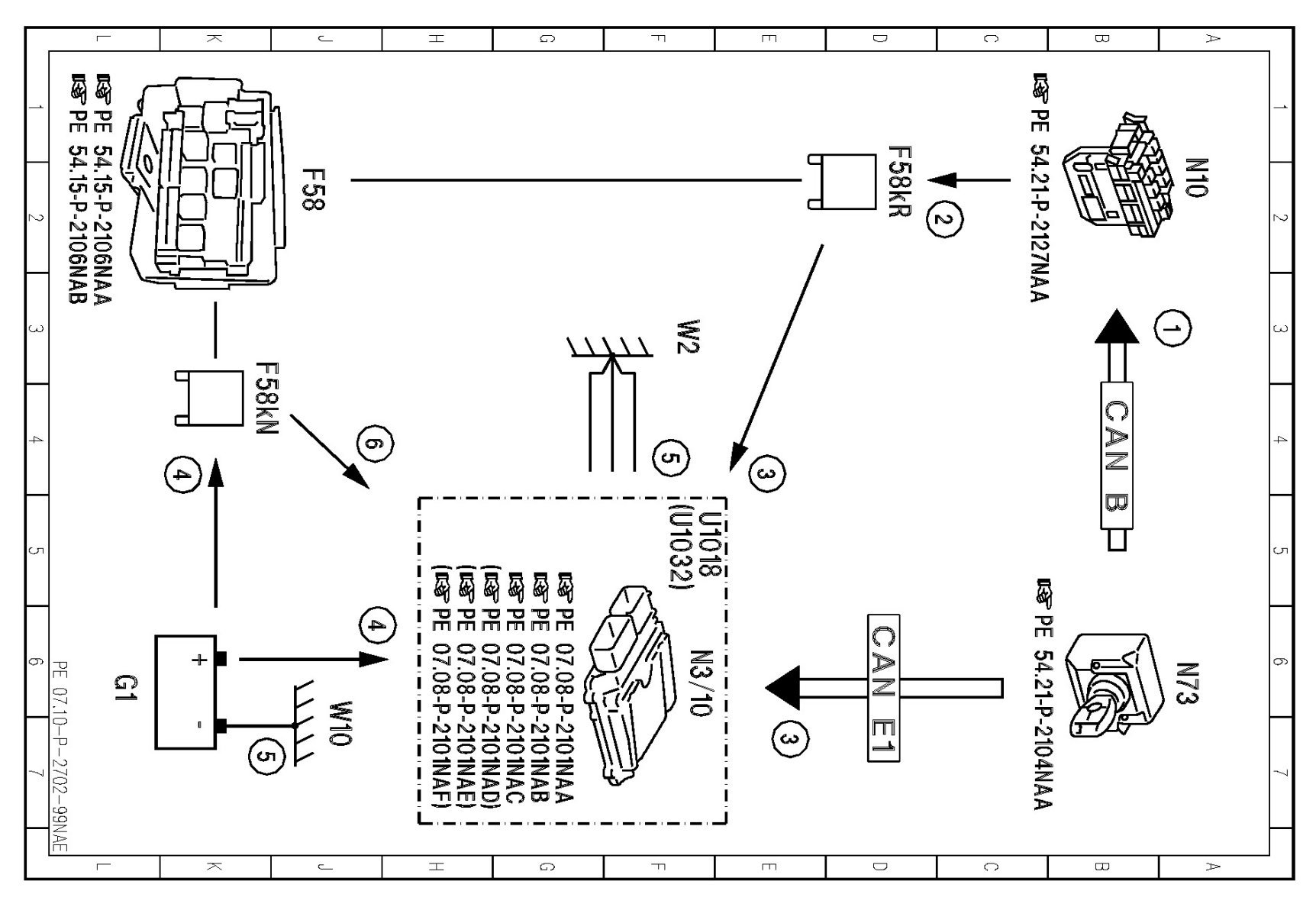

PE07.10-P-2702NAE Electrical Function Diagram For Ignition OFF

PE07.10-P-2702NAE Electrical Function Diagram For Ignition OFF
ENGINES 157, 276, 278 in MODEL 166






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
