PE07.08-P-2101NAE Gasoline Direct Injection System Control Unit

PE07.08-P-2101NAE Gasoline Direct Injection System Control Unit
ENGINES 278.9, 157.9 in MODEL 166

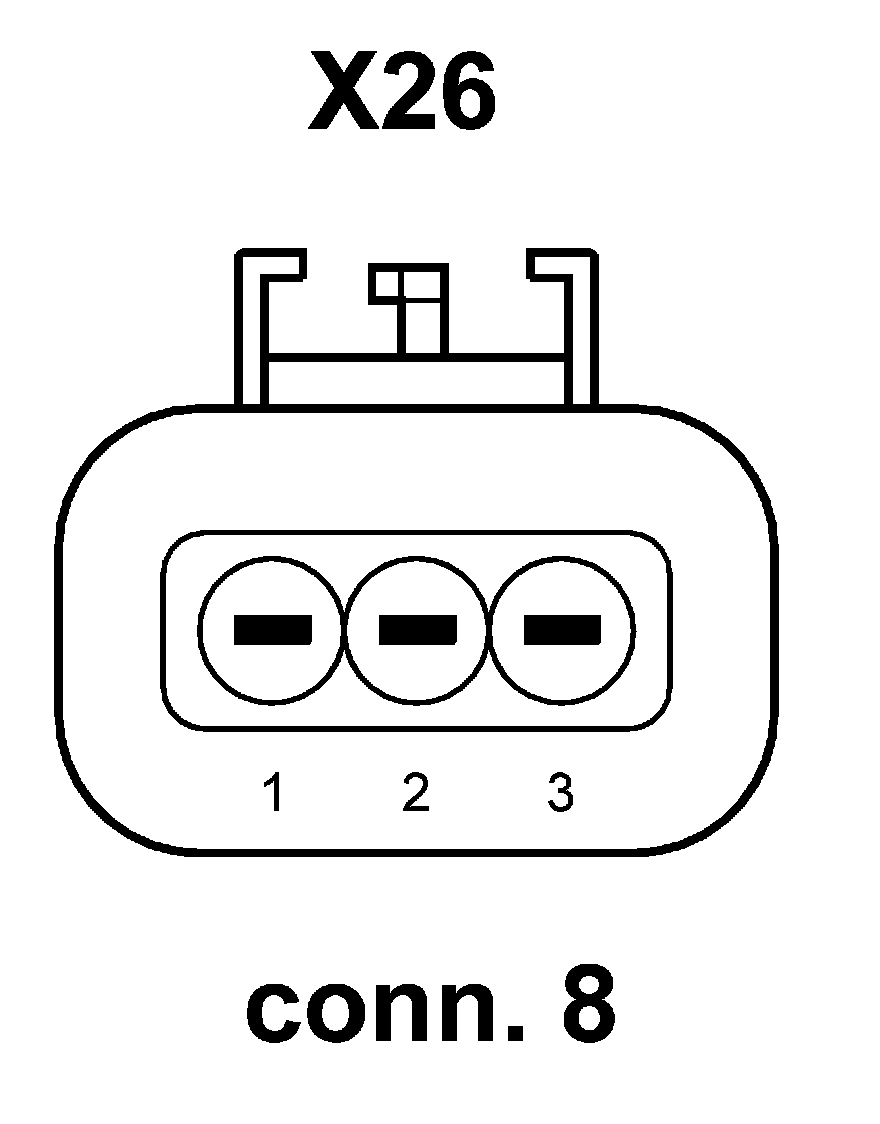

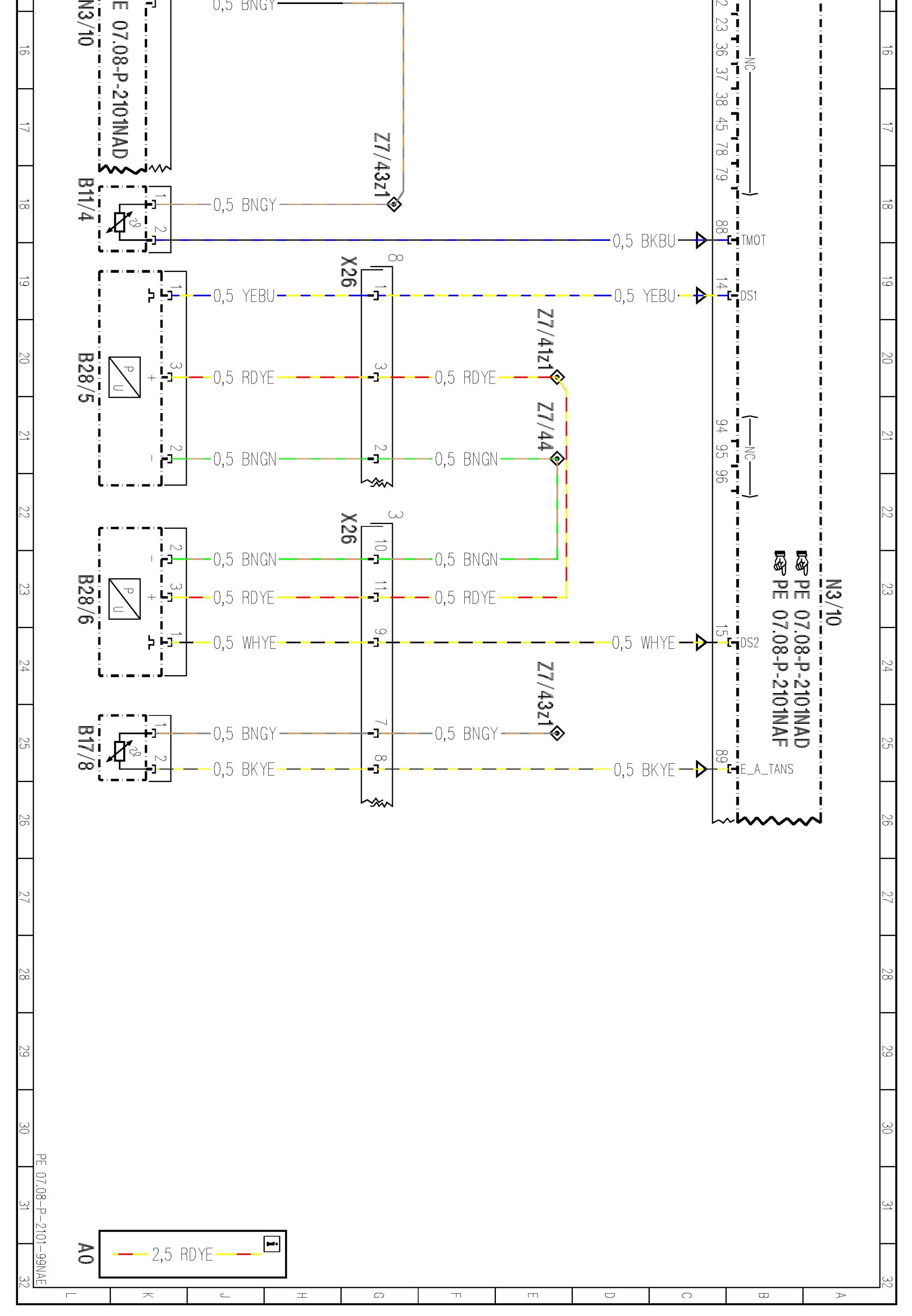

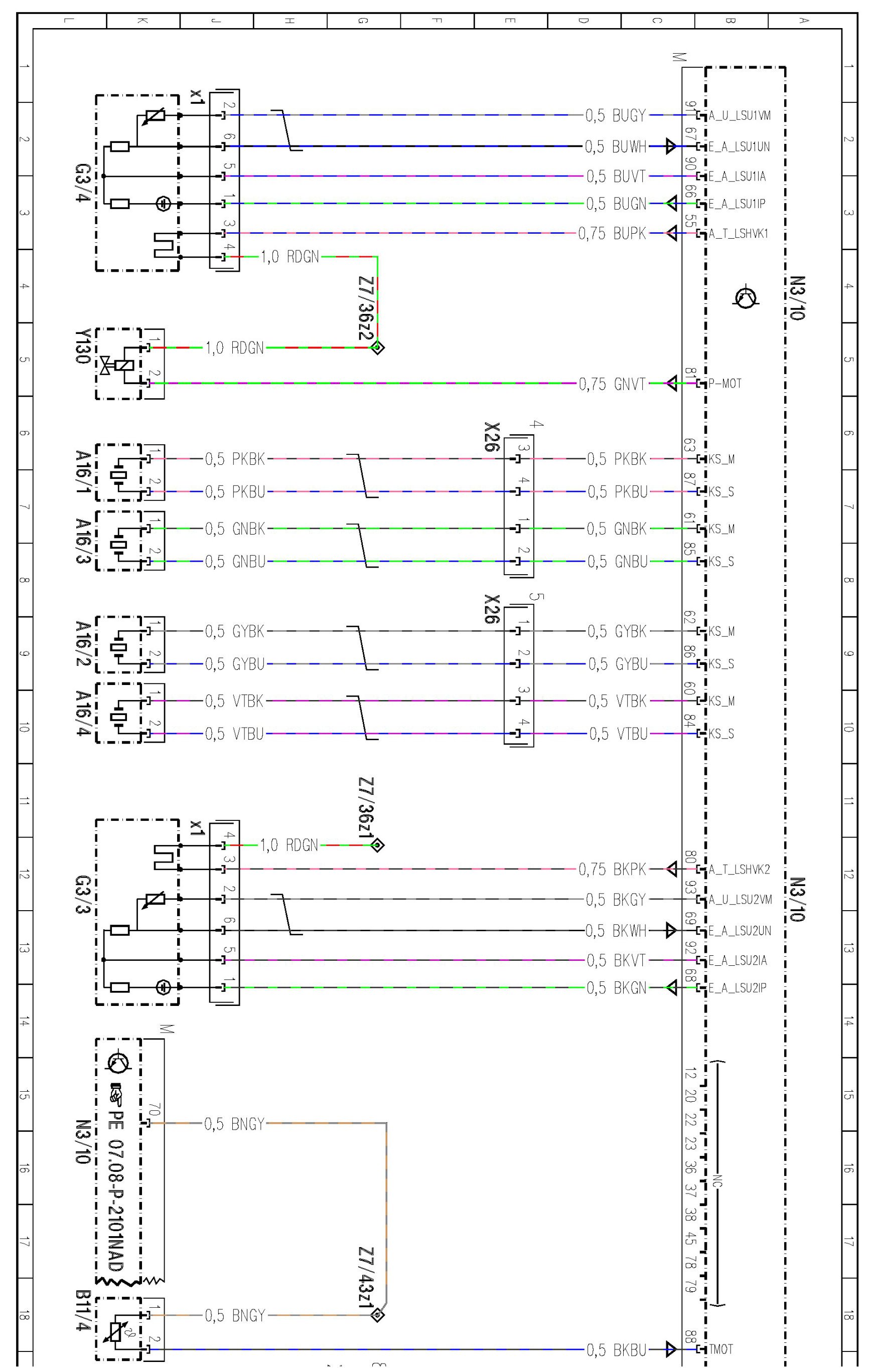

- Control Unit N3/10, Engine Plug, Sheet 2


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
