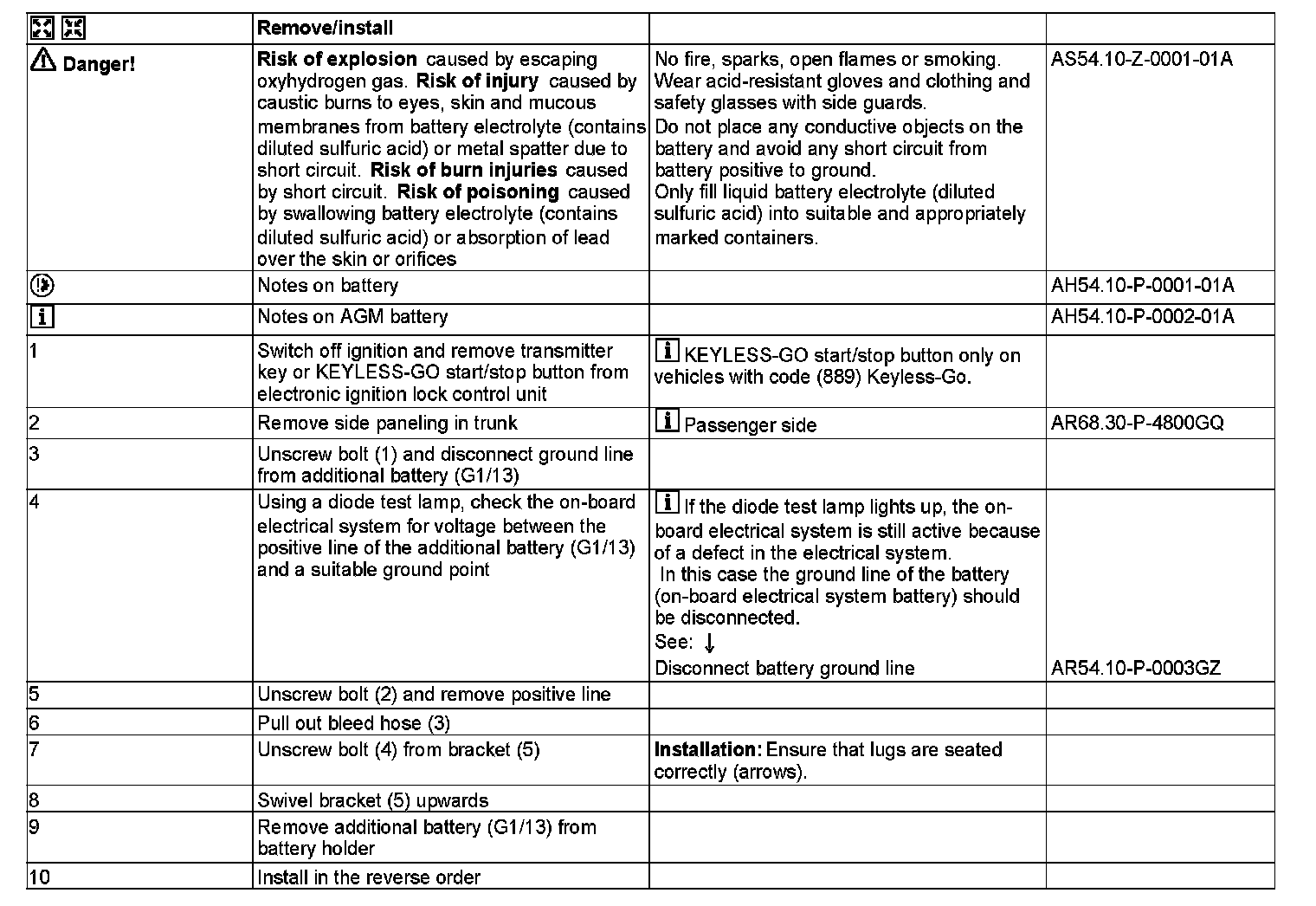

AR54.10-P-0007GQA Remove/Install Additional Battery




AR54.10-P-0007GQA Remove/Install Additional Battery
MODEL 166
- with CODE (B03) ECO start/stop function

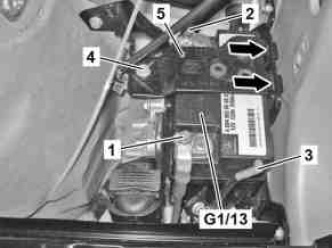

1 Screw
2 Screw
3 Vent hose
4 Bow
G1/13 ECO start/stop function additional battery
