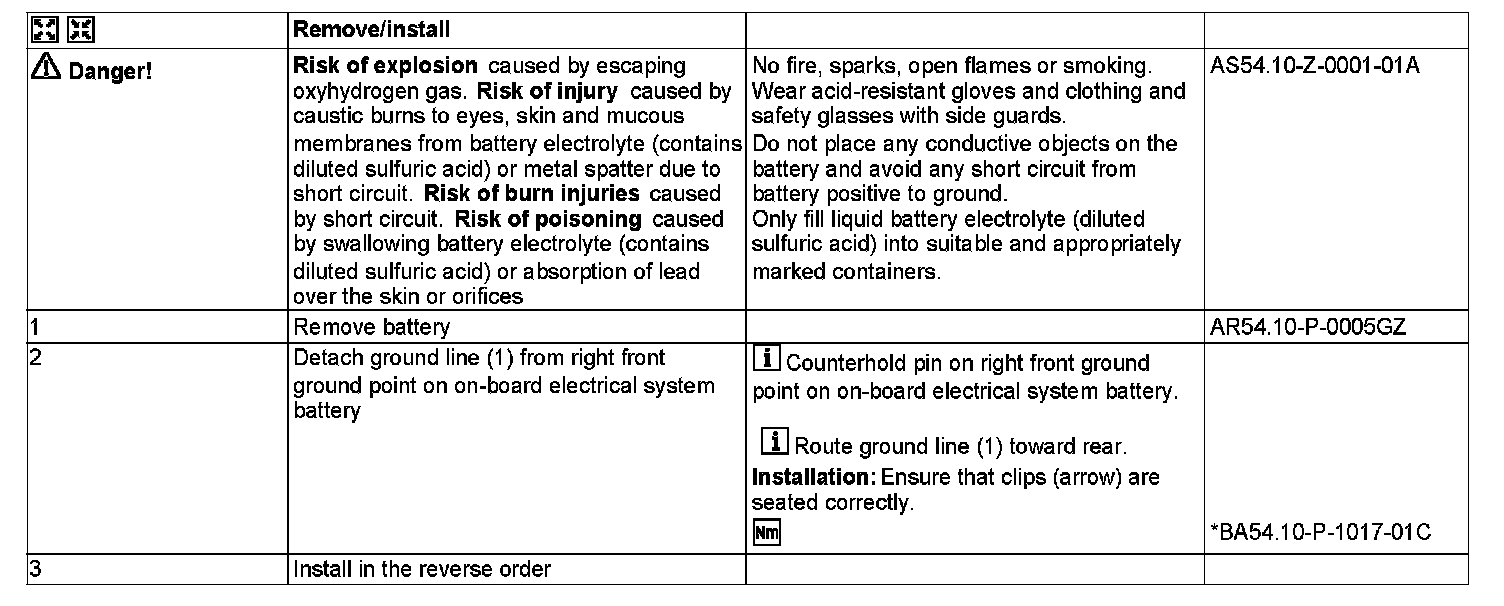

AR54.10-P-0002GQ Remove/Install Battery Sensor




AR54.10-P-0002GQ Remove/Install Battery Sensor
MODEL 166

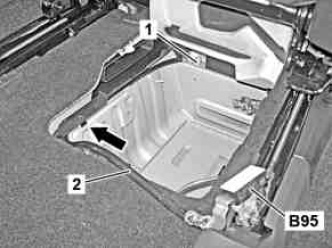

1 Ground cable
2 Electrical connector
B95 Battery sensor
