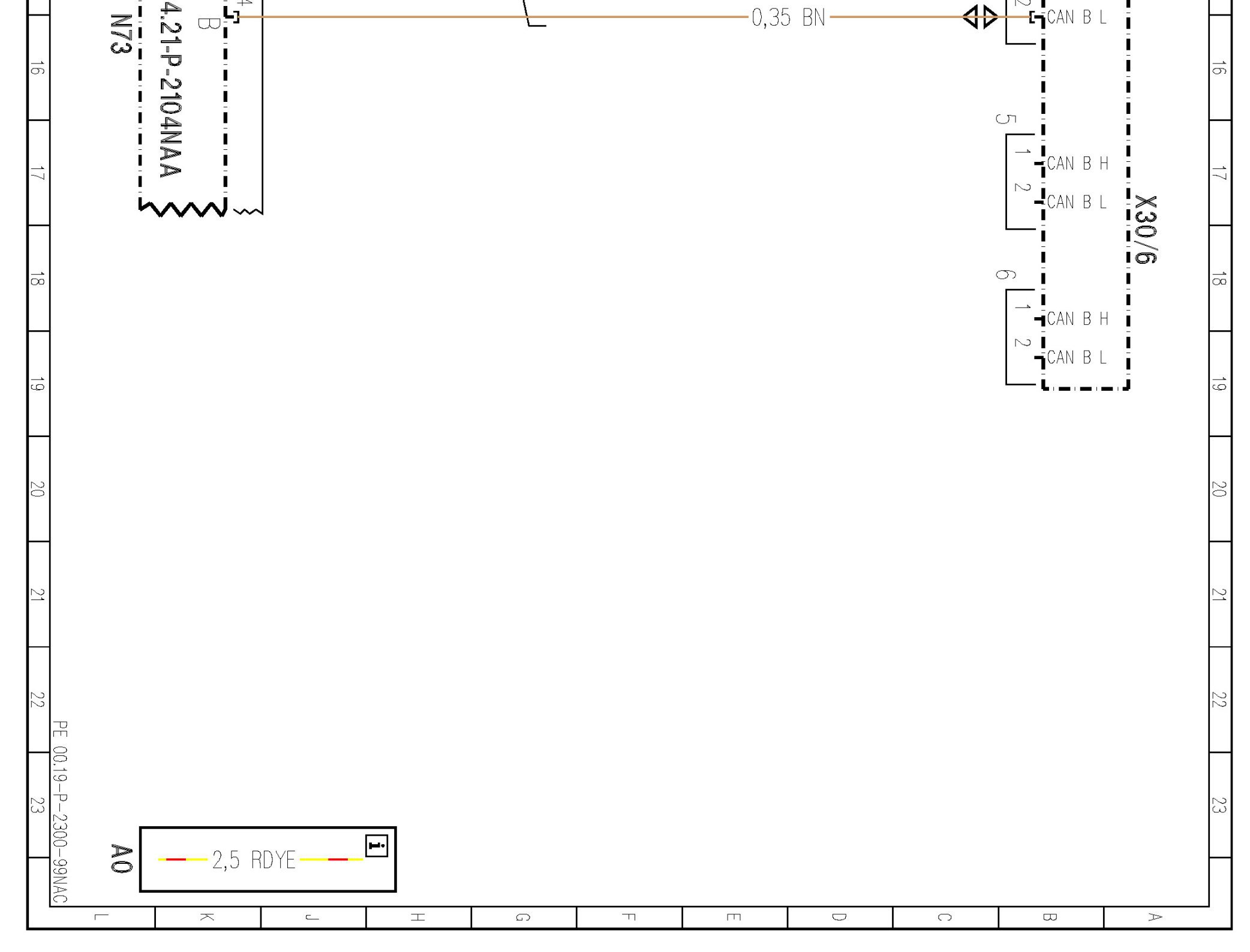

PE00.19-P-2300NAC Interior CAN bus

PE00.19-P-2300NAC Interior CAN bus
MODEL 166

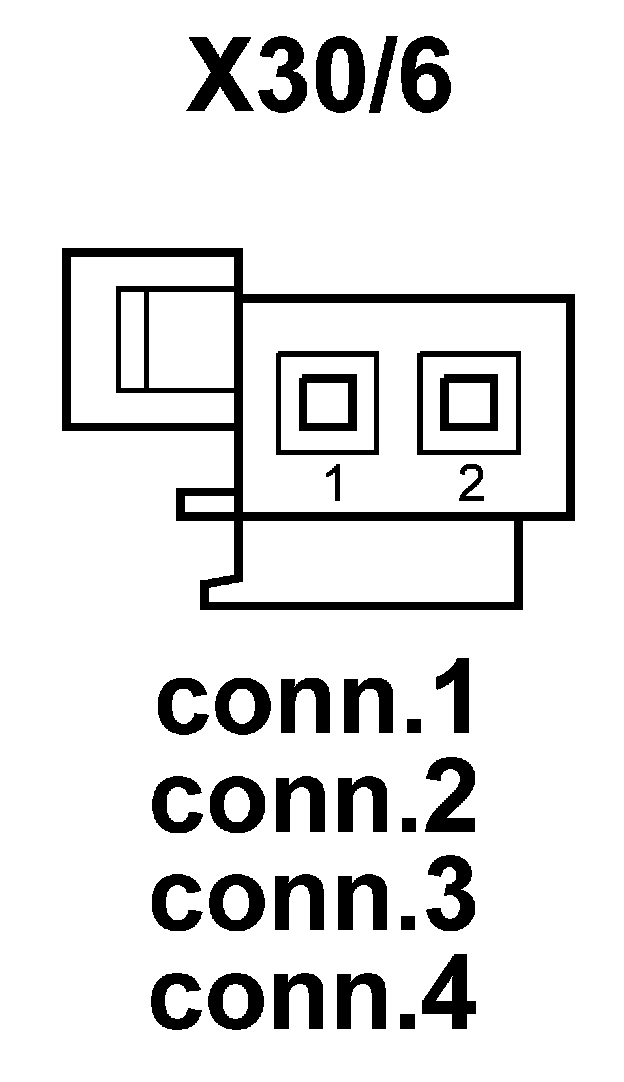

Voltage Distributor X30/6






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
