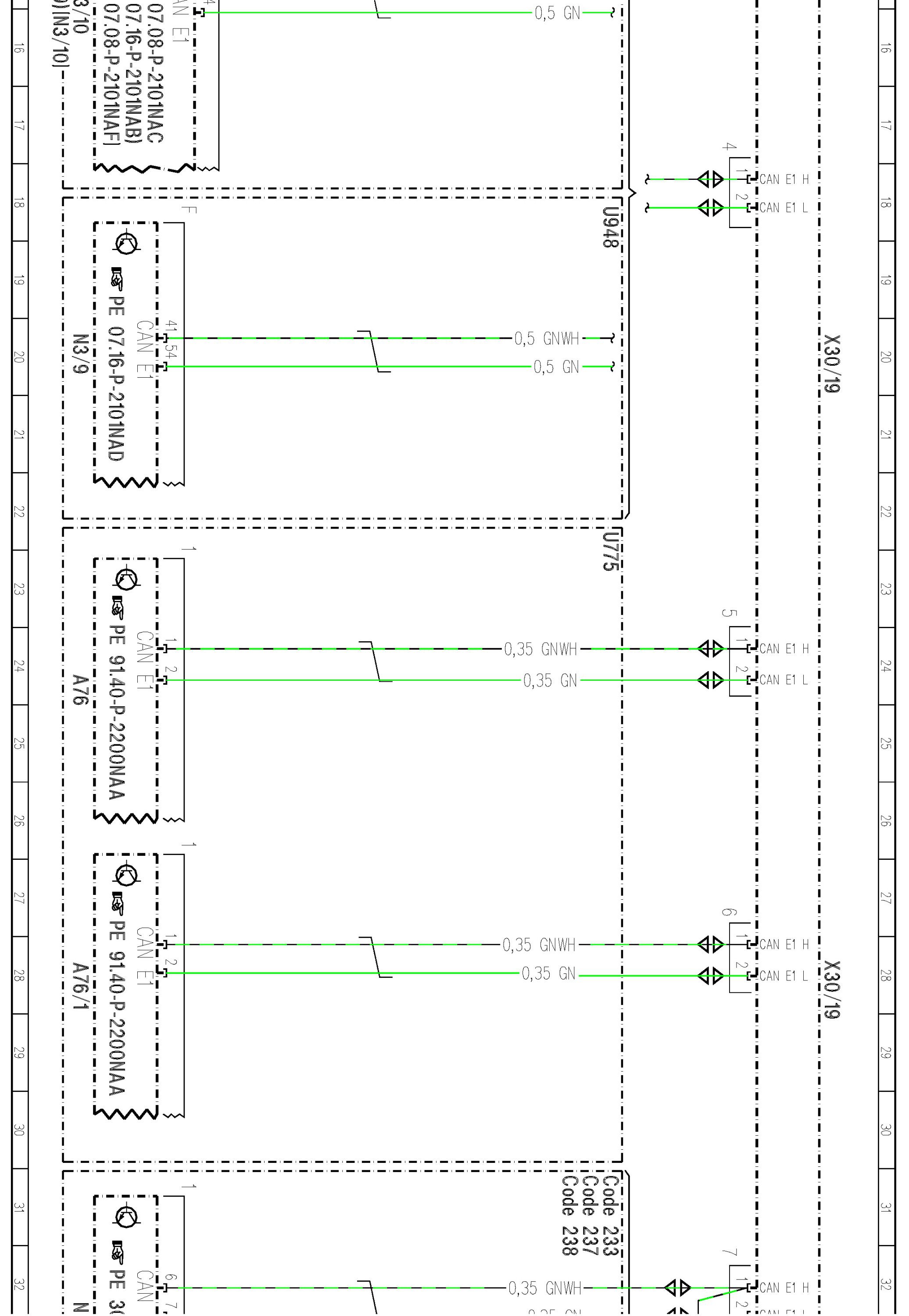

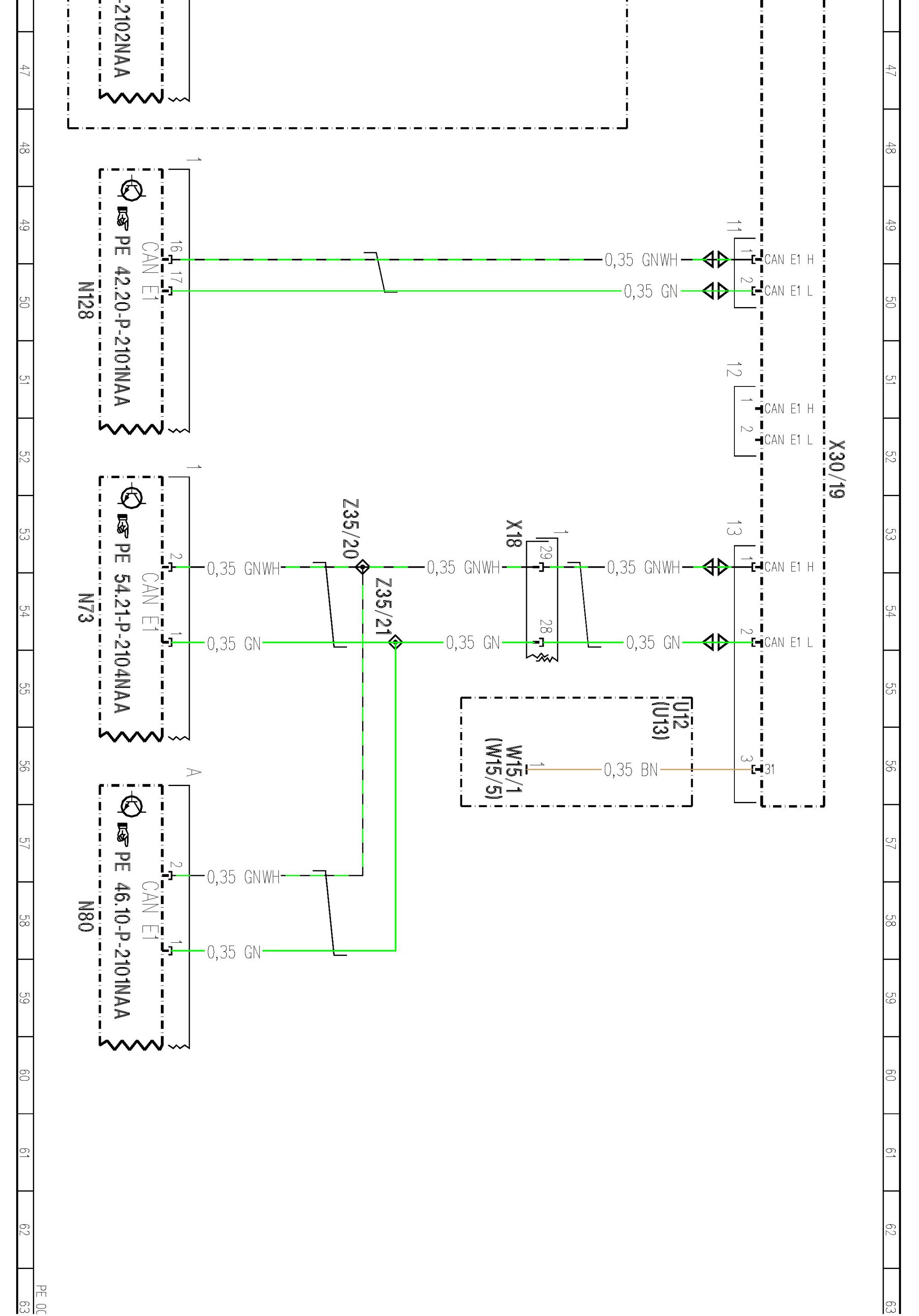

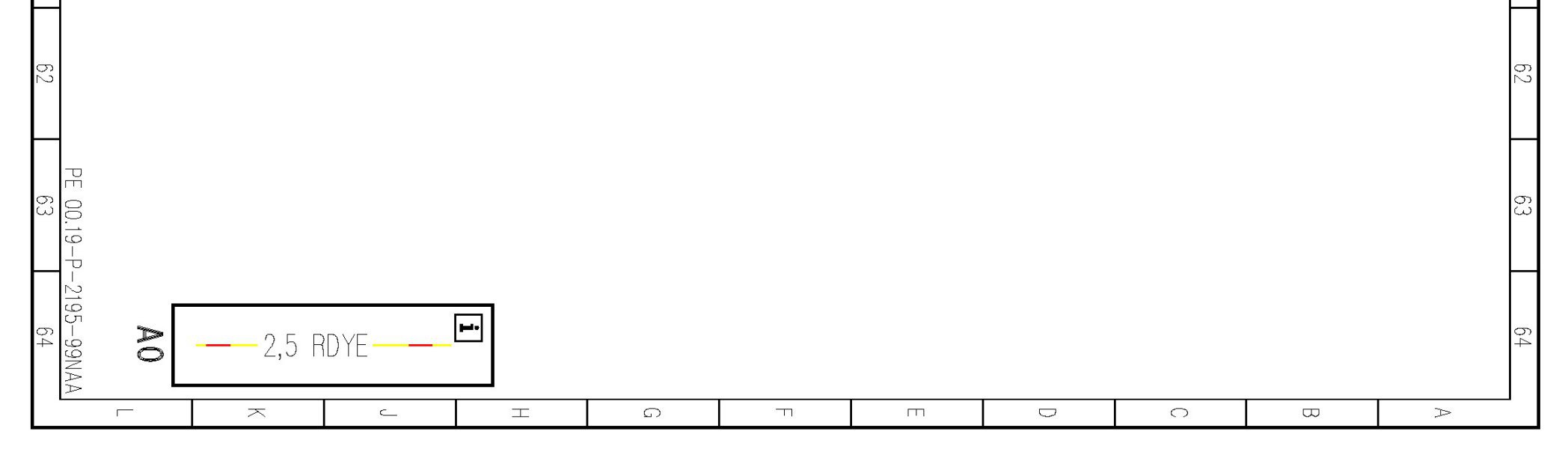

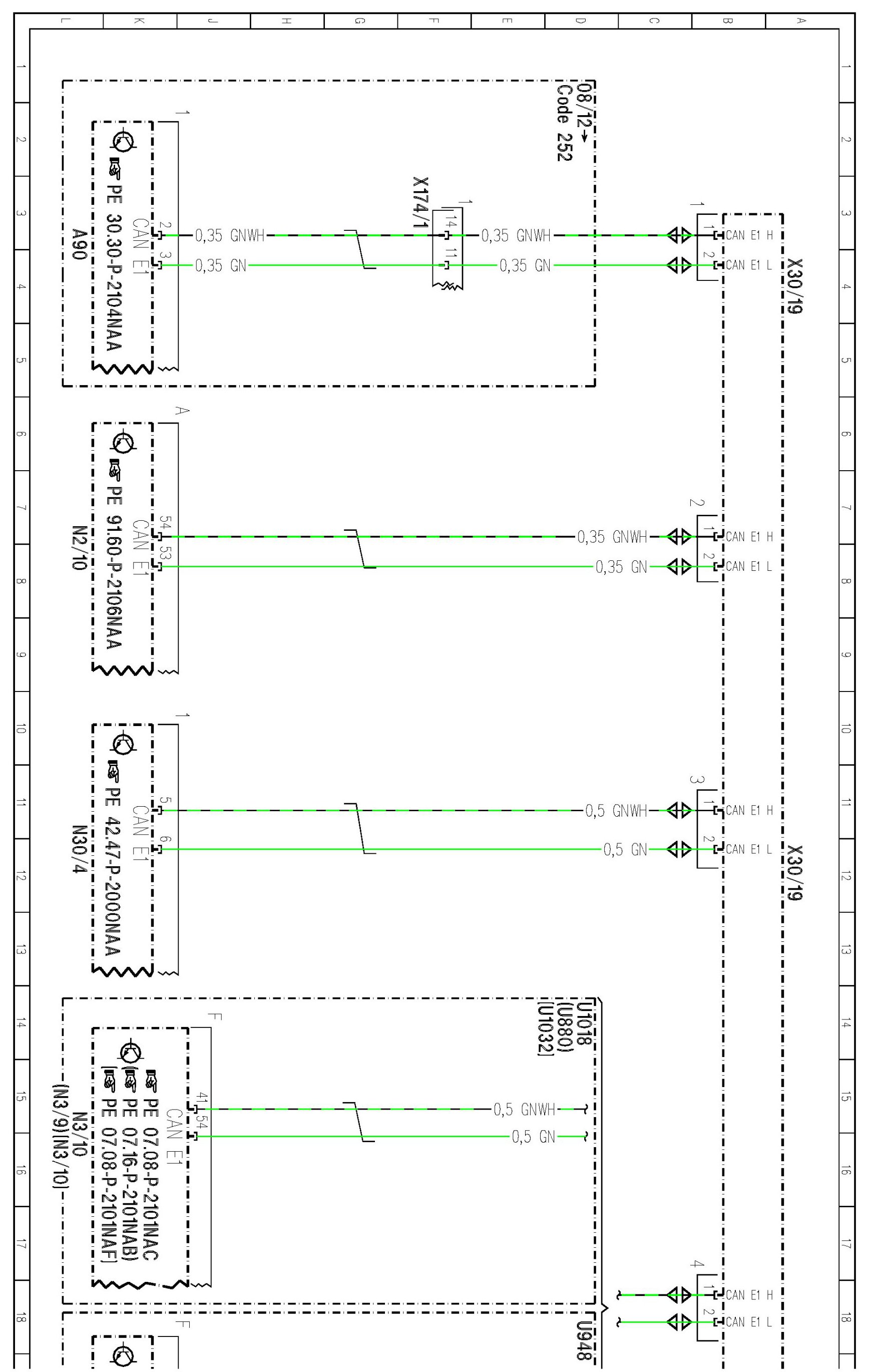

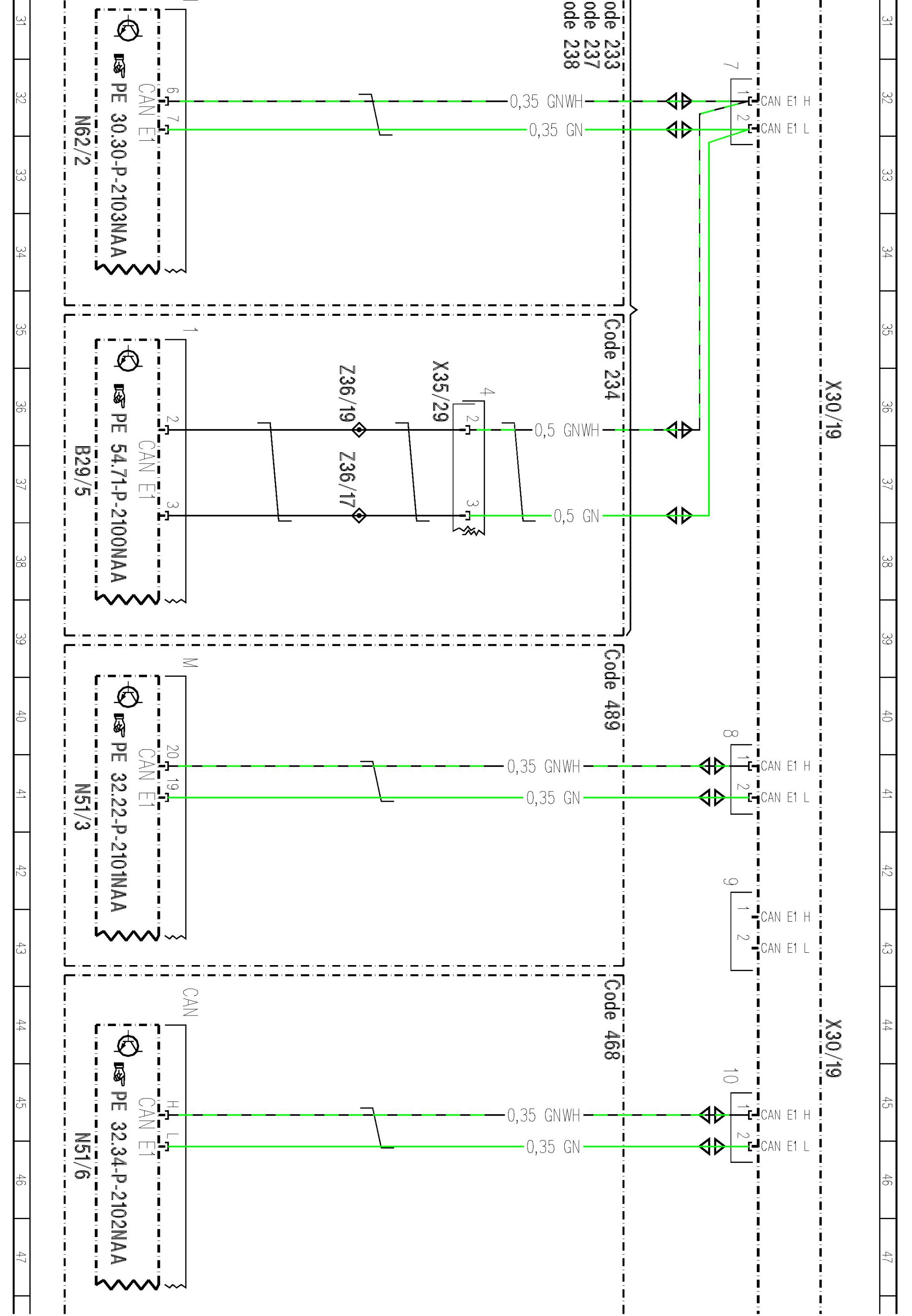

PE00.19-P-2195NAA Chassis CAN



PE00.19-P-2195NAA Chassis CAN
MODEL 166

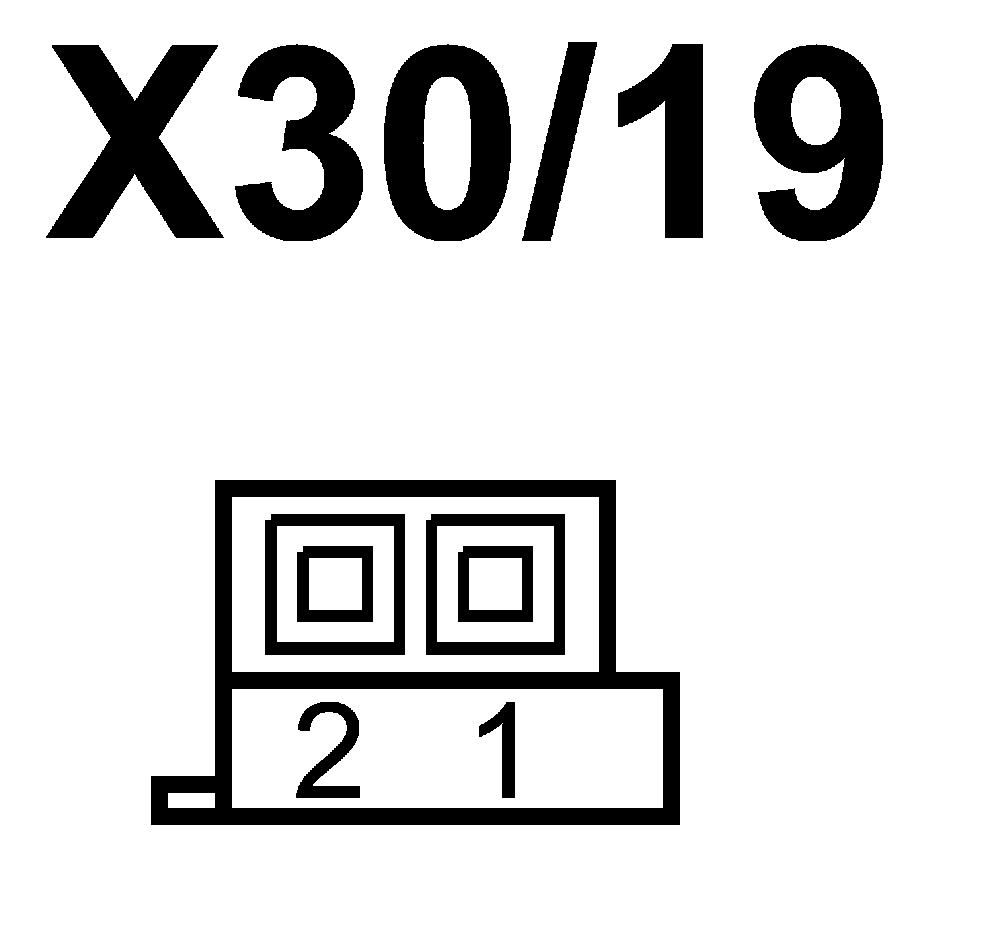

Voltage Distributor X30/19










































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
