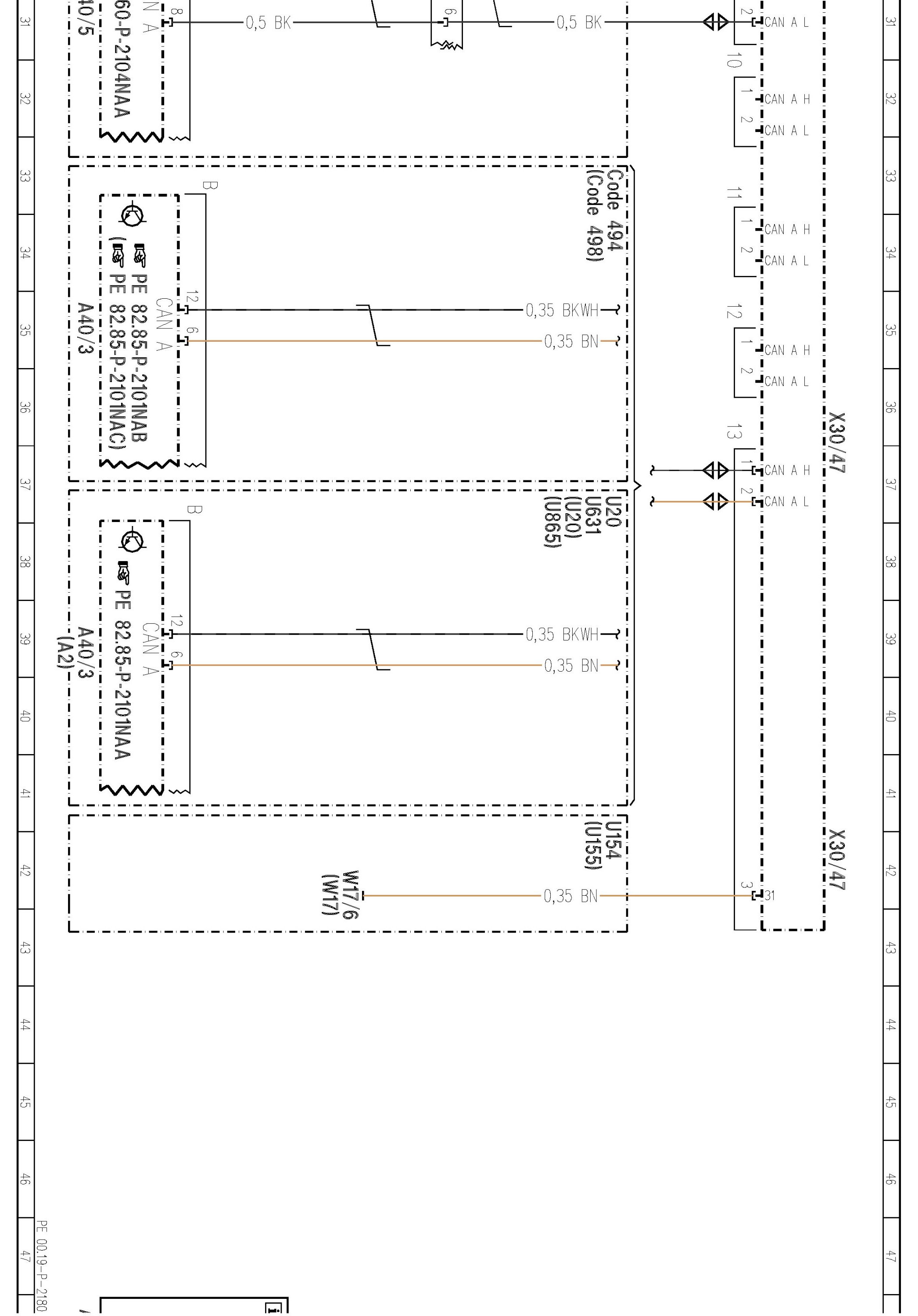

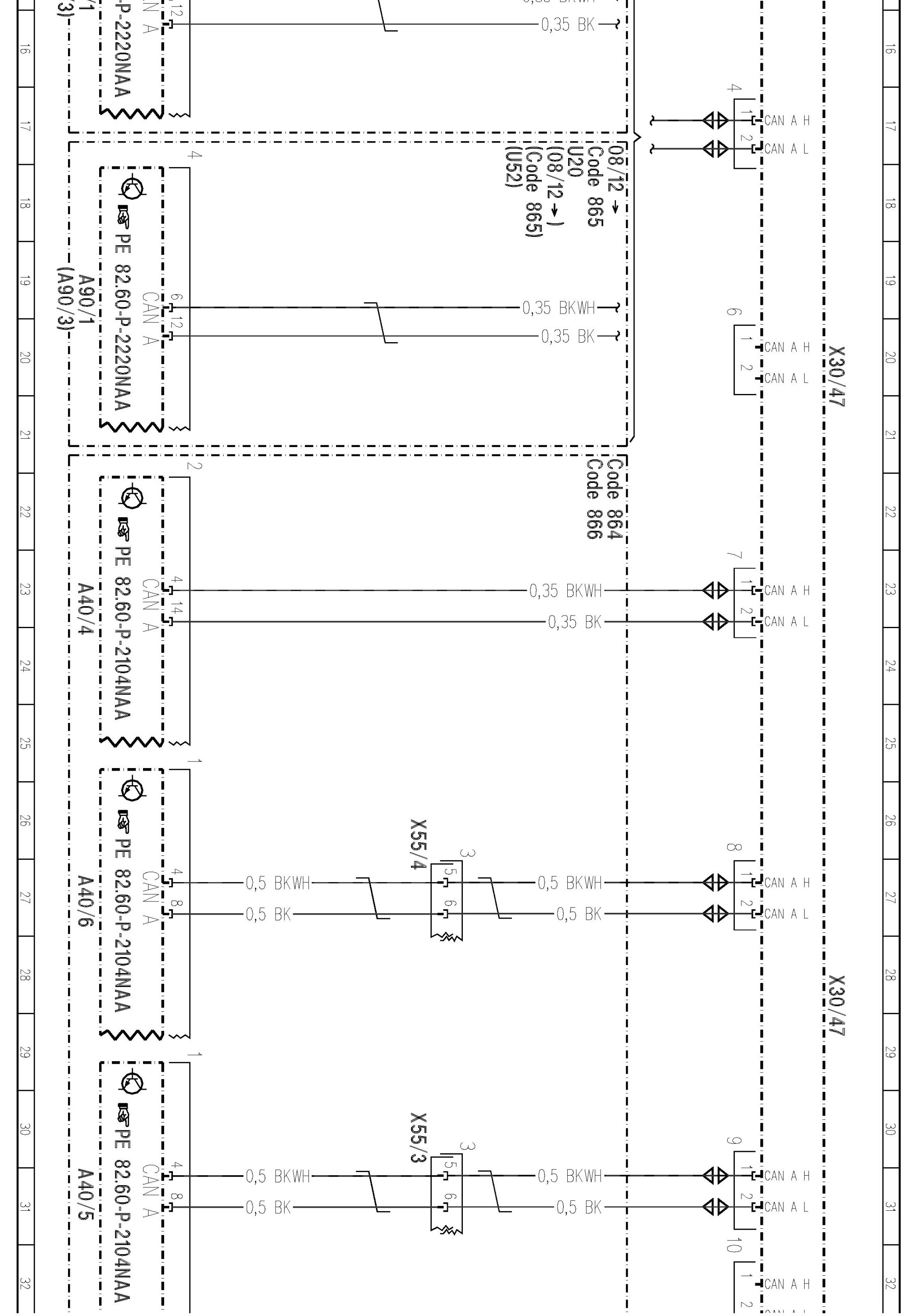

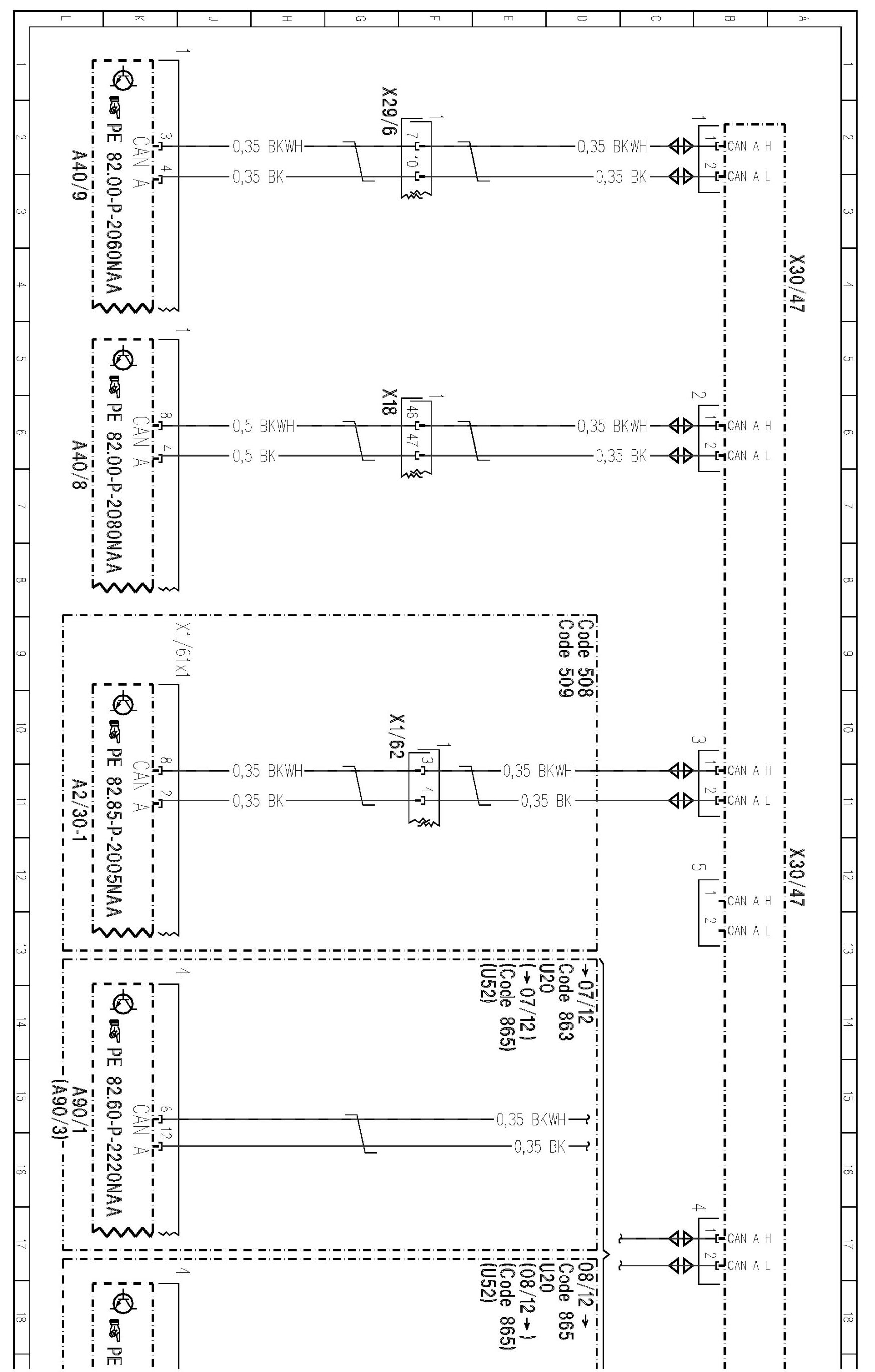

PE00.19-P-2180NAA Telematics CAN



PE00.19-P-2180NAA Telematics CAN
MODEL 166

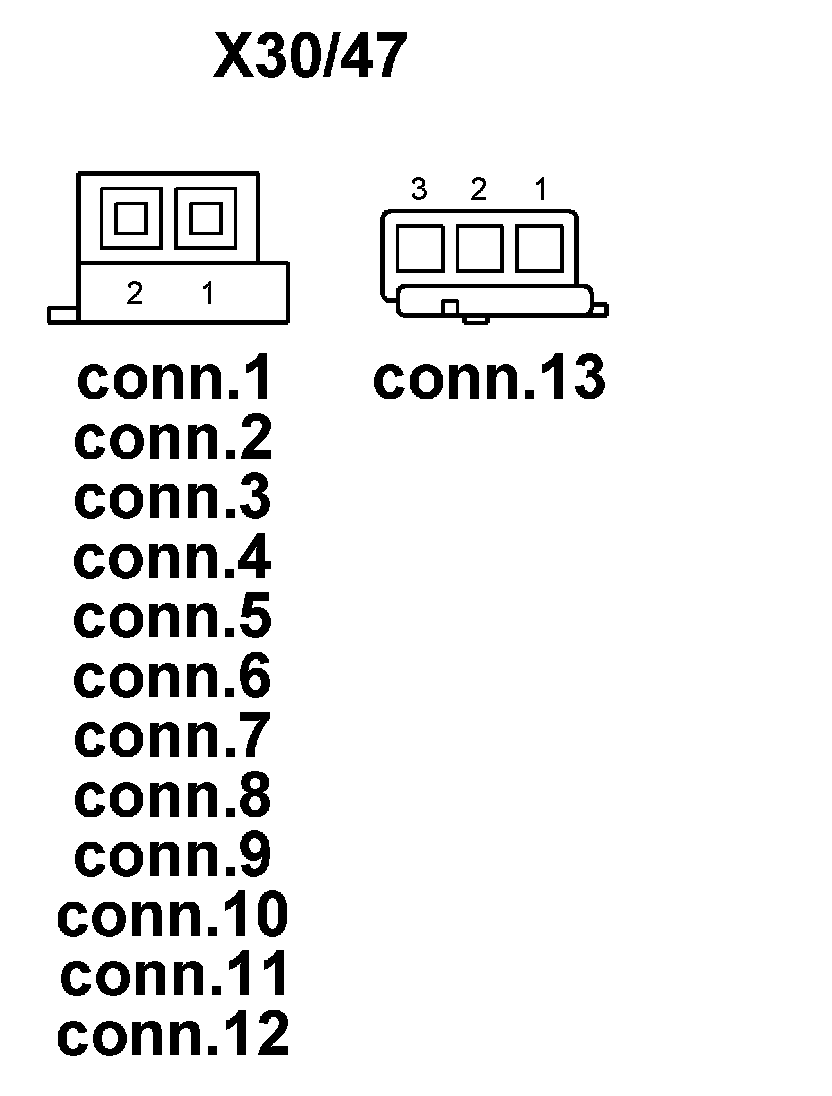

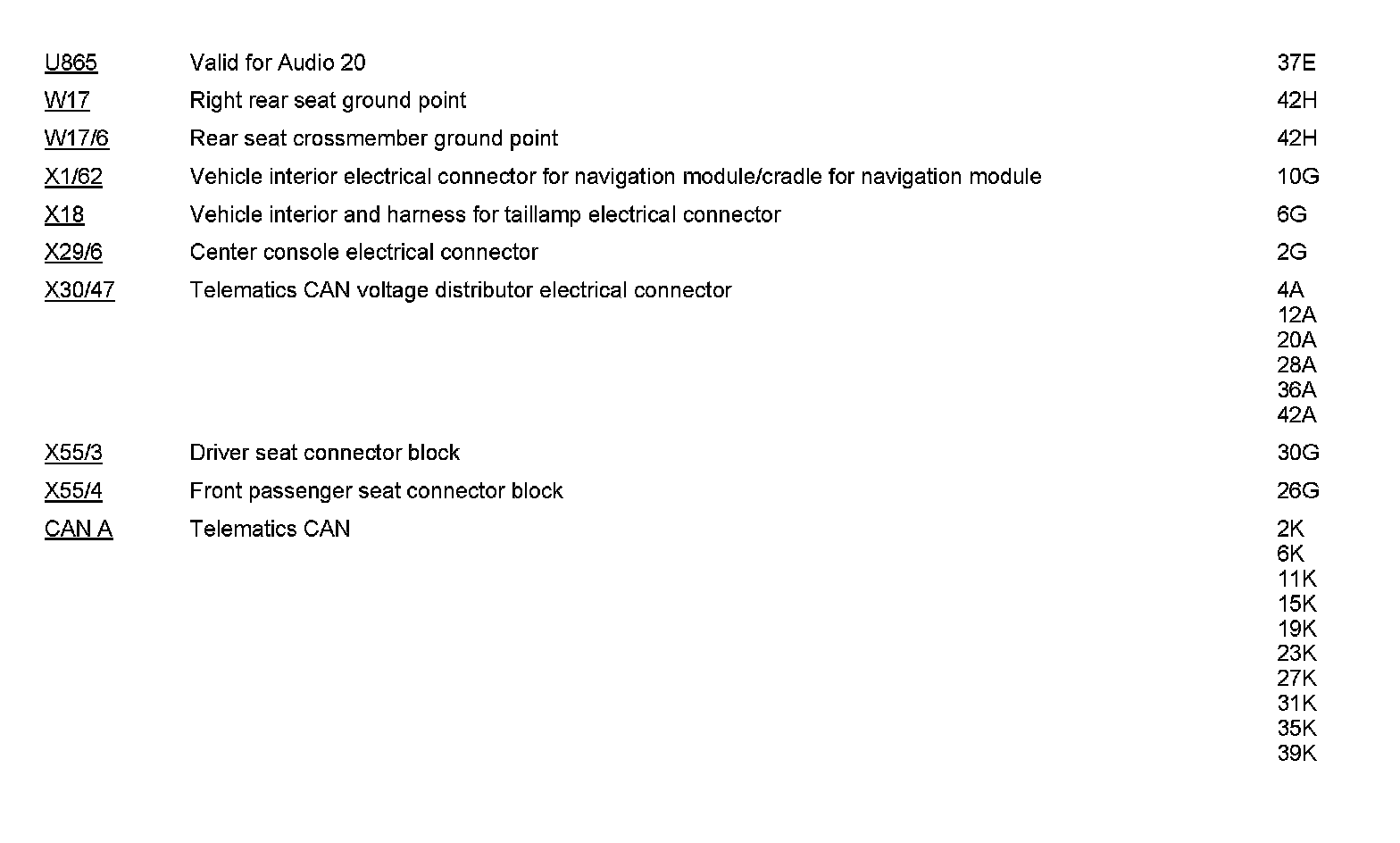

Voltage Distributor X30/47


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
