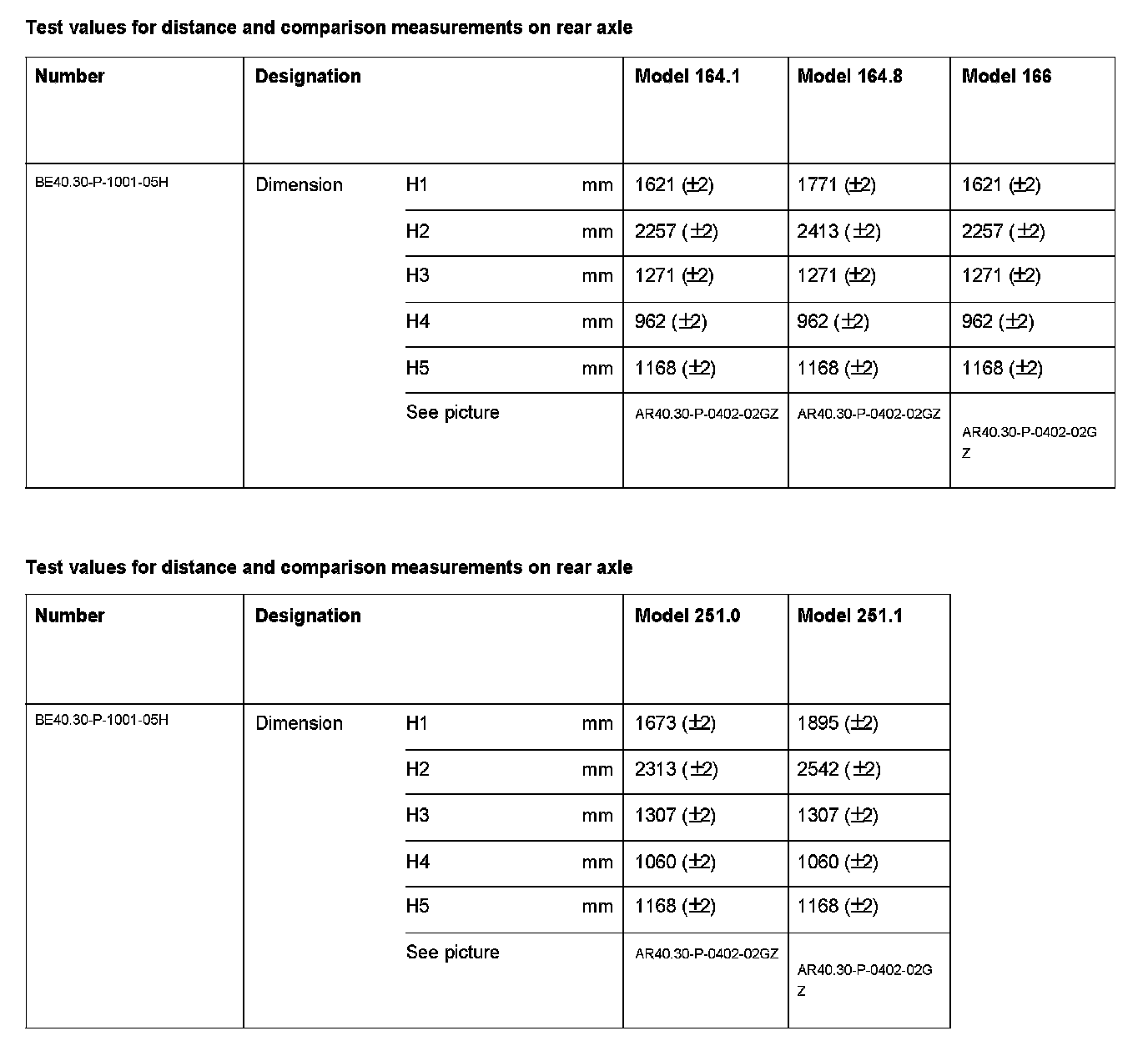

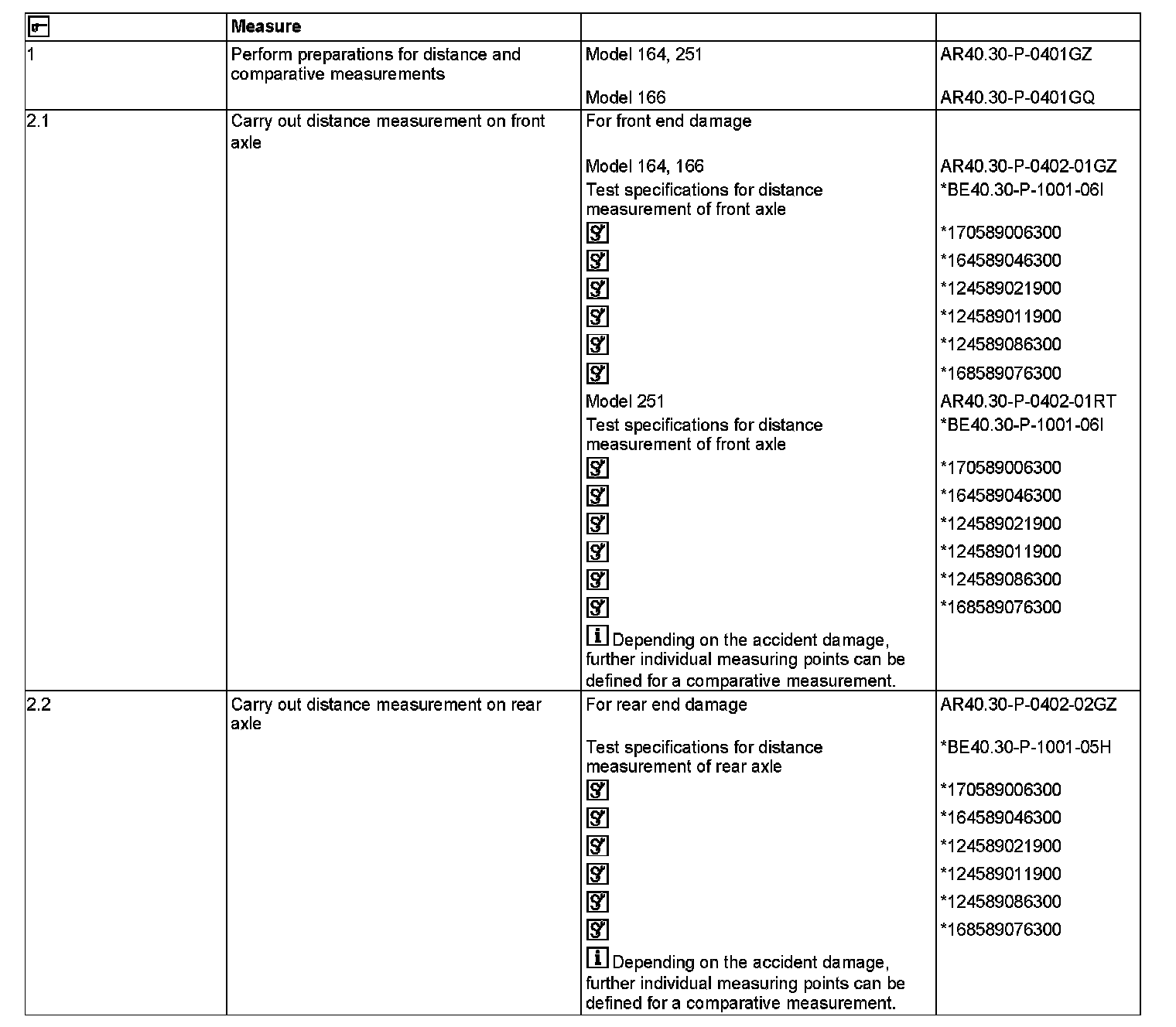

AR40.30-P-0402GZ Carry Out Distance and Comparison Measurements On Front and Rear Axles

AR40.30-P-0402GZ Carry Out Distance And Comparison Measurements On Front And Rear Axles
MODEL 164, 166, 251





Front axle, shown on model 164.1

K Reference point in cradle (centered)
"k" Check bores for the hanger (rearmost threaded holes of the two bolts on the rear engine crossmember)





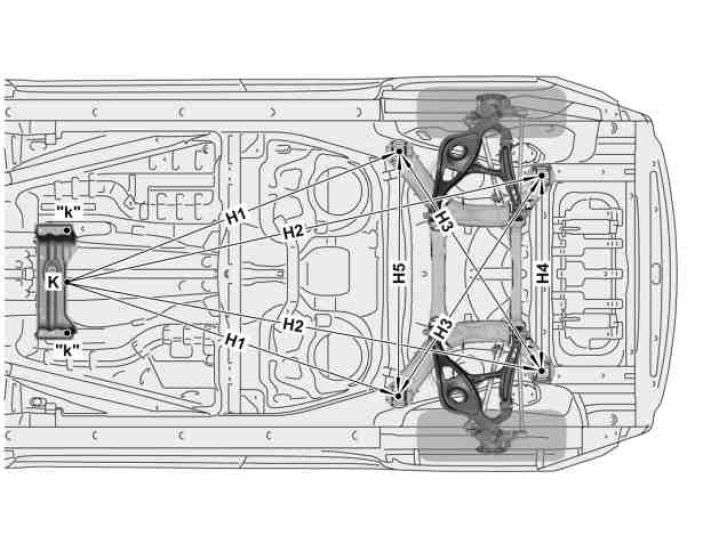

Rear axle, shown on model 164.1

K Reference point in cradle (centered)
"k" Check bores for the hanger (rearmost threaded holes of the two bolts on the rear engine crossmember)











124 589 01 19 00
Telescopic measuring rod





124 589 02 19 00
Telescopic measuring rod





170 589 00 63 00
Mount





168 589 07 63 00
Set of measurement fixtures





124 589 08 63 00
Connecting pieces





164 589 04 63 00
Retaining tube
