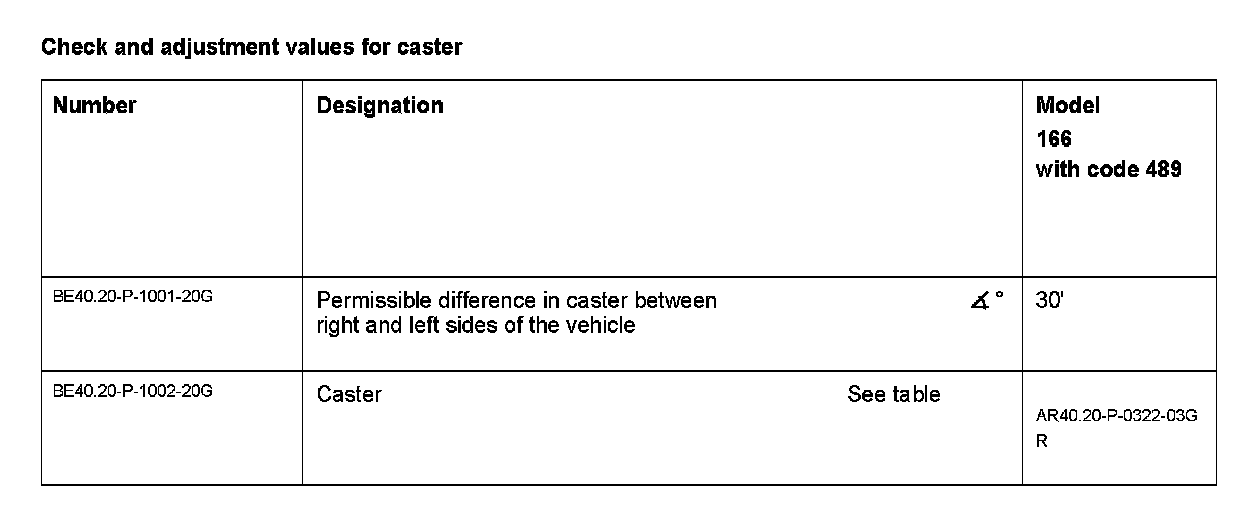

AR40.20-P-0322-03GR Check Caster, Match With Value In Table

AR40.20-P-0322-03GR Check Caster, Match With Value In Table








Tolerance for caster ± 30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].

RA Rear axle level value
FA Front axle level value

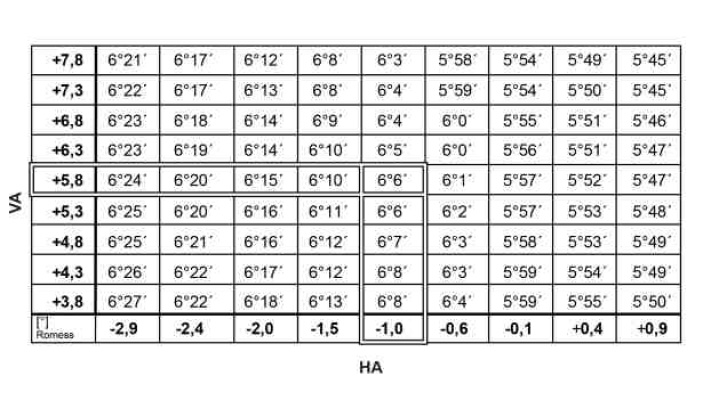

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

Example, see Table:

Front axle level value (FA): +5.8°
Rear axle level value (RA): -1.0°
= Caster value 6° 6' (± 30')
