AR40.20-P-0322-03GQ Check Caster, Match With Value In Table

AR40.20-P-0322-03GQ Check Caster, Match With Value In Table








Tolerance for caster ± 30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].

RA Rear axle level value
FA Front axle level value

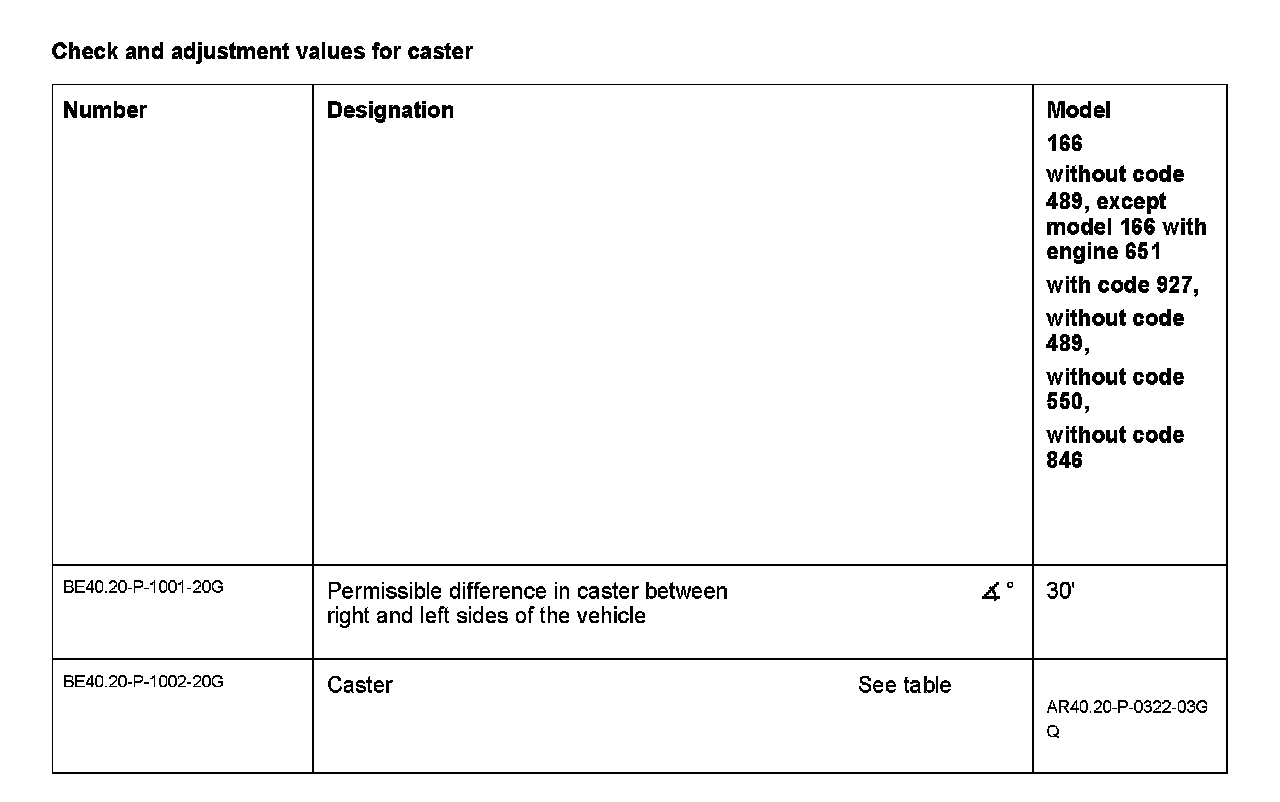

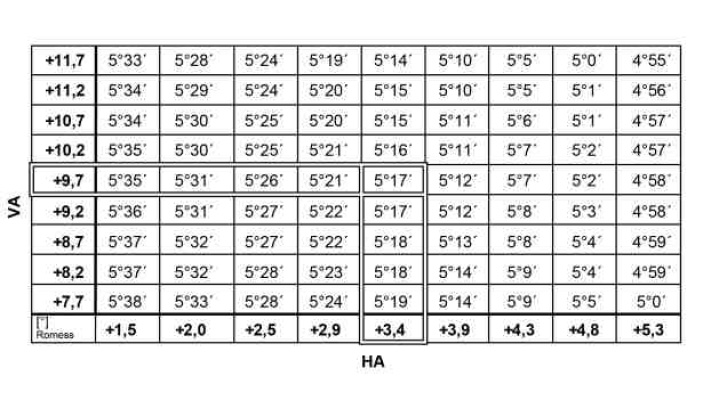

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously

Example, see Table:

Front axle level value (FA): +9.7°
Rear axle level value (RA): +3.4°
= Caster value 5° 17' (± 30')
