AR40.20-P-0301GQ Check Vehicle Level at Front and Rear Axle With Electronic Inclinometer, Adjust If Necessary

AR40.20-P-0301GQ Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary
MODEL 166

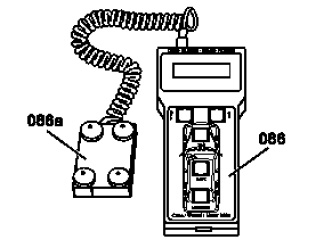

086 Inclinometer
086a Measuring sensor

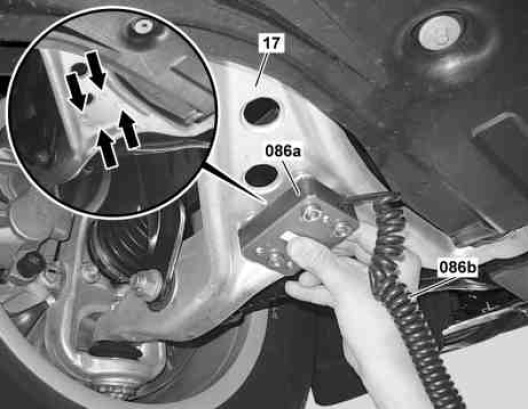

Shown on measuring point 1 for left front lower control arm

086a Measuring sensor
086b Measuring sensor connecting cable
17 Front axle lower control arm

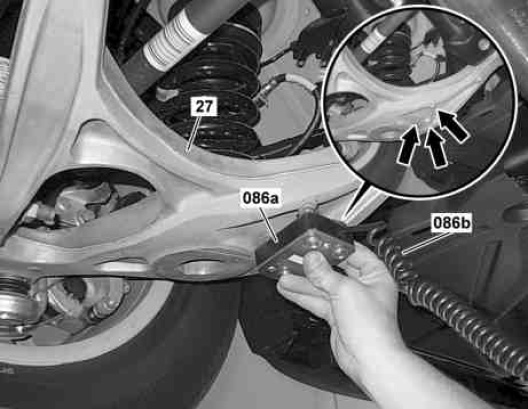

Shown on measuring point 3 for left rear lower control arm

086a Measuring sensor
086b Measuring sensor connecting cable
27 Rear axle lower control arm
