AR40.20-P-0263GQ Adjust Camber and Caster at the Front Axle

AR40.20-P-0263GQ Adjust Camber And Caster At The Front Axle
MODEL 166

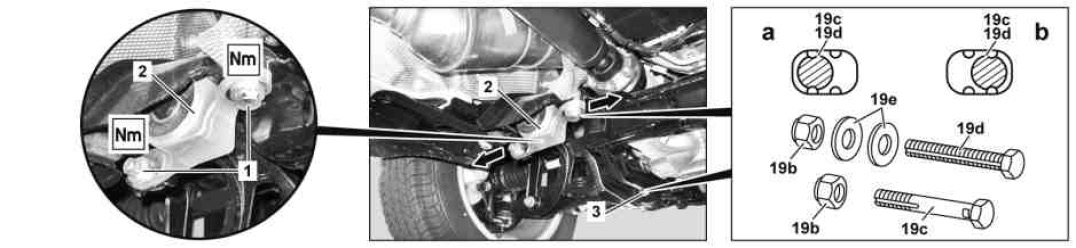

Shown on left front-axle half, model 164

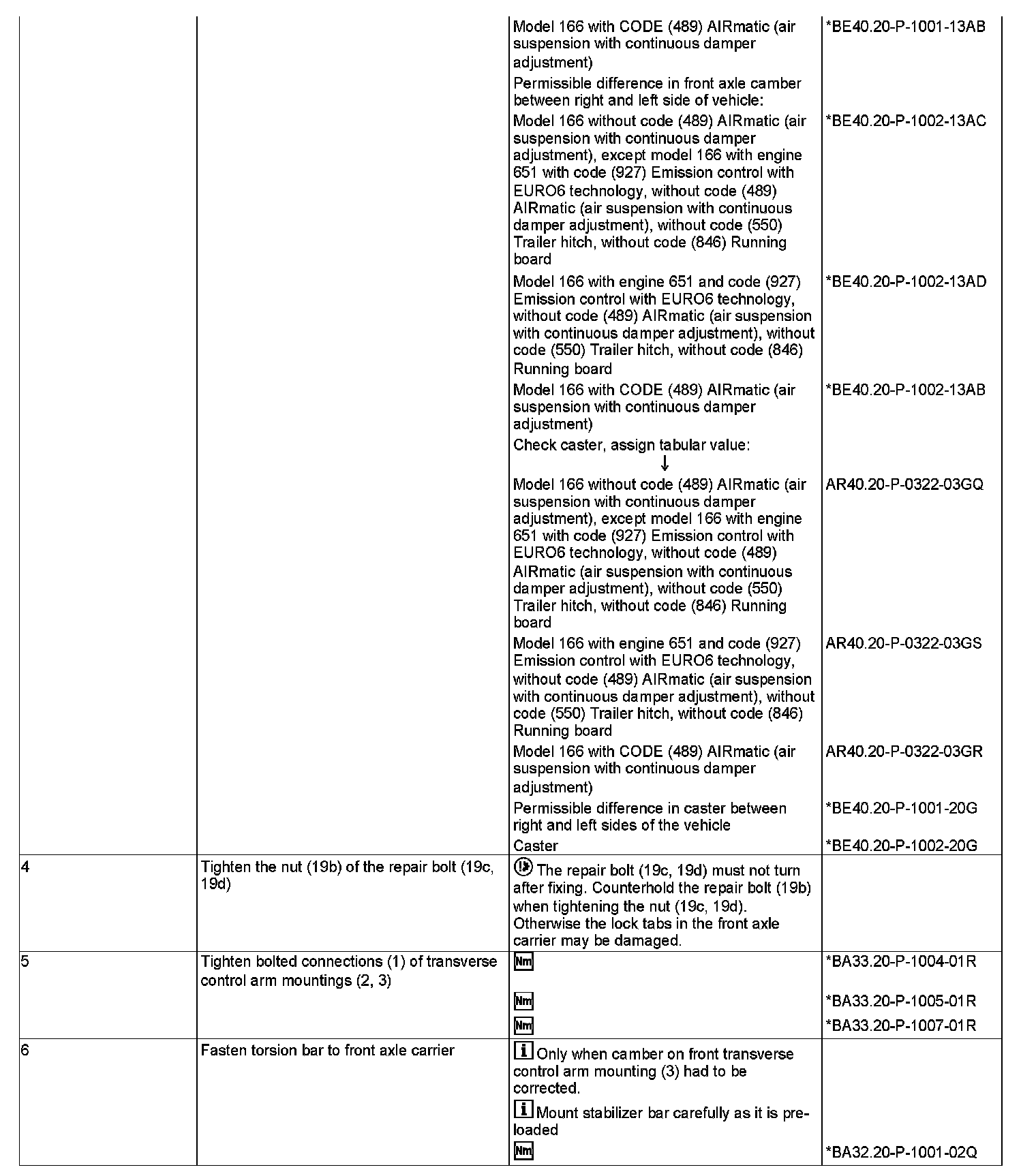

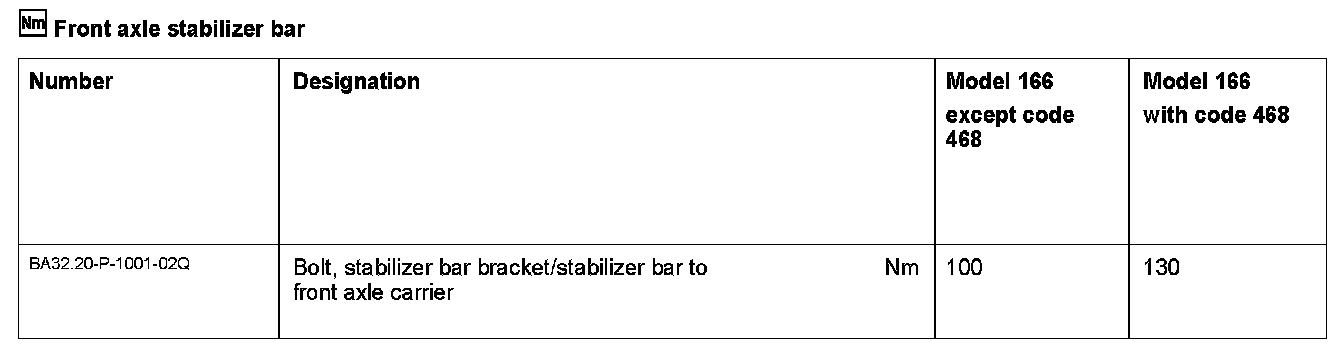

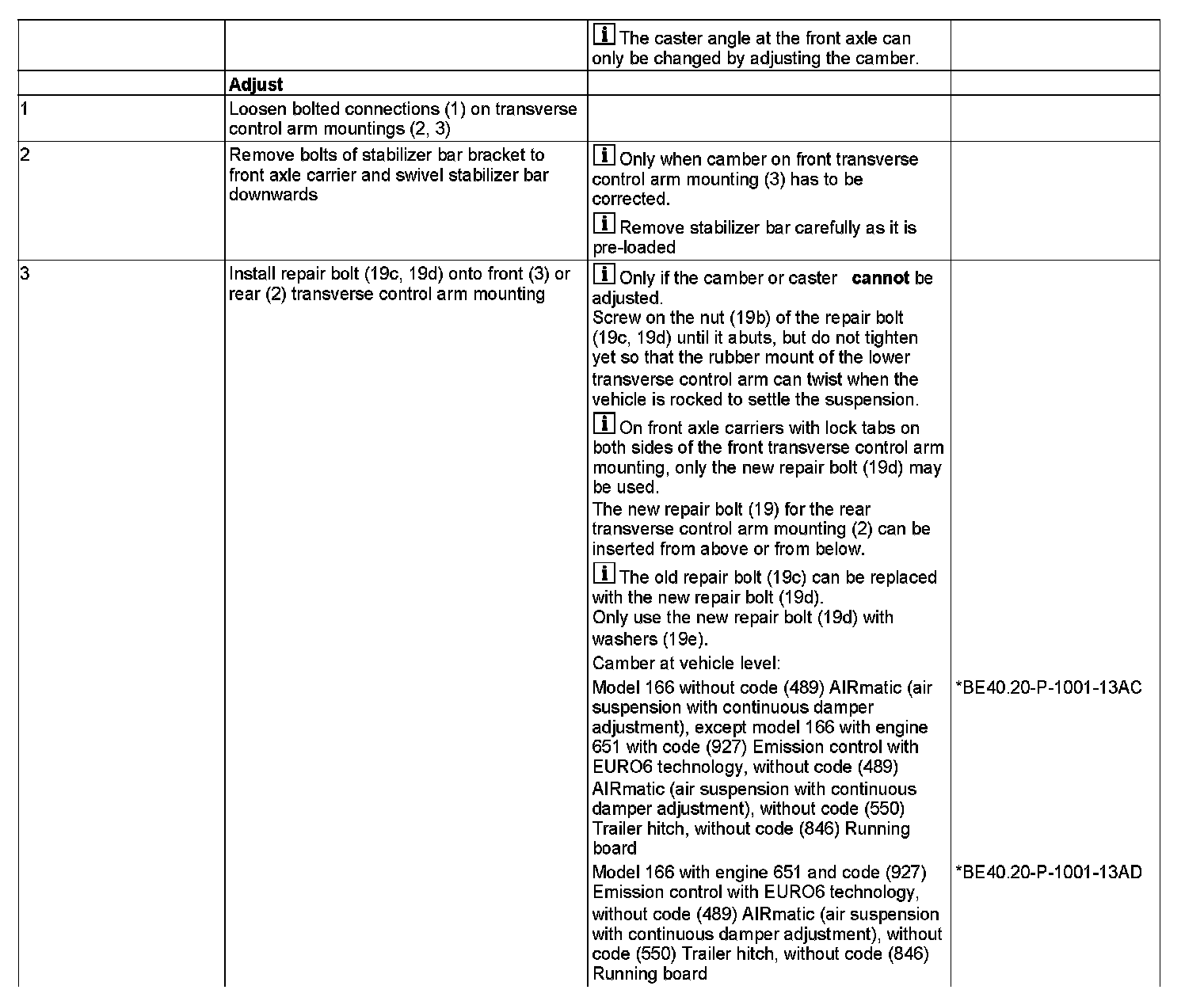

1 Bolted connections
2 Rear transverse control arm mounting
3 Front transverse control arm mounting
19b Nut
19c Old repair bolt
19d New repair bolt
19e Disks

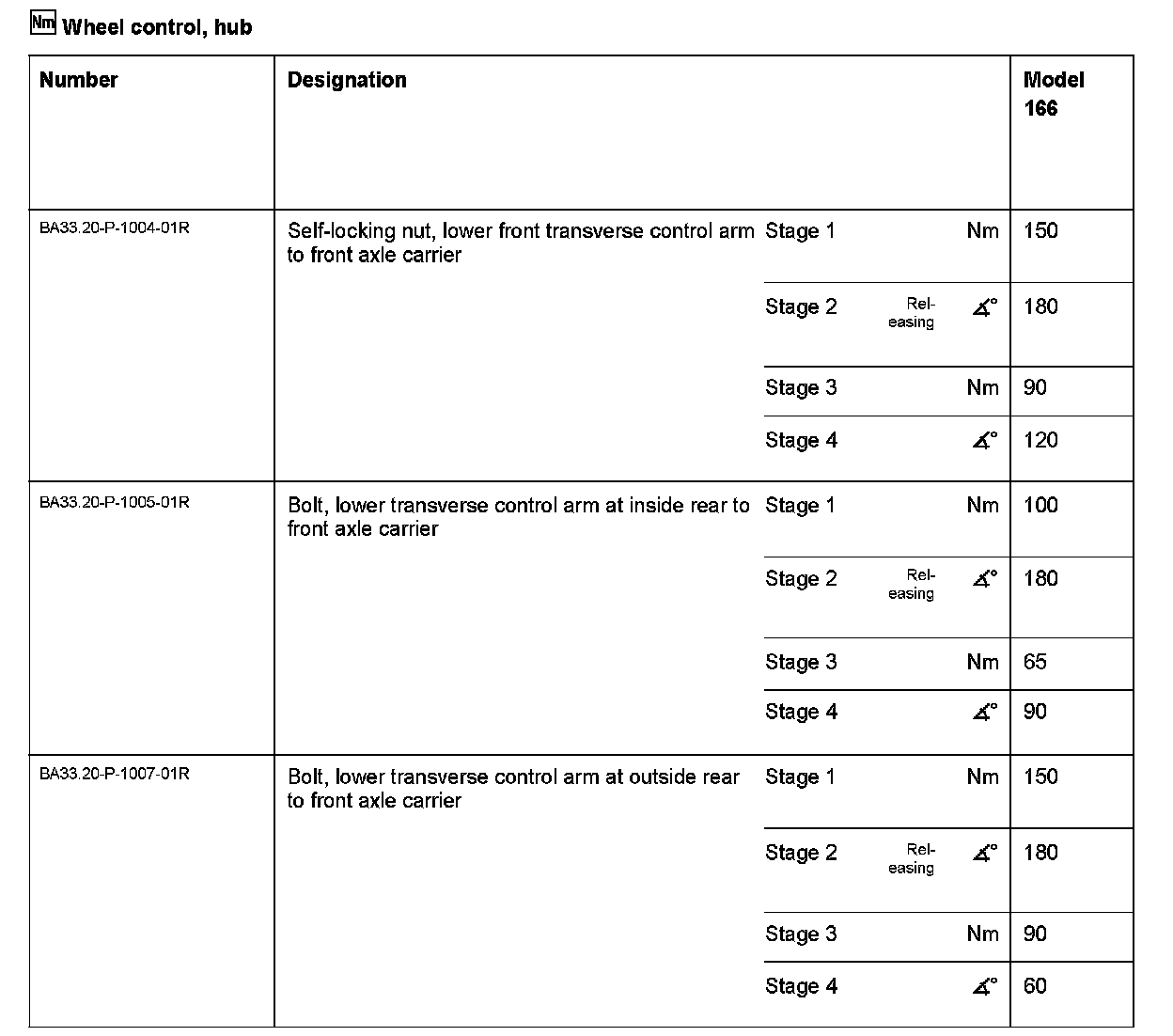

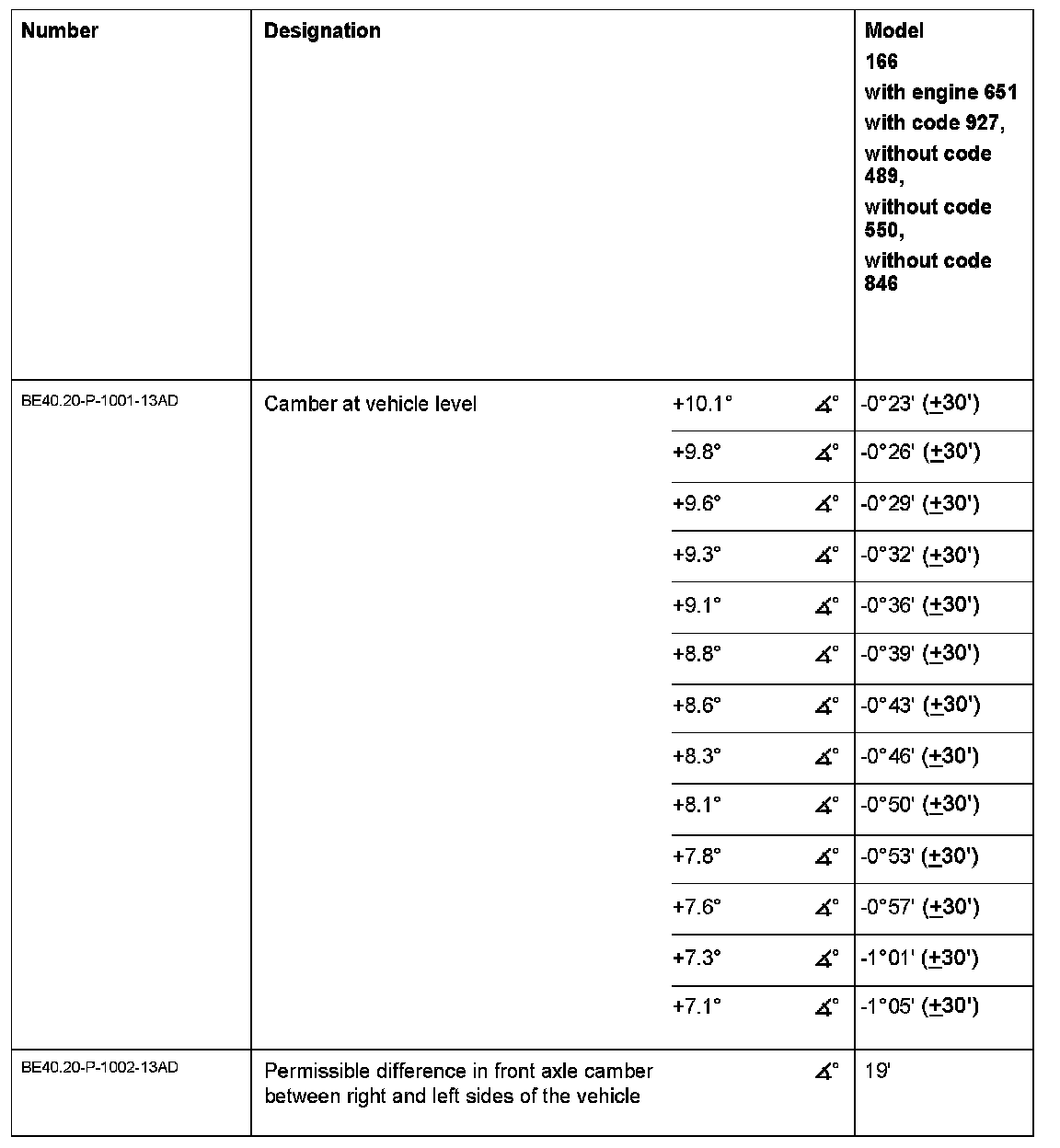

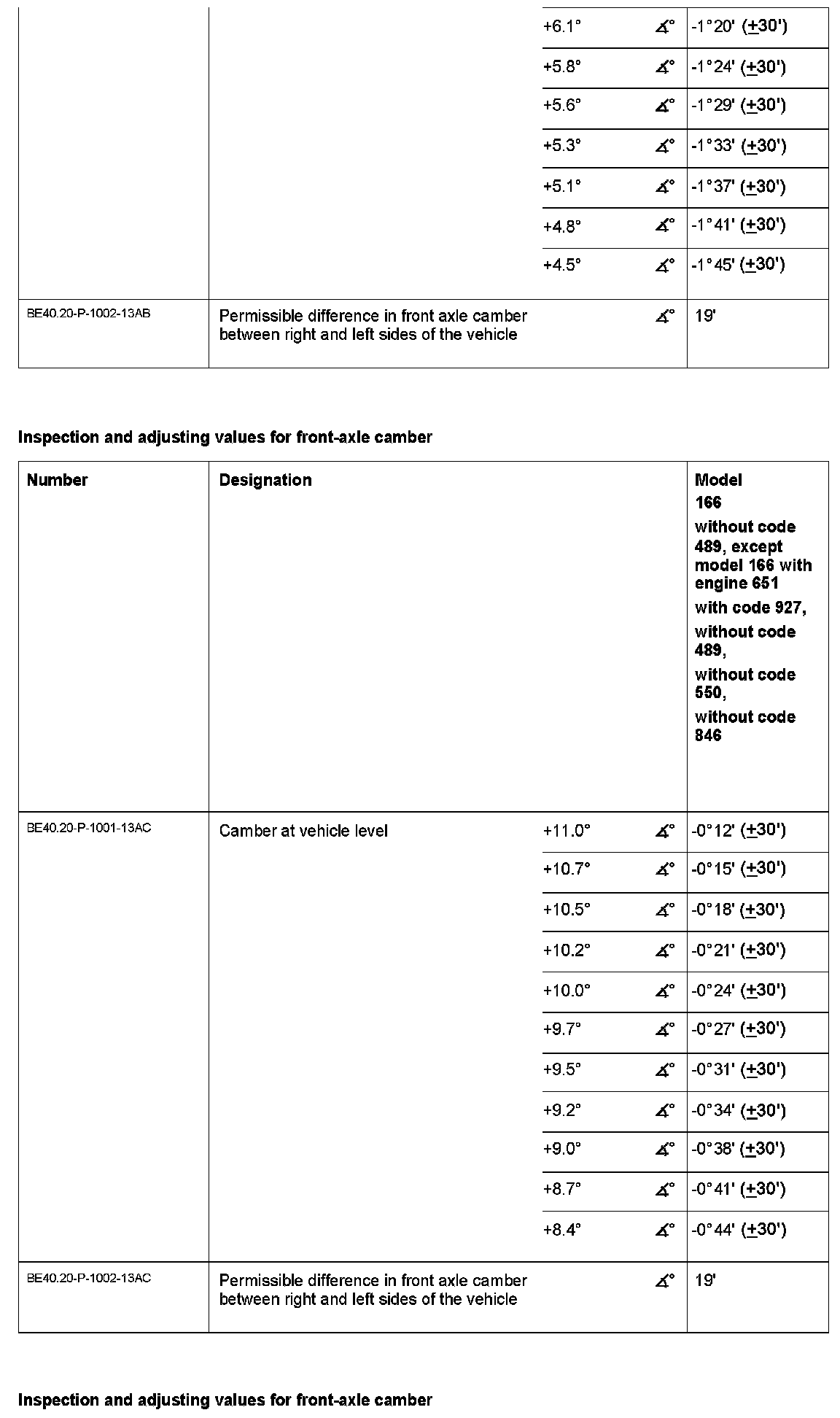

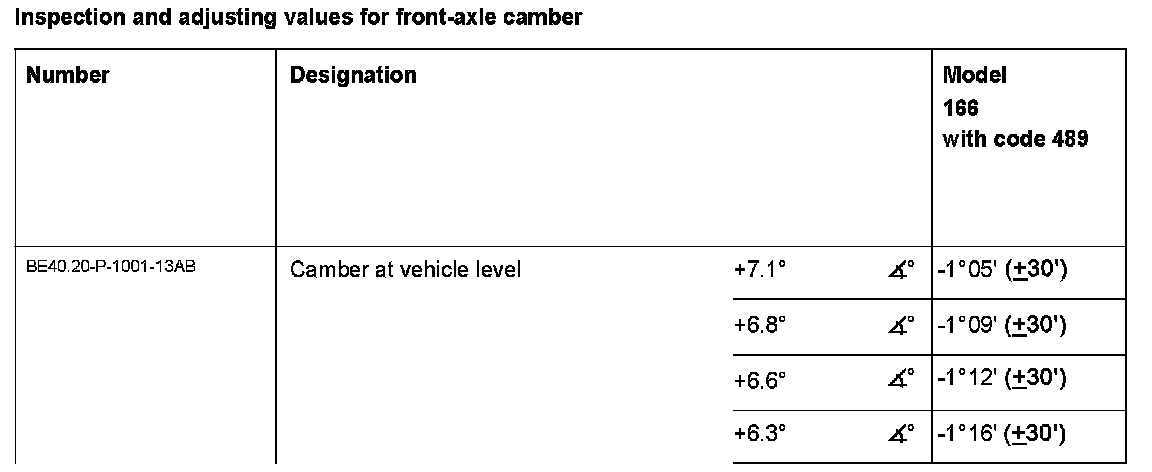

a The adjustment at the front of the lower transverse control arm towards the vehicle center causes a positive camber change.

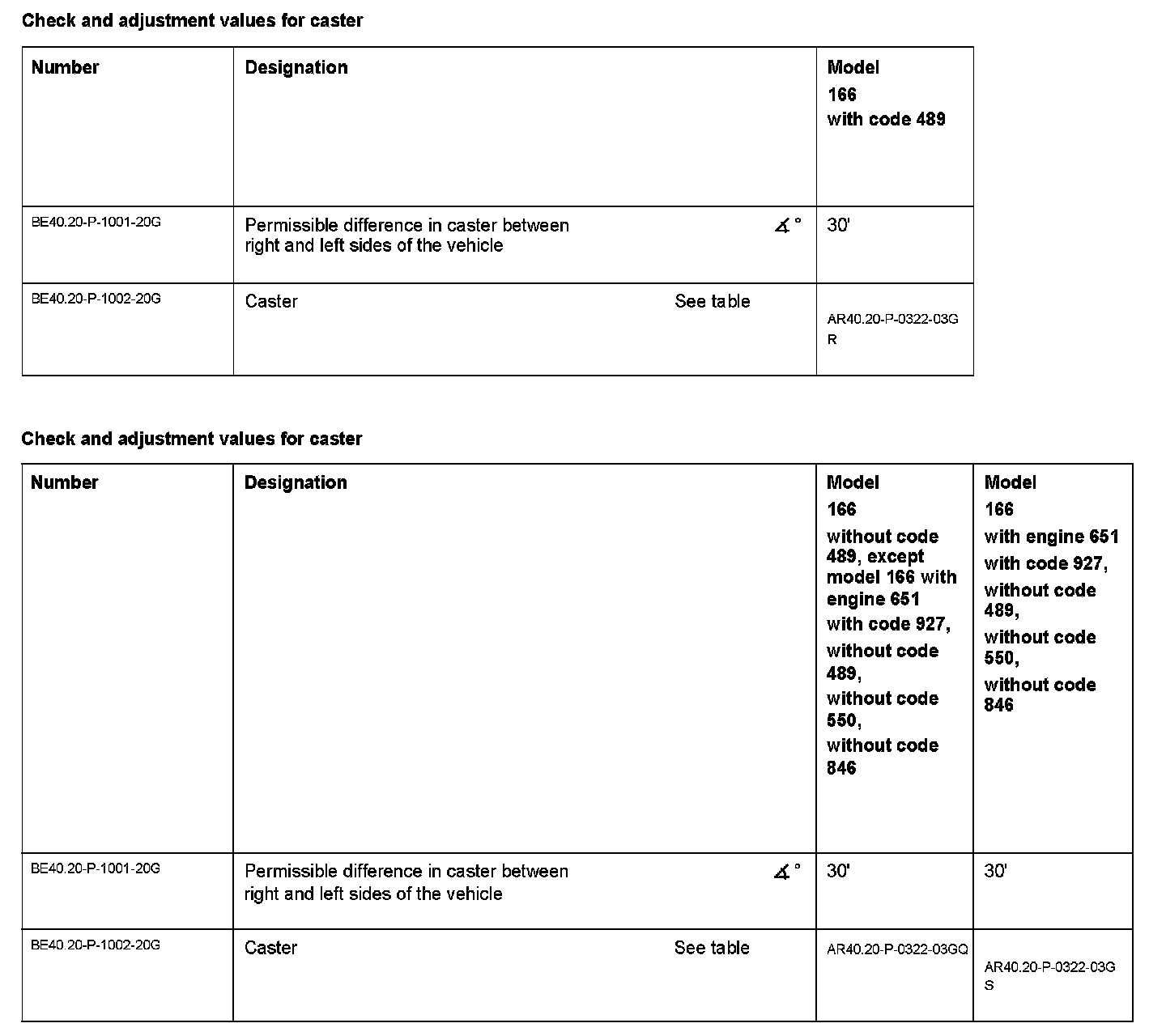

The adjustment at the rear of the lower transverse control arm towards the vehicle center causes a reduction in caster.
b The adjustment at the front of the lower transverse control arm towards the outside of the vehicle causes a negative camber change. The adjustment at the rear of the lower transverse control arm towards outside of the vehicle causes an increase in caster.
