AR40.20-P-0262GQ Correct Rear Wheel Camber




AR40.20-P-0262GQ Correct Rear Wheel Camber
MODEL 166

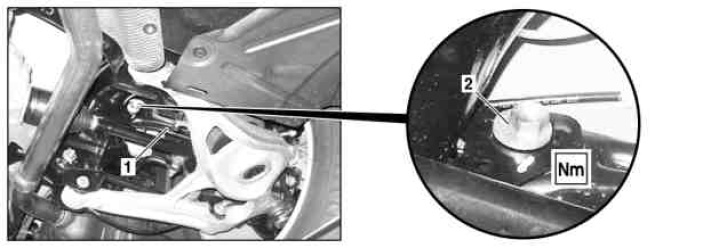

Shown on left rear axle half, model 164

1 Camber strut
2 Cam bolt
