AR40.20-P-0261GQ Adjust Rear-Axle Toe




AR40.20-P-0261GQ Adjust Rear-Axle Toe
MODEL 166





Shown on left rear axle half, model 164

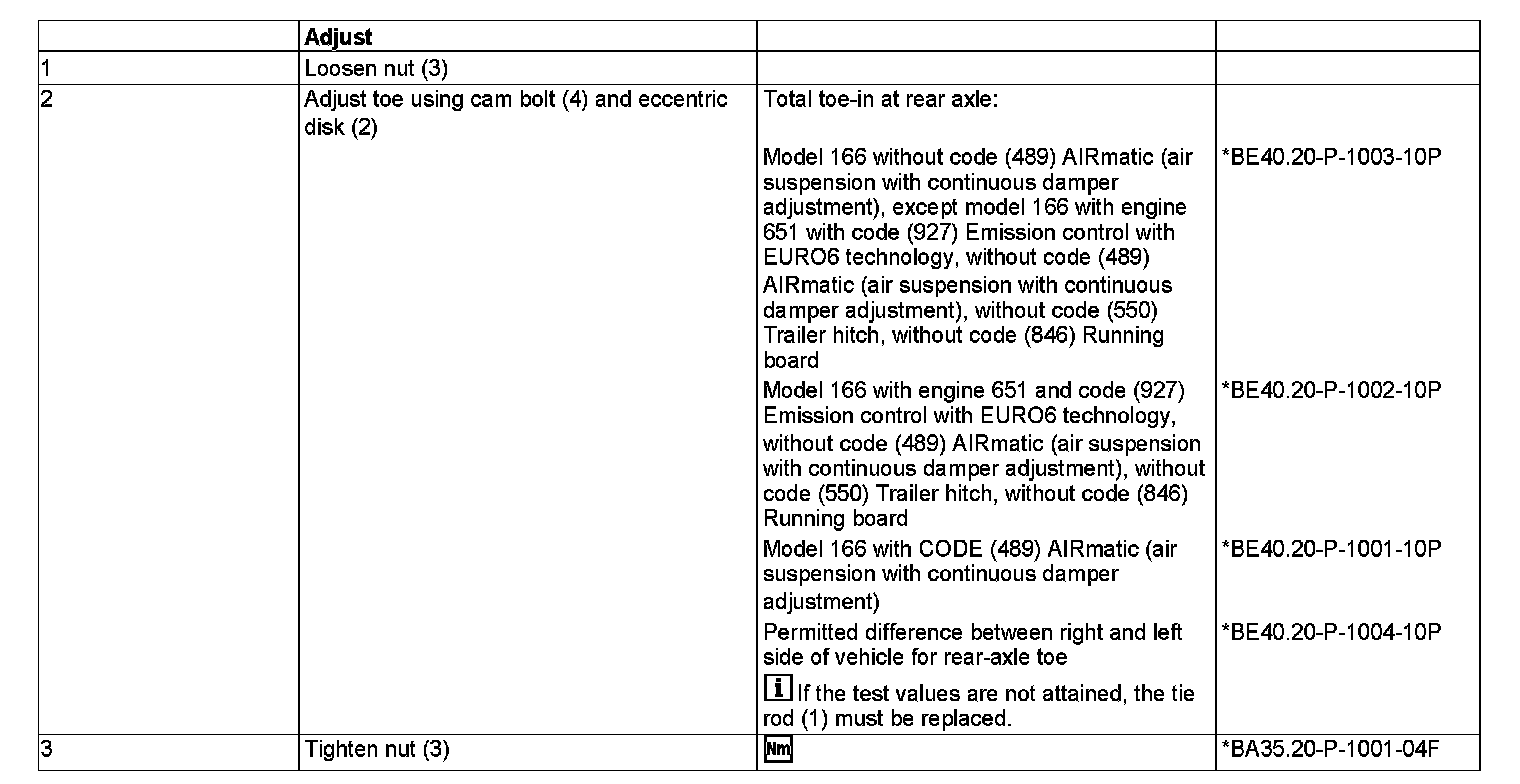

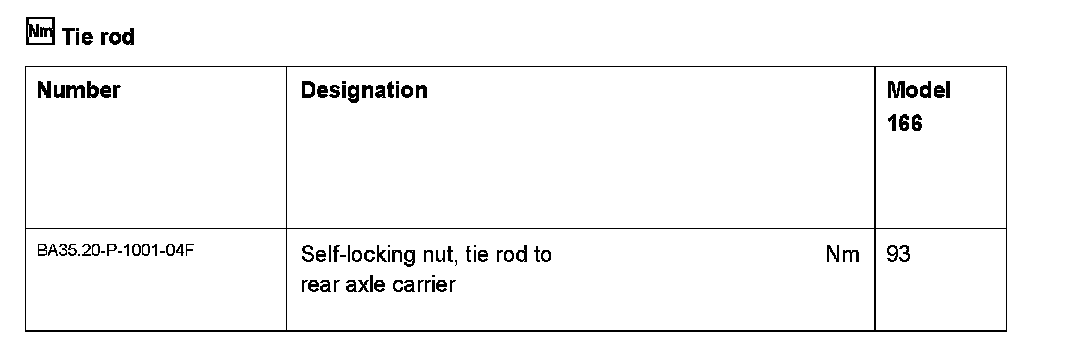

1 Tie rod
2 Eccentric disk
3 Nut
4 Cam bolt
