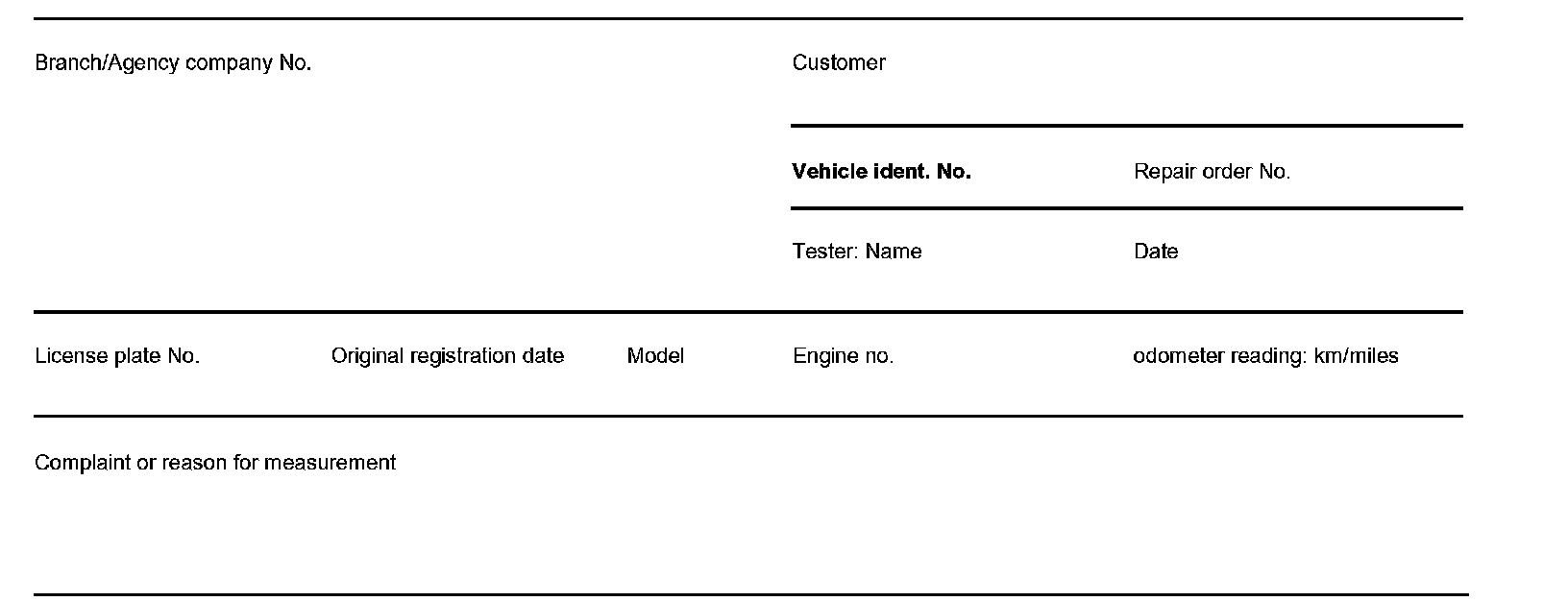

OF41.10-P-3000-01B Data Sheet For Measuring Articulation Angle, Form

OF41.10-P-3000-01B Data Sheet For Measuring Articulation Angle, Form








Shown on model 164.1 without Offroad package, code 430

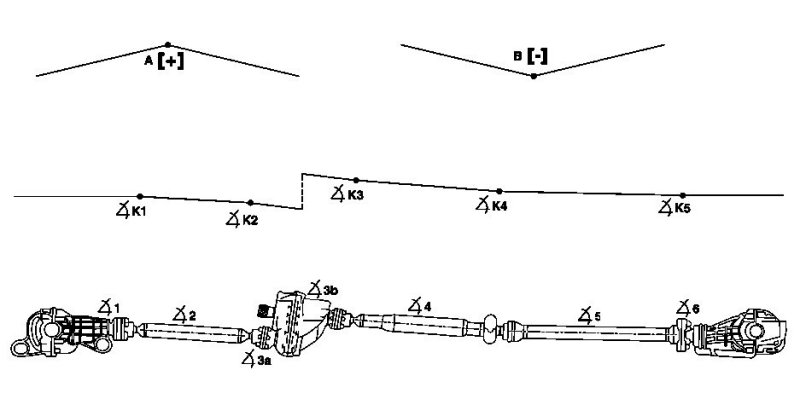

A[+] Positive articulation angle
B[-] Negative articulation angle

1 Absolute angle on flange of front axle gear
2 Absolute angle of front propeller shaft
3a Absolute angle on front flange of transfer case

Absolute angle on rear flange of transfer case
4 Absolute angle of rear propeller shaft at front
5 Absolute angle of rear propeller shaft at rear
6 Absolute angle on flange of rear axle center assembly

K1 Articulation angle of front axle gear relative to front propeller shaft
K2 Articulation angle of front propeller shaft relative to transfer case
K3 Articulation angle of transfer case relative to rear propeller shaft at front
K4 Articulation angle of rear propeller shaft at front relative to rear propeller shaft at rear
K5 Articulation angle of rear propeller shaft at rear relative to rear axle center assembly
