Fog/Driving Lamp Bulb: Service and Repair

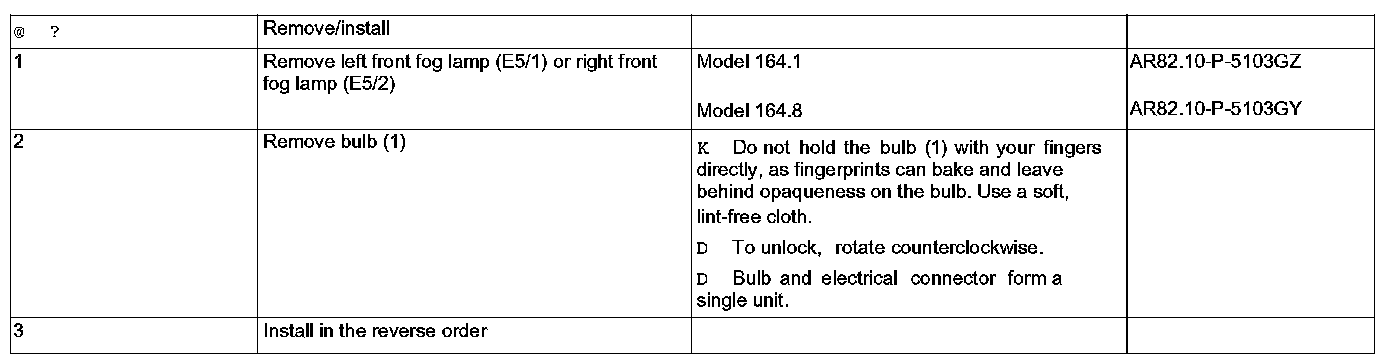

AR82.10-P-1825GZ Remove/Install Fog Lamp Bulb
Component Identification:
Steps 1 - 3:
