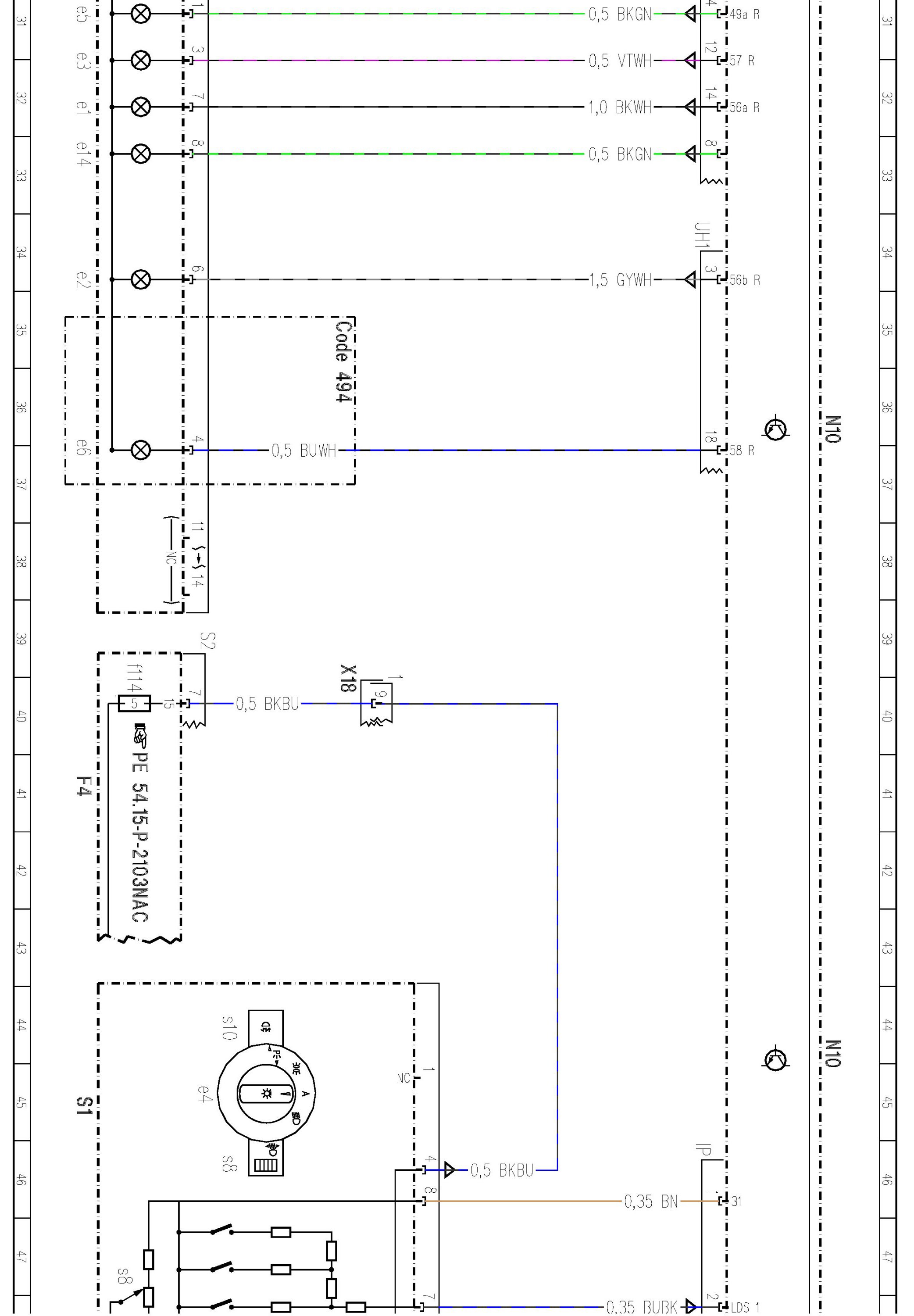

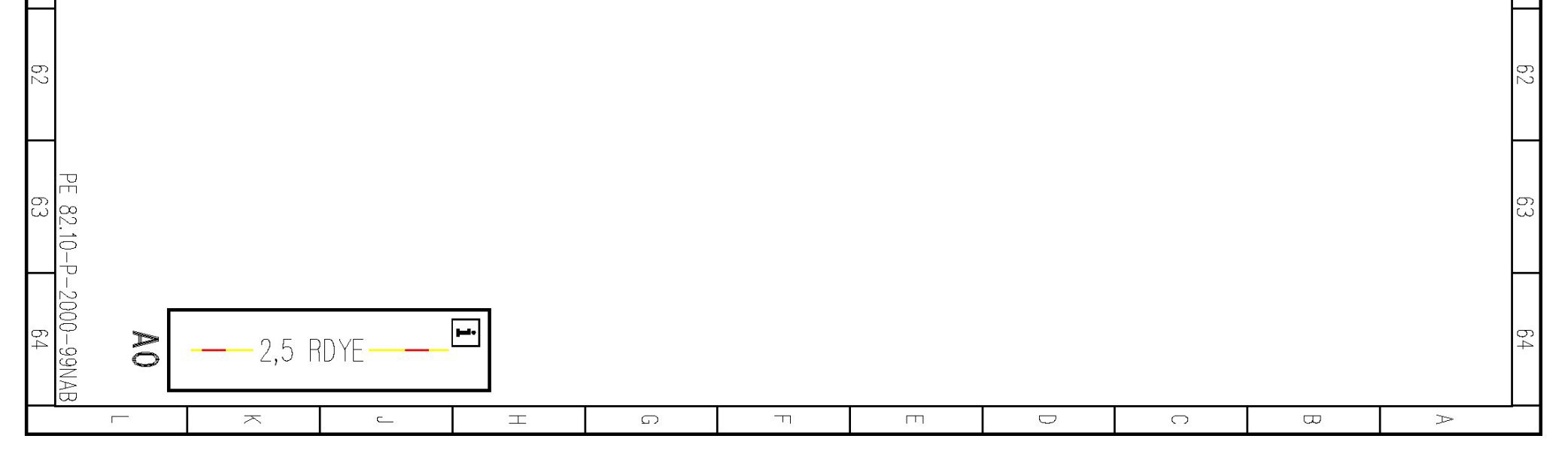

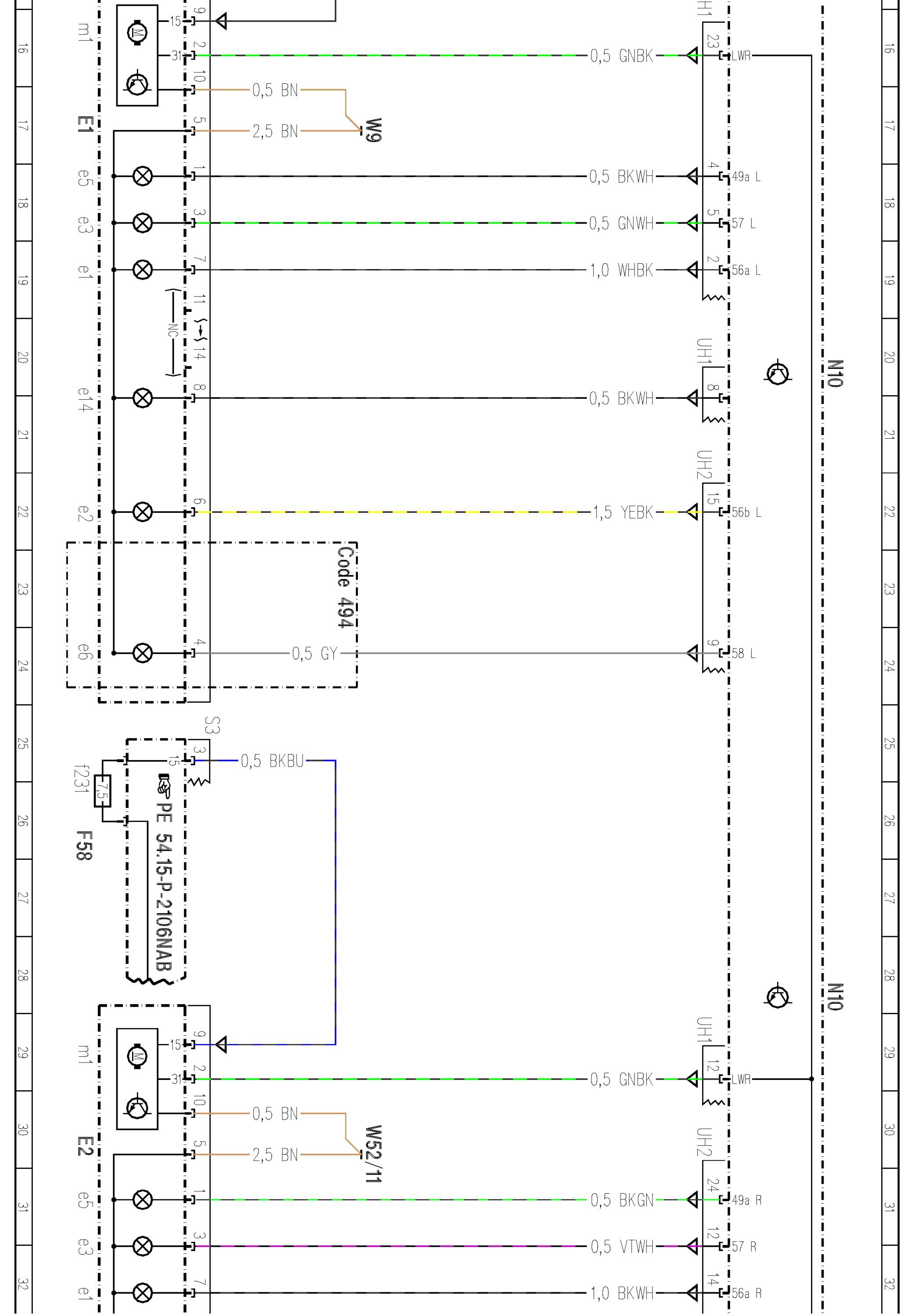

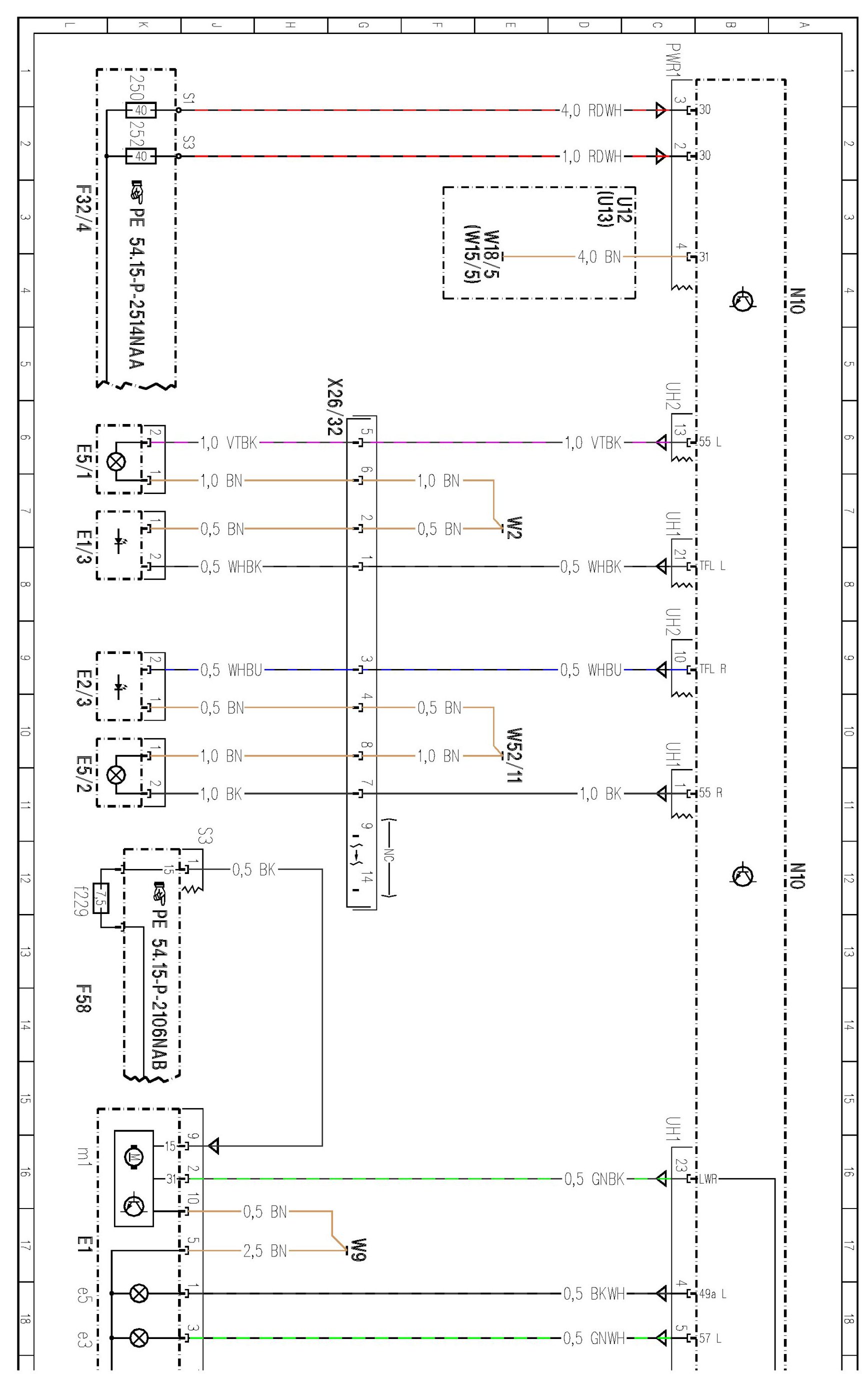

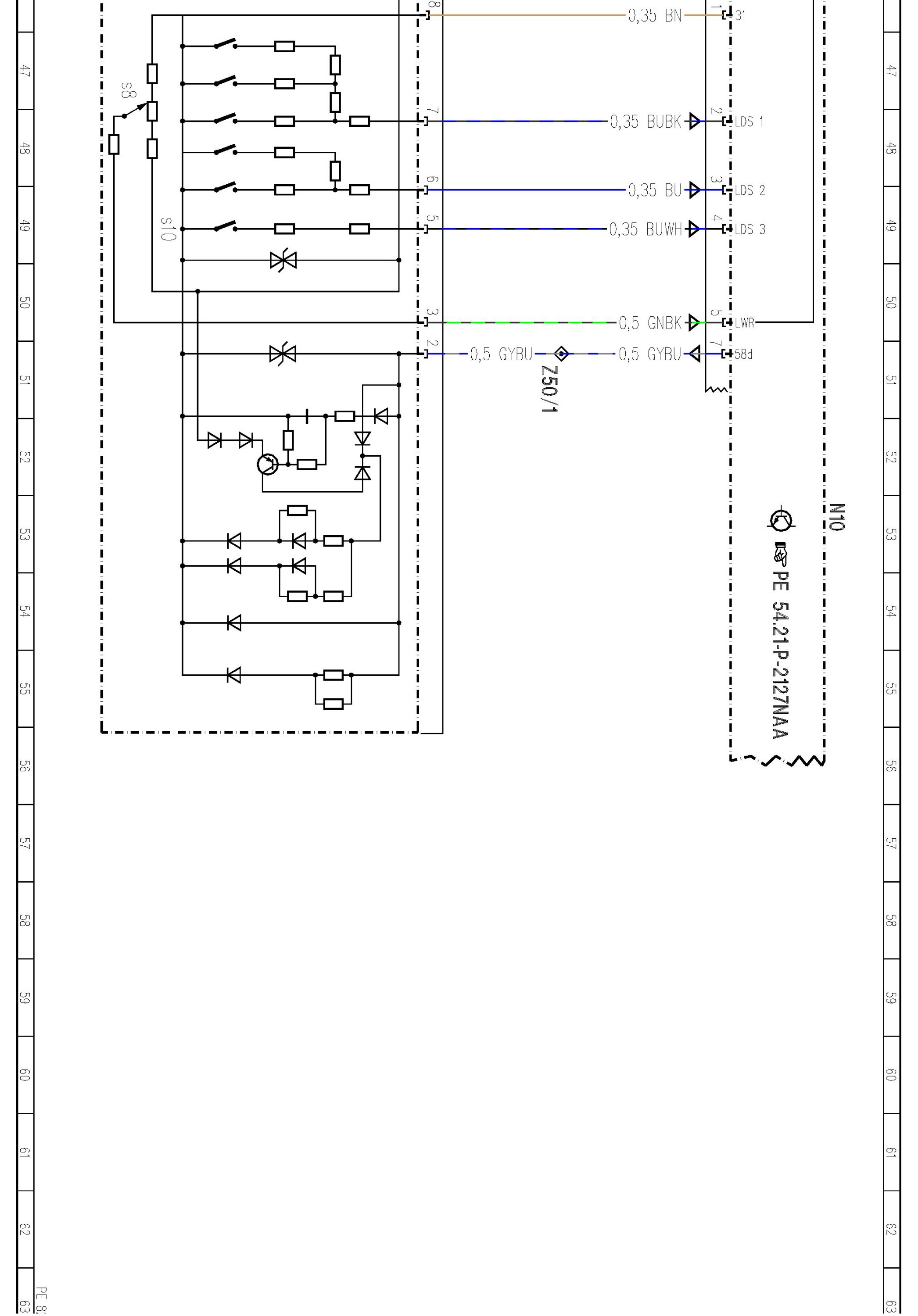

PE82.10-P-2000NAB Exterior Lights Wiring Diagram

PE82.10-P-2000NAB Exterior Lights Wiring Diagram
MODEL 166
except CODE (615) Bi-xenon Headlamp Unit With Integrated Curve Illumination
except CODE (621) Intelligent Light System (Left-hand Traffic)
except CODE (622) Intelligent Light System (Right-hand Traffic)






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
