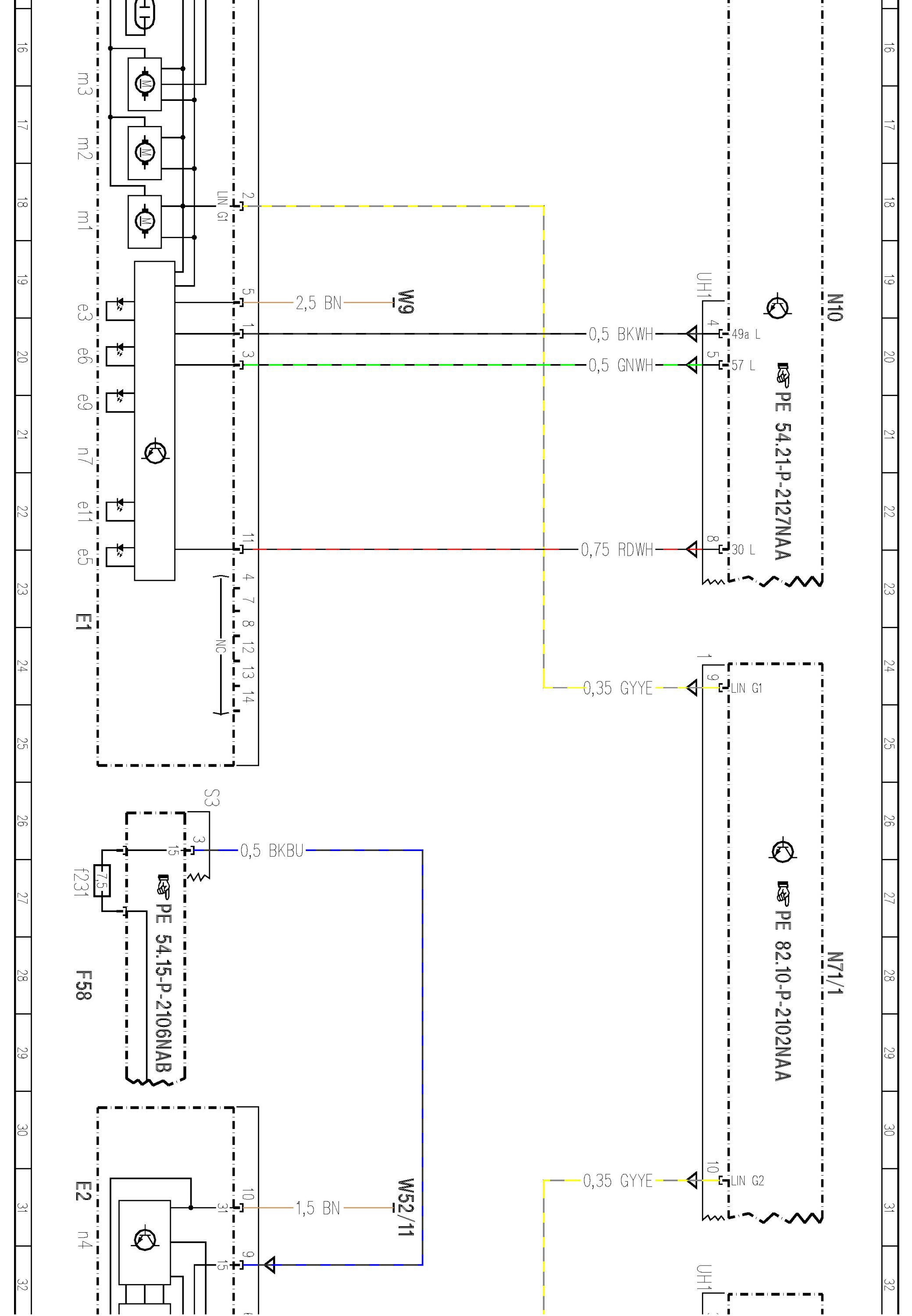

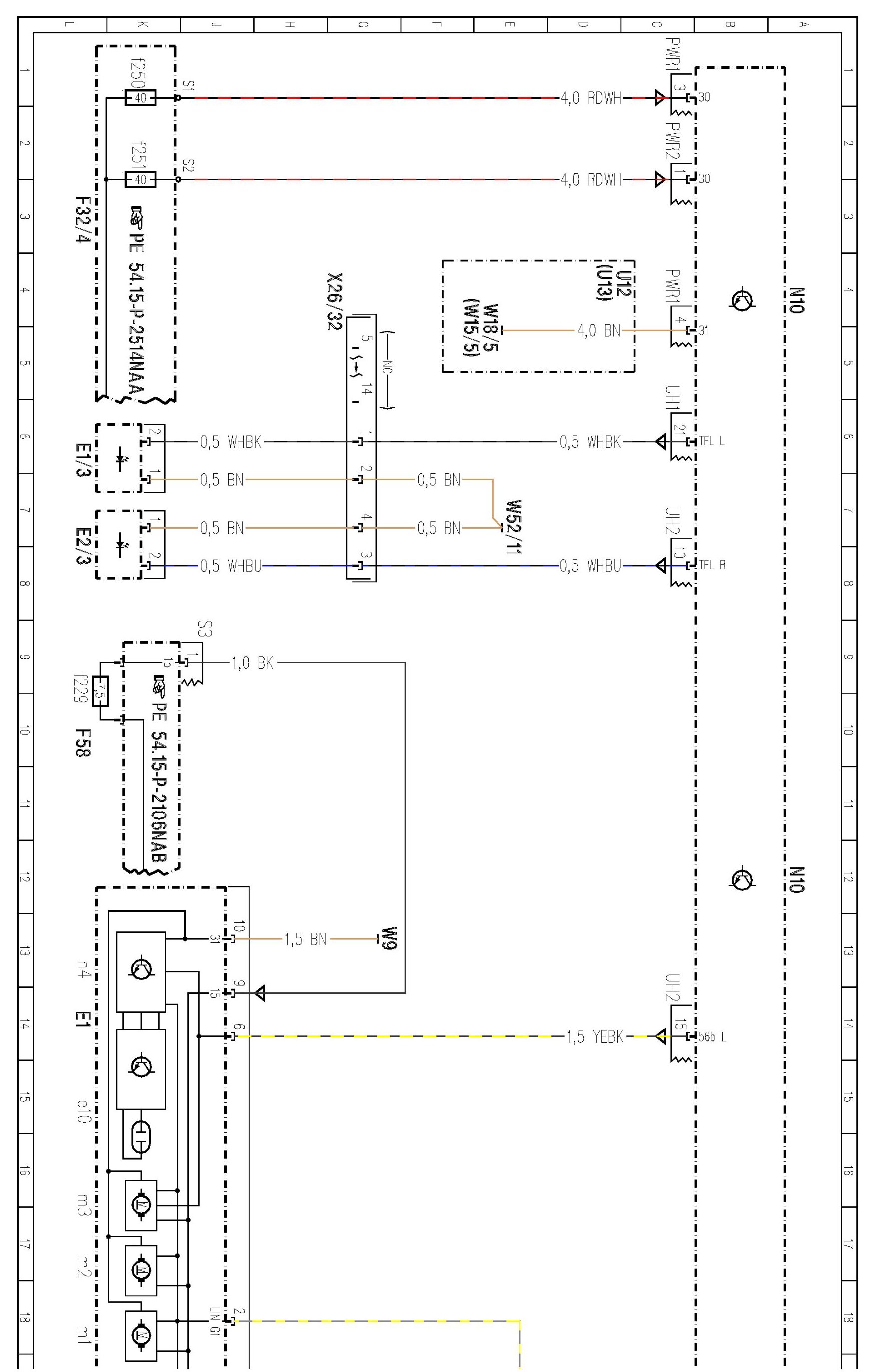

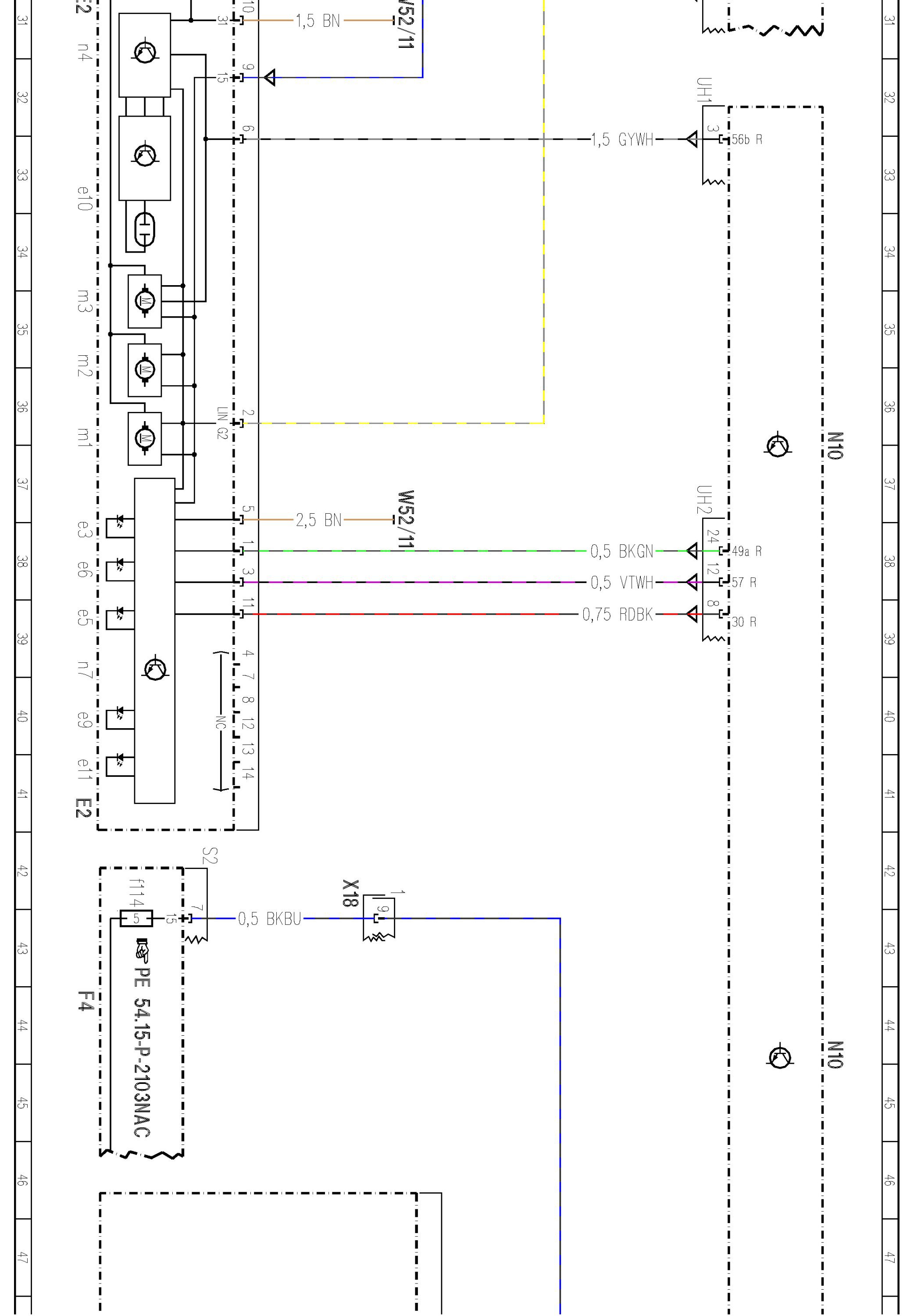

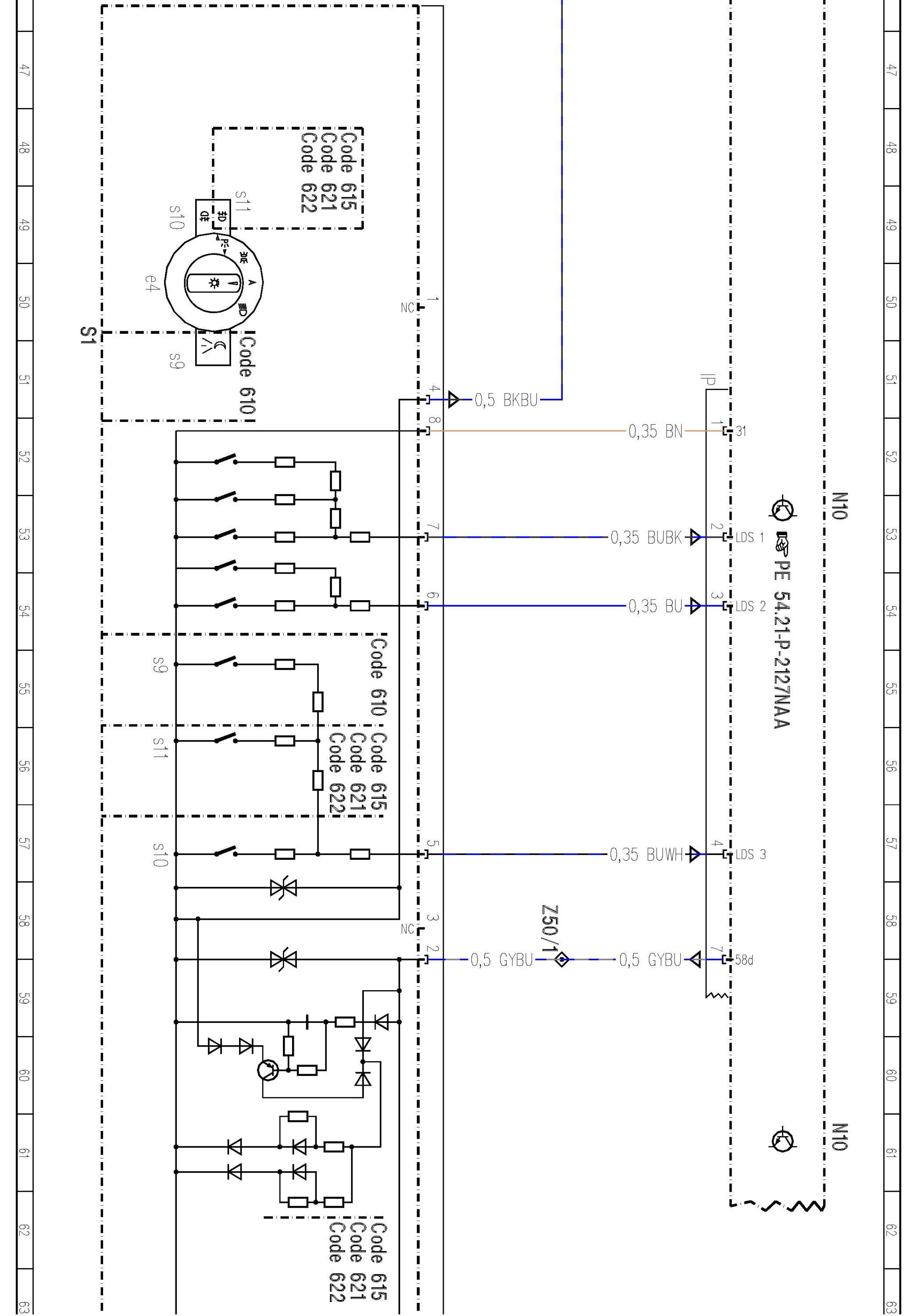

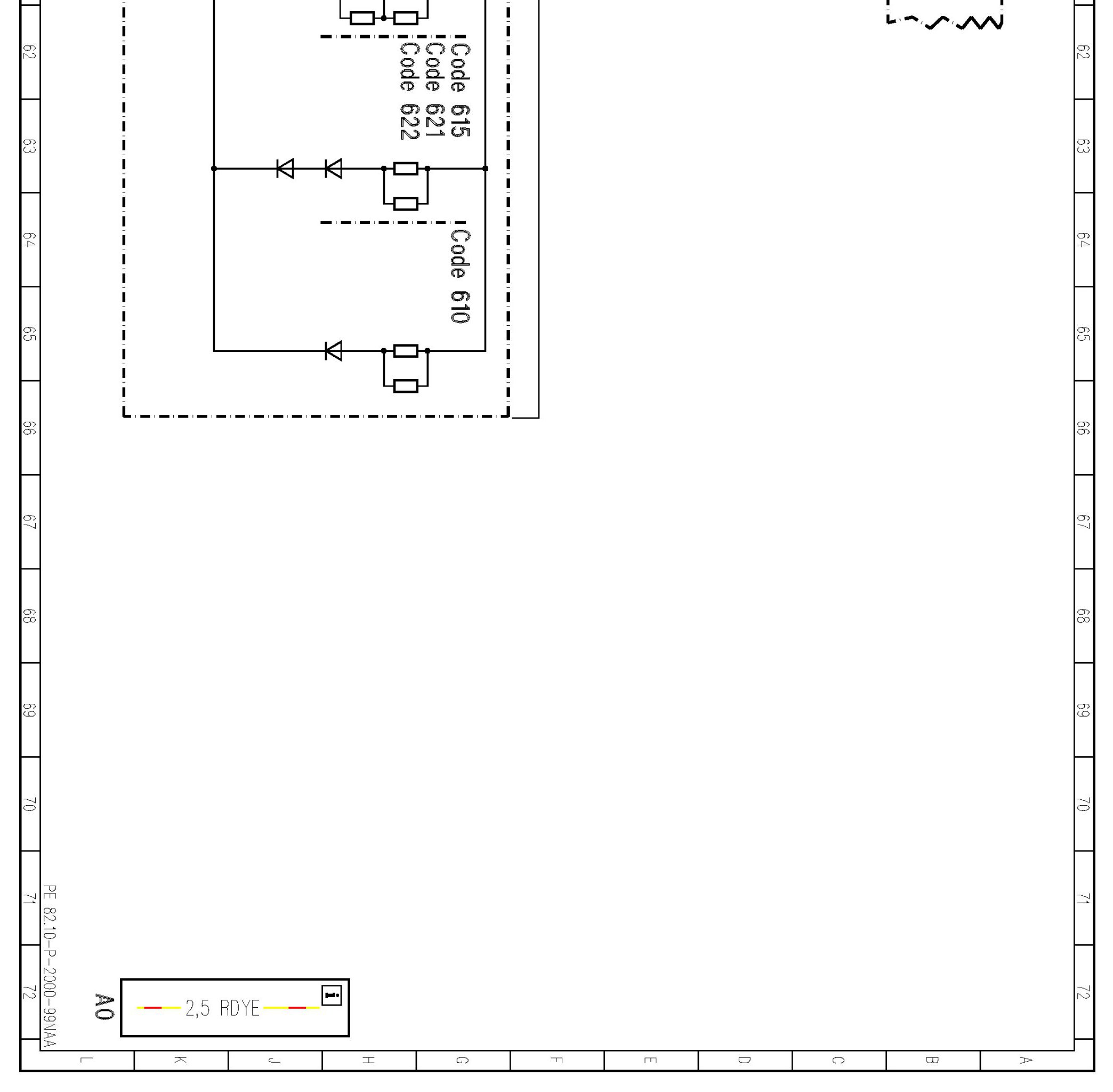

PE82.10-P-2000NAA Exterior Lights Wiring Diagram

PE82.10-P-2000NAA Exterior Lights Wiring Diagram
MODEL 166
with CODE (615) Bi-xenon Headlamp Unit With Integrated Curve Illumination
with CODE (621) Intelligent Light System (Left-hand Traffic)
with CODE (622) Intelligent Light System (Right-hand Traffic)

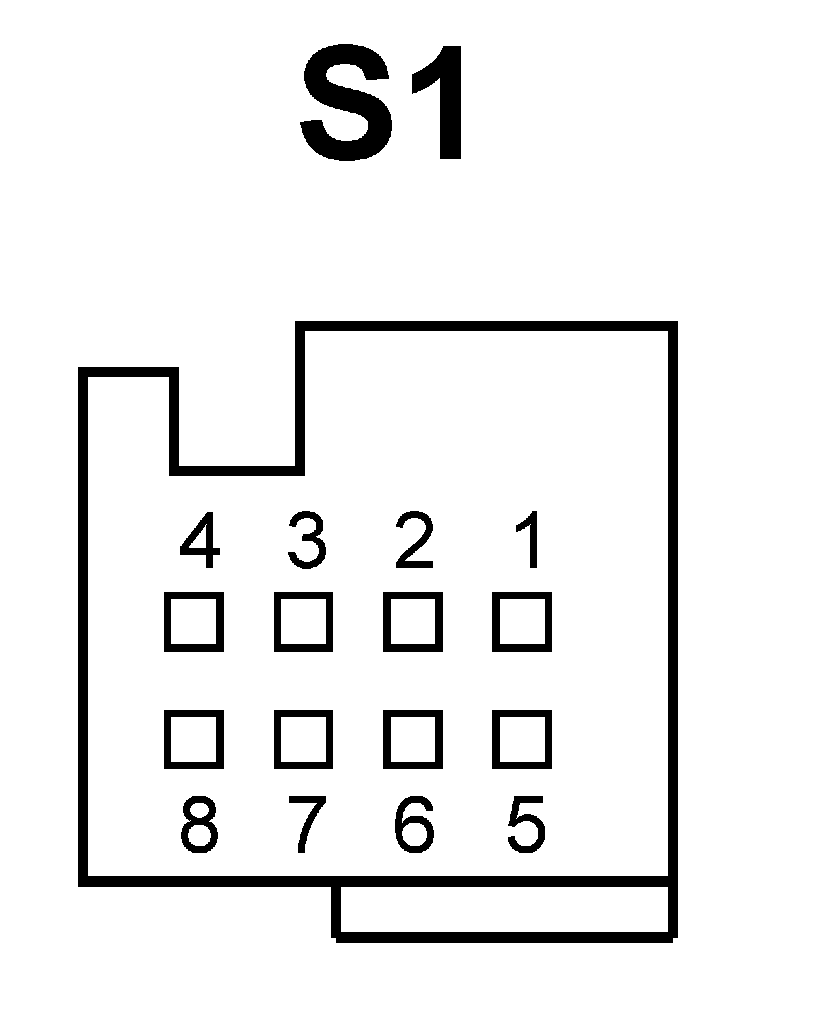

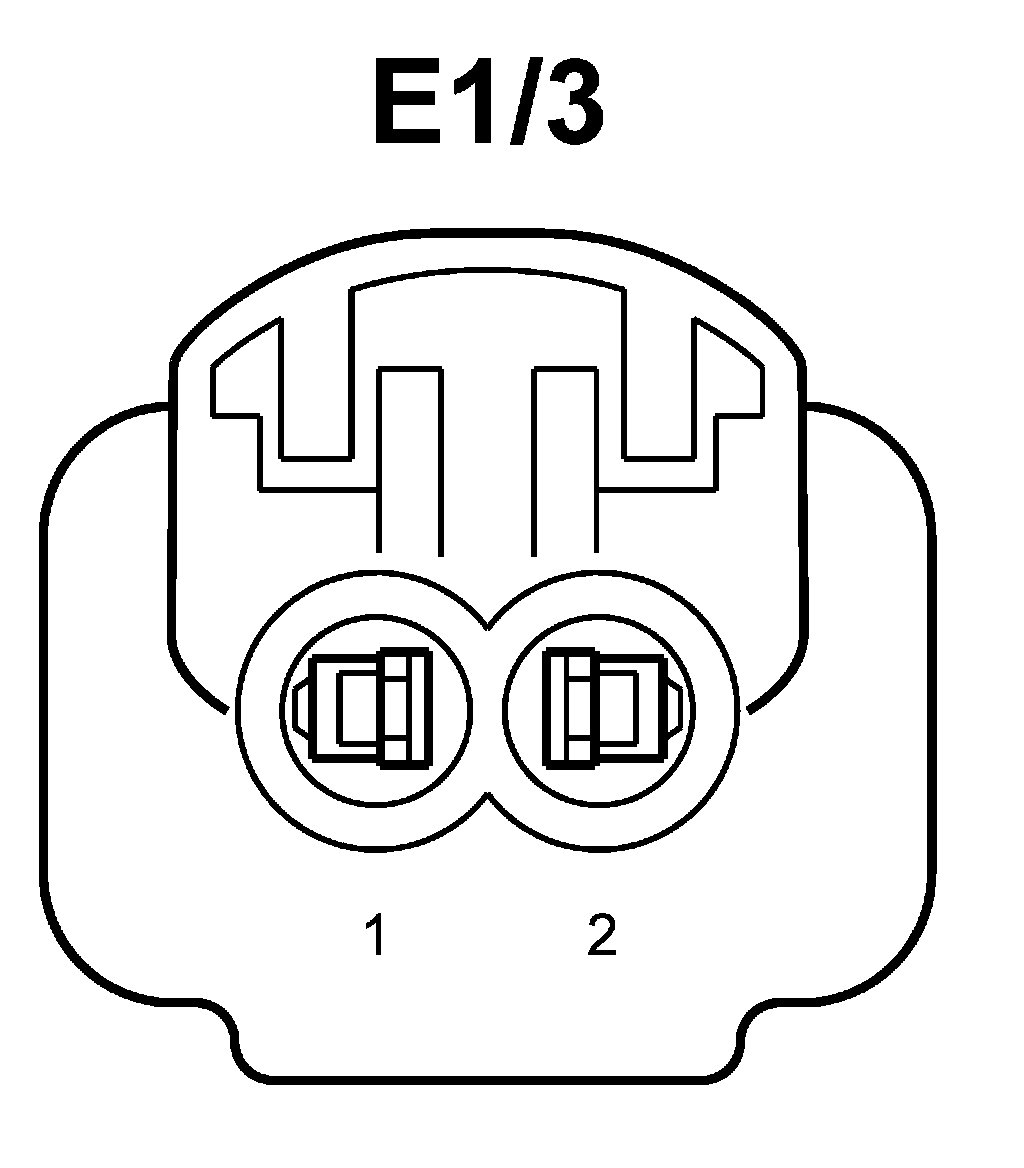

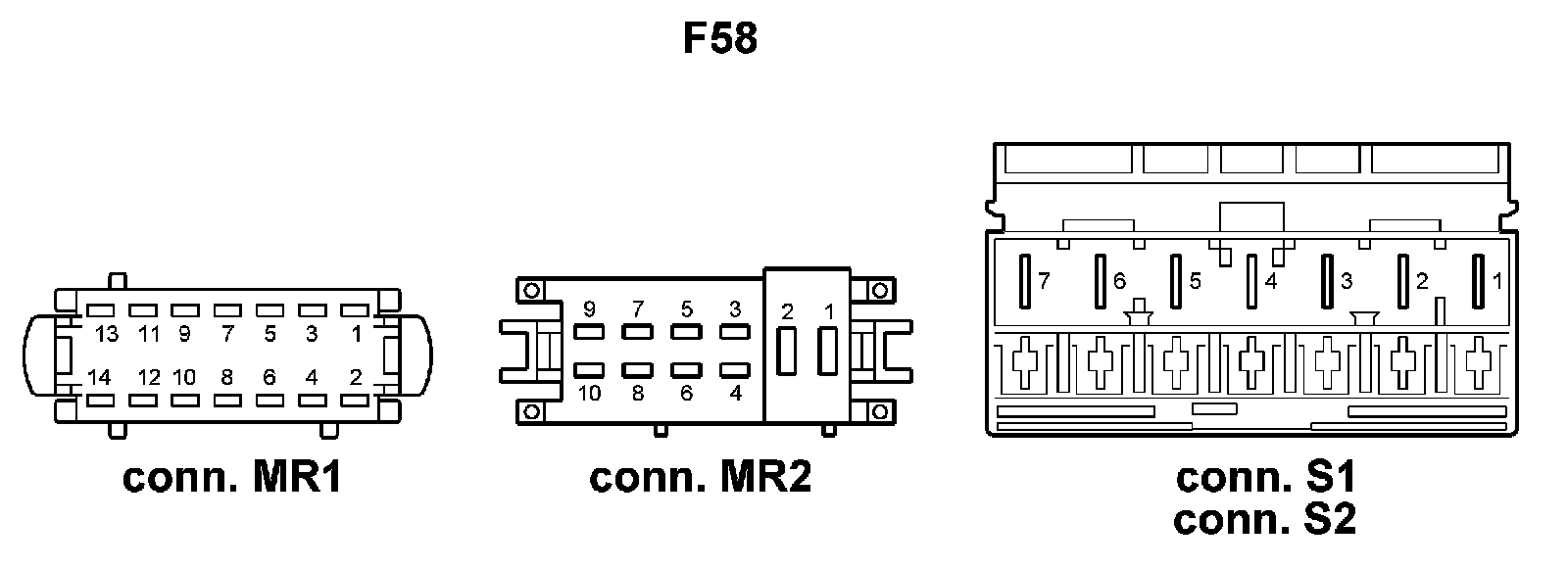

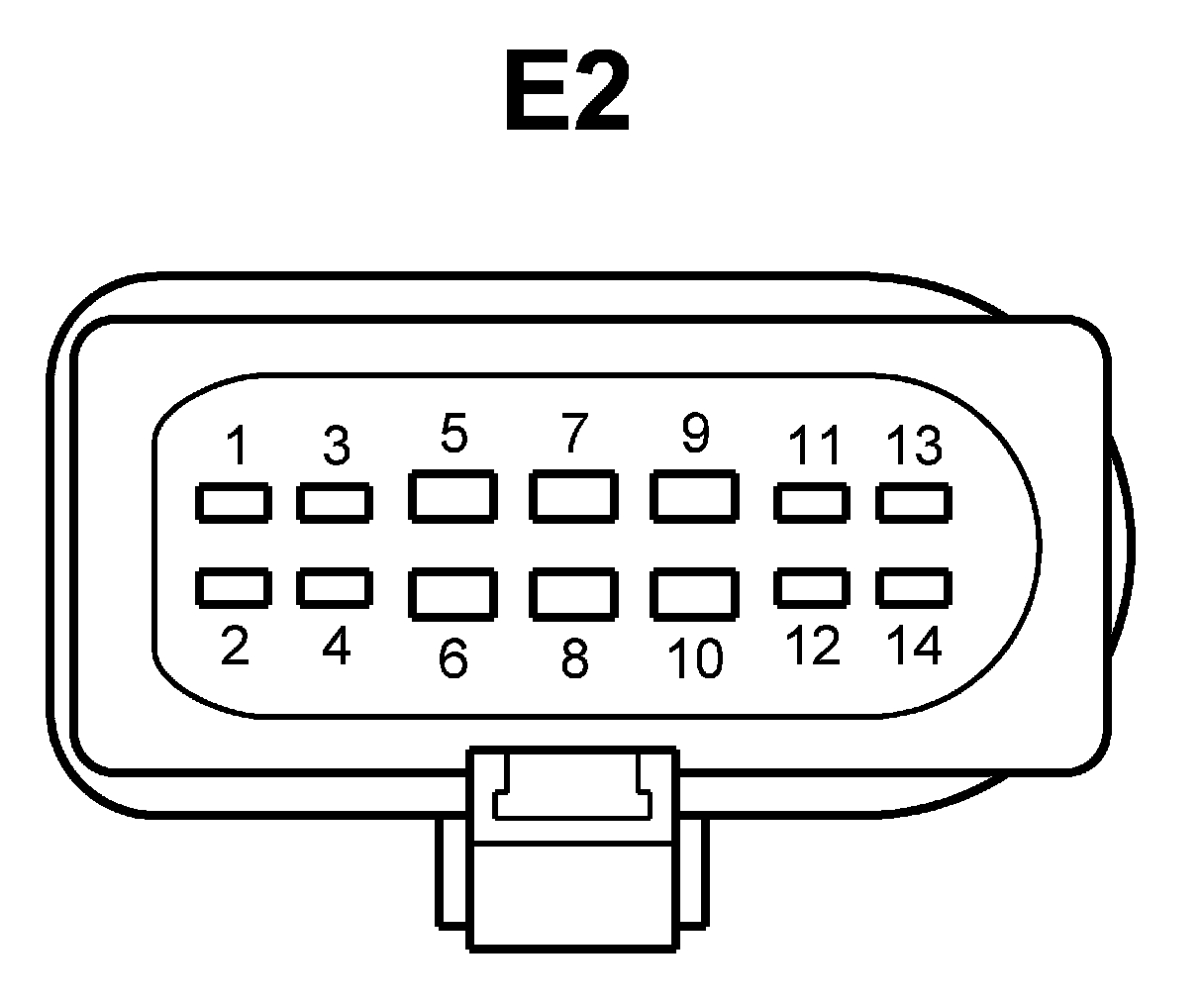

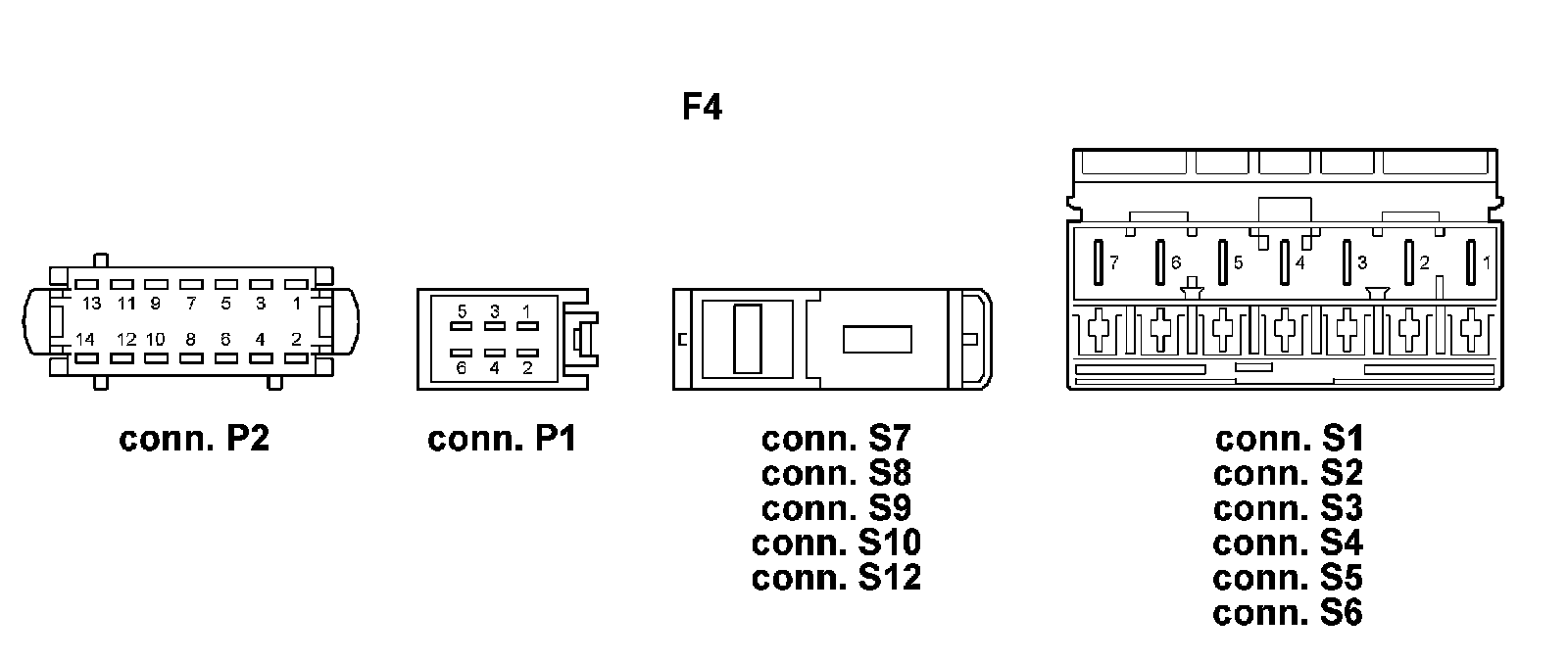

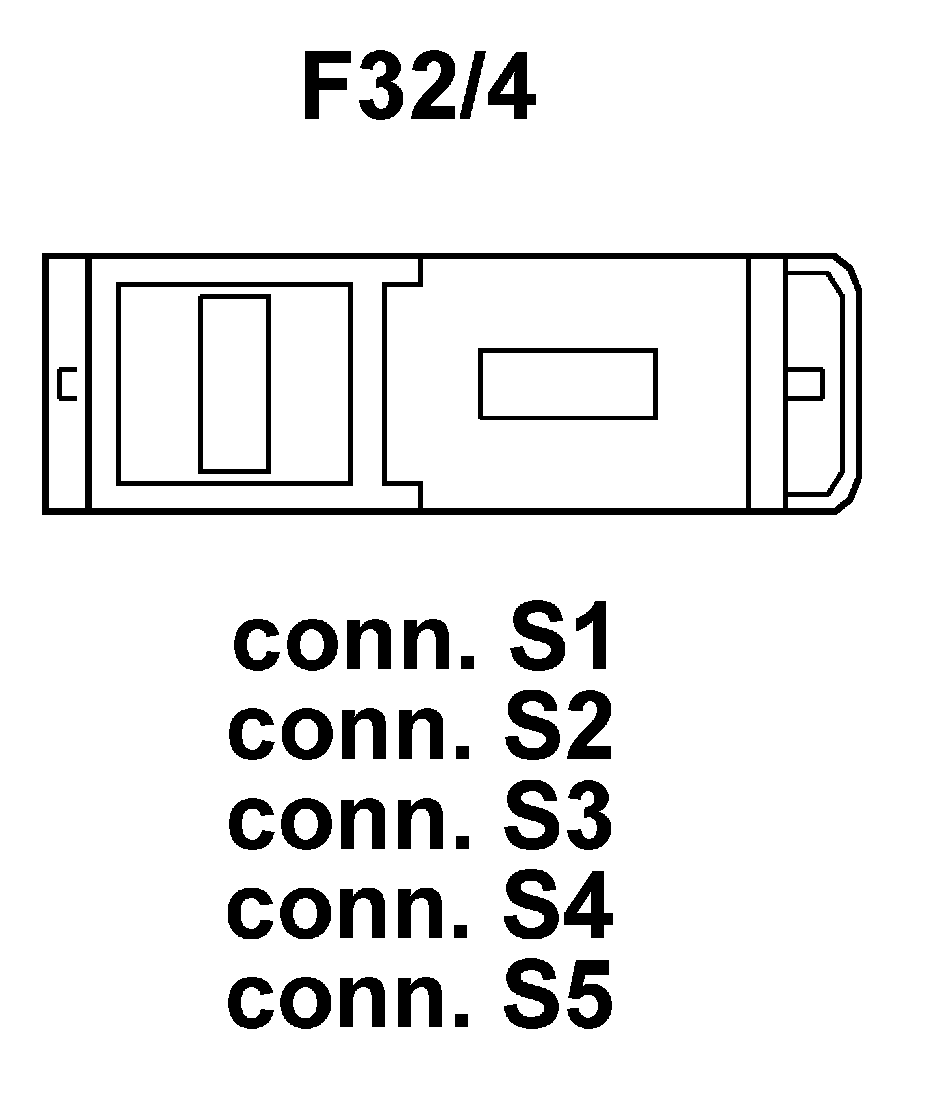

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
