Removal and Replacement

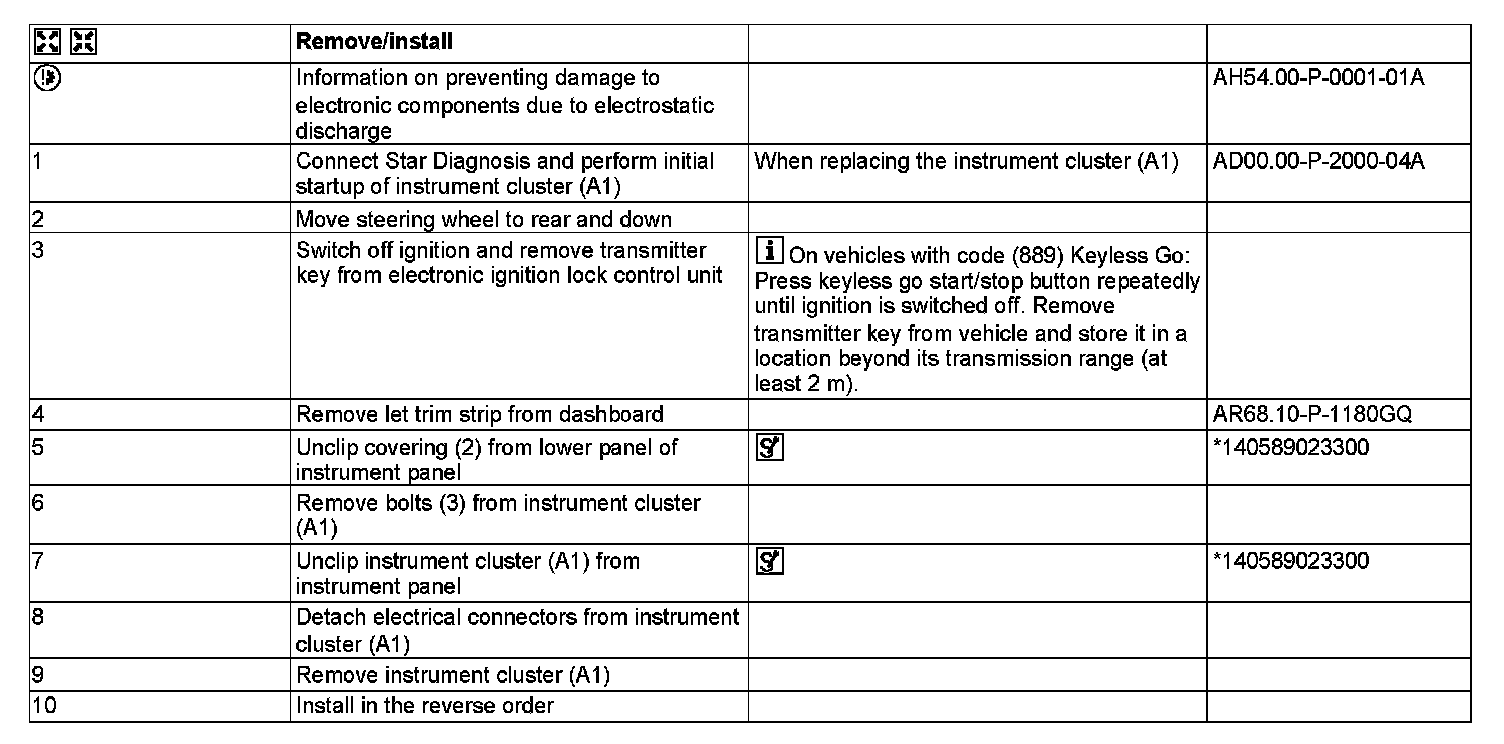

AR54.30-P-6015GQ Remove/Install Instrument Cluster
MODEL 166

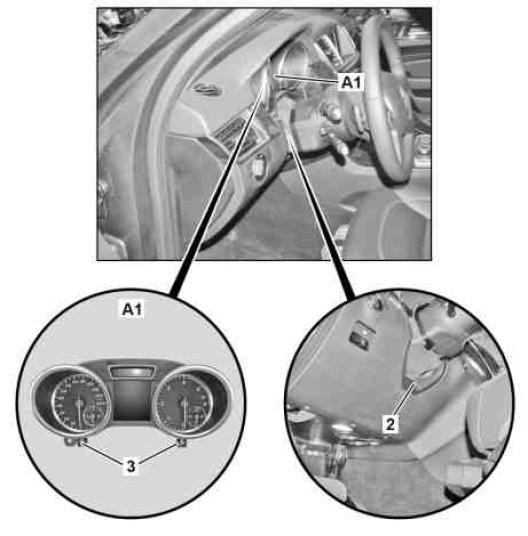

2 Cover
3 Bolts
A1 Instrument cluster








140 589 02 33 00
Extraction hook
