Cigarette Lighter: Service and Repair

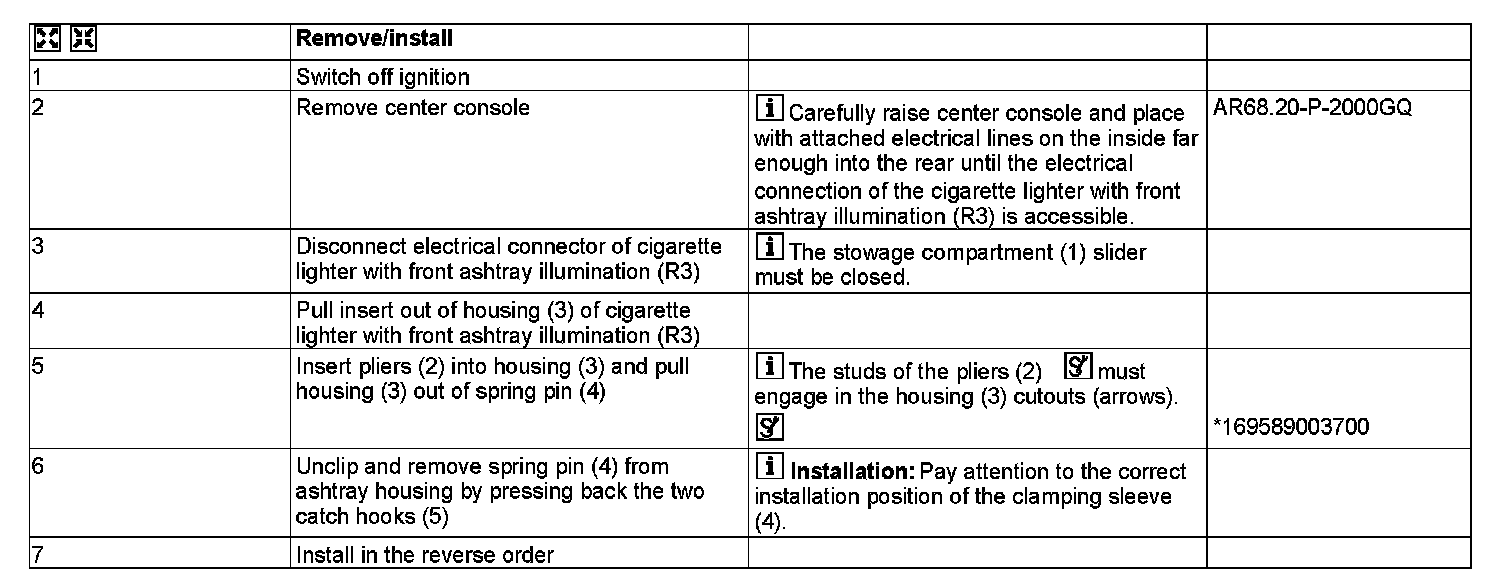

AR54.10-P-0030GQ Remove/Install Cigarette Lighter
MODEL 166
- with CODE (301) Ashtray package/smoker package

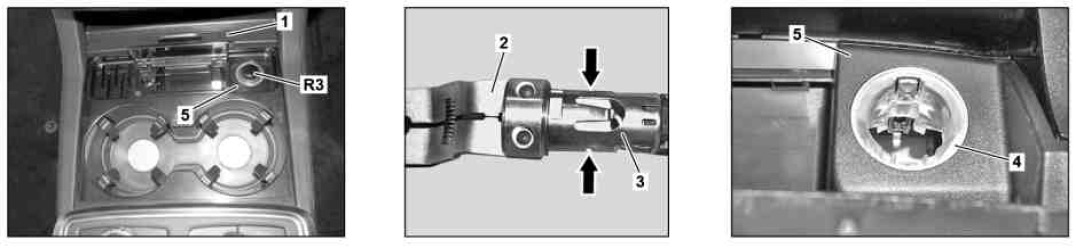

1 Stowage compartment
2 Pliers
3 Housing
4 Roll pin
5 Ashtray housing
R3 Front cigarette lighter with ashtray illumination








169 589 00 37 00
Pliers
