AR83.30-P-1760CW Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks



AR83.30-P-1760CW Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks

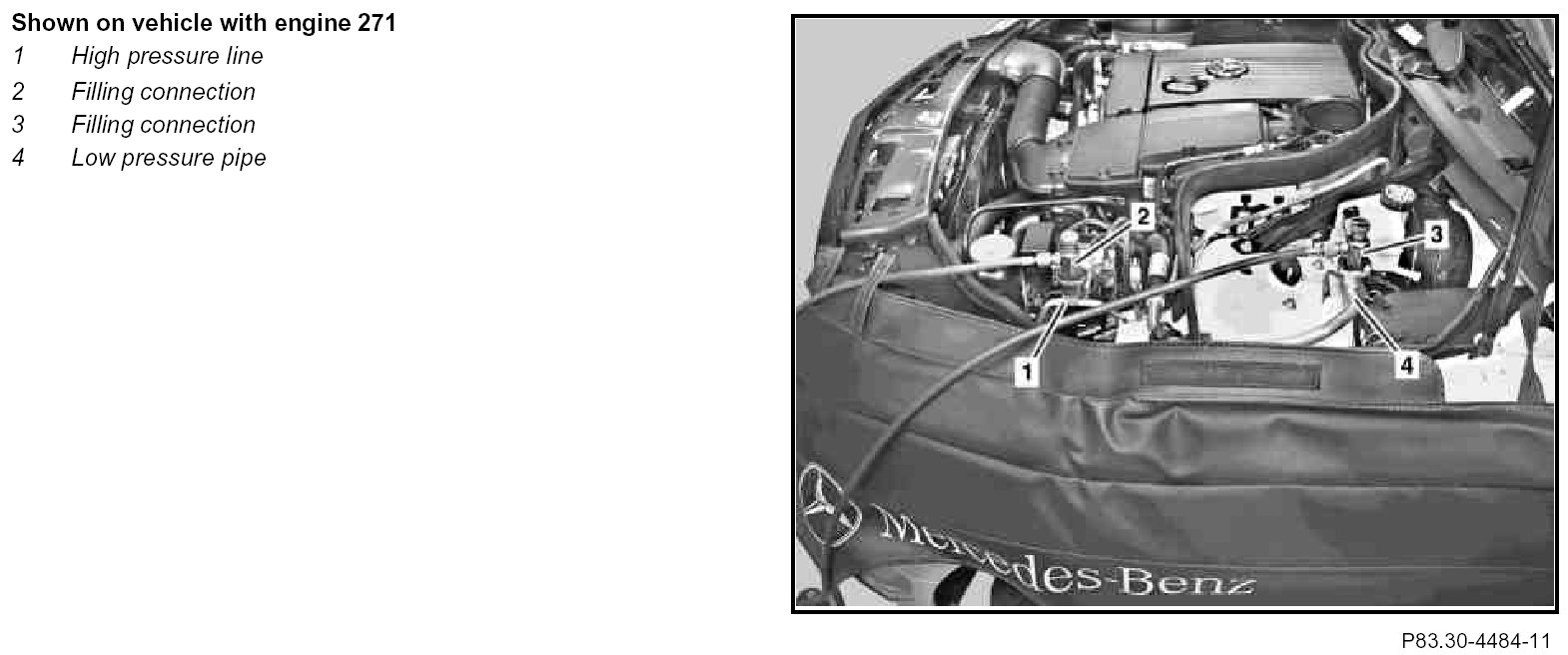

Component Identification:




Modification Notes:

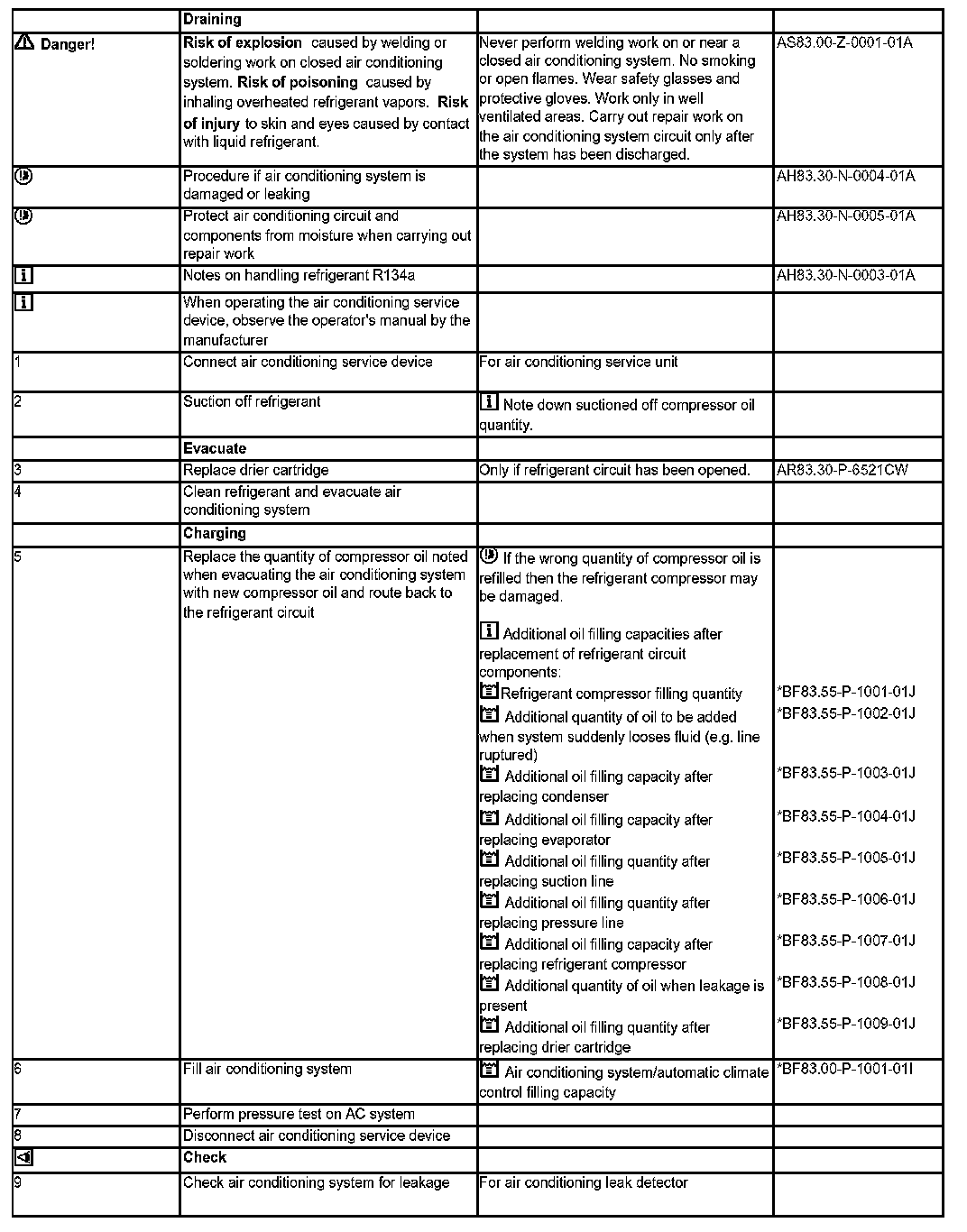

Steps 1 - 9:

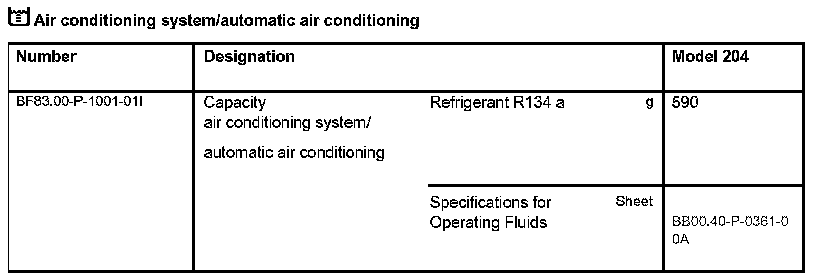

Air Conditioning System/Automatic Air Conditioning:

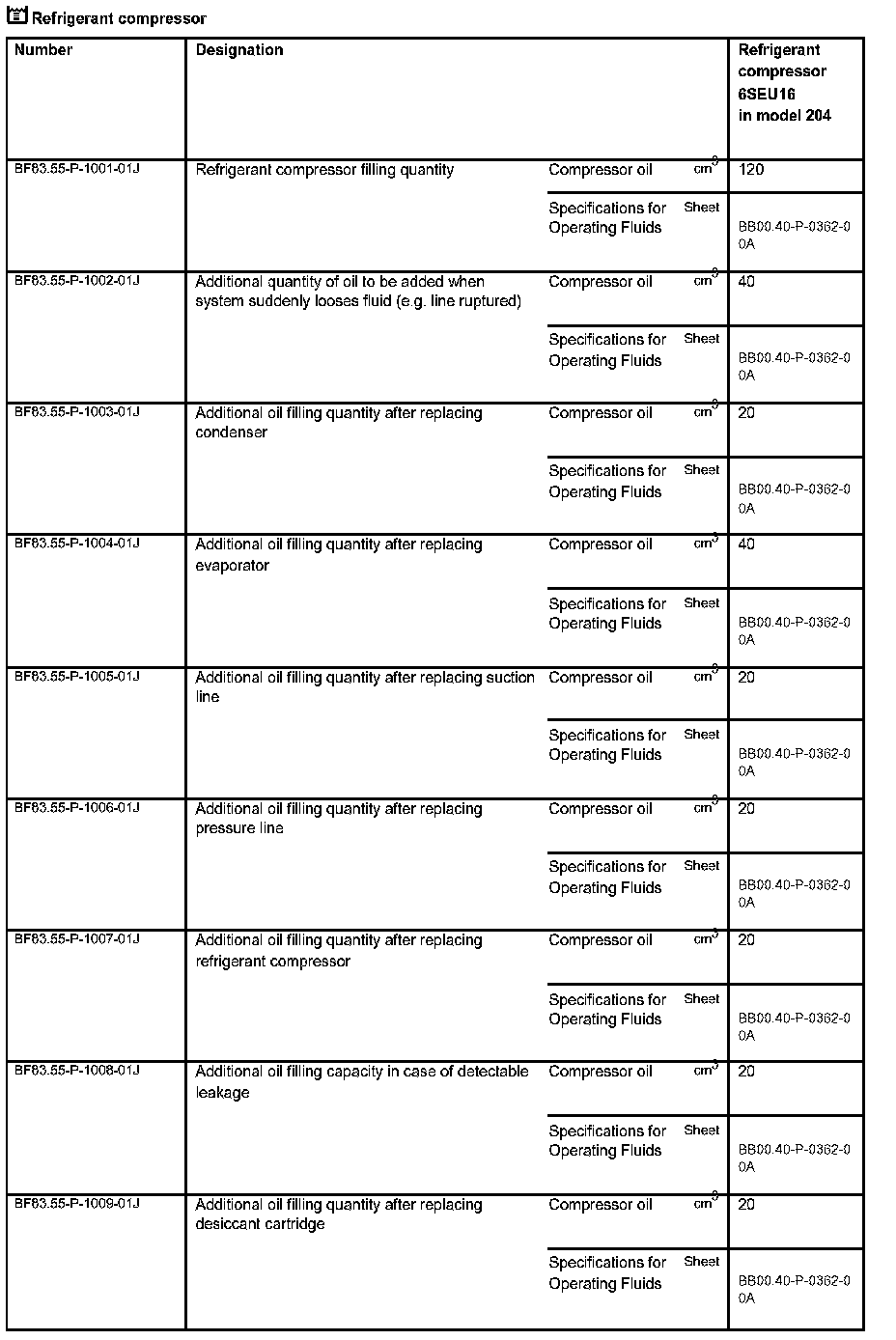

Refrigerant Compressor:
