Service Port HVAC: Service and Repair

AR83.30-P-6523GY Remove/Install Valve Insert on Service Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

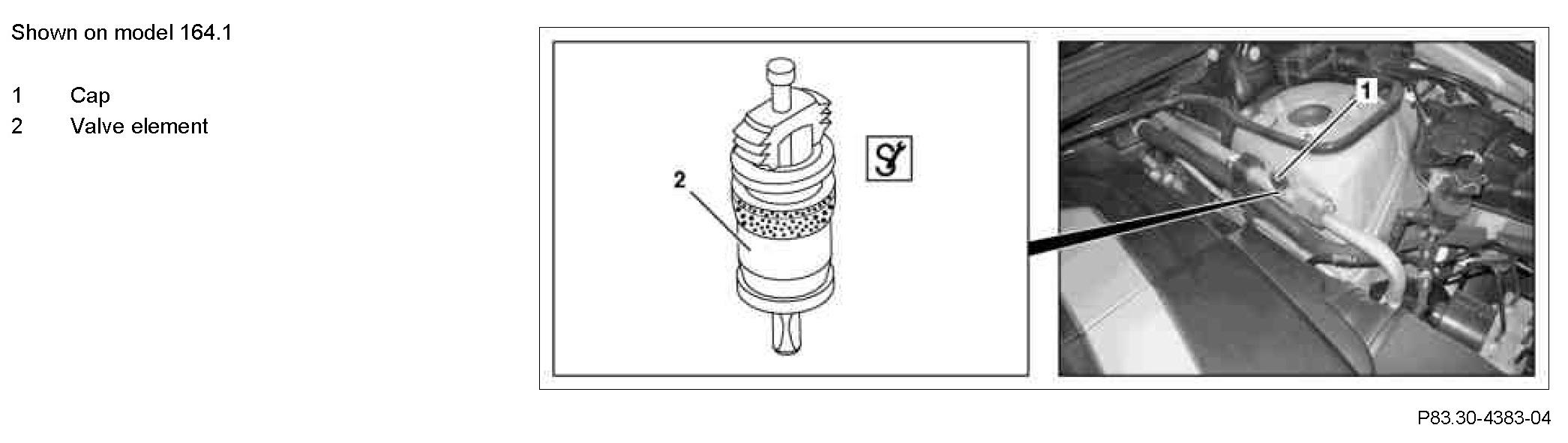

Component Identification:

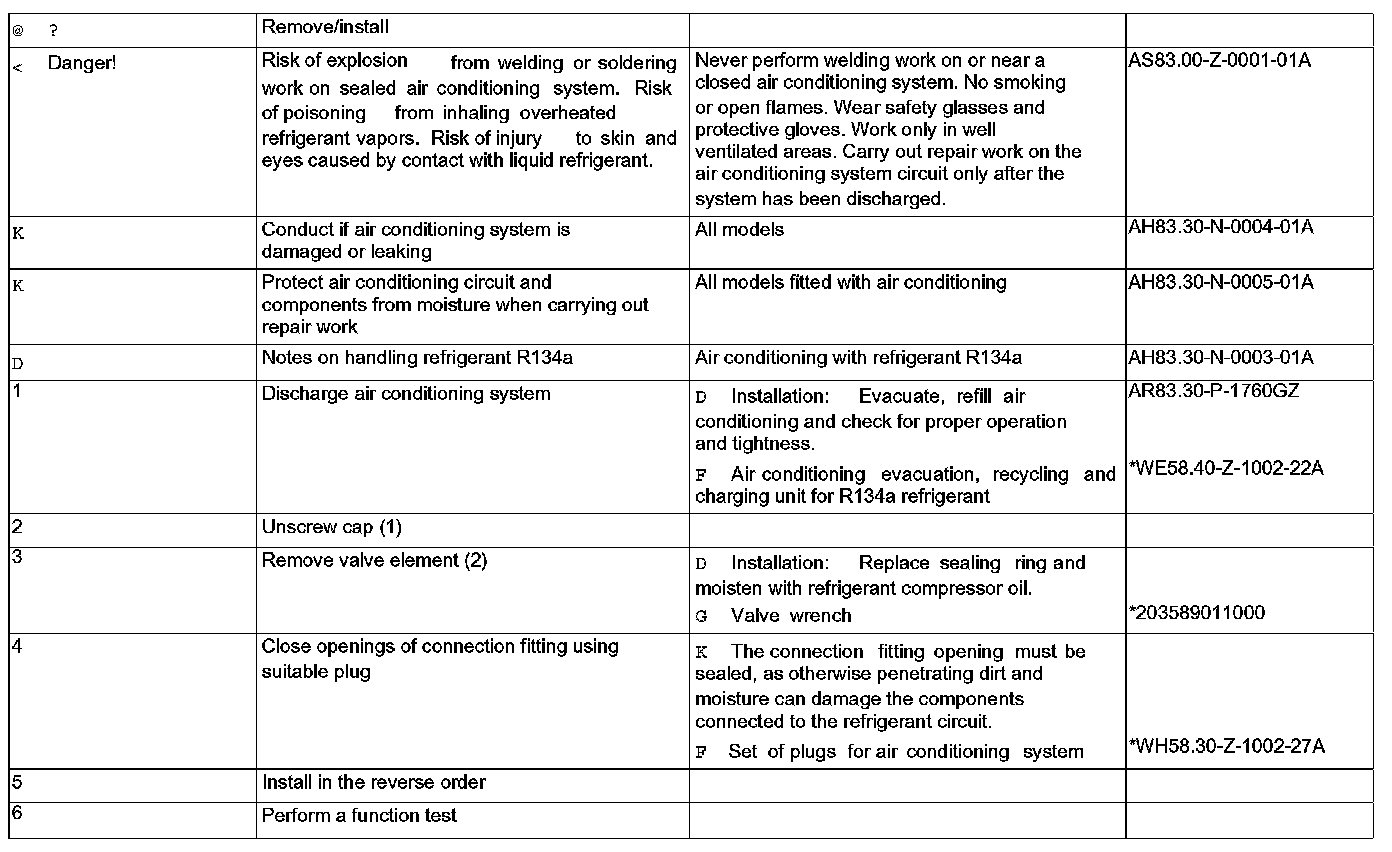

Steps 1 - 6:

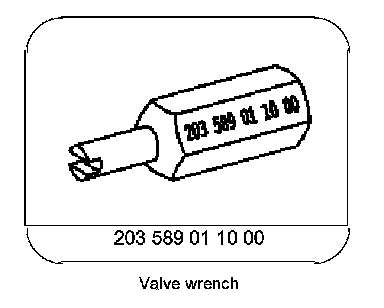

Special Tools:

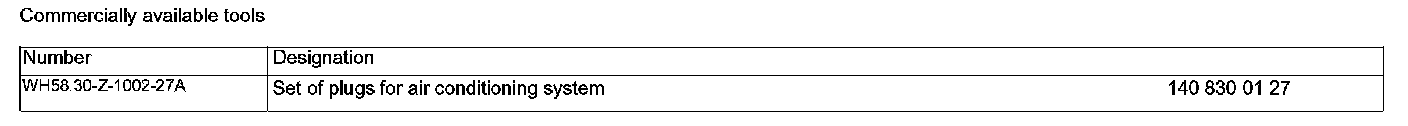

Commercially Available Tools:

Workshop Equipment:
