AP83.00-P-8384GZ Replace Combination Filter



AP83.00-P-8384GZ Replace Combination Filter
- with CODE (581) Comfort automatic air conditioning

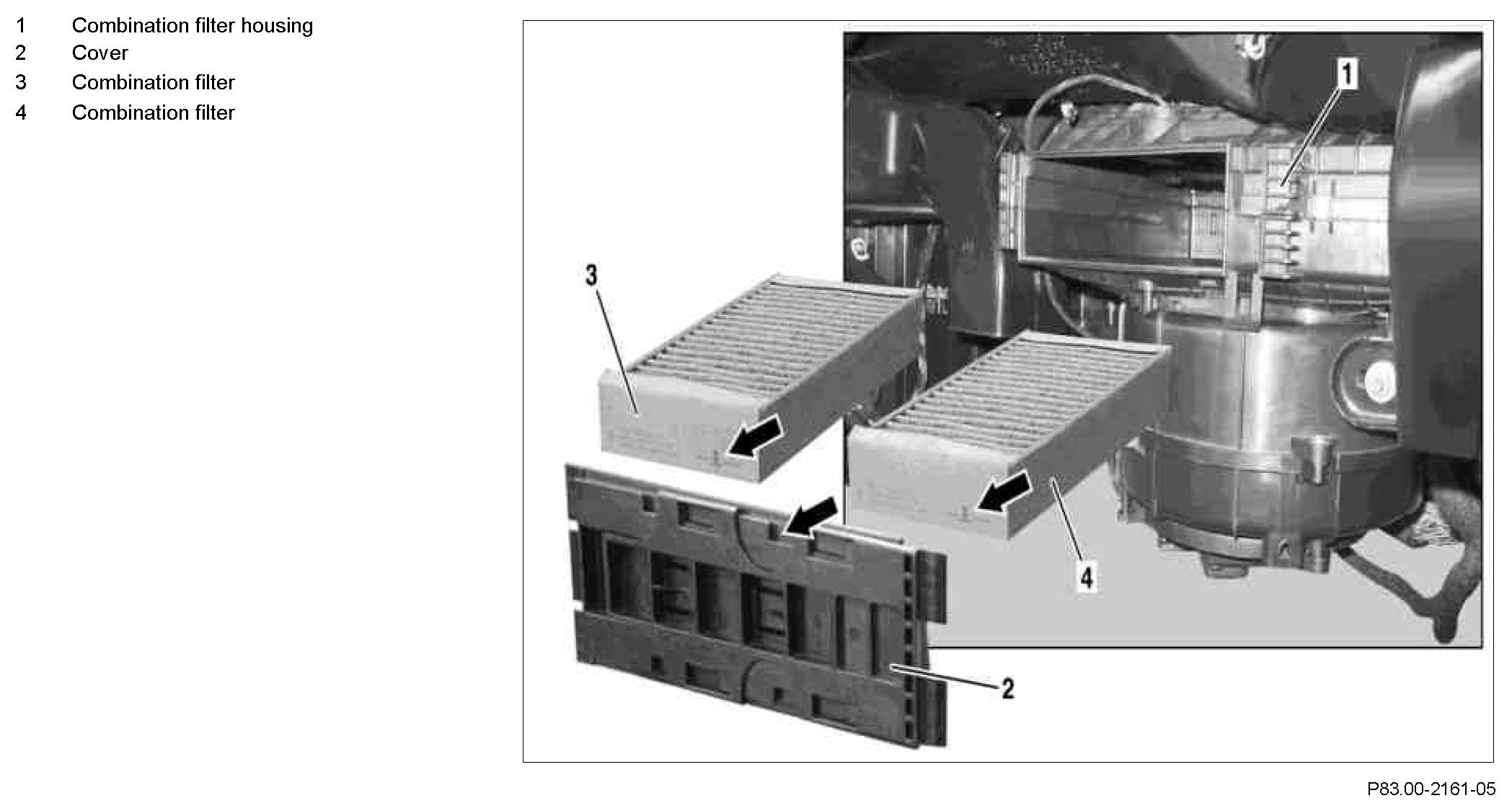

Component Identification:

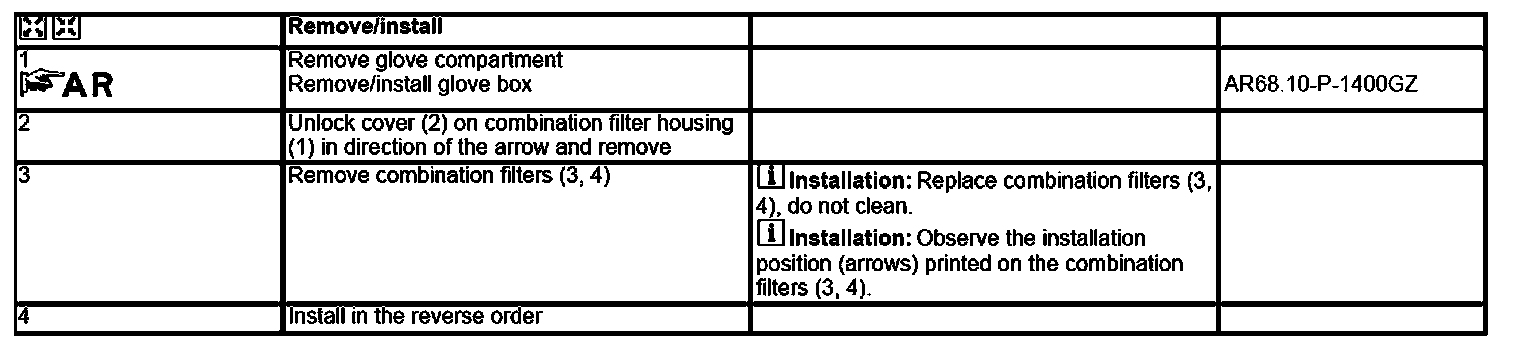

Steps 1 - 4:
