Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Service and Repair

Blower Motor: Service and Repair



AR83.25-P-1200GZ Remove/Install Blower Motor

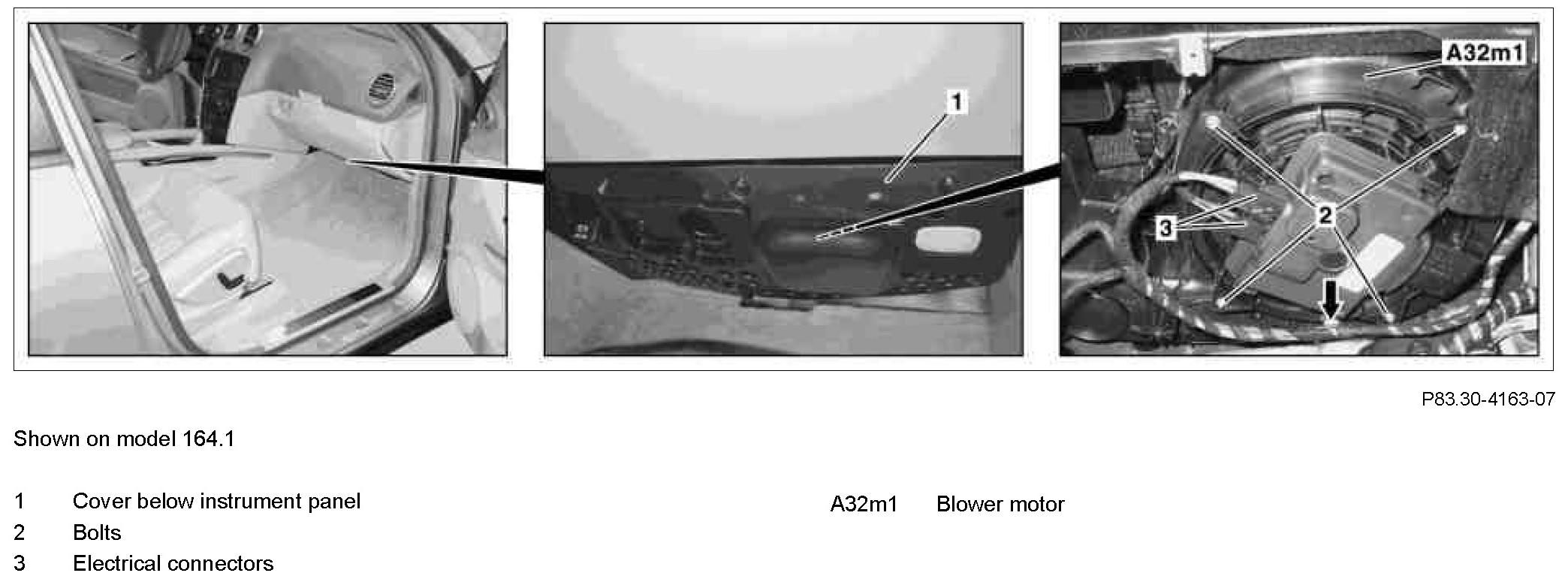

Component Identification:

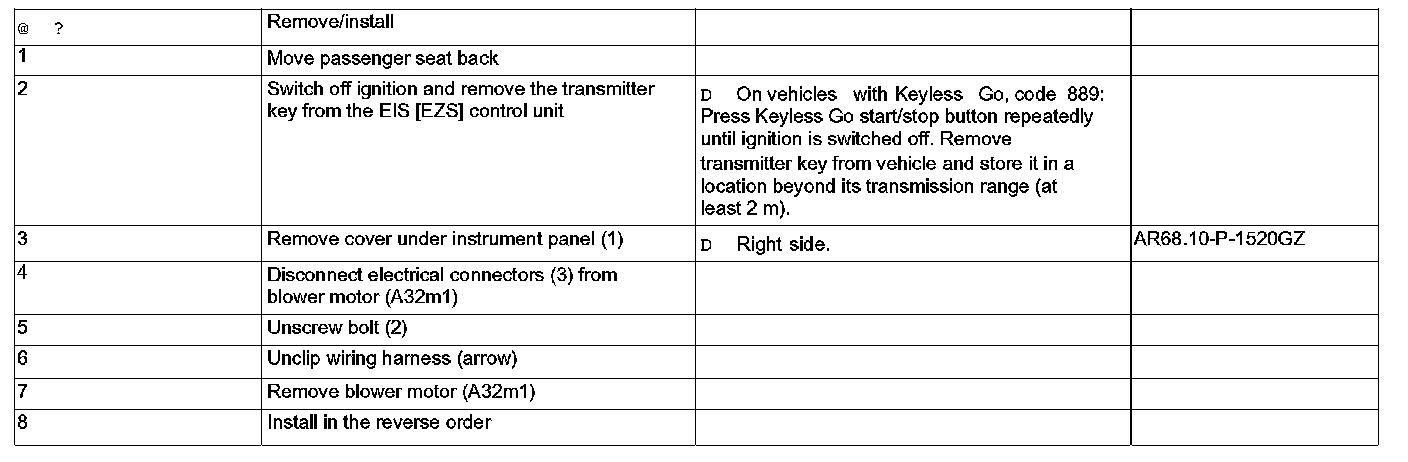

Steps 1 - 8:
