Auxiliary Cabin Heater Fuel Pump: Service and Repair



AR83.70-P-5652RT Remove/Install Fuel Metering Pump
- with CODE (228) Stationary heater

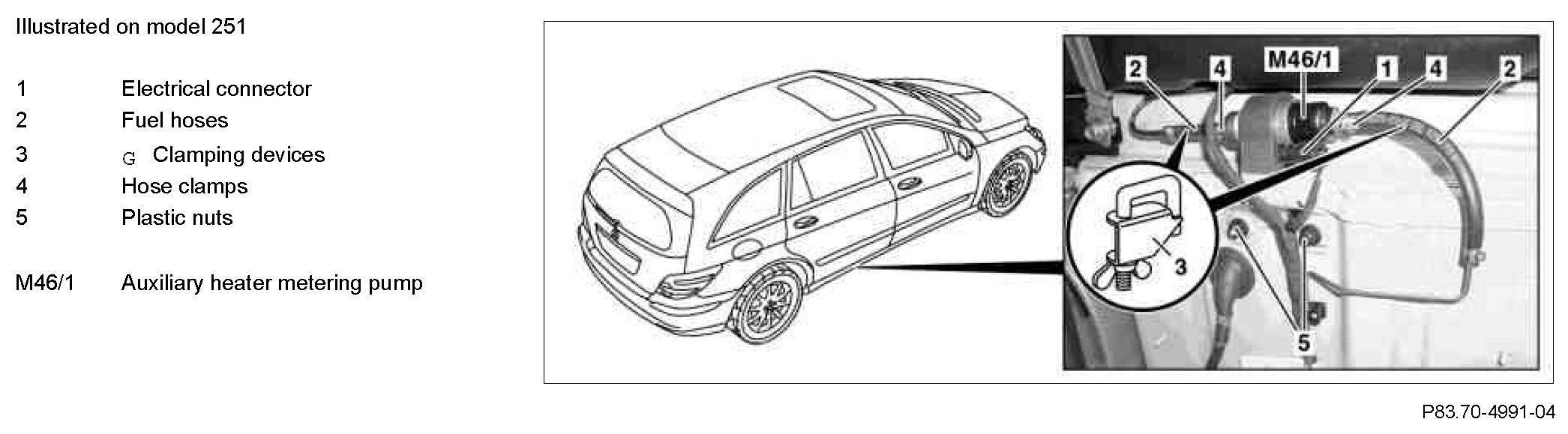

Component Identification:

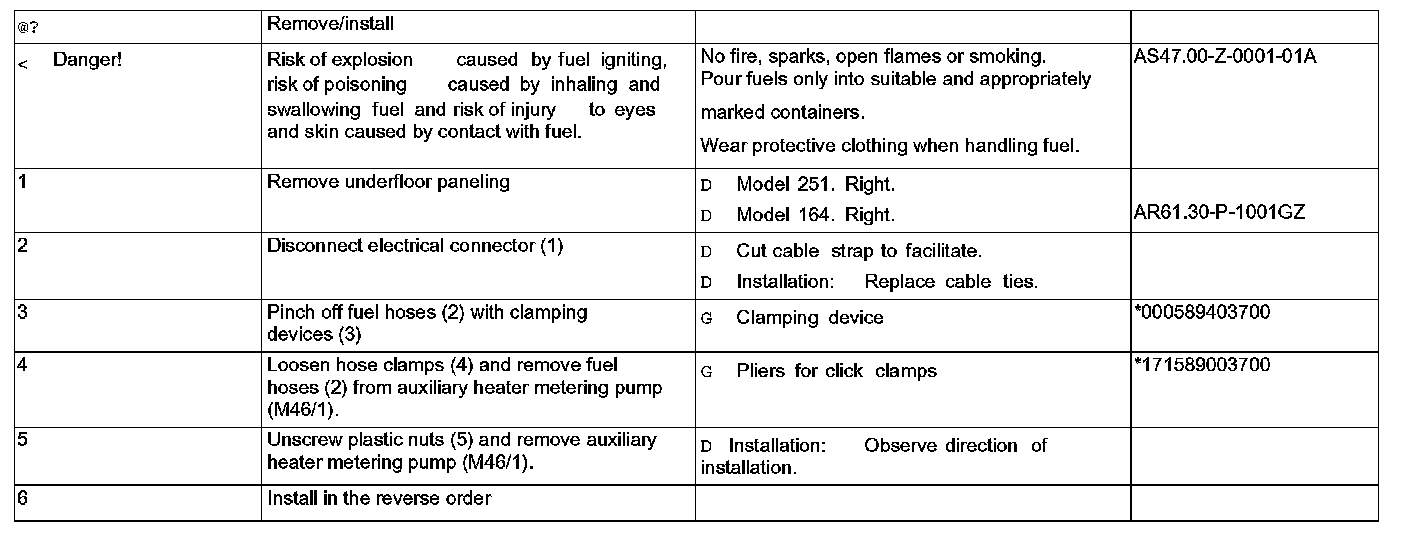

Steps 1 - 6:

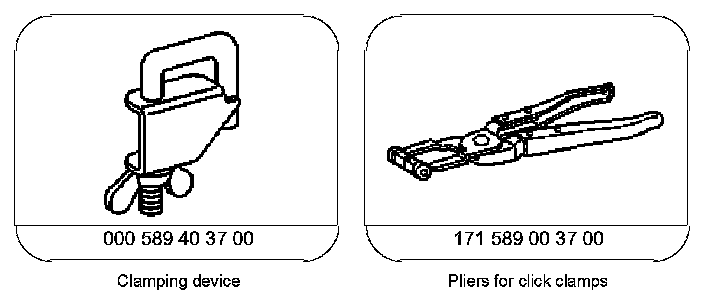

Special Tools:
