Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Auxiliary Cabin Heater Control Valve >> Service and Repair

Auxiliary Cabin Heater Control Valve: Service and Repair



AR83.70-P-6000GZ Remove/Install Coolant Circuit Solenoid Valve
- with CODE (228) Stationary heater


Component Identification:

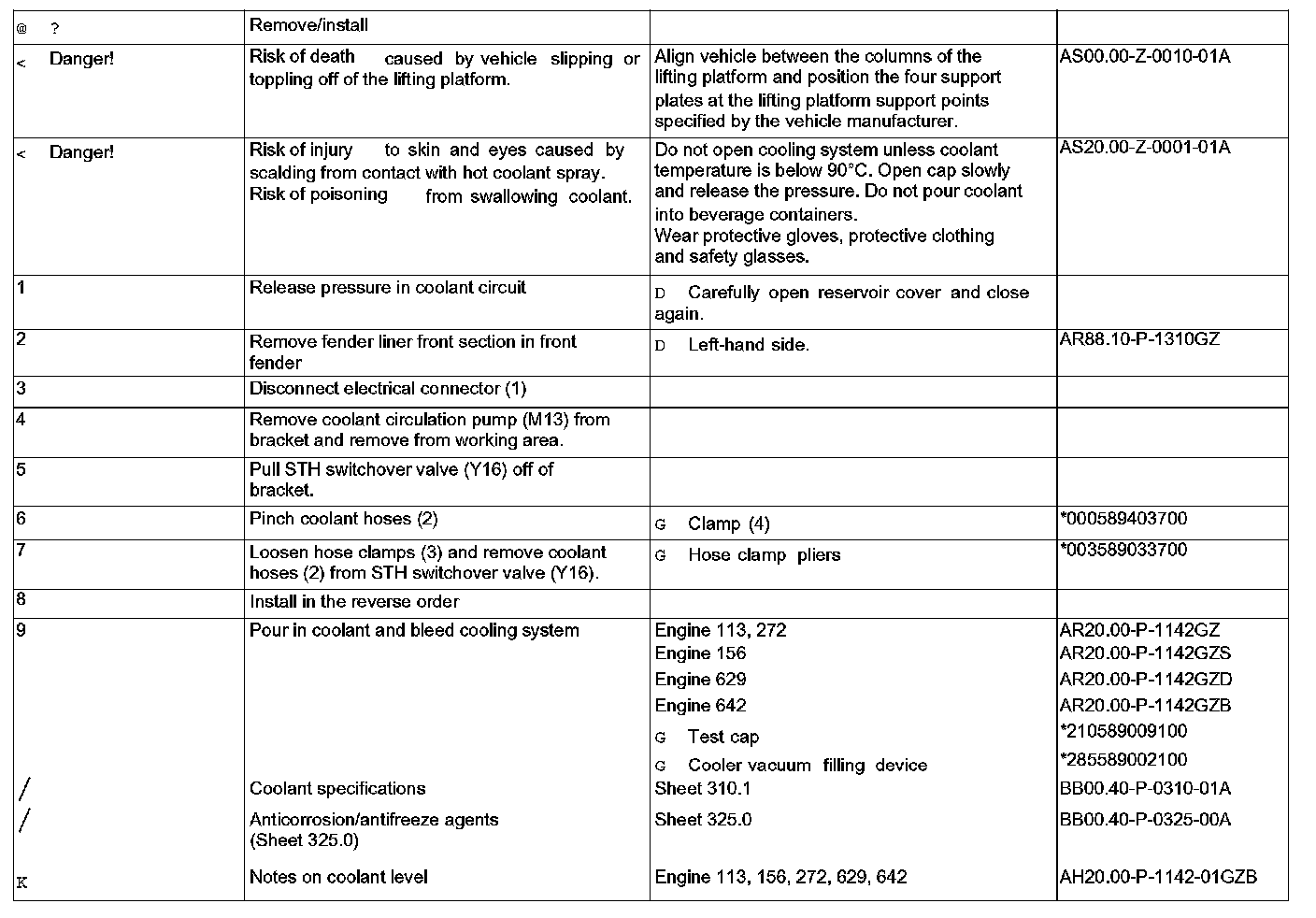

Steps 1 - 9:

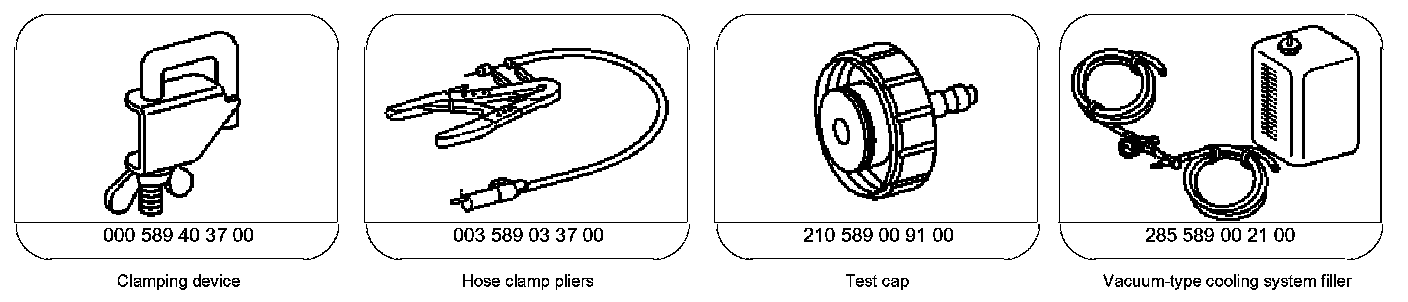

Special Tools:
