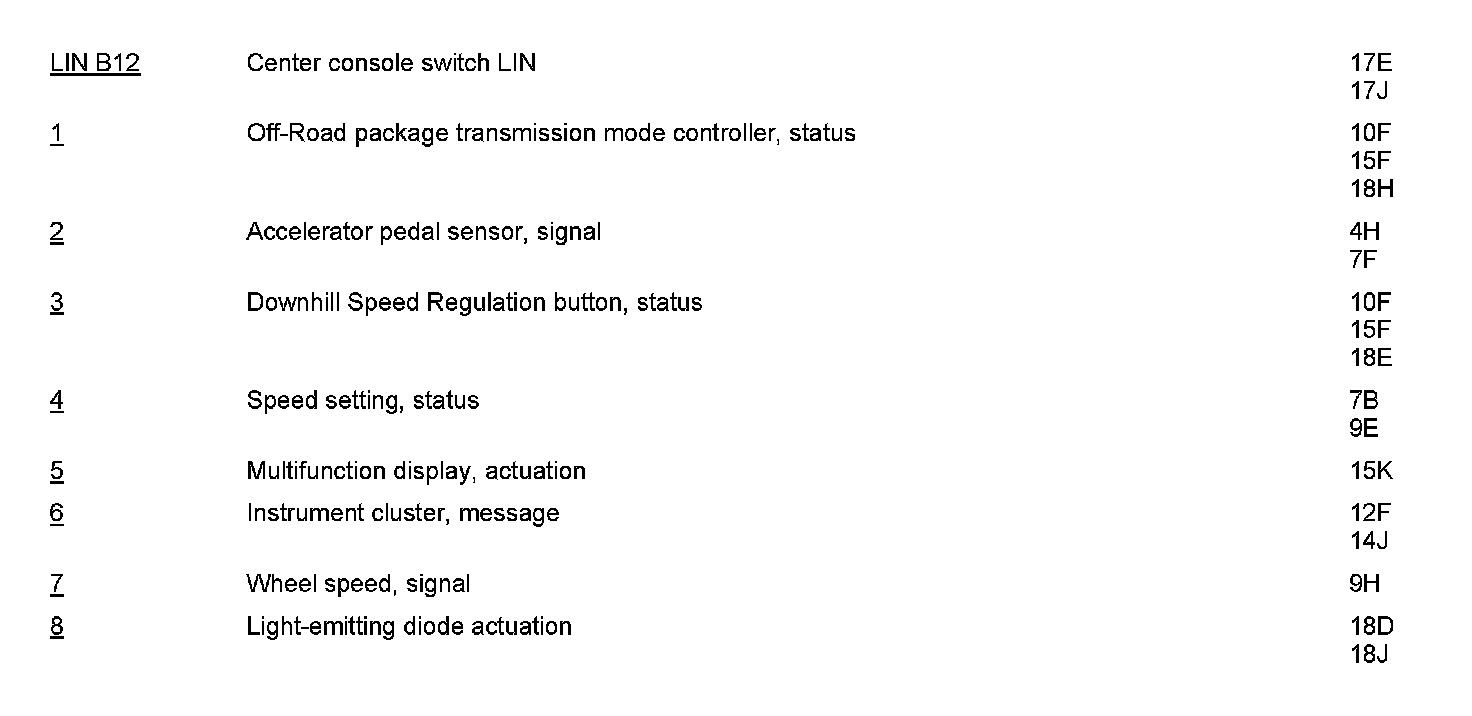

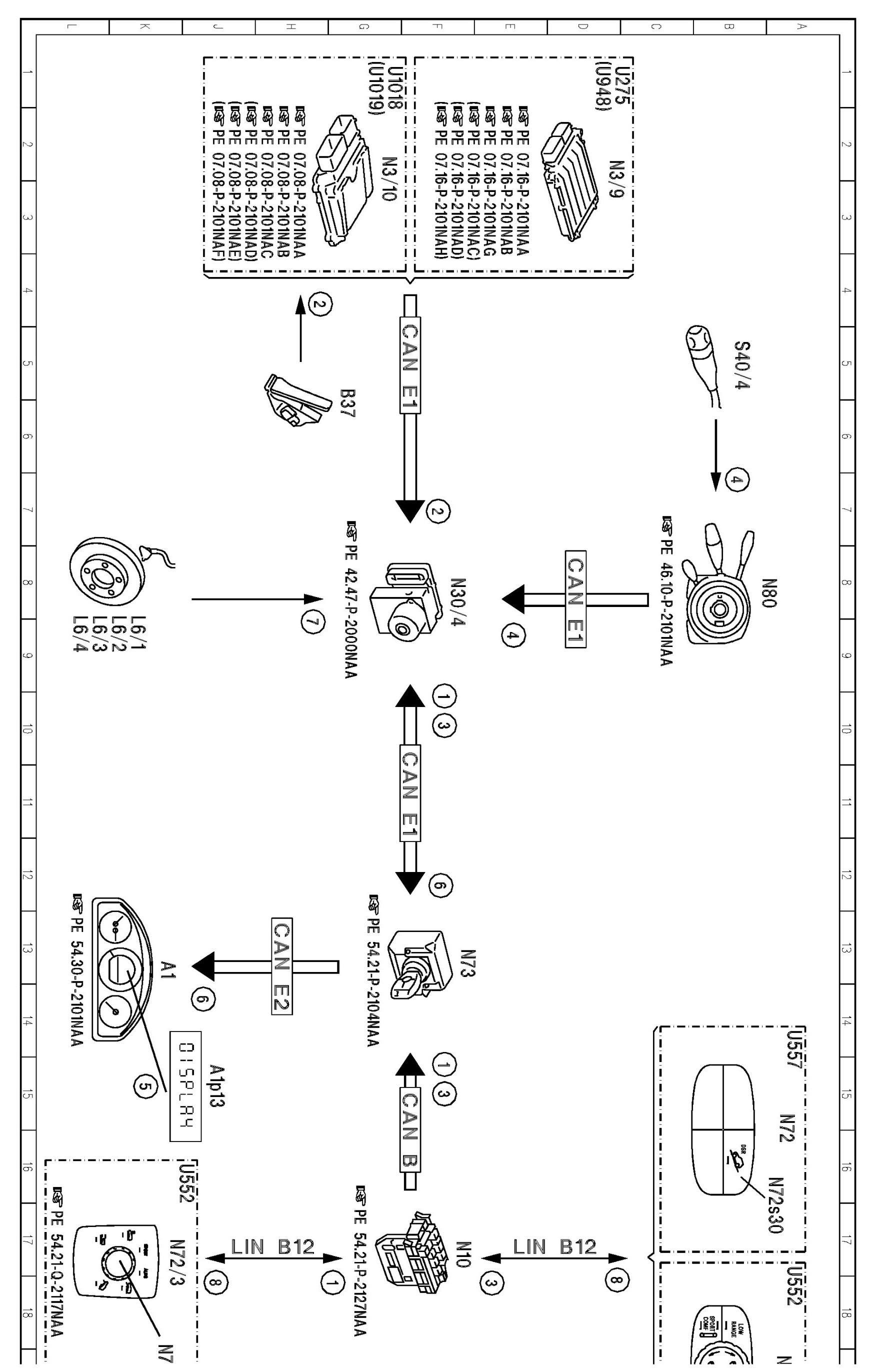

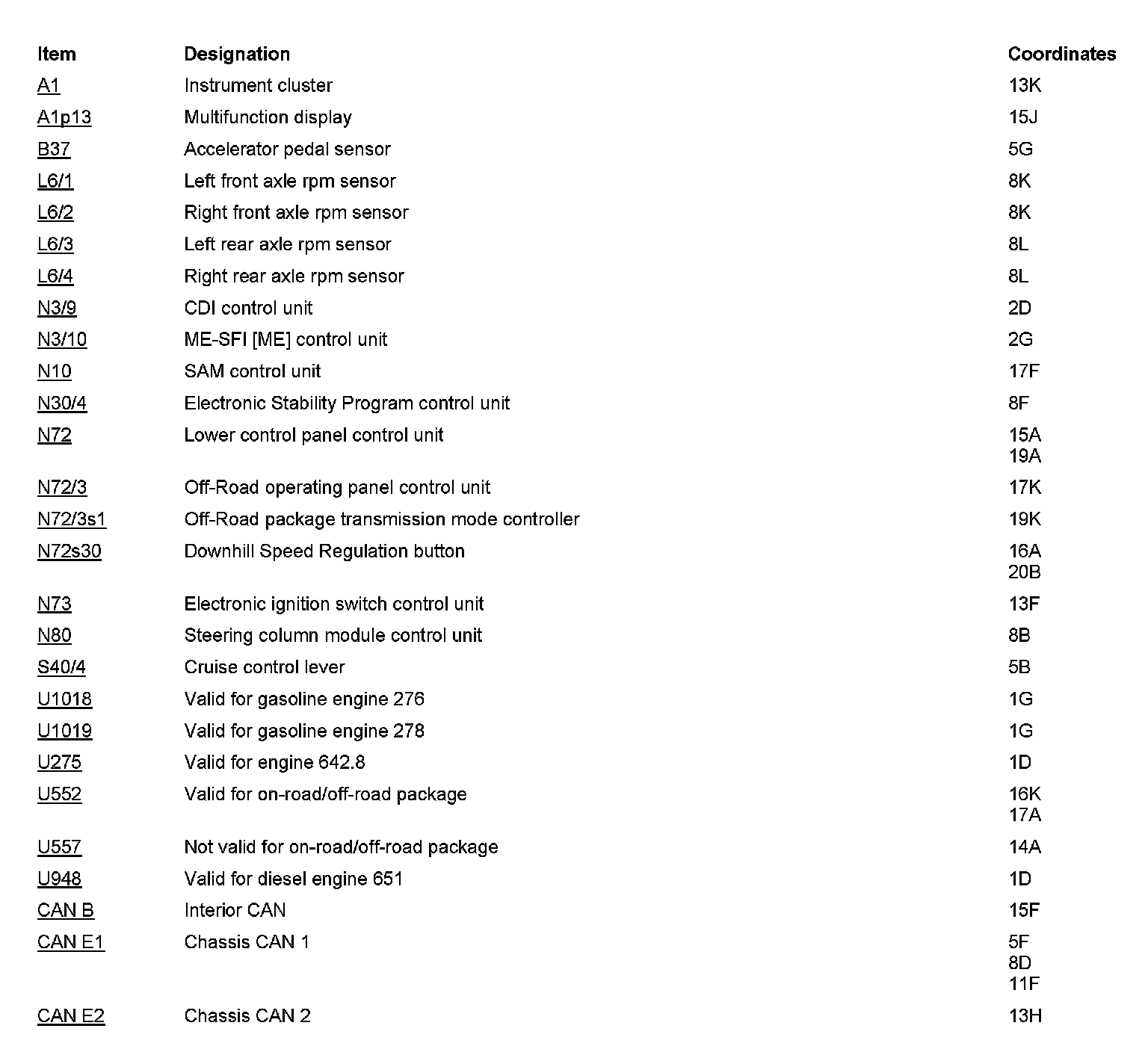

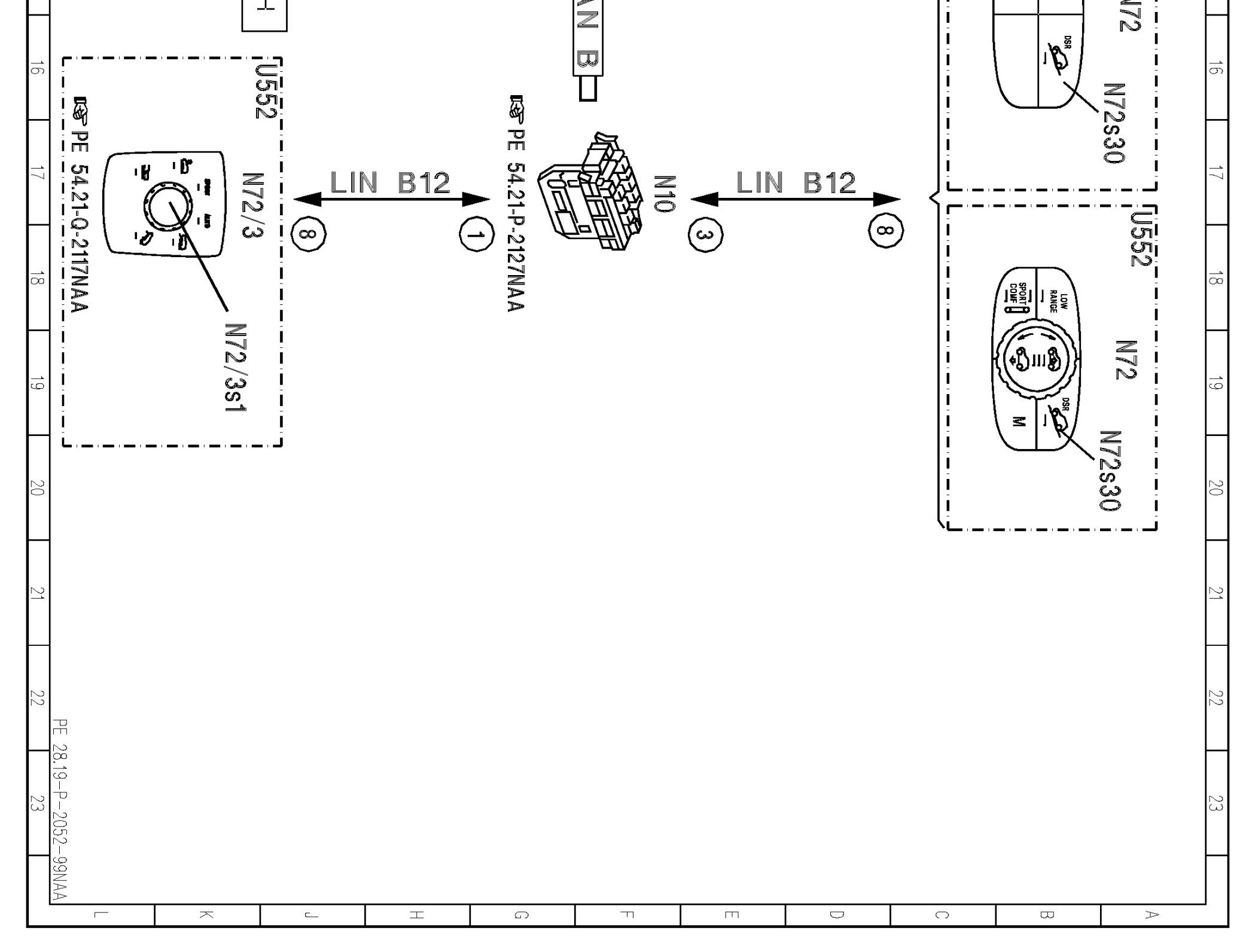

PE28.19-P-2052NAA Electrical Function Schematic For Downhill Speed Regulation



PE28.19-P-2052NAA Electrical Function Schematic For Downhill Speed Regulation
MODEL 166 with TRANSMISSION 722.9


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
