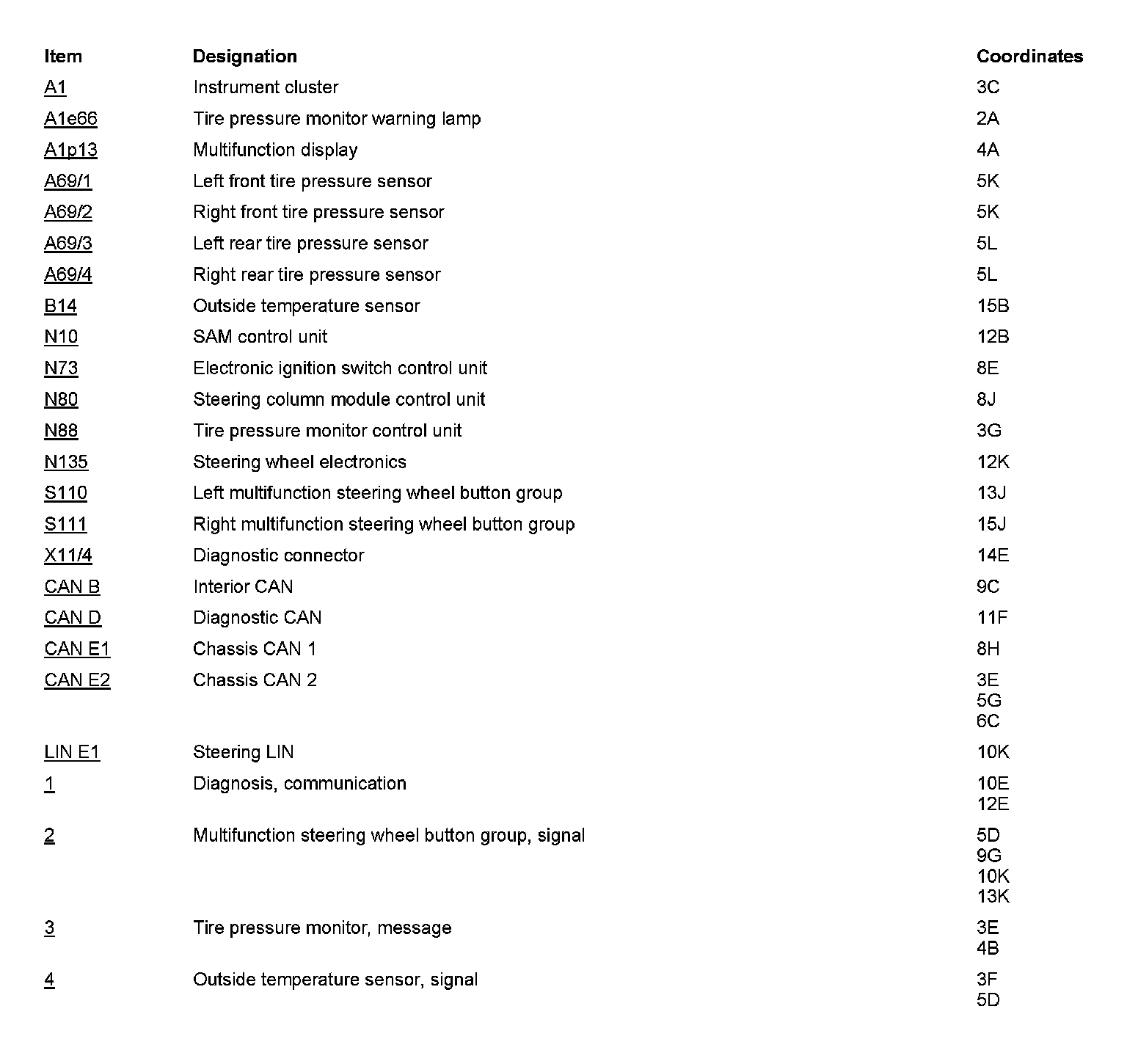

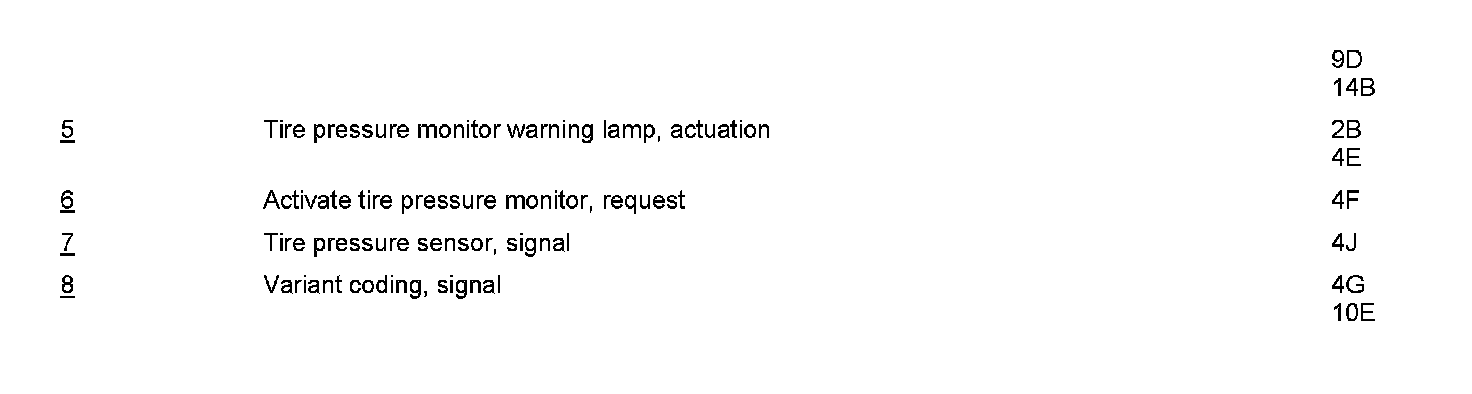

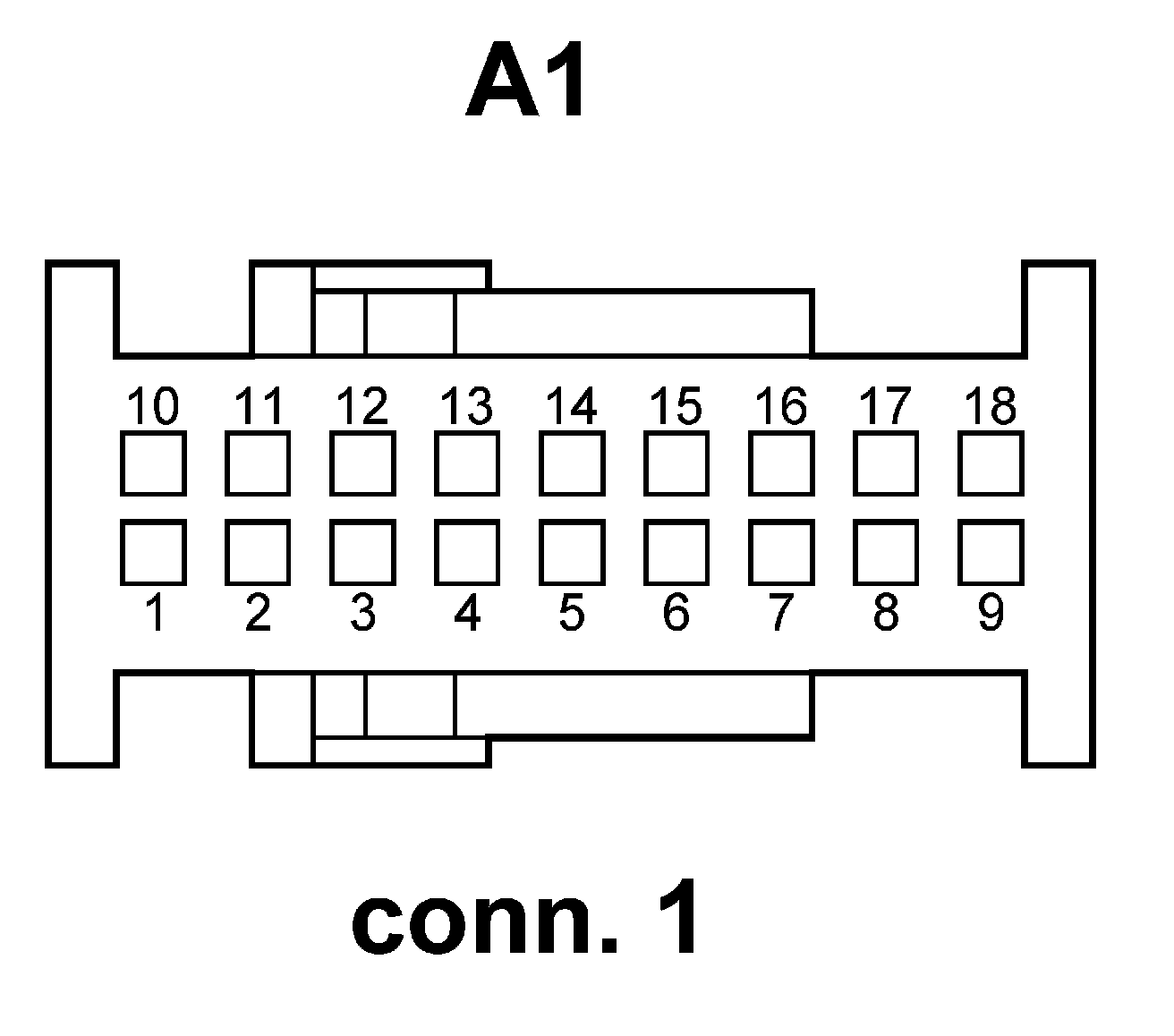

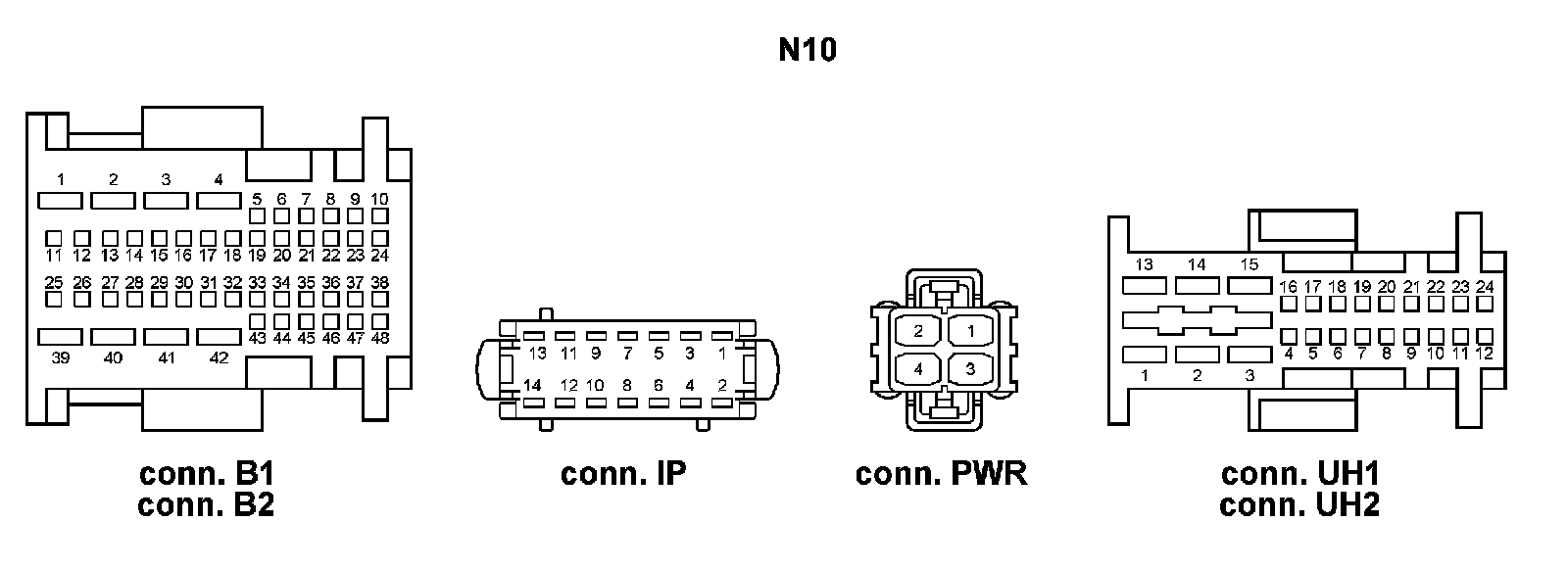

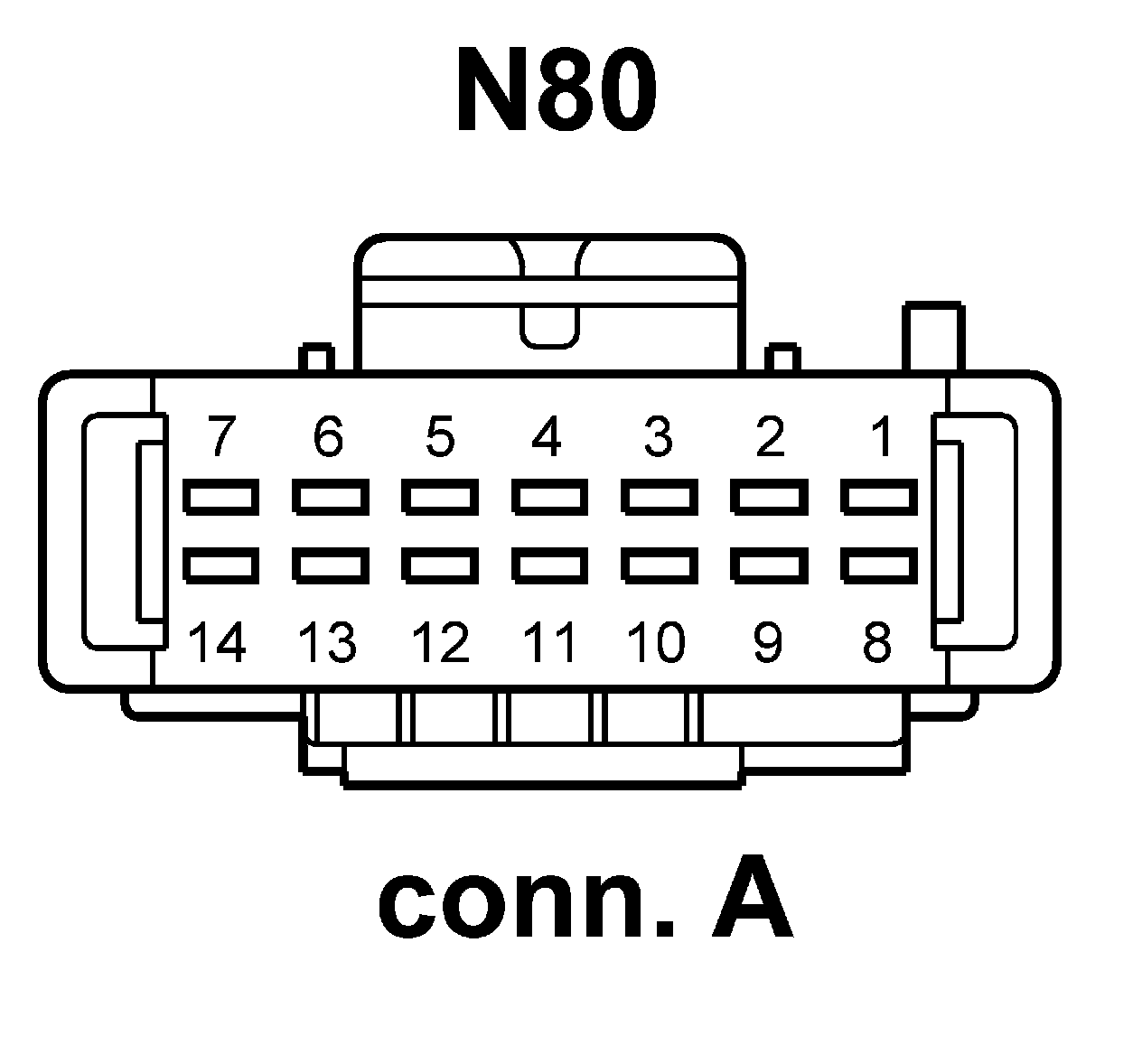

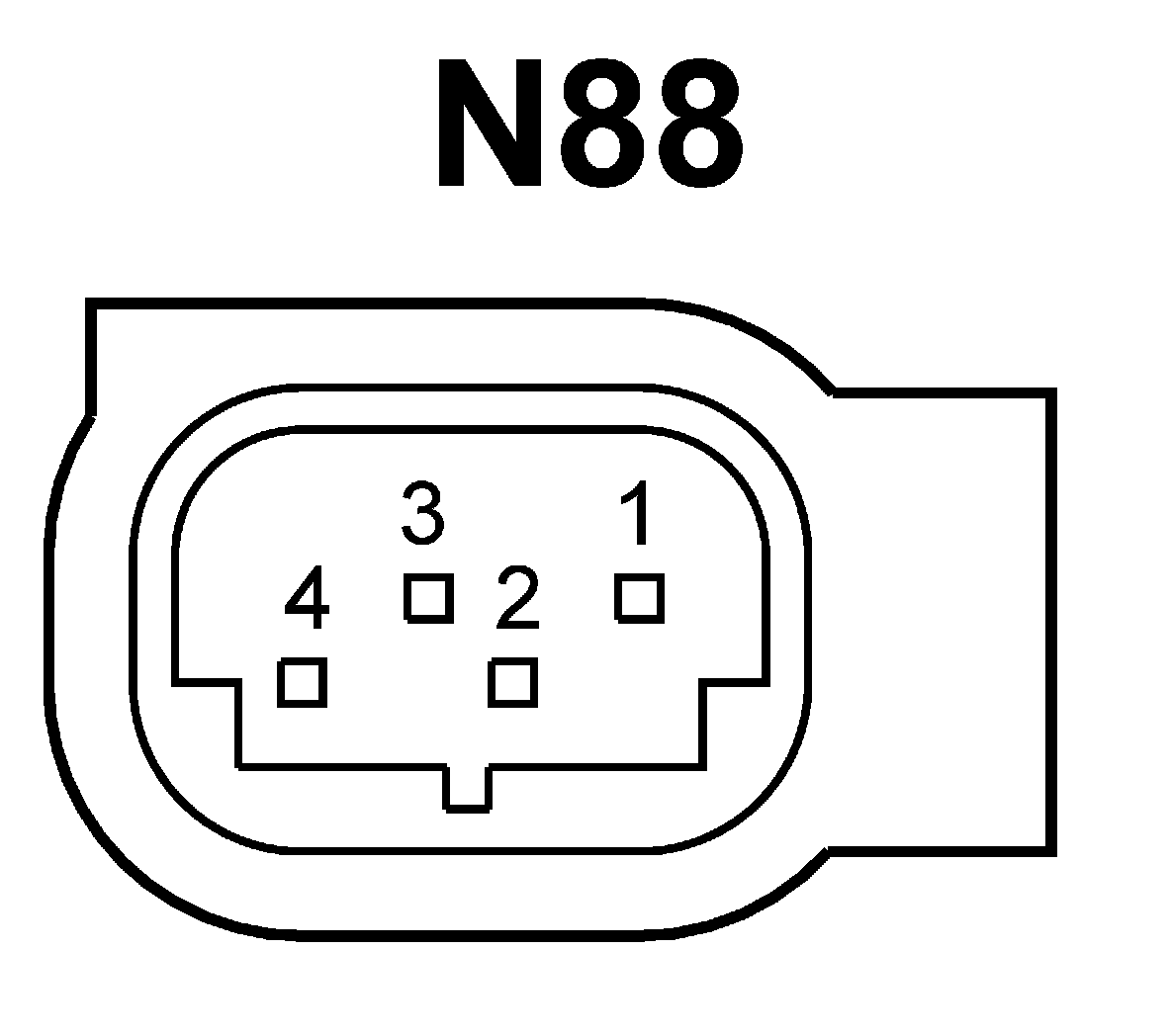

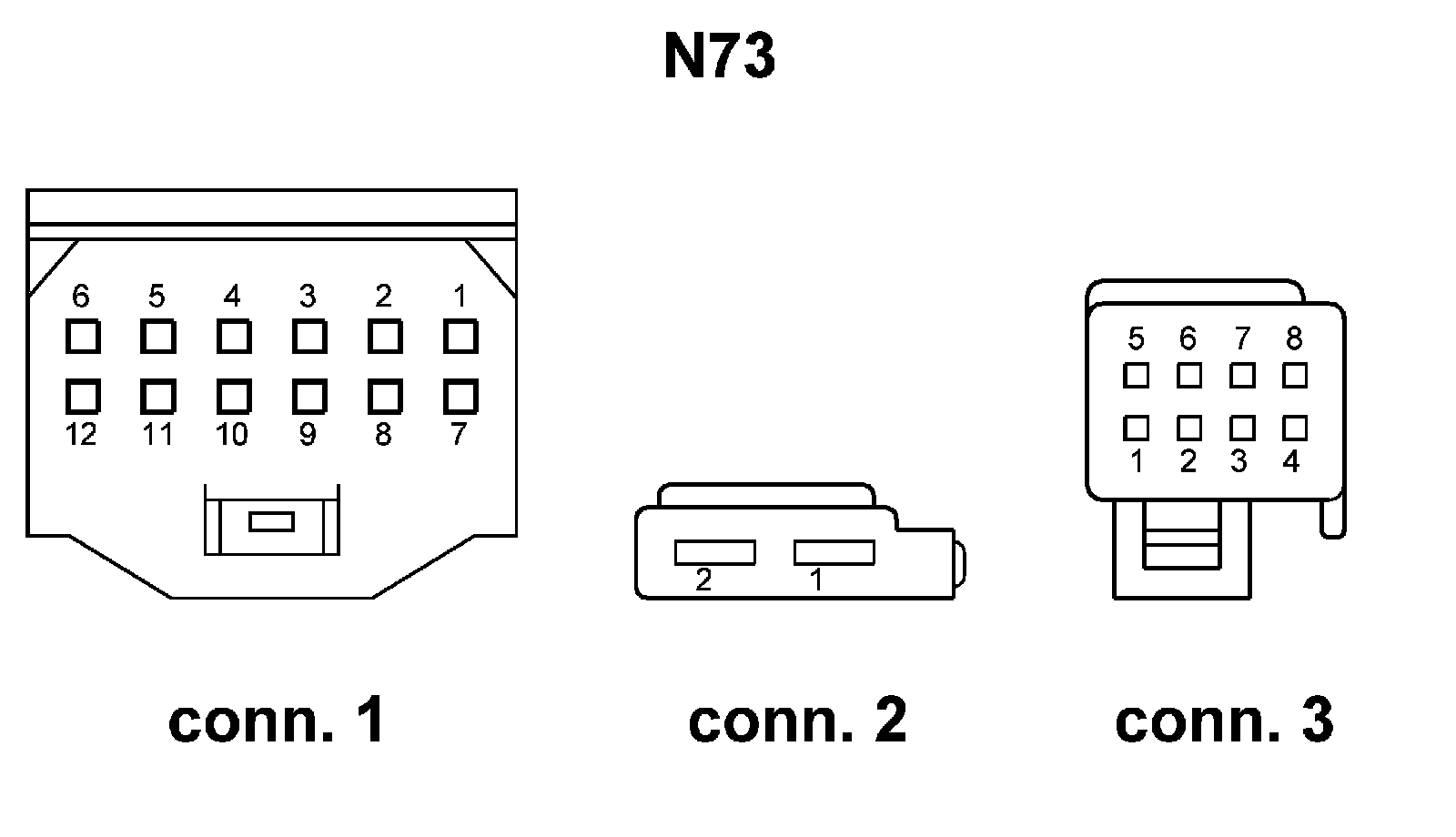

PE40.15-P-2050NAA Electrical Function Diagram For Tire Pressure Monitor (TPM [RDK])

PE40.15-P-2050NAA Electrical Function Diagram For Tire Pressure Monitor (TPM [RDK])
MODEL 166
with CODE (475) Tire Pressure Monitor (Premium)


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
