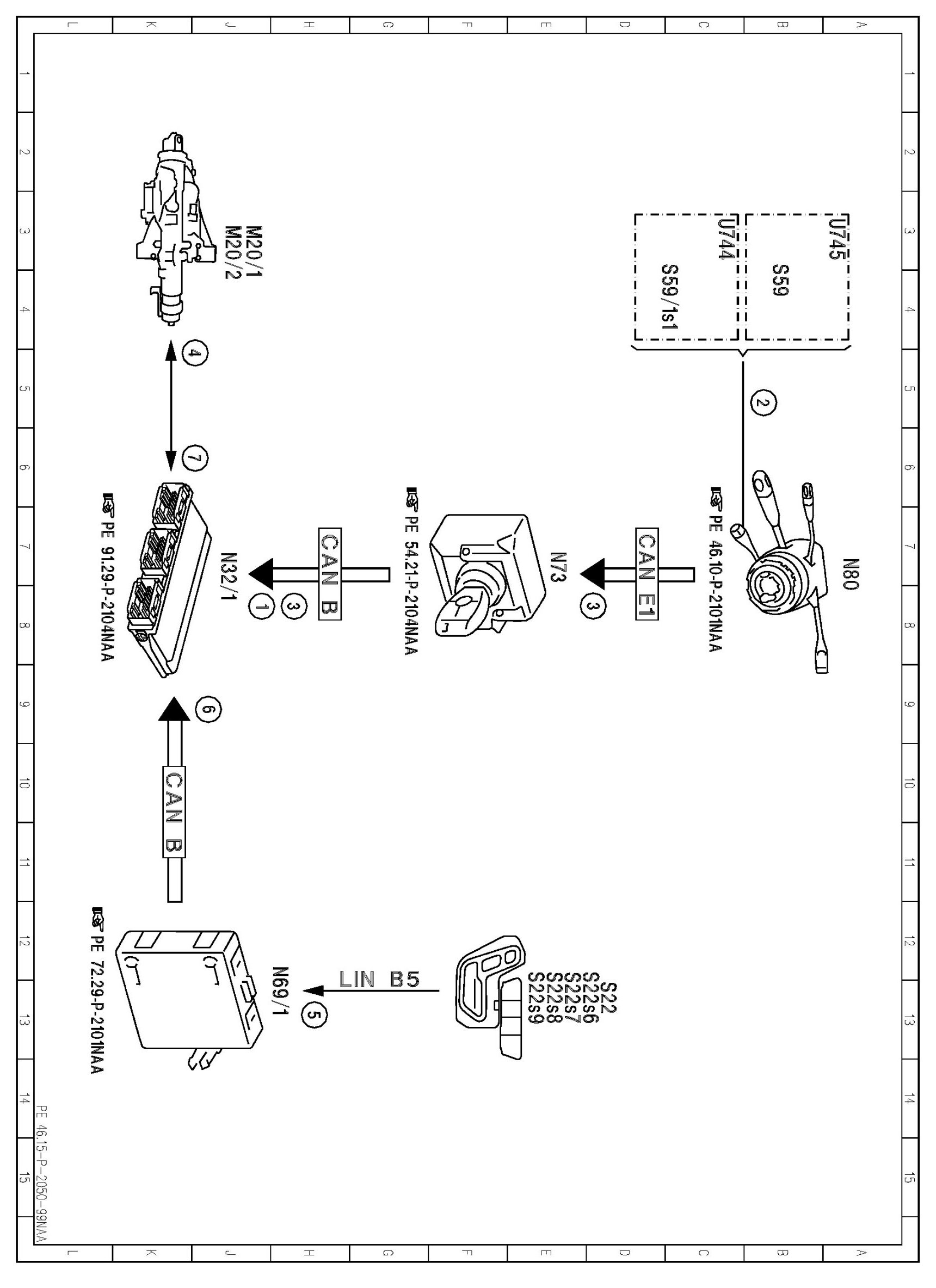

PE46.15-P-2050NAA Electrical Function Schematic For Steering Column Adjustment

PE46.15-P-2050NAA Electrical Function Schematic For Steering Column Adjustment
MODEL 166
with CODE (275) Memory Package (Driver Seat, Steering Column, Mirrors)


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
