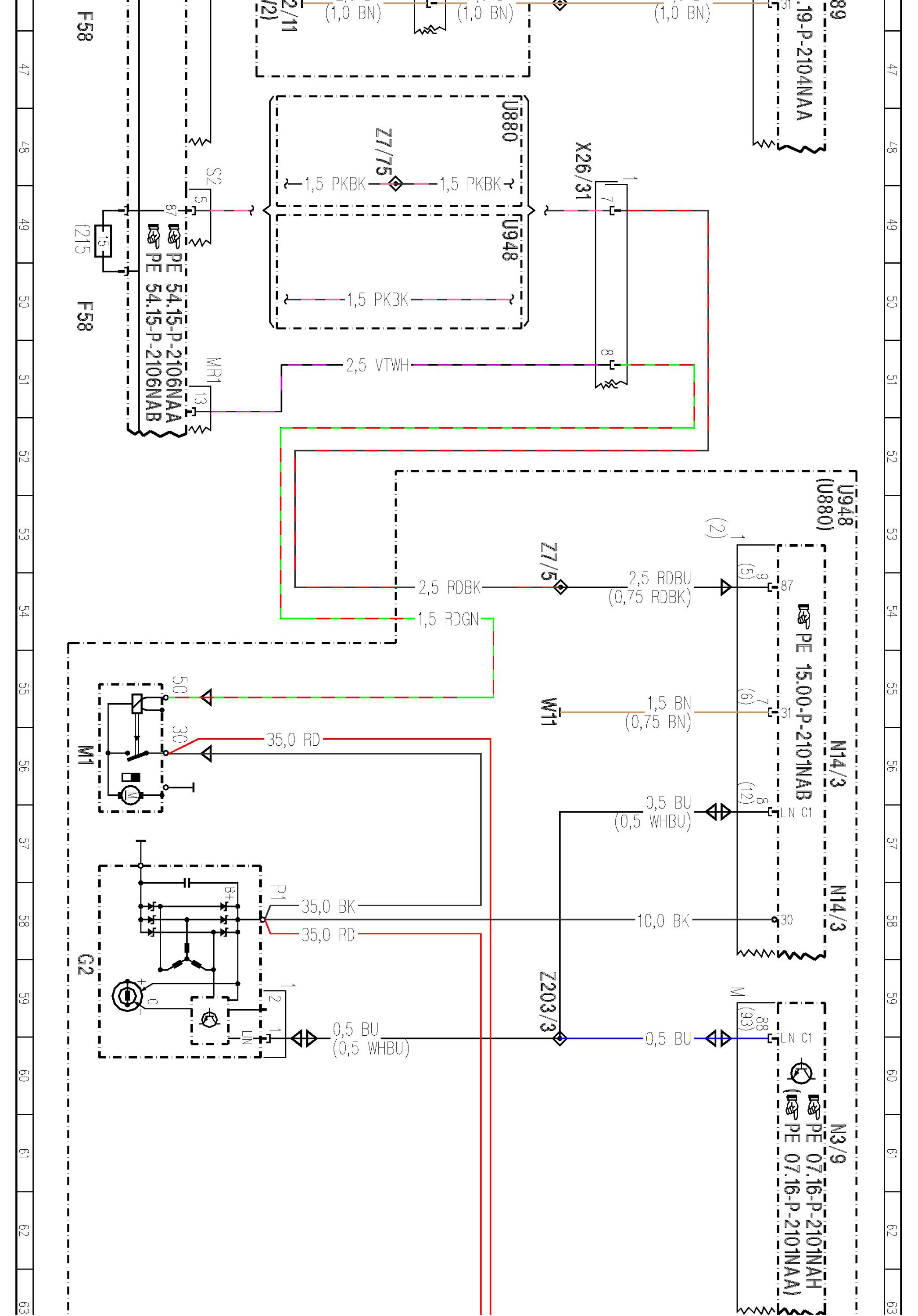

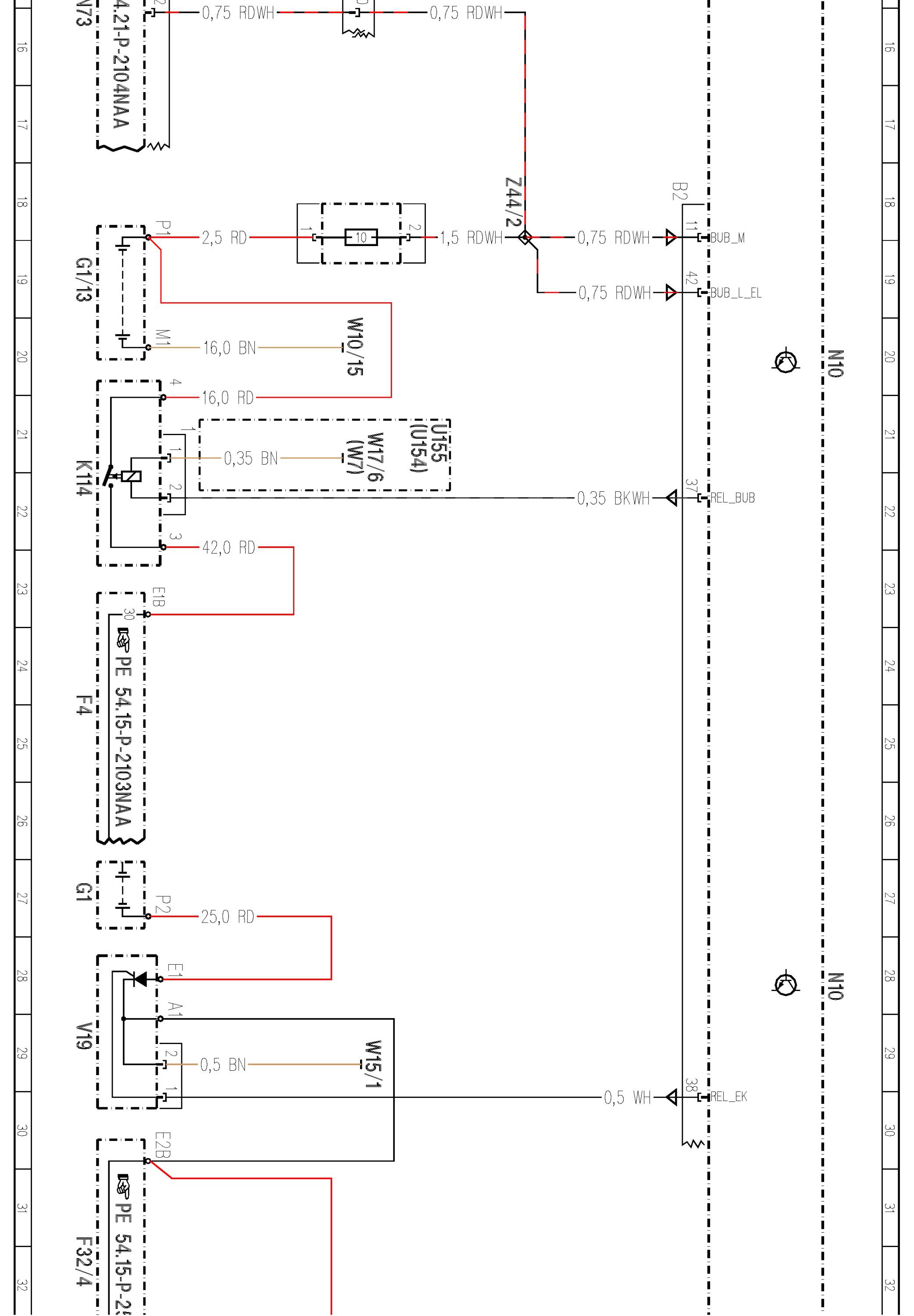

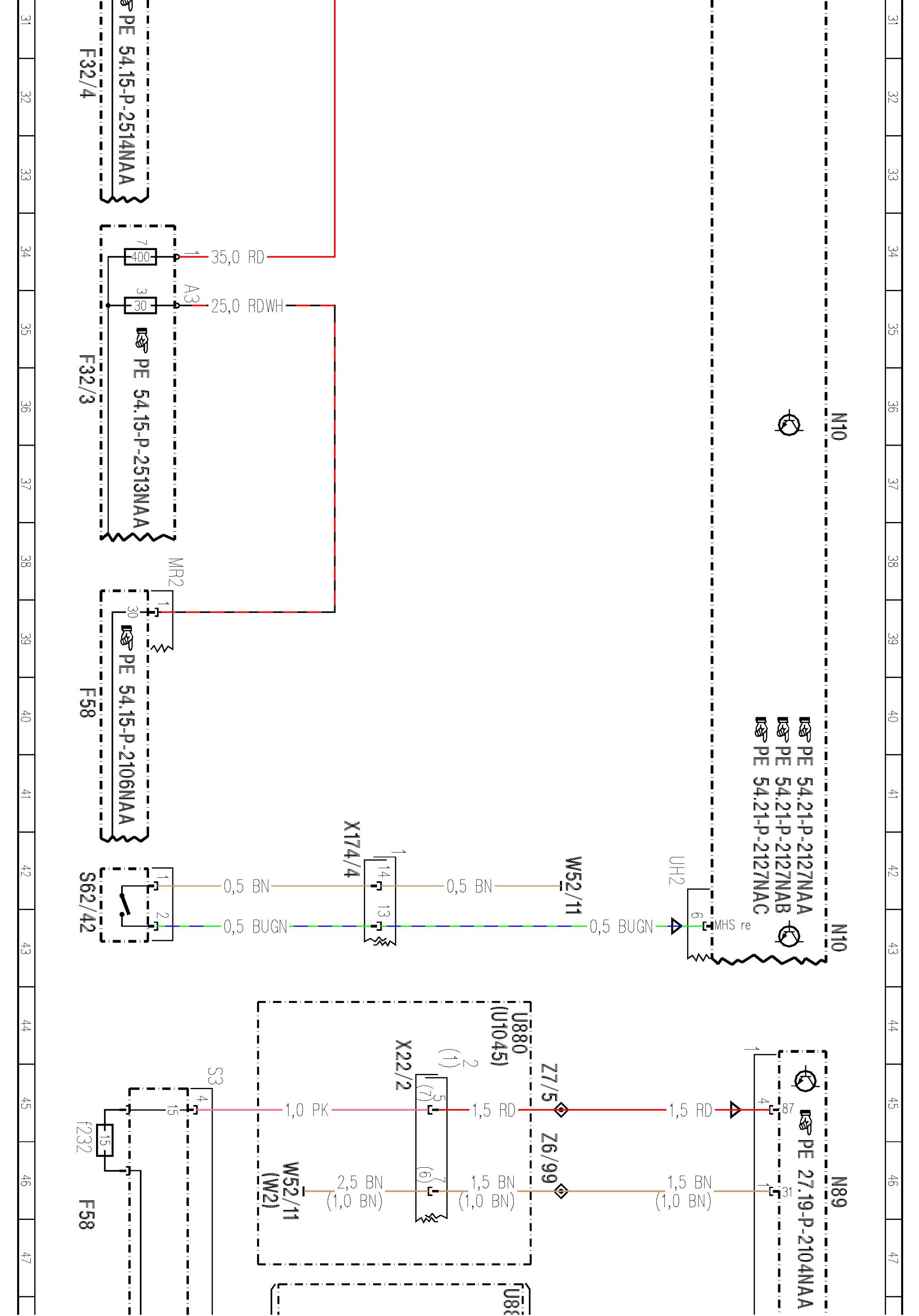

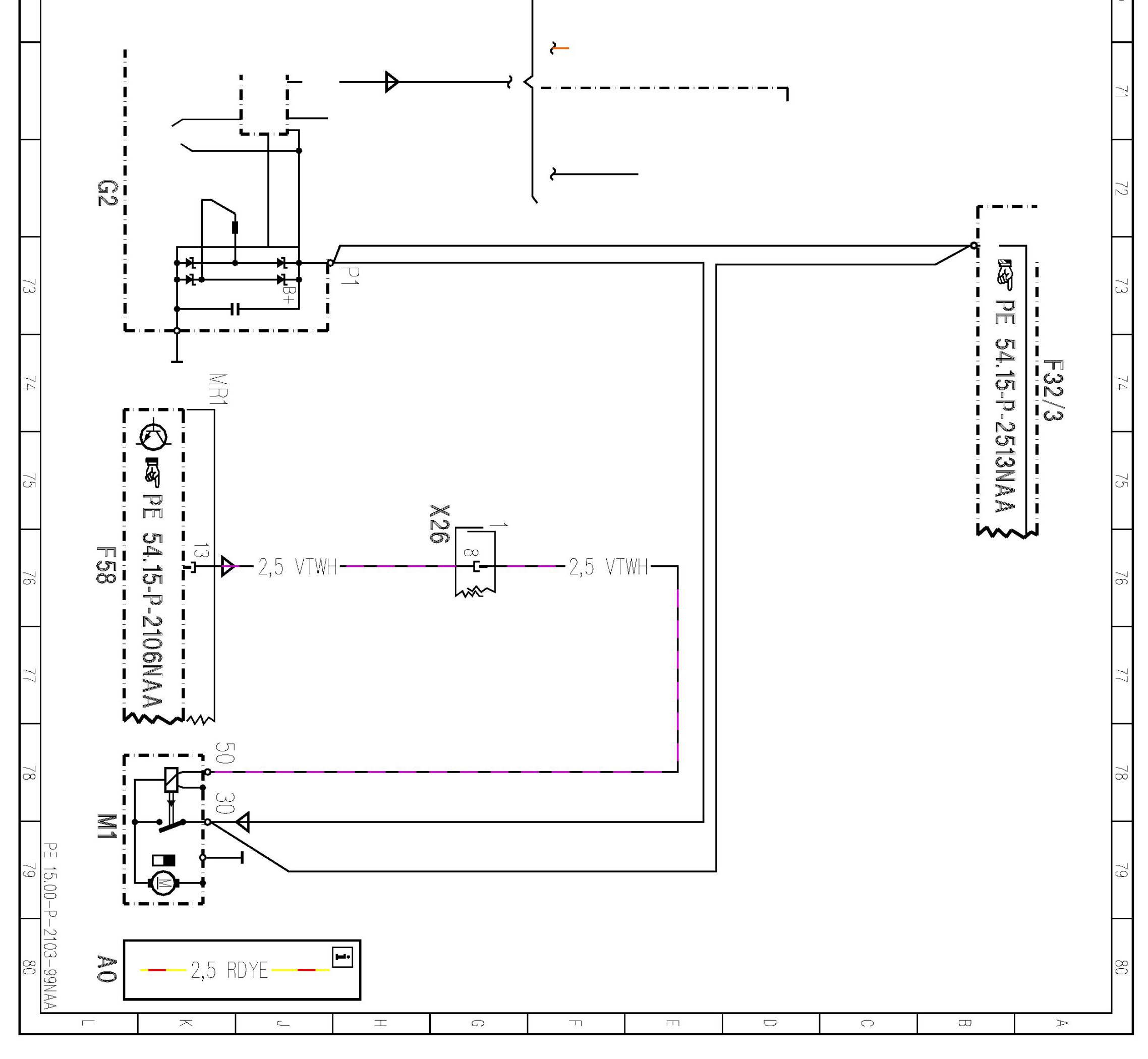

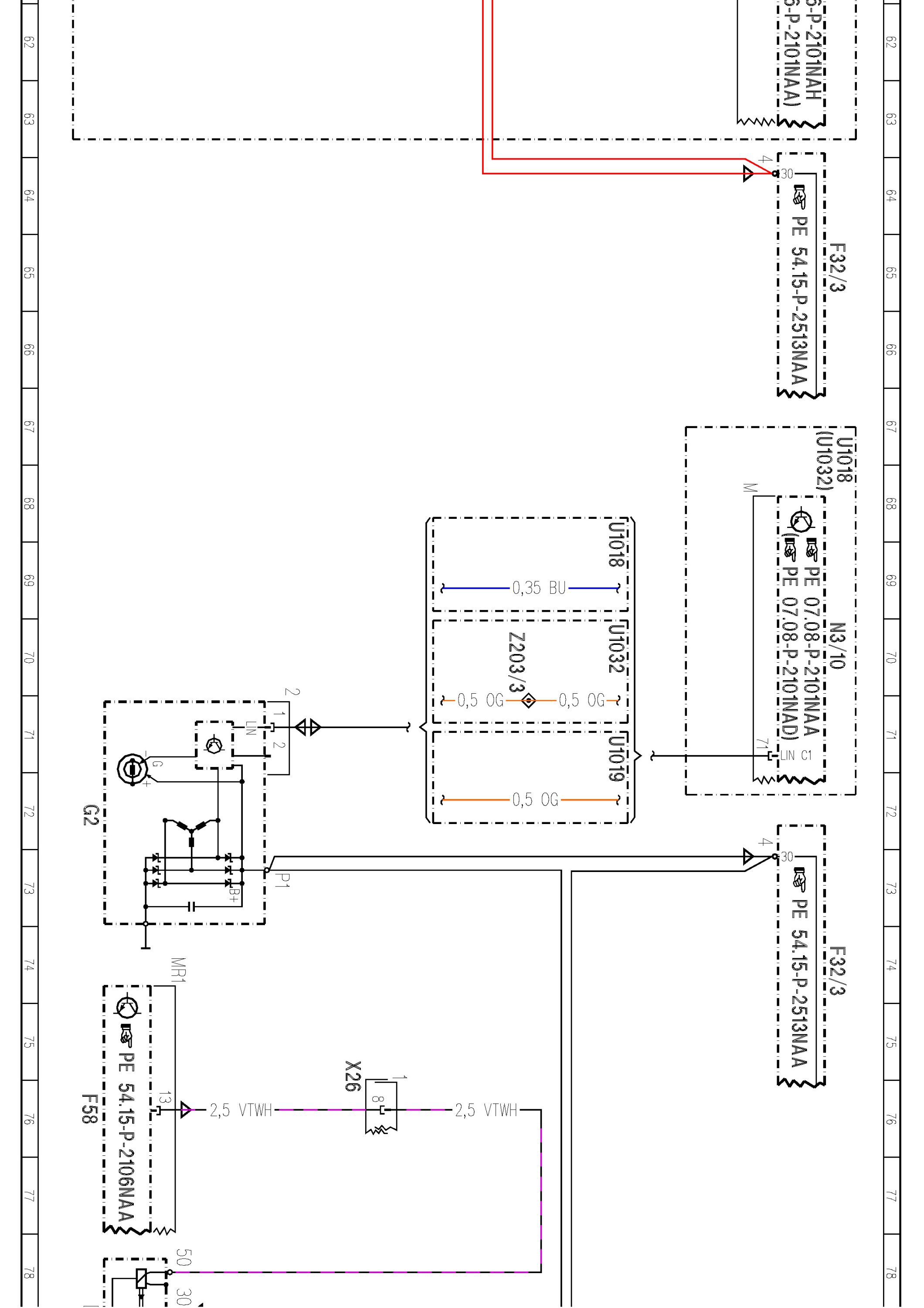

PE15.00-P-2103NAA Engine Start/Stop



PE15.00-P-2103NAA Engine Start/Stop
ENGINES 157.9, 276.9, 278.9, 642.8, 651.9 in MODEL 166
with CODE (B03) ECO Start/Stop Function

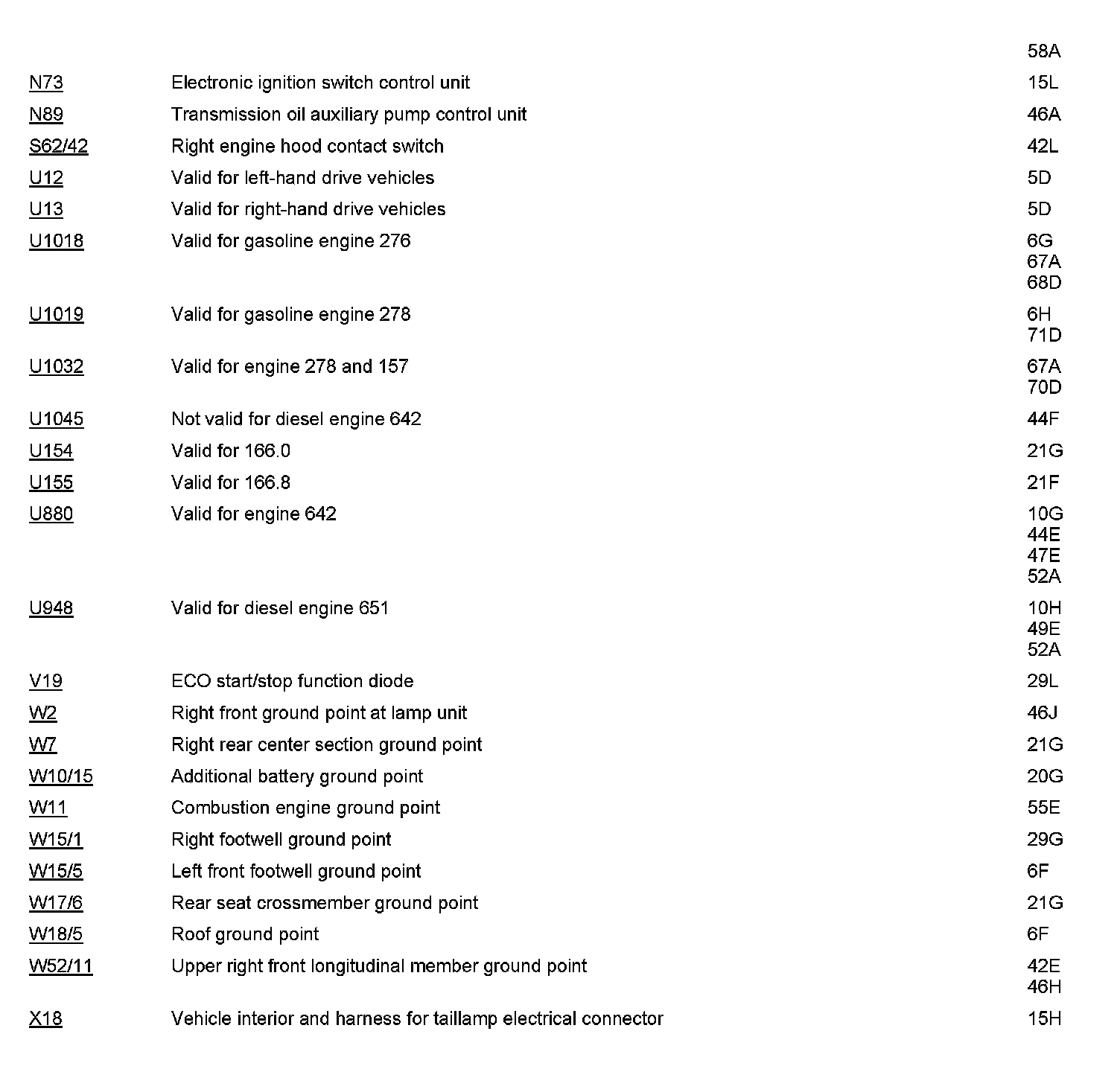

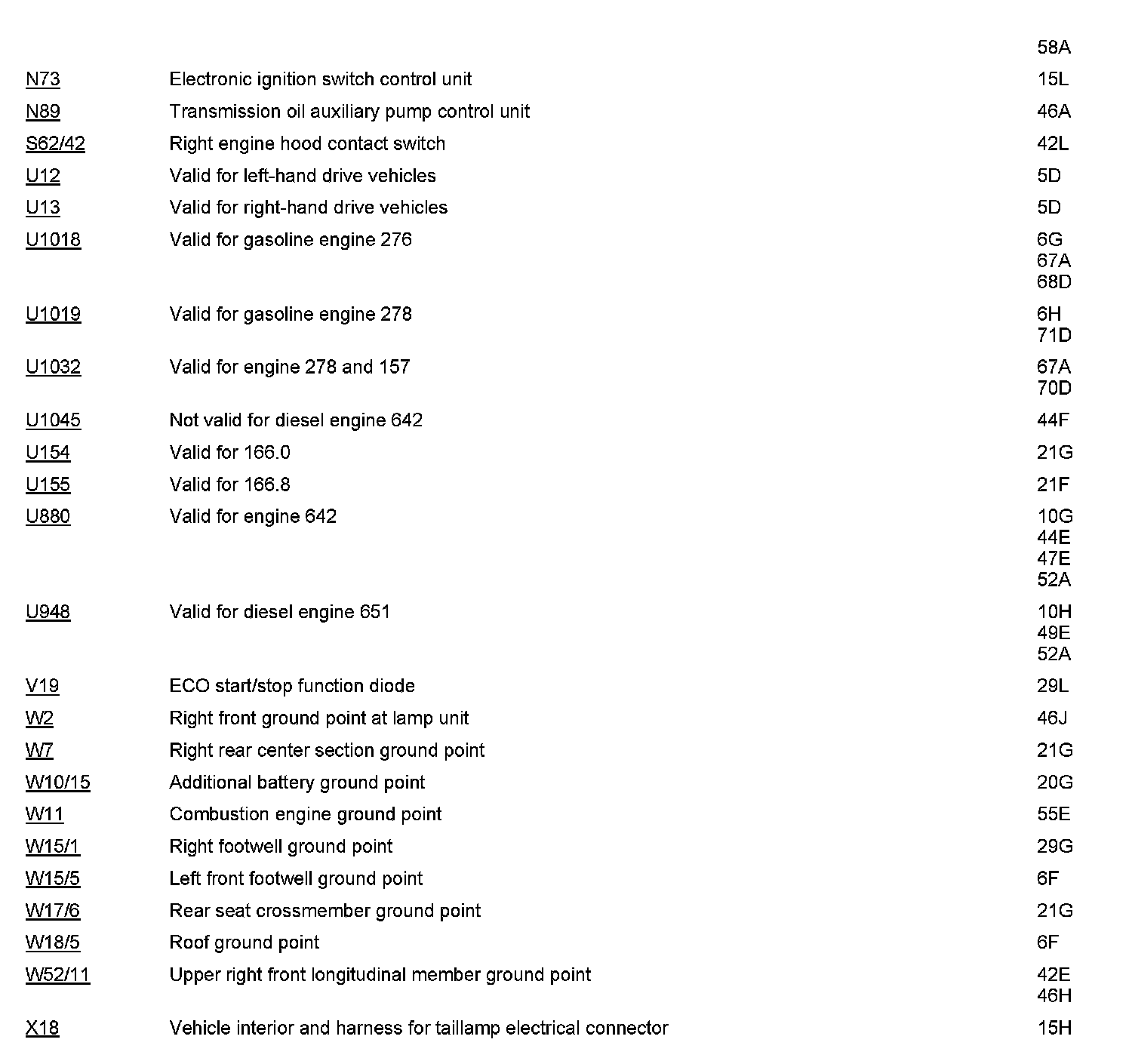

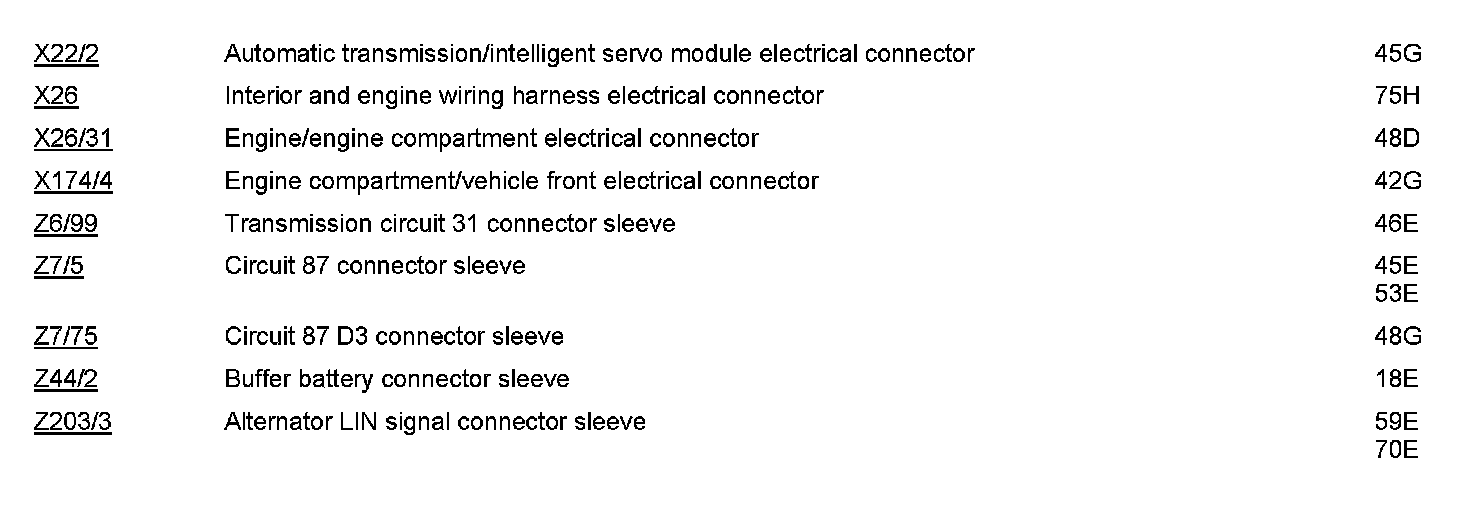

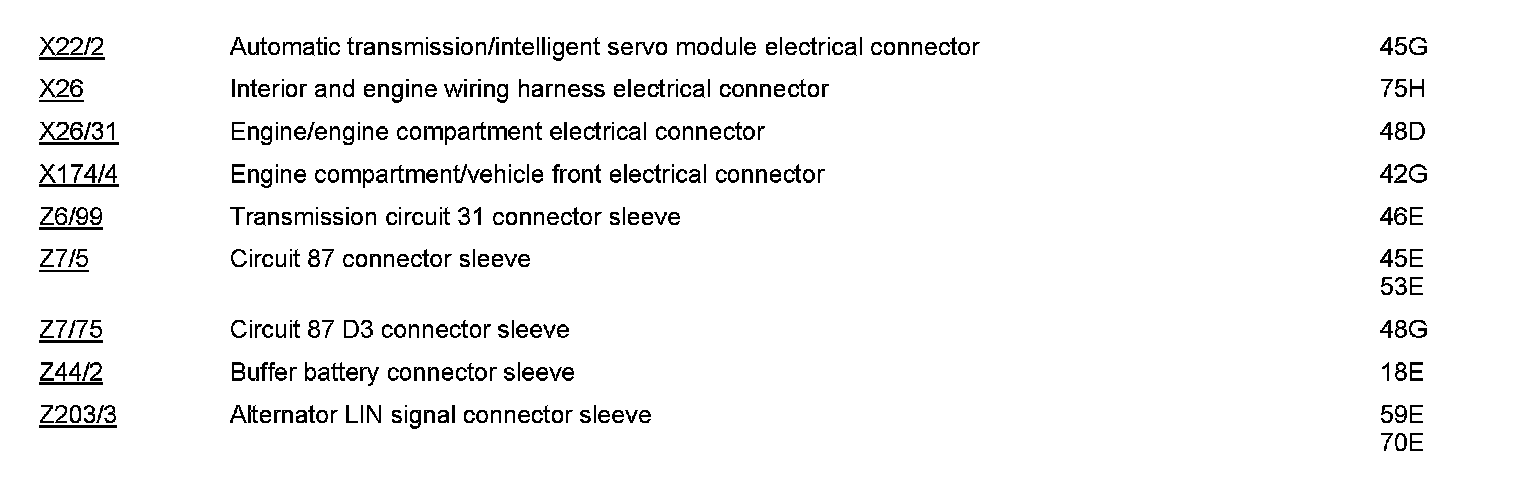

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
