PE54.15-P-2911NAA Cockpit Fuse Box

PE54.15-P-2911NAA Cockpit Fuse Box
MODEL 166

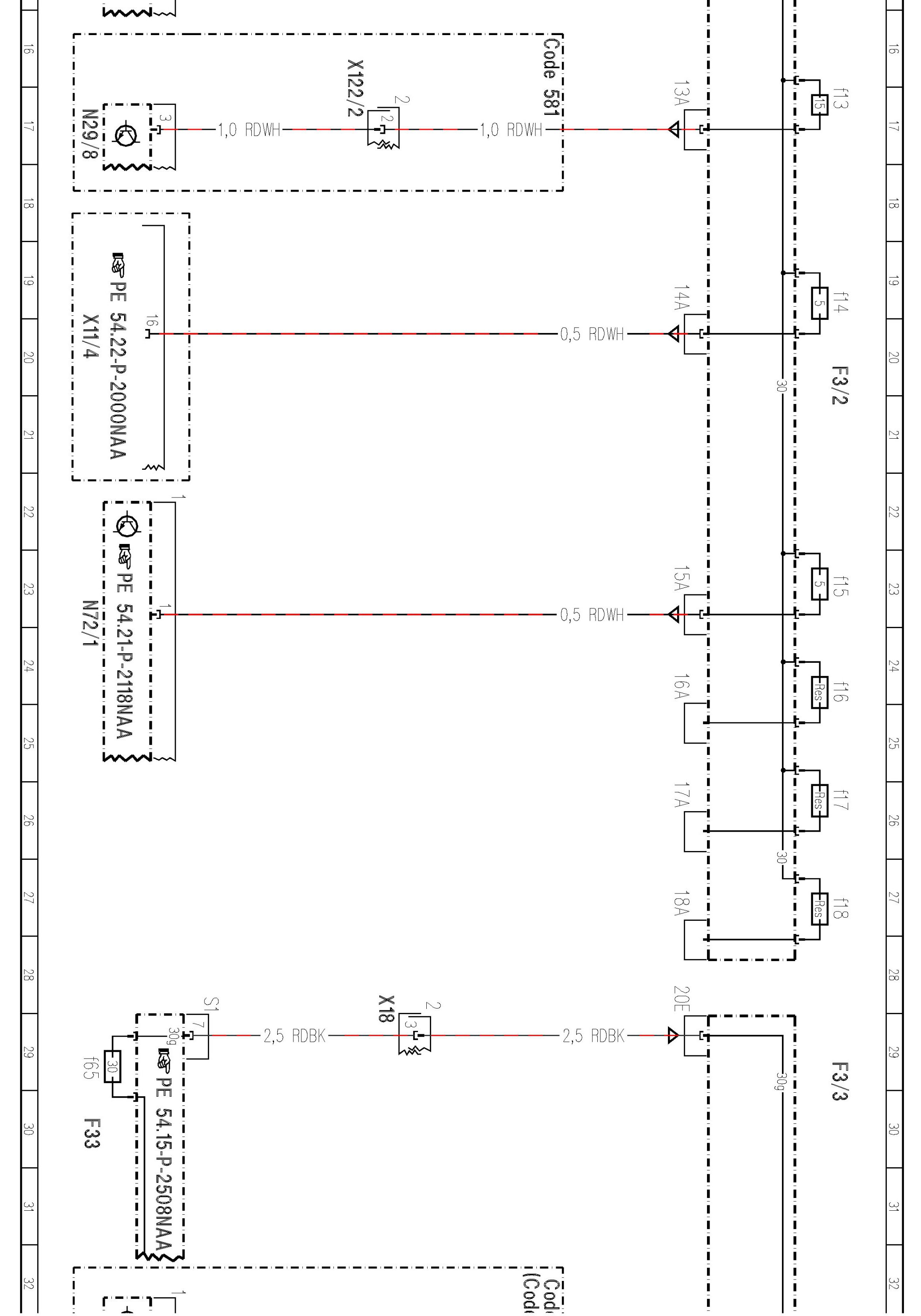

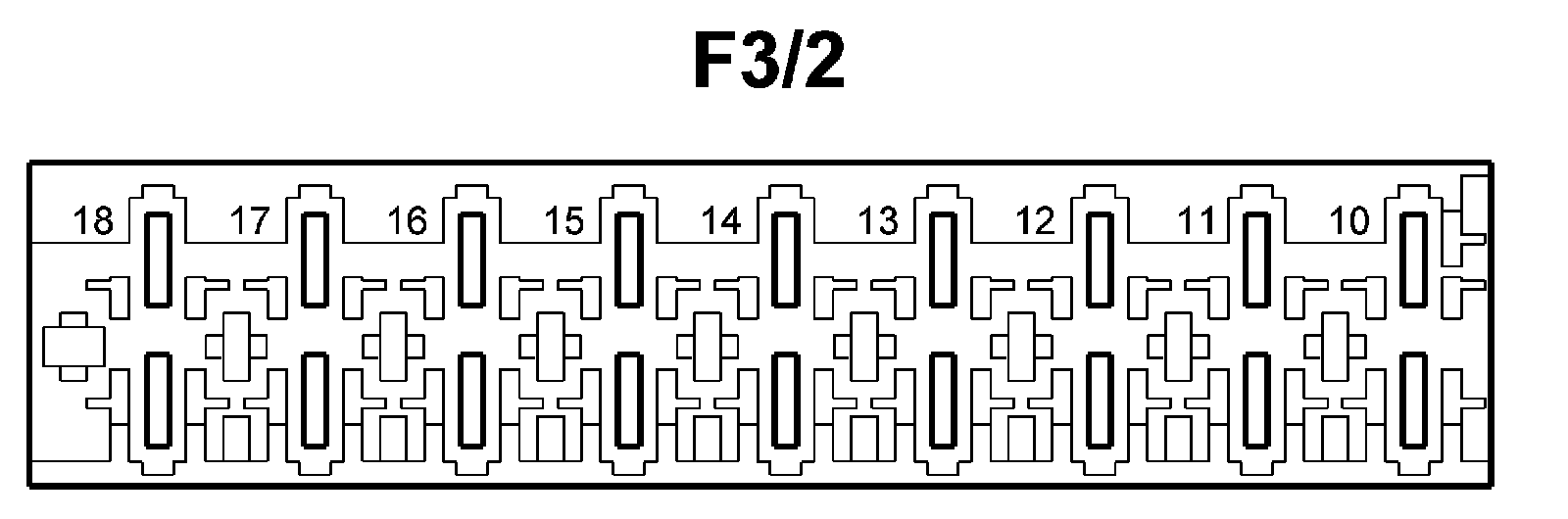

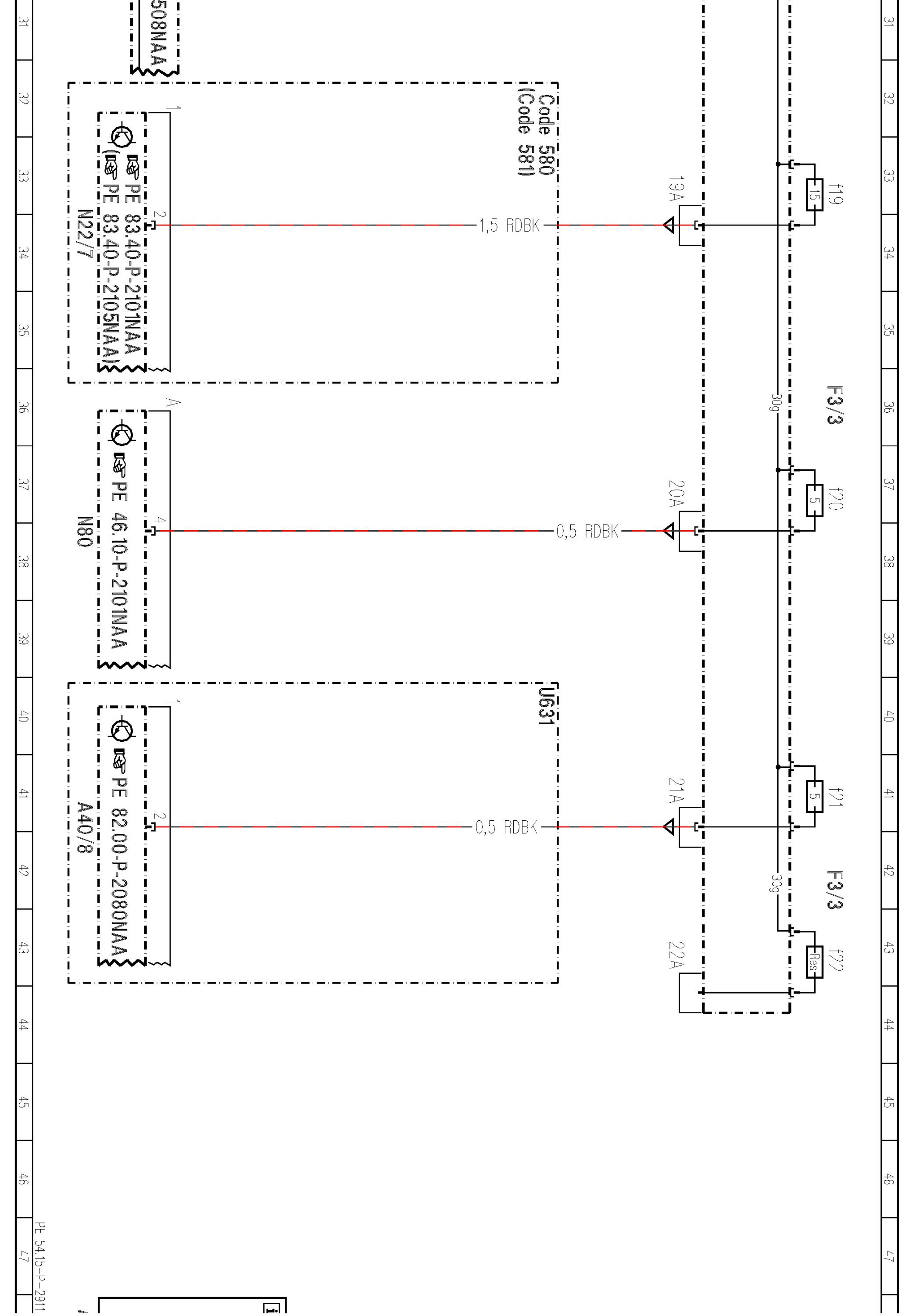

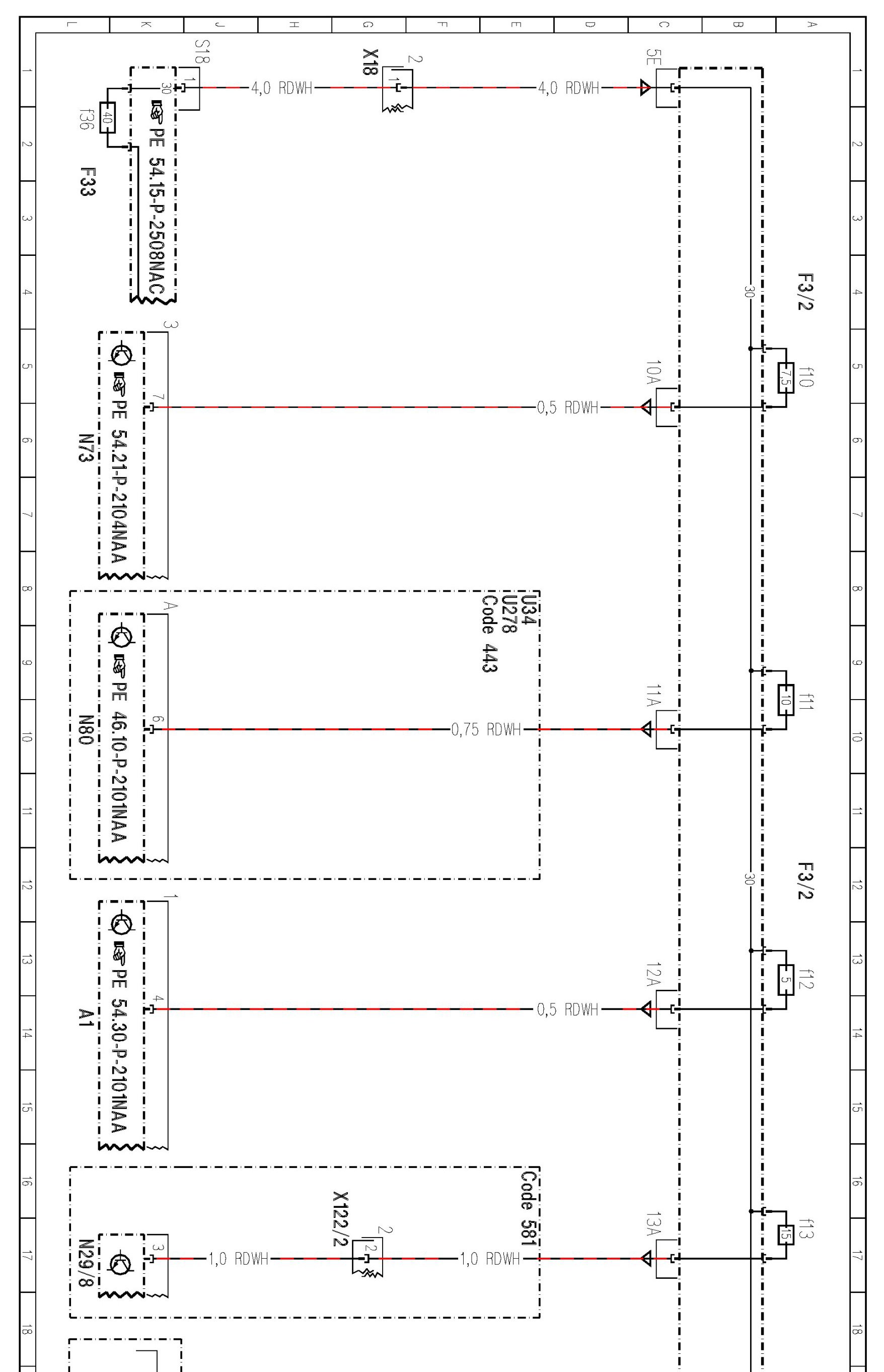

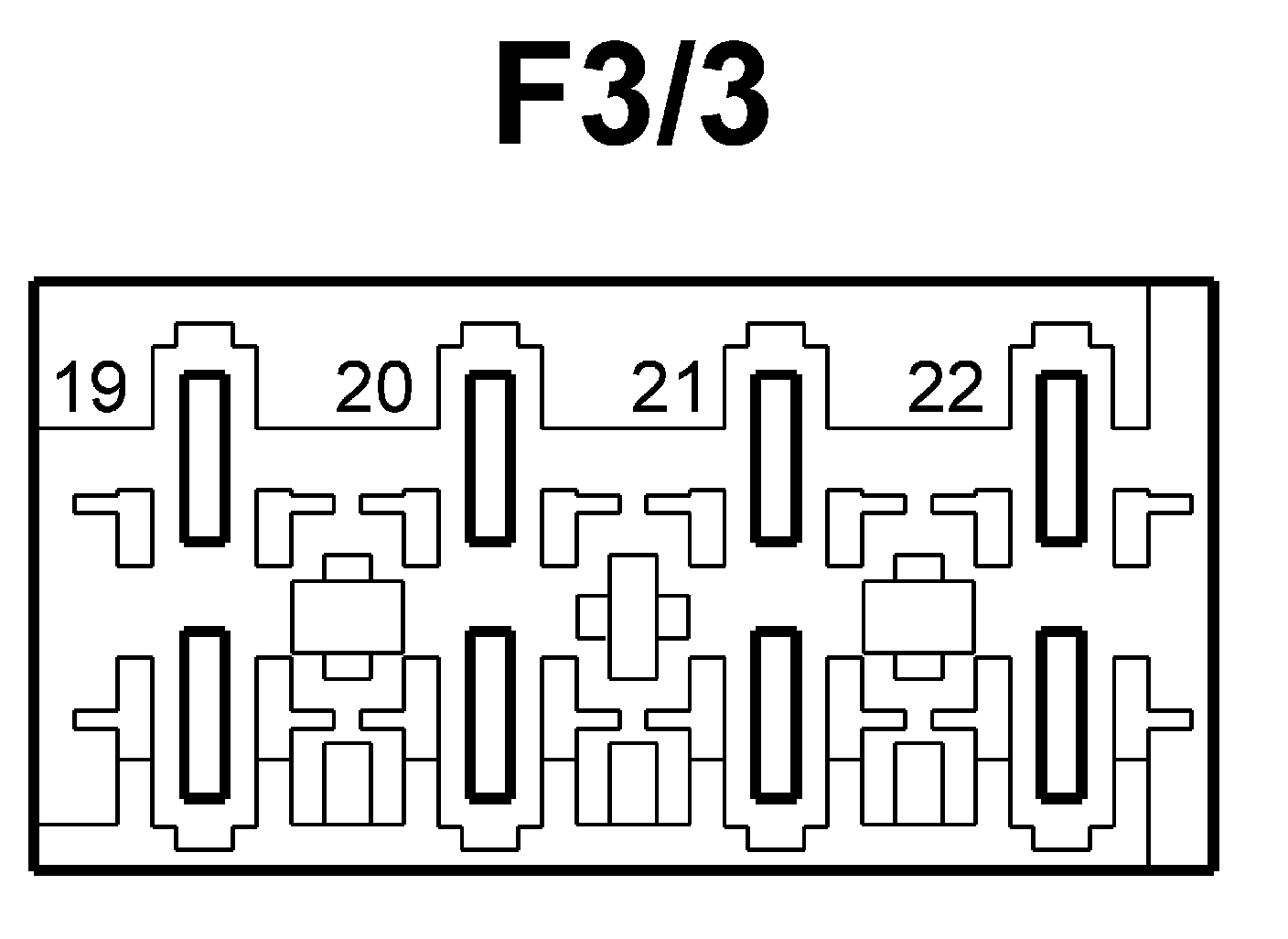

Fuse Box F3/2, F3/3


































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
