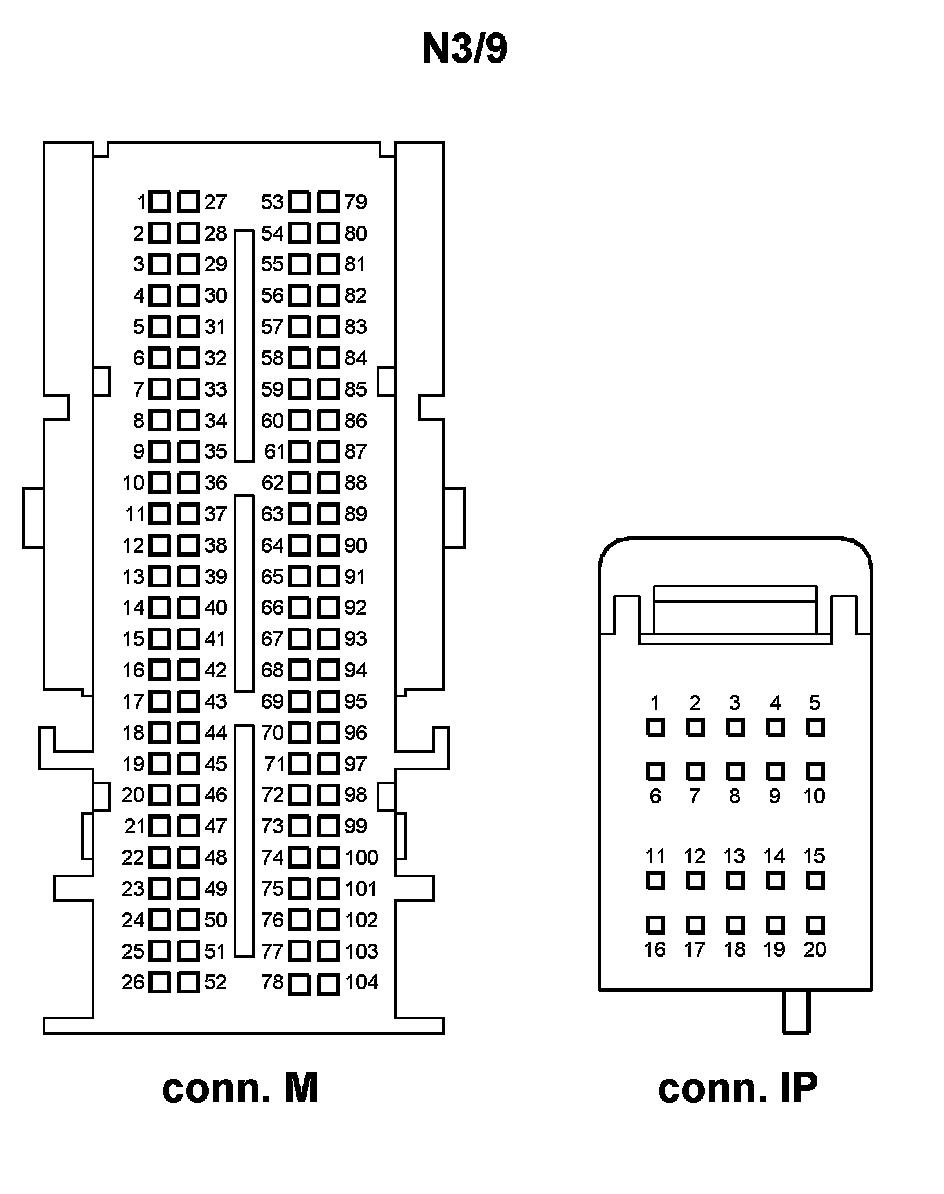

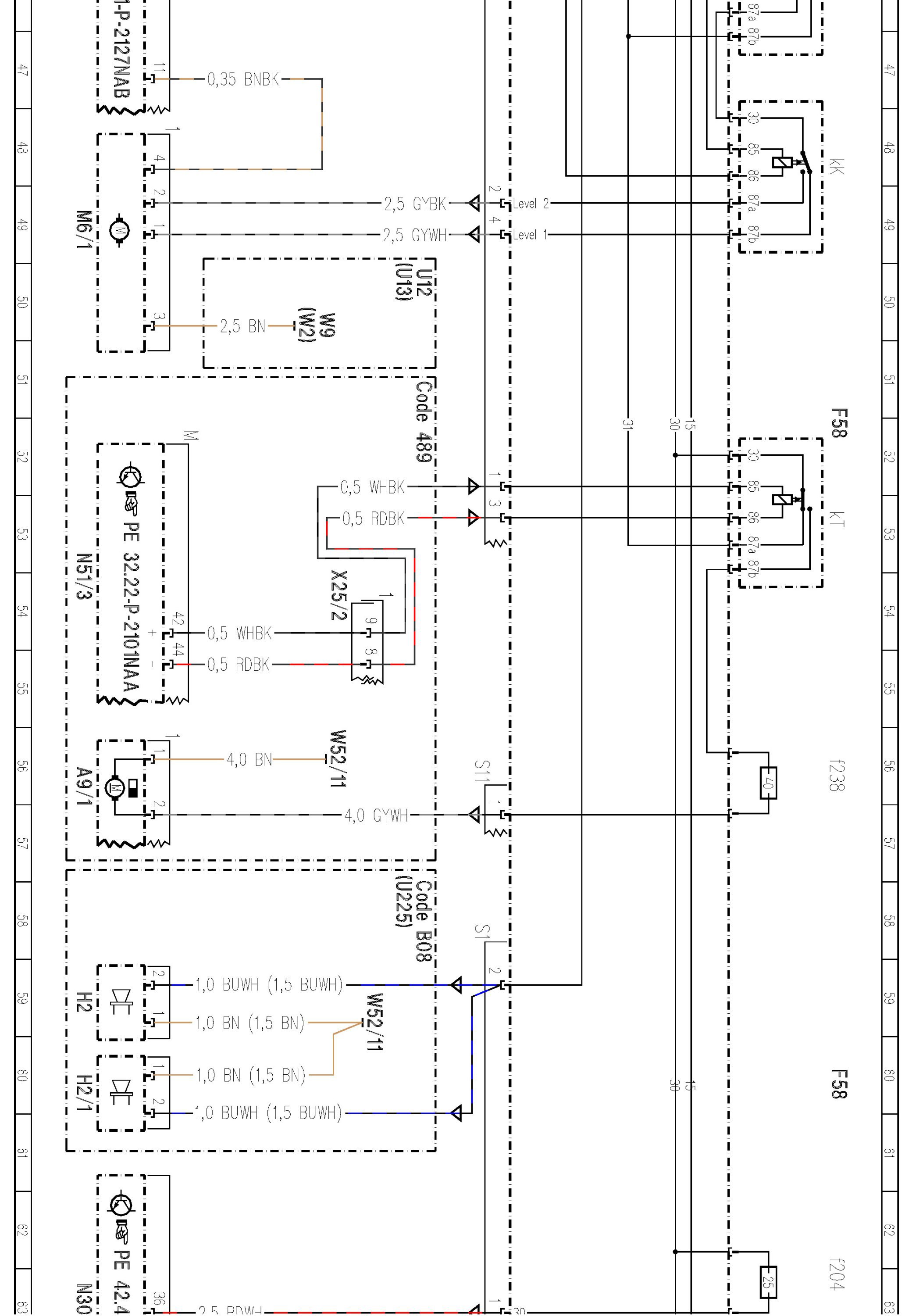

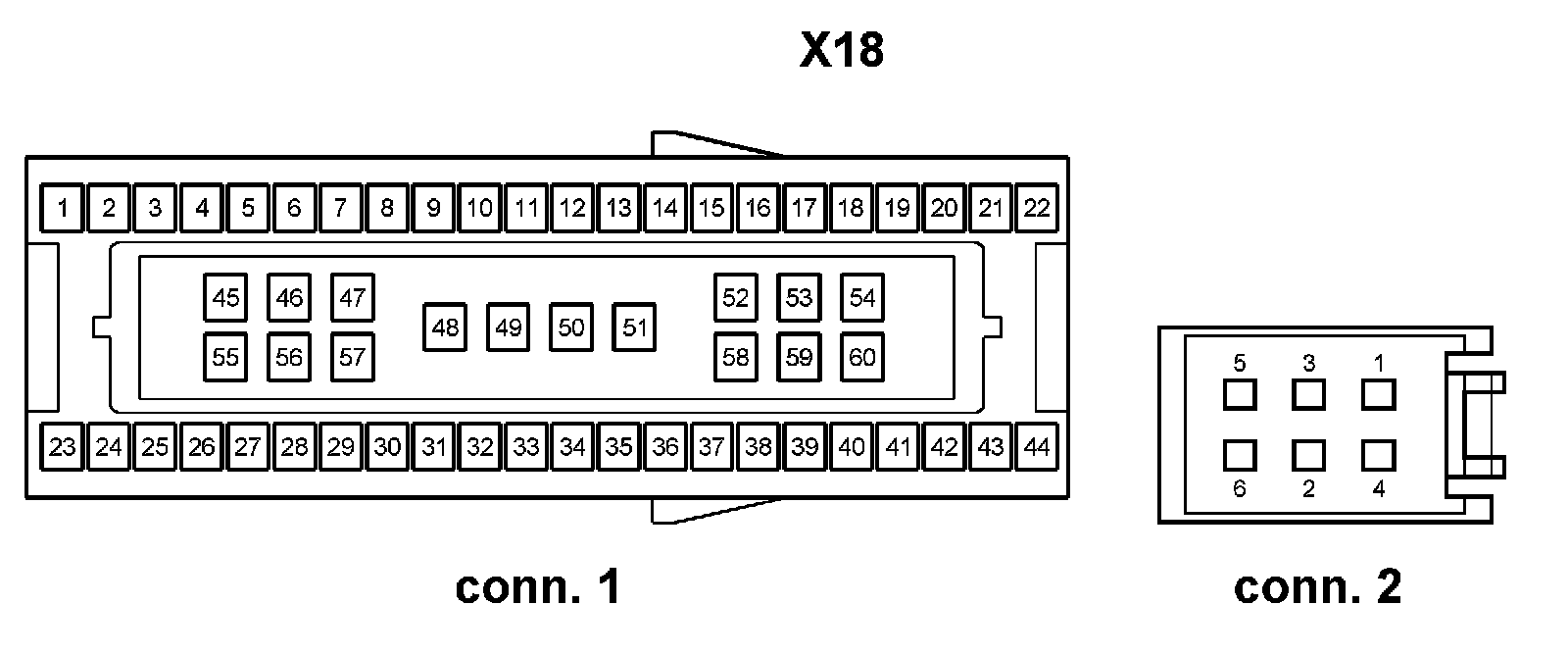

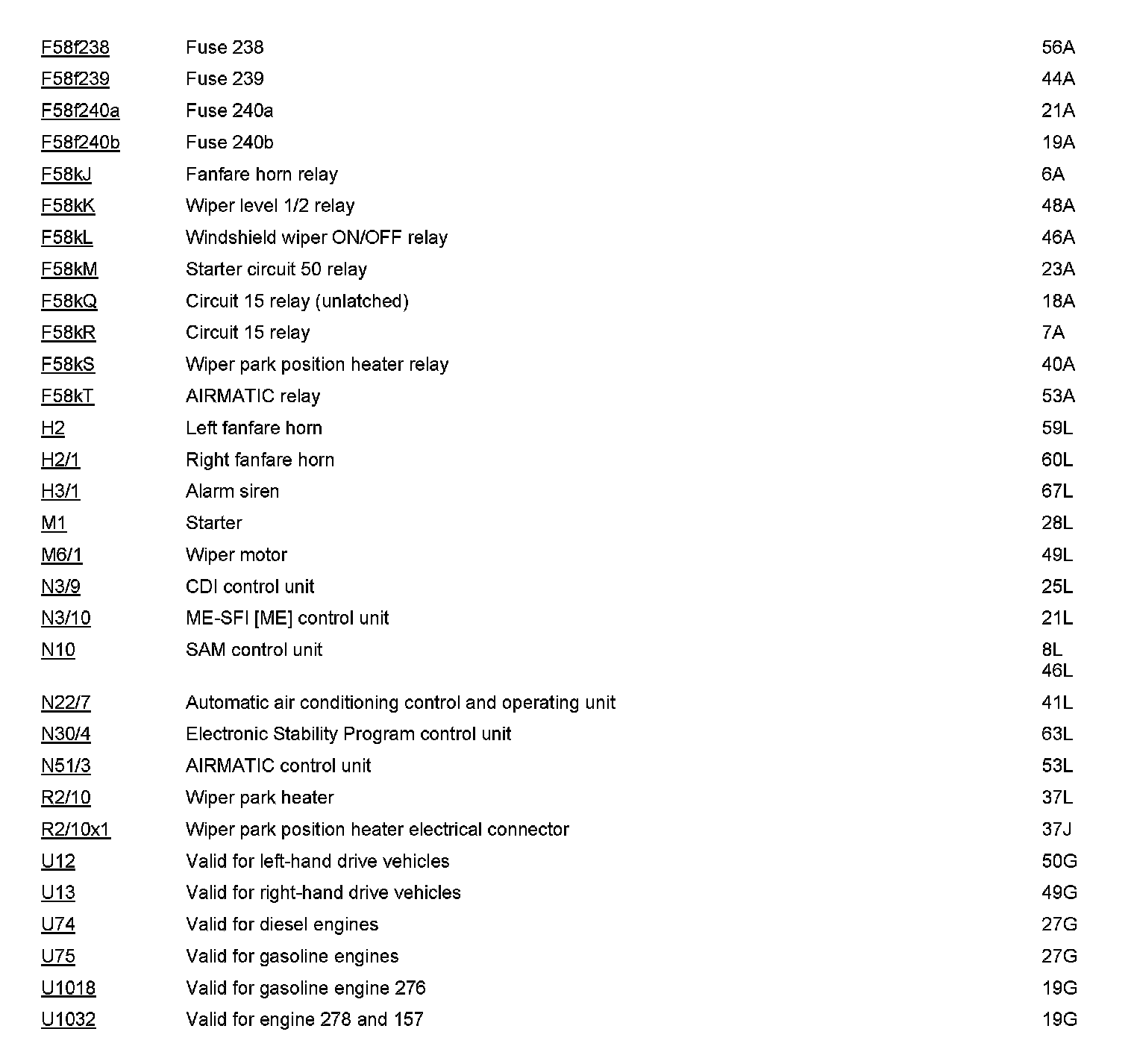

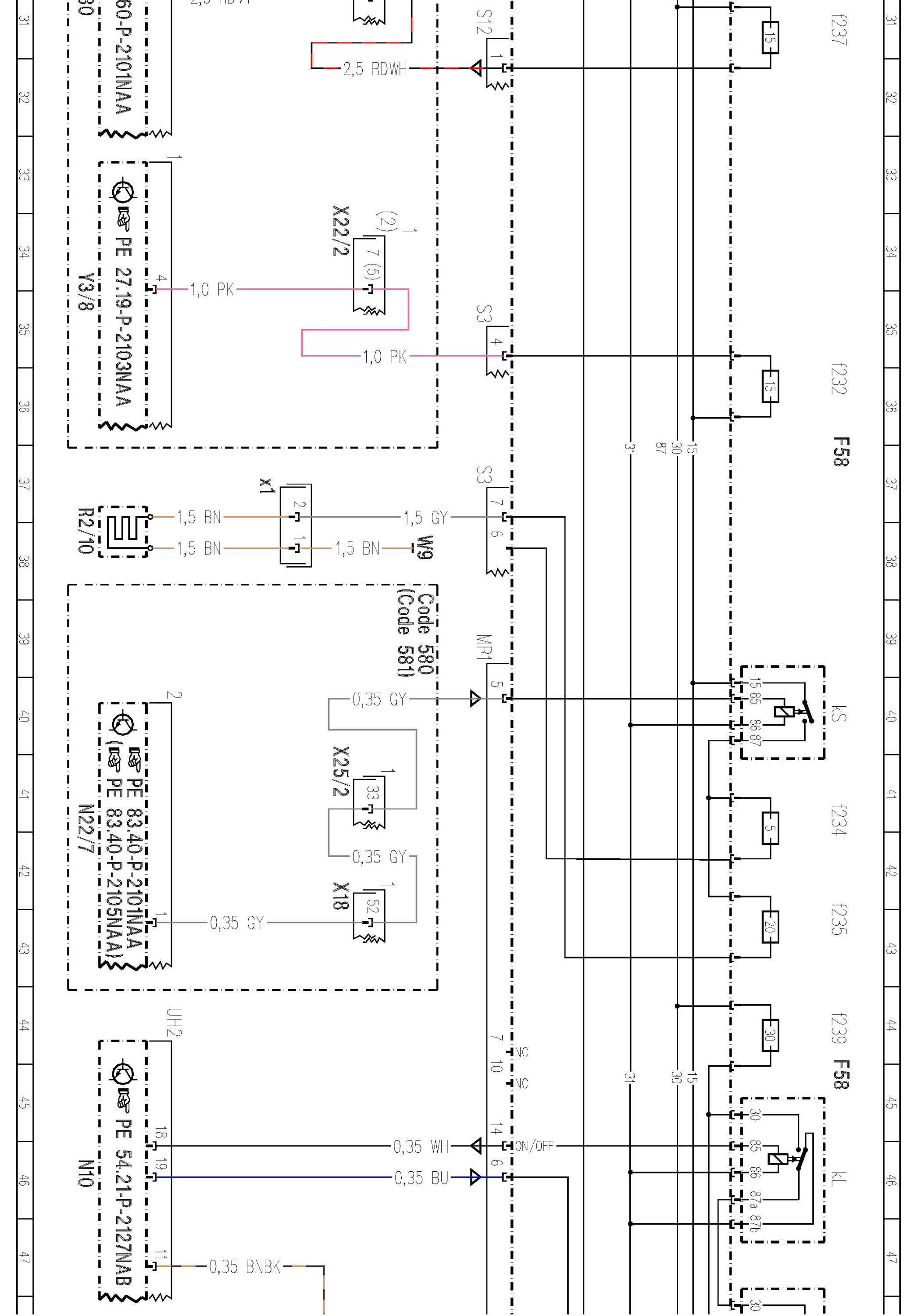

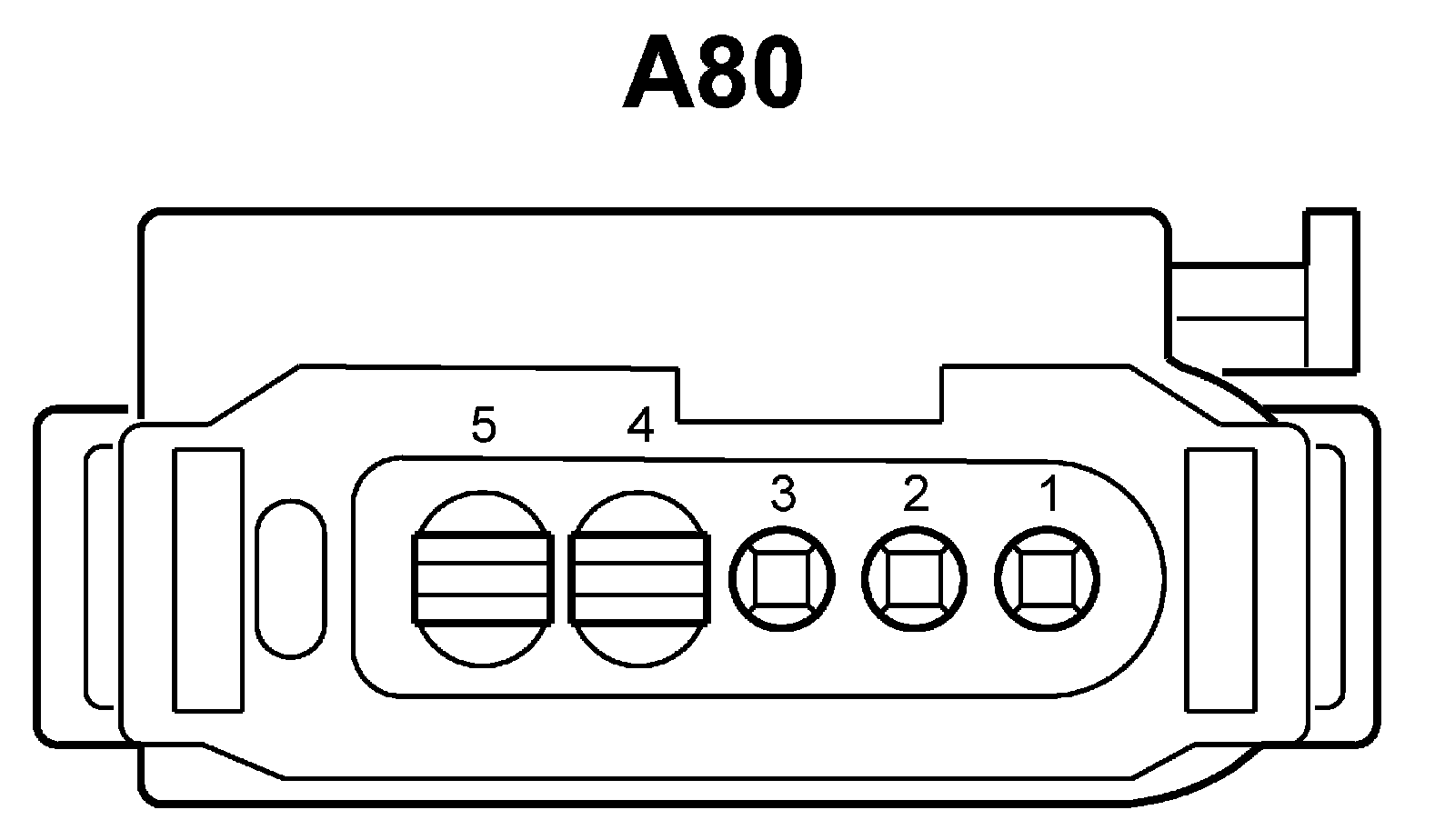

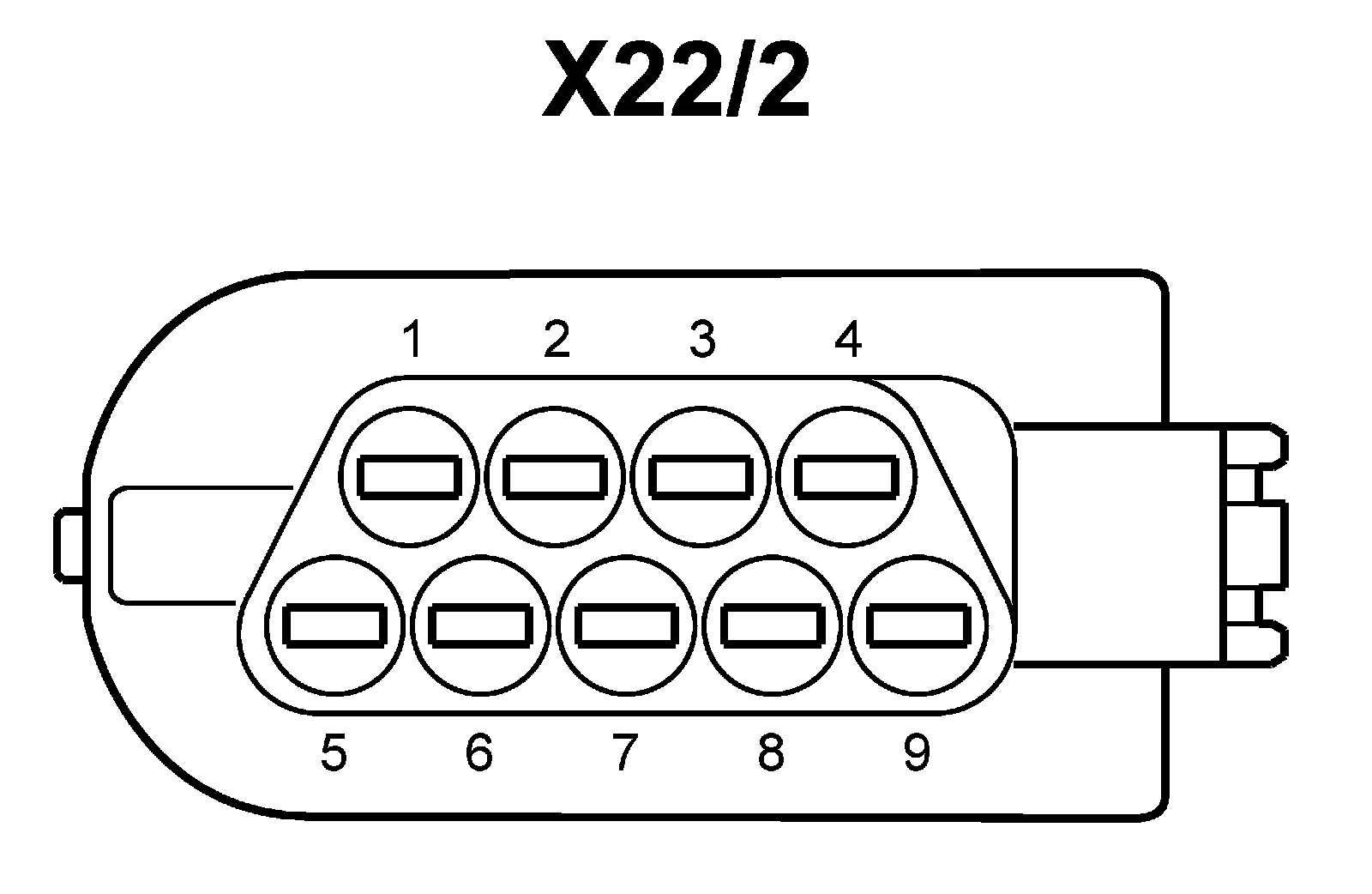

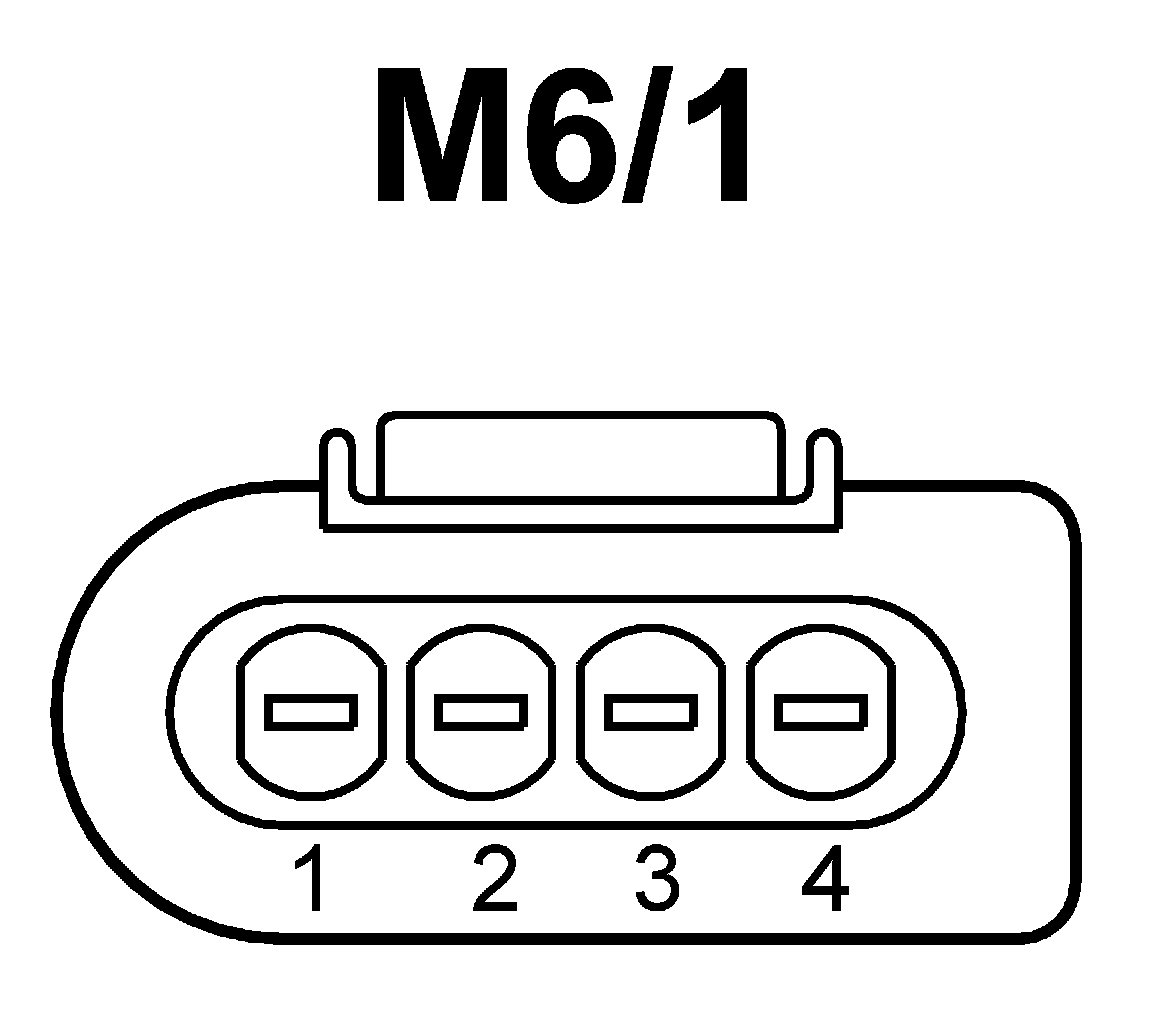

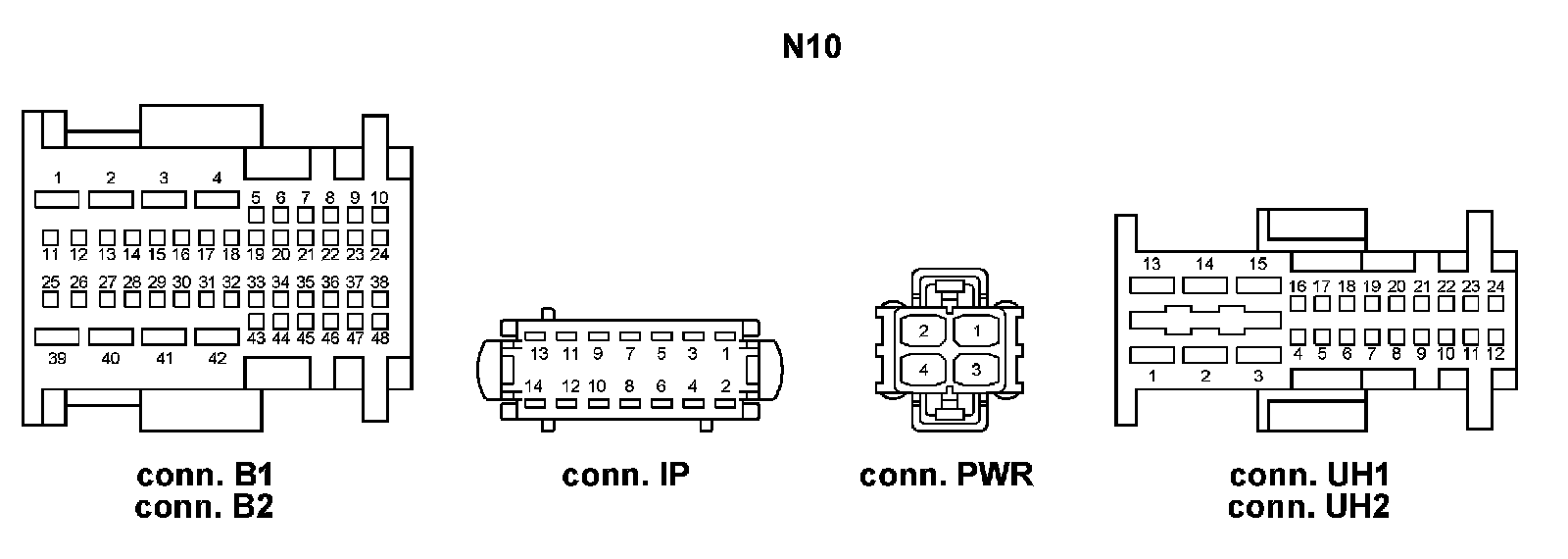

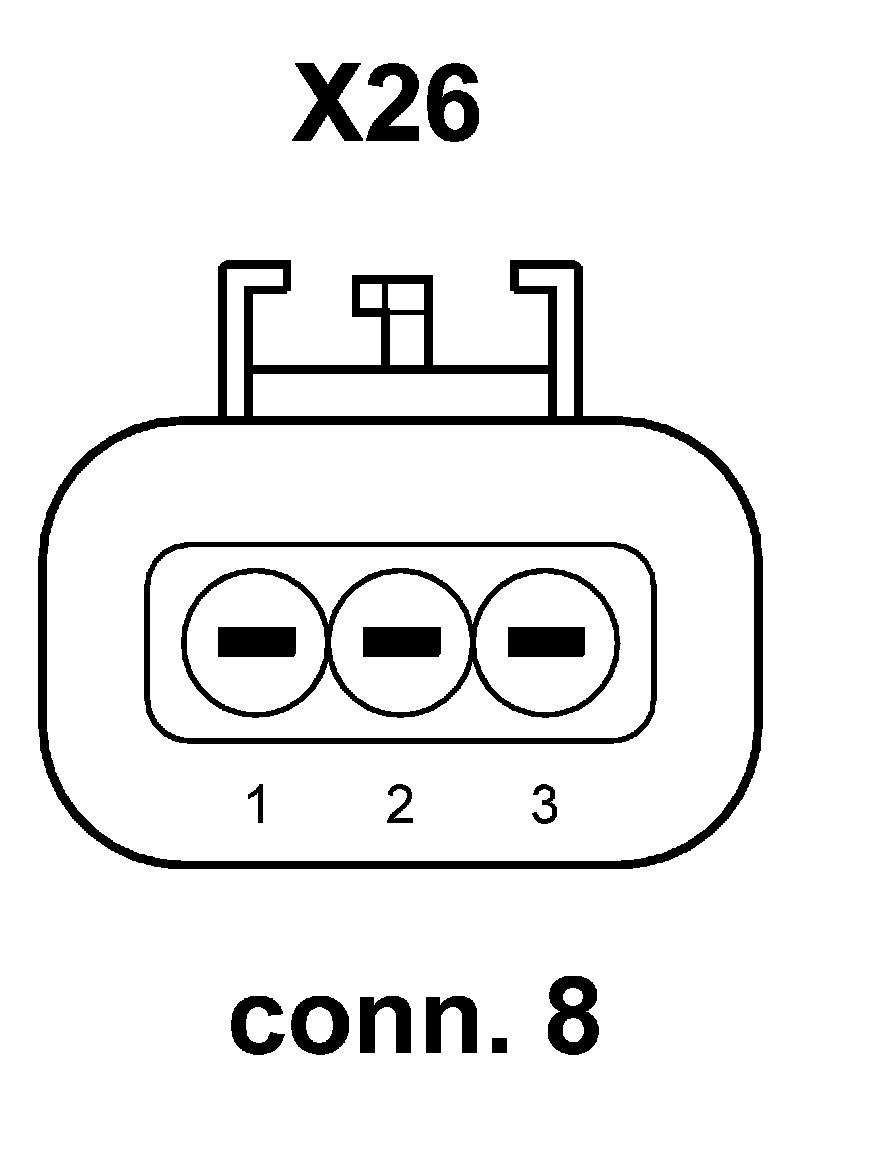

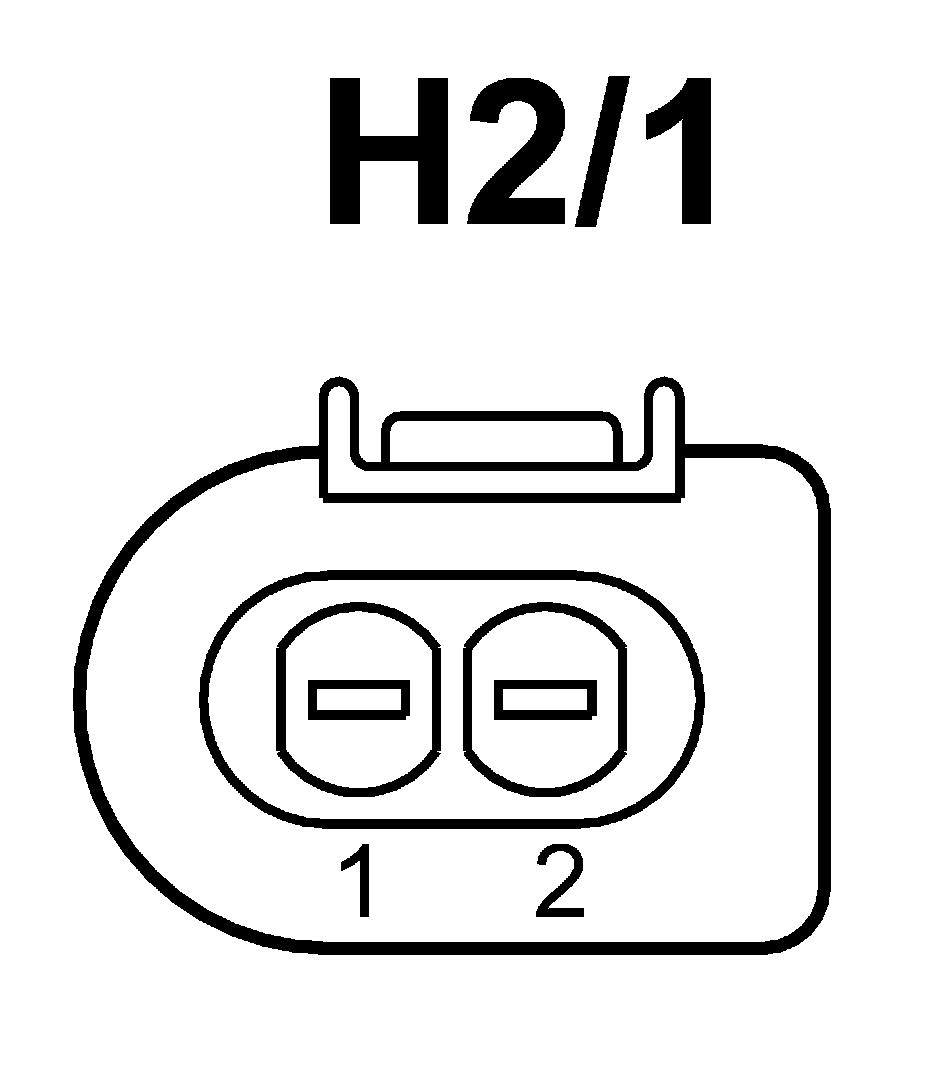

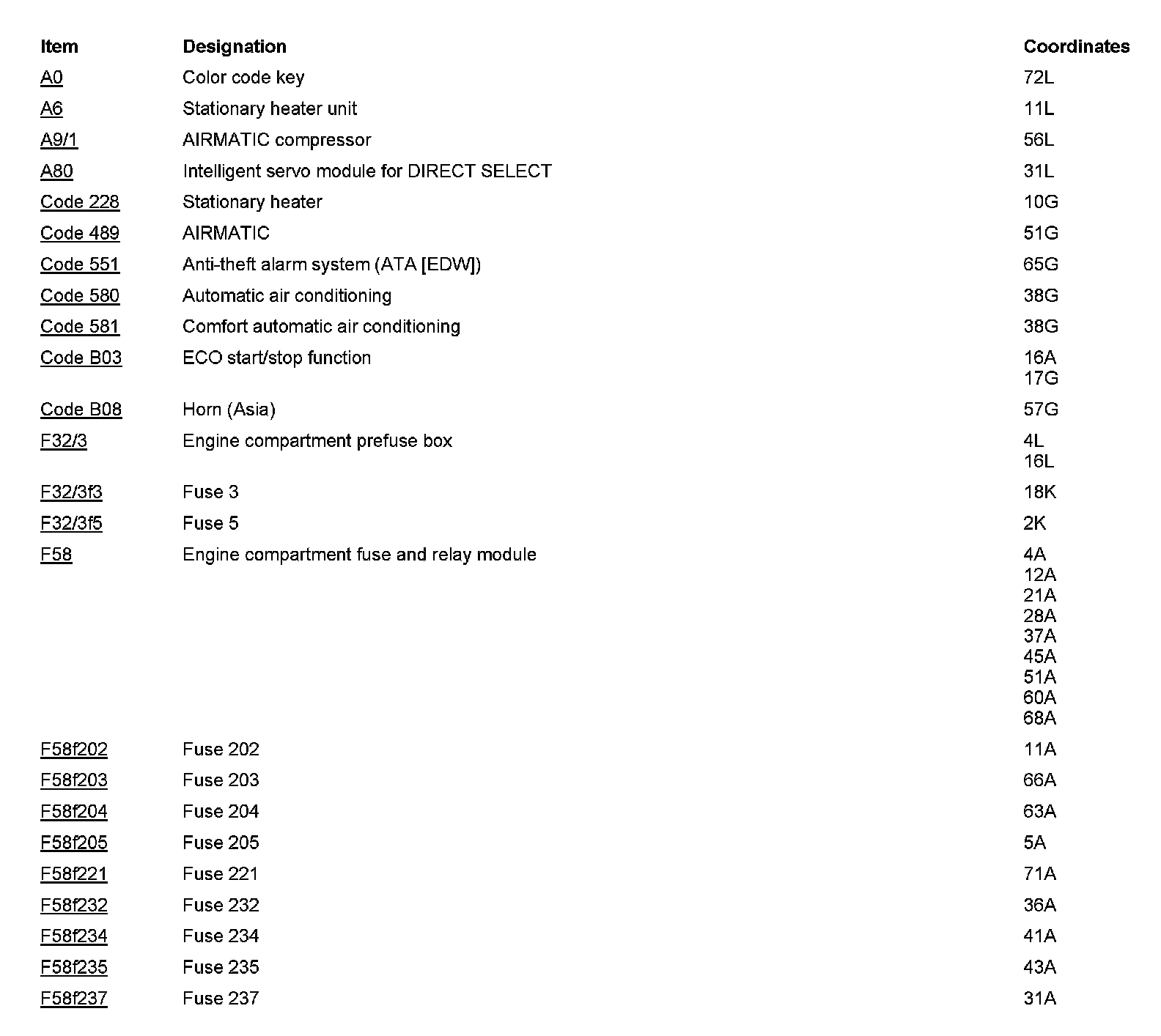

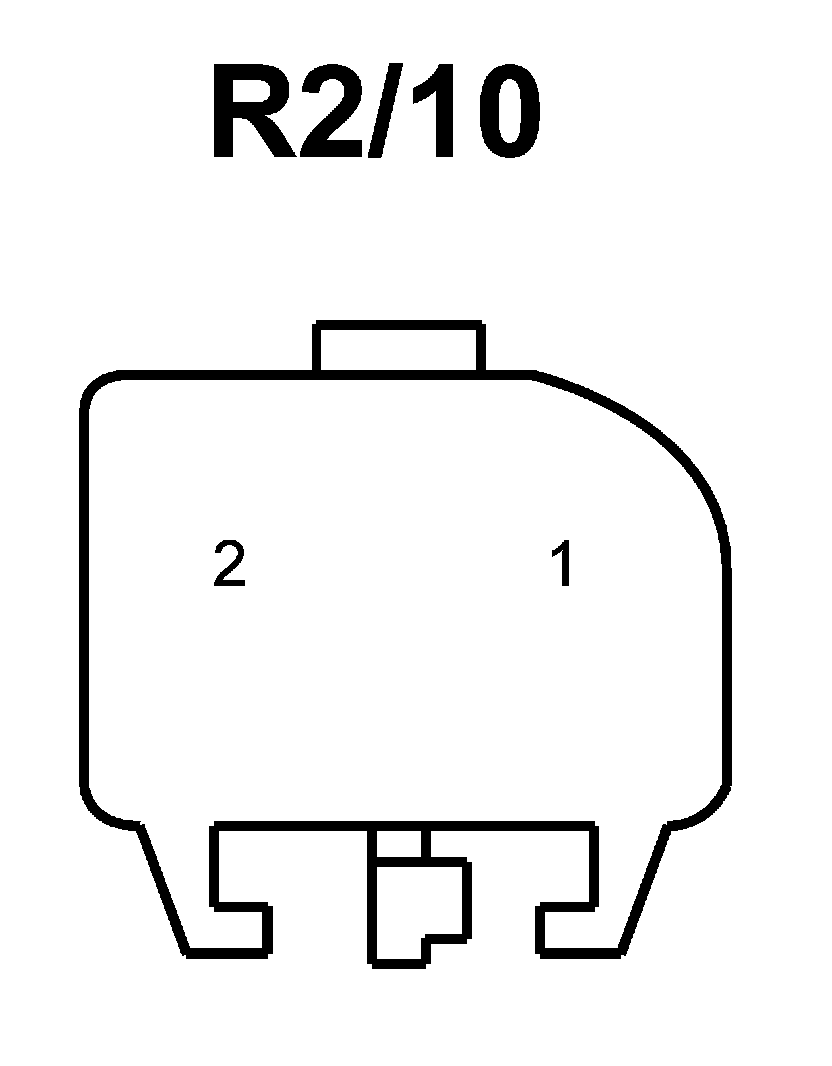

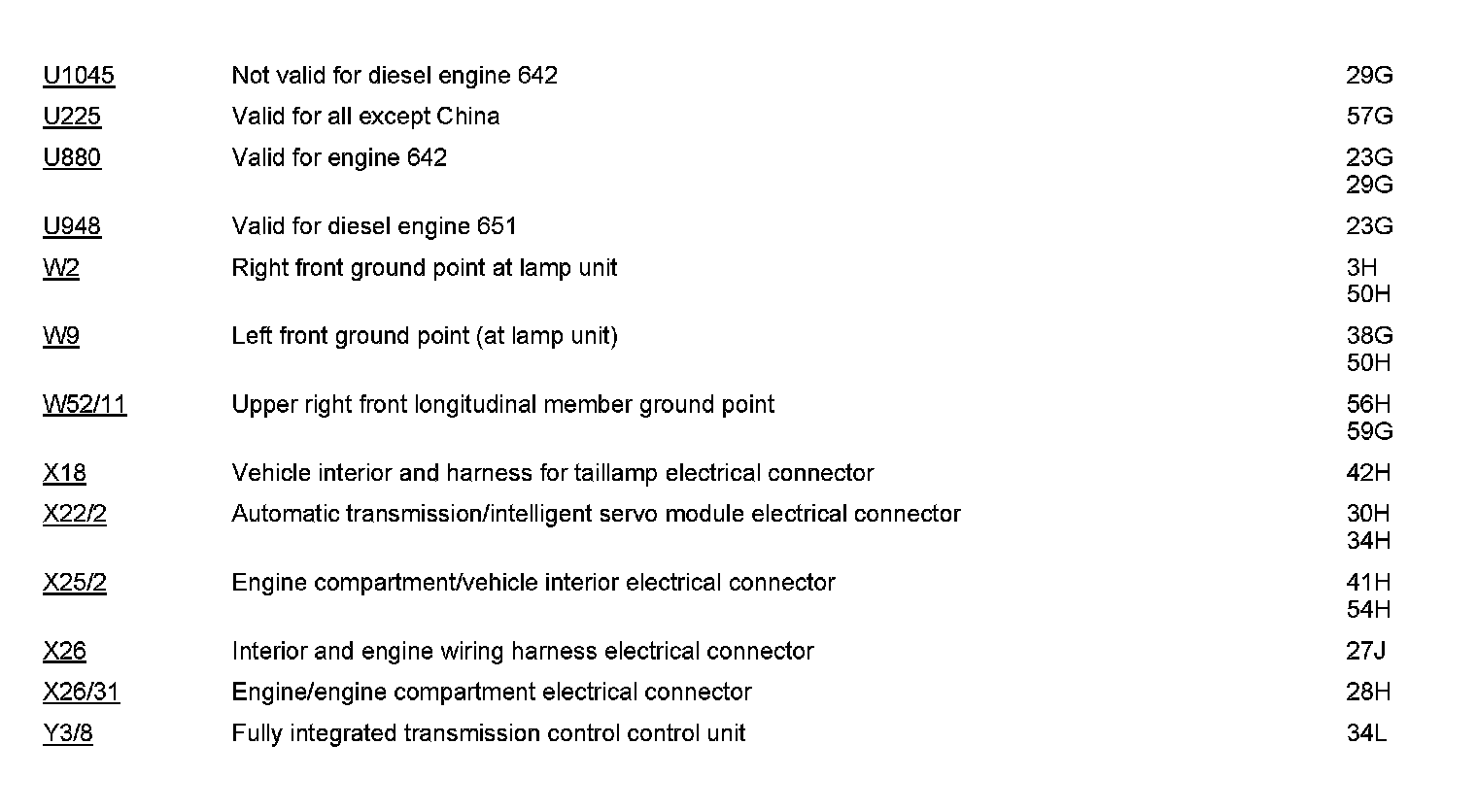

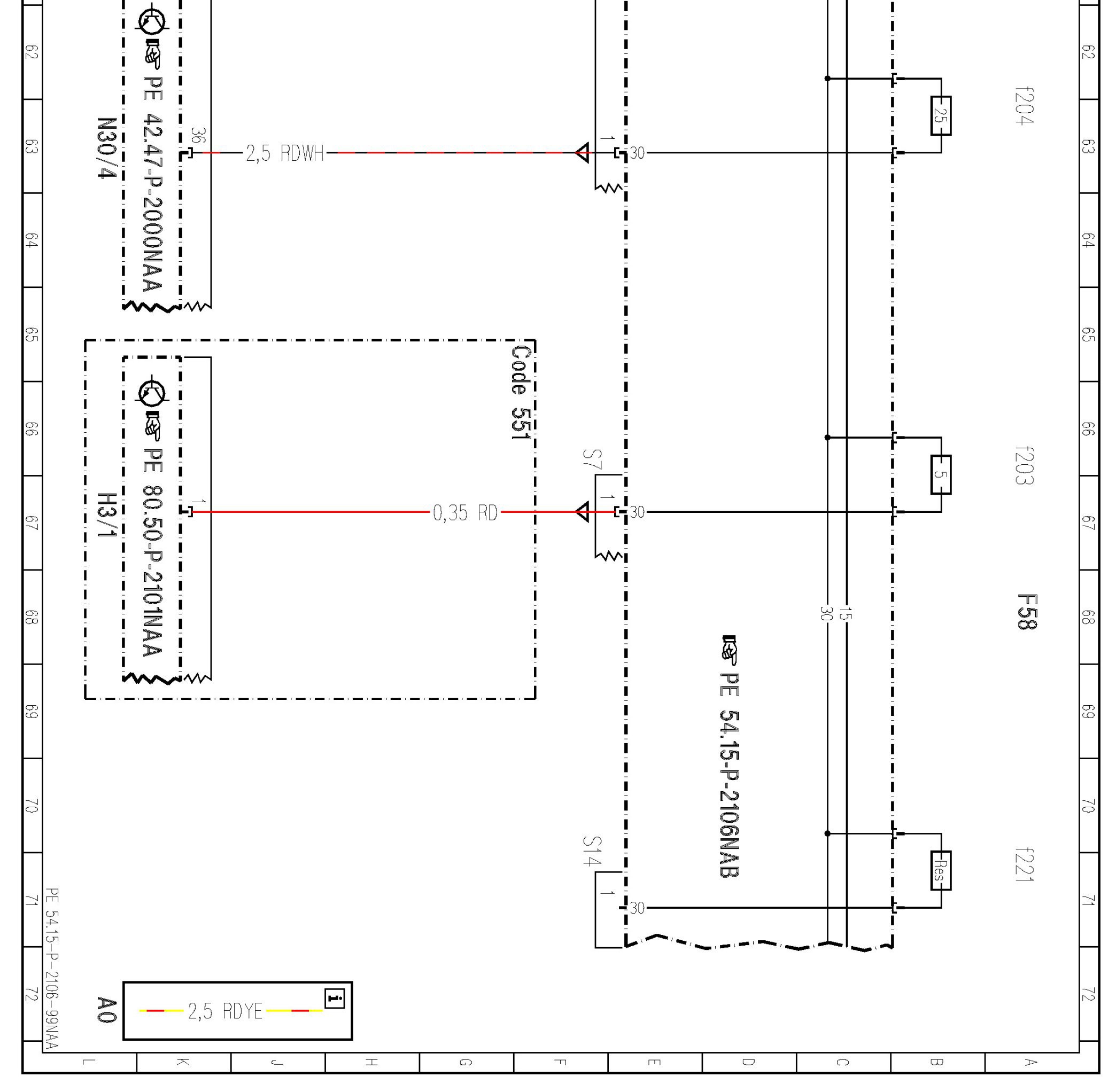

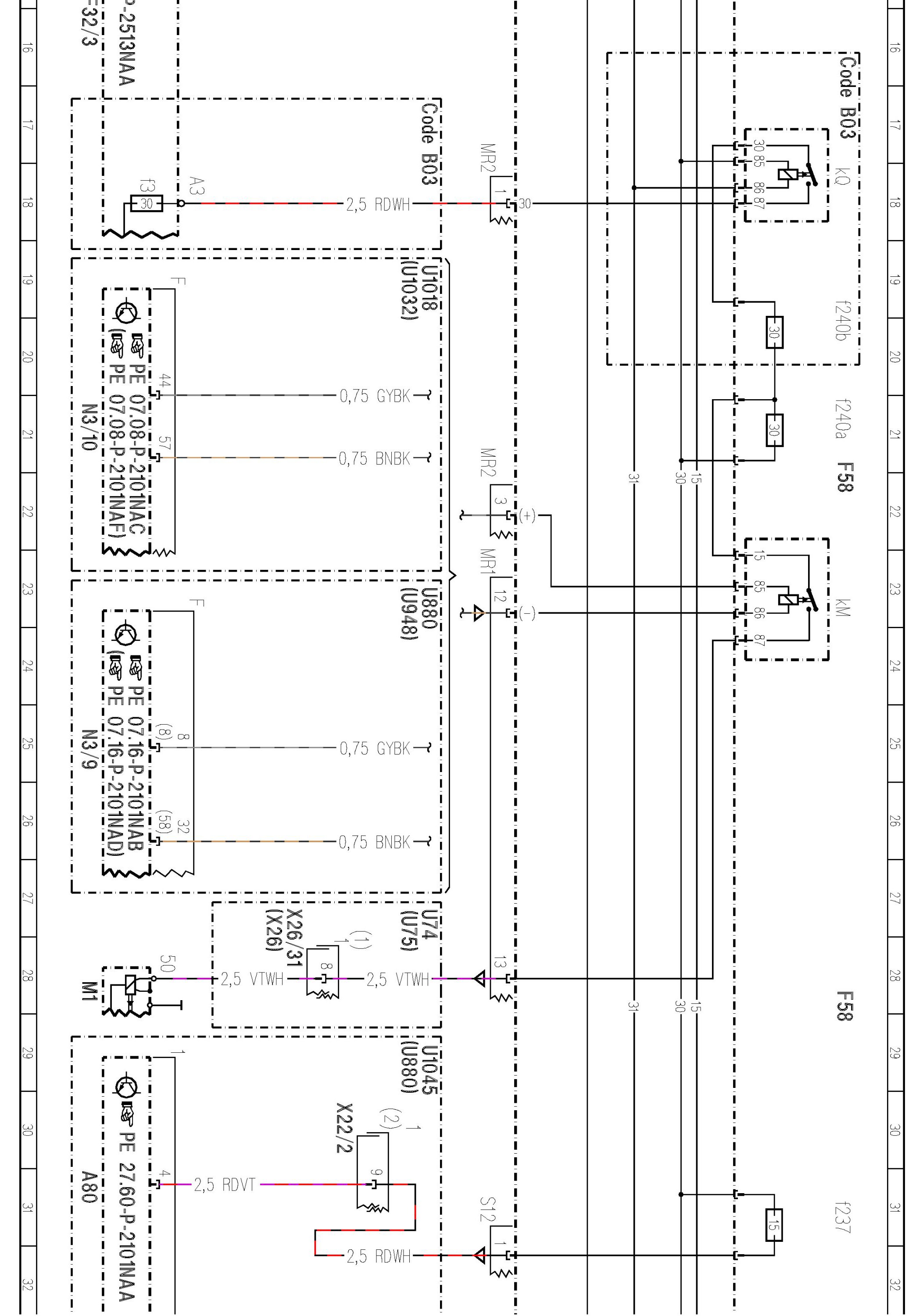

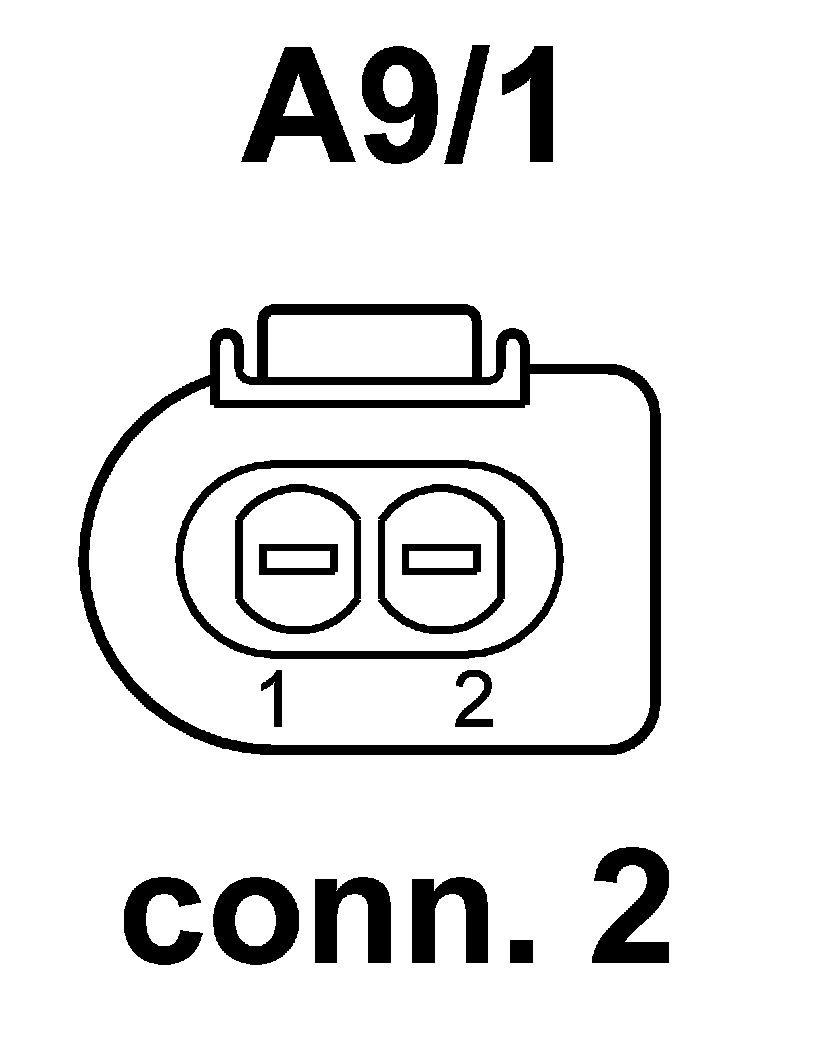

PE54.15-P-2106NAA Engine Compartment Fuse And Relay Box



PE54.15-P-2106NAA Engine Compartment Fuse And Relay Box
MODEL 166

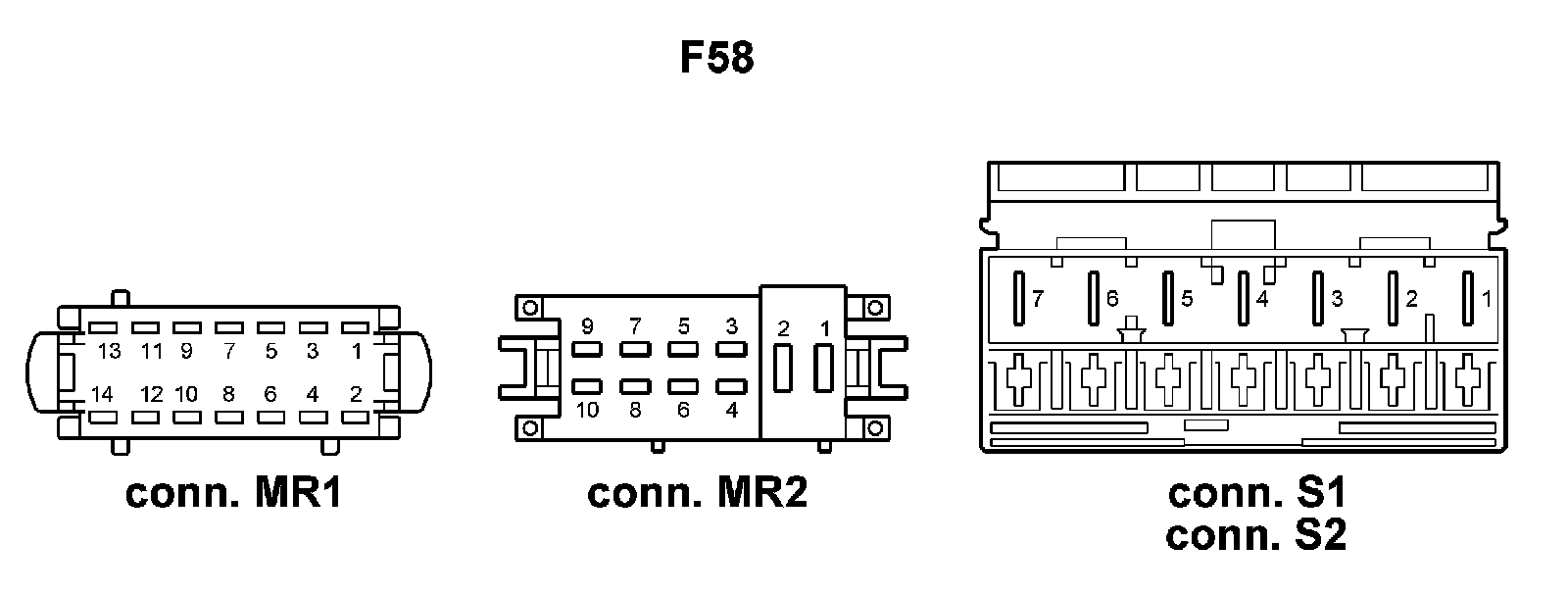

F58 , Sheet 1


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
