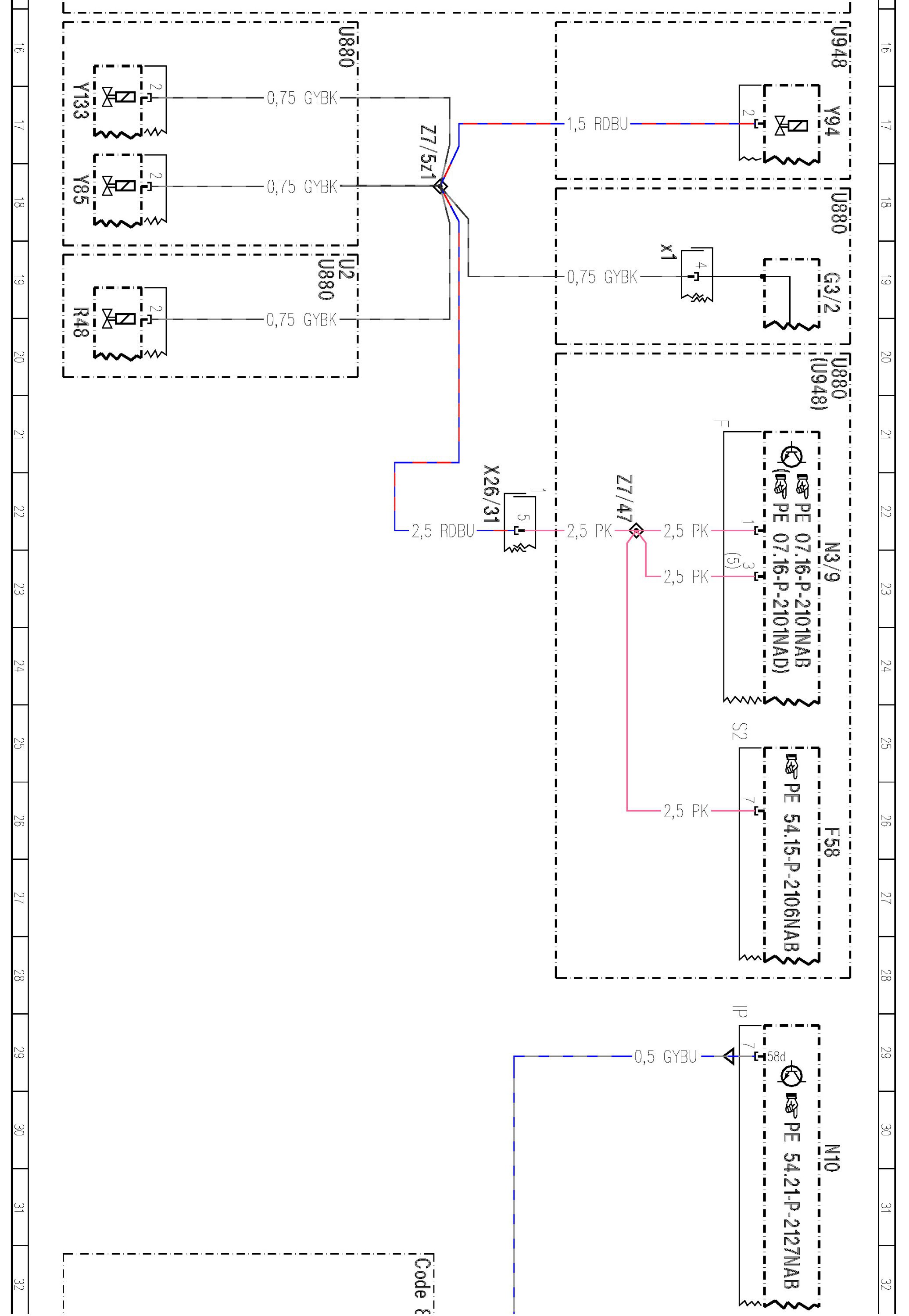

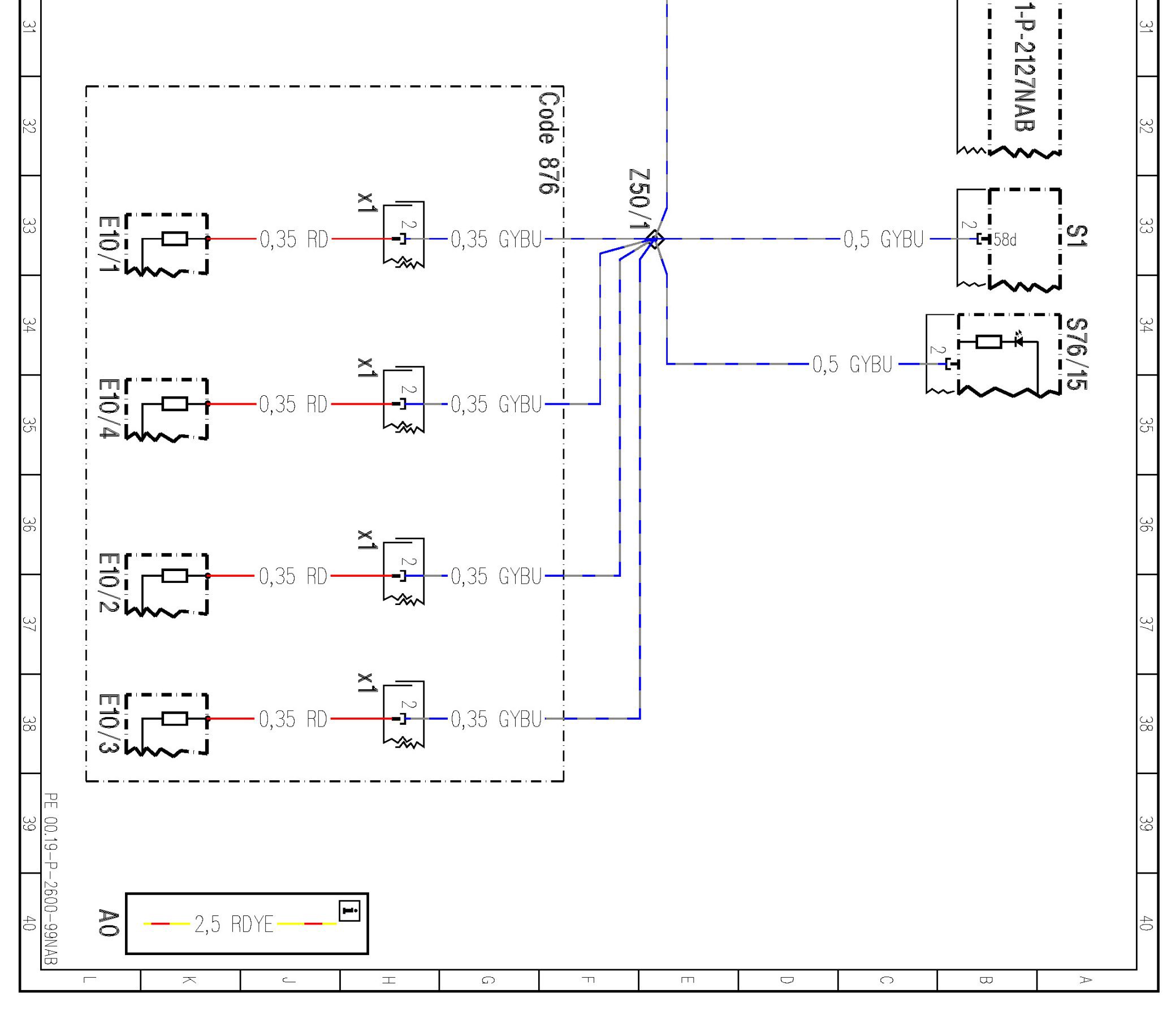

PE00.19-P-2600NAB Solder Points/Z-Connector Sleeves



PE00.19-P-2600NAB Solder Points/Z-Connector Sleeves
MODEL 166

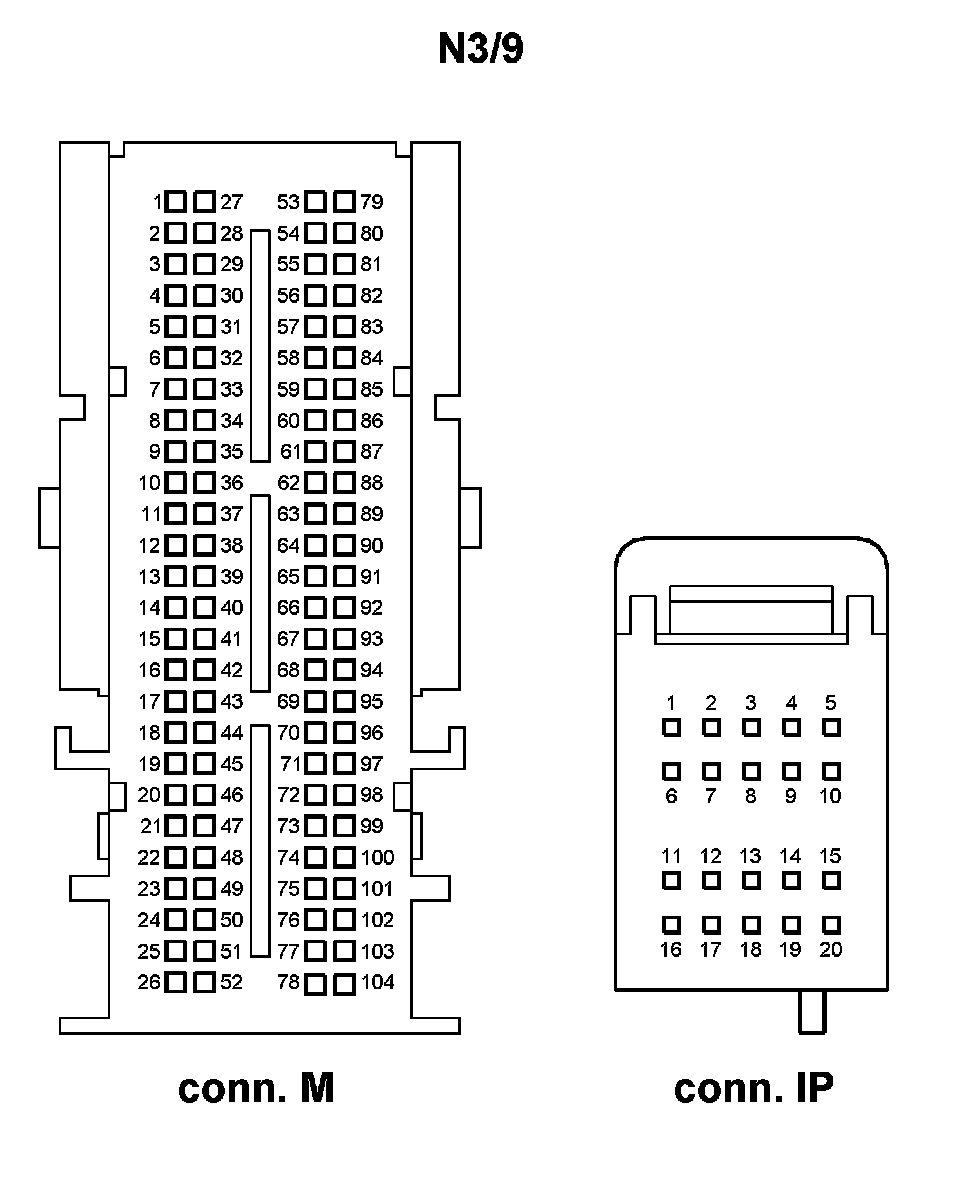

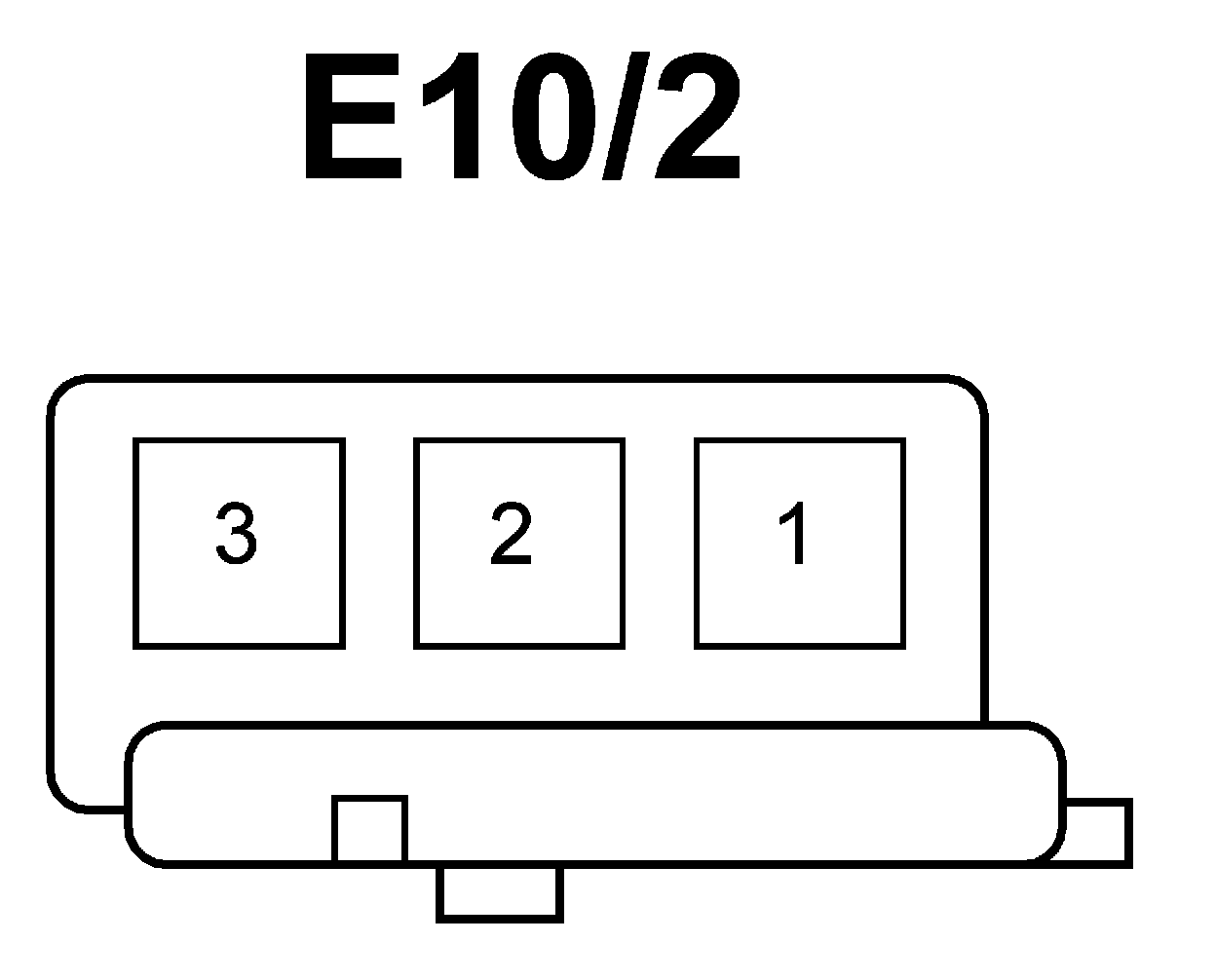

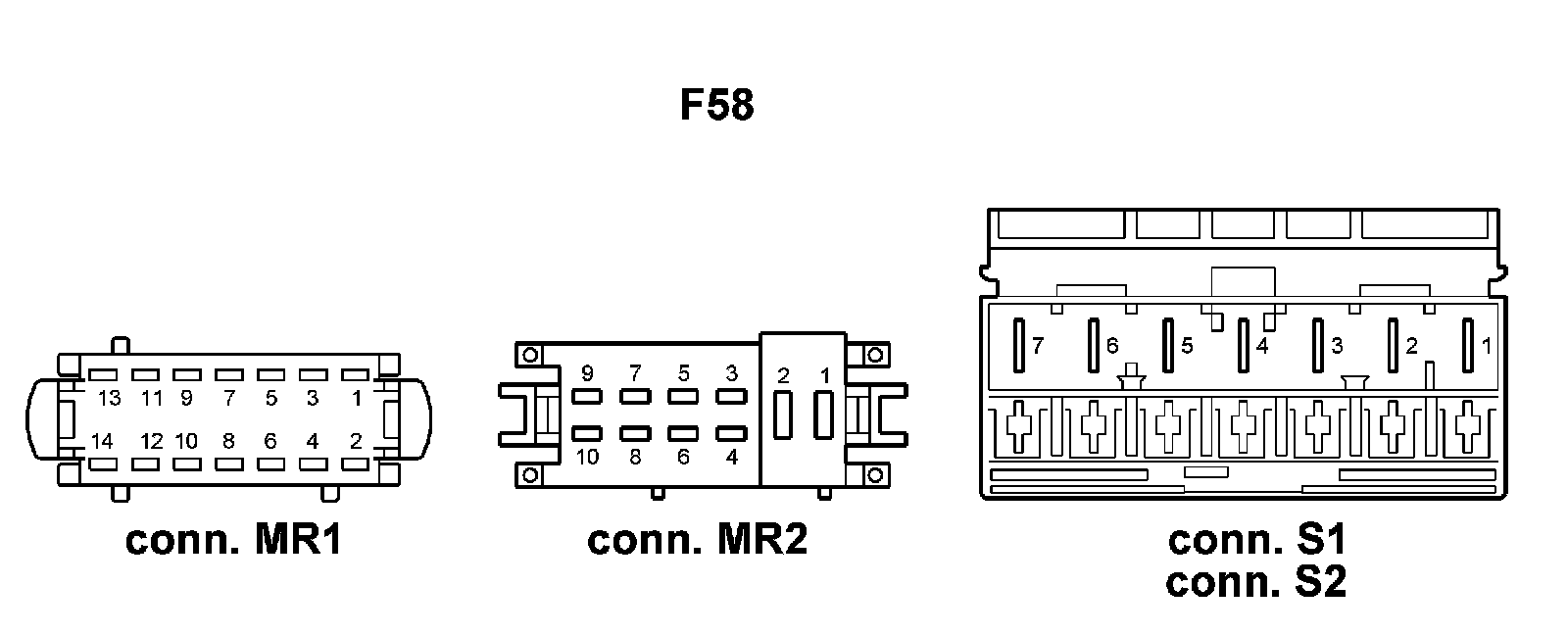

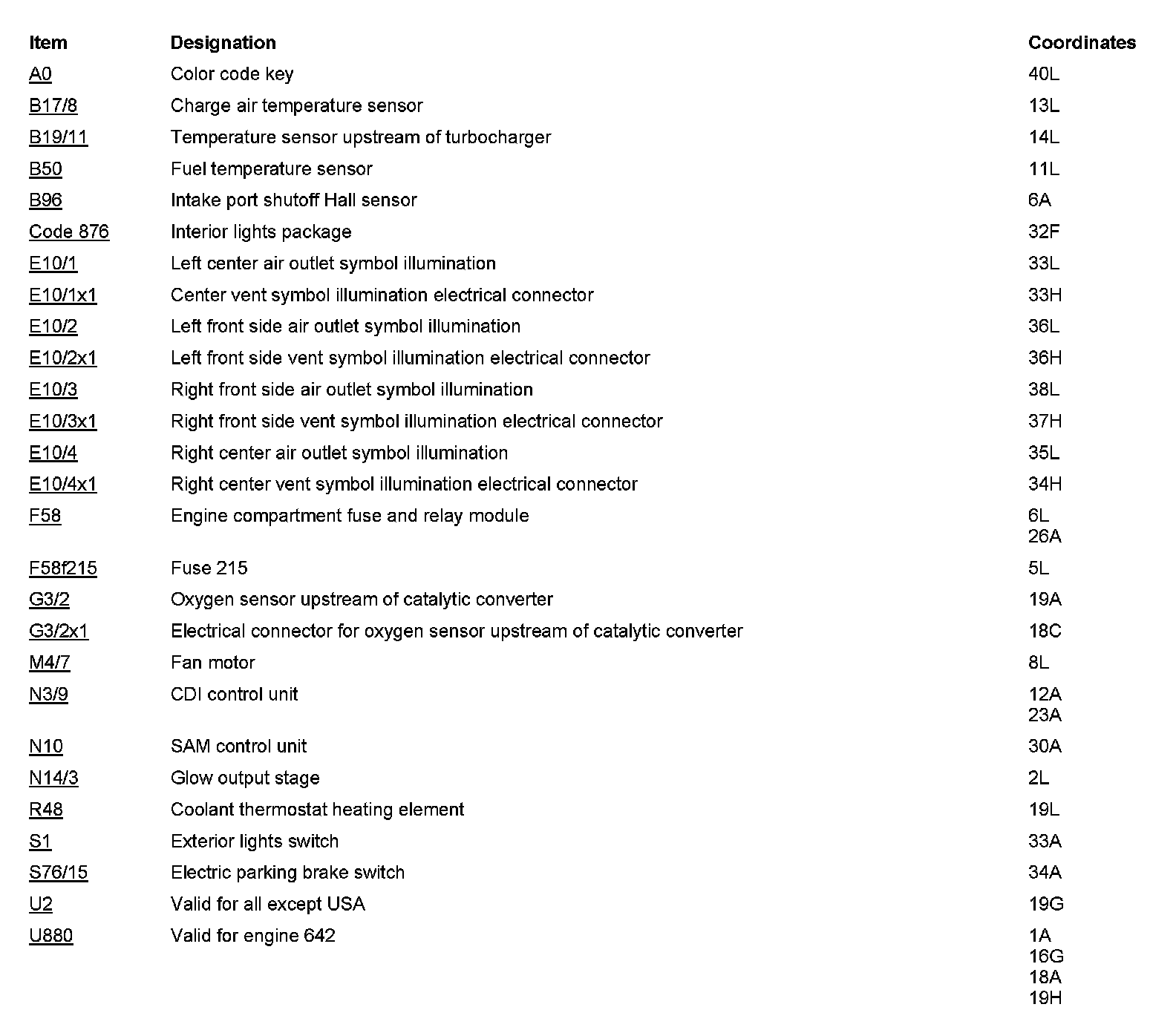

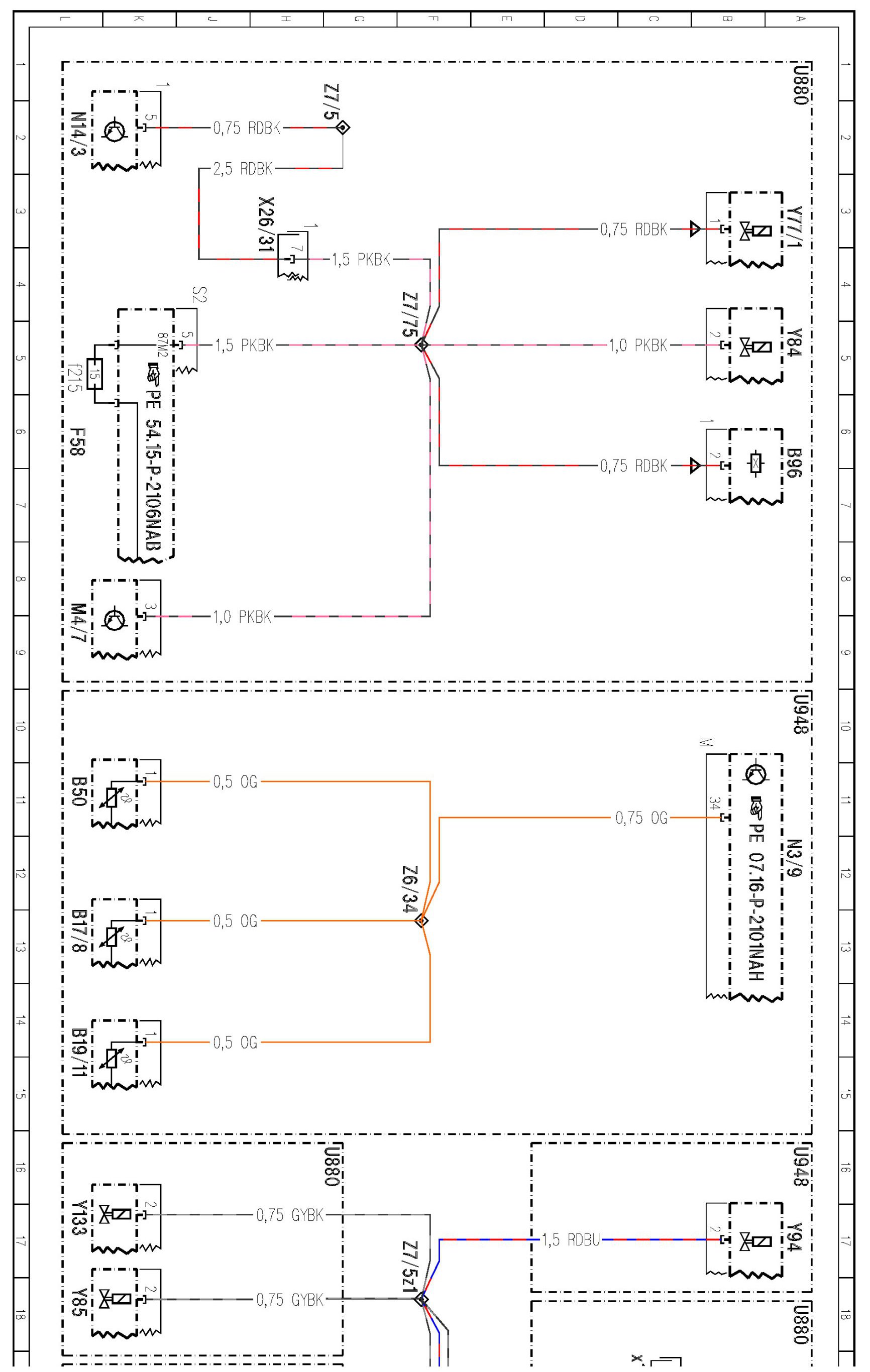

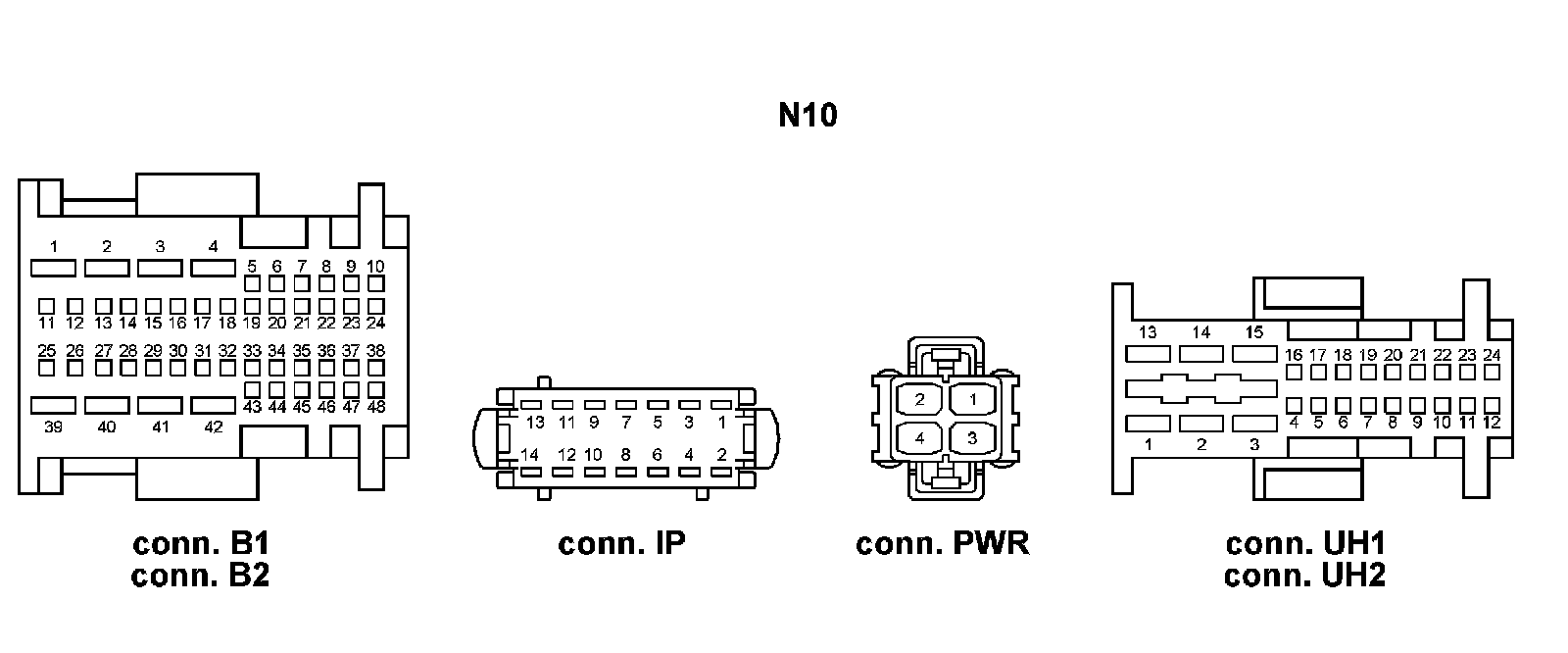

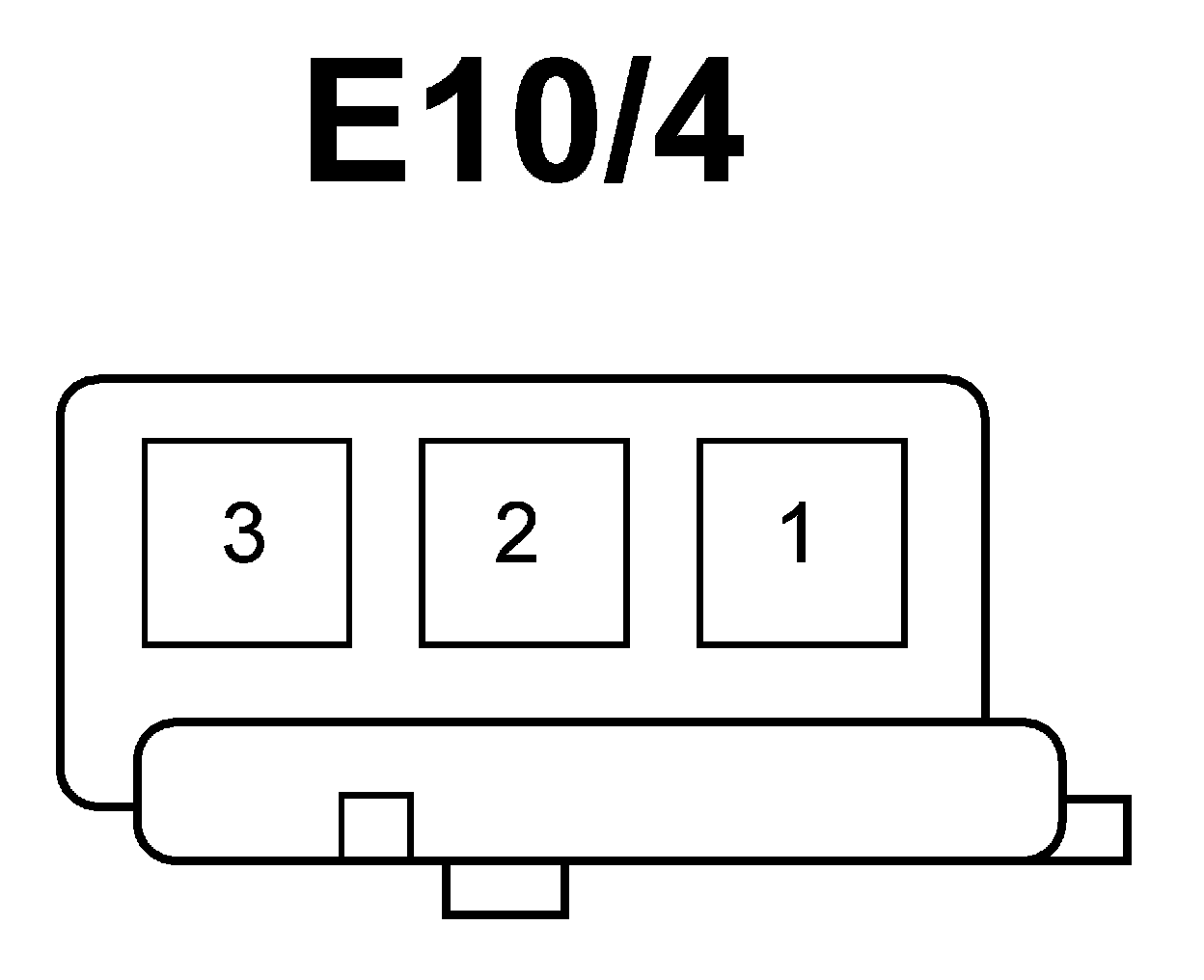

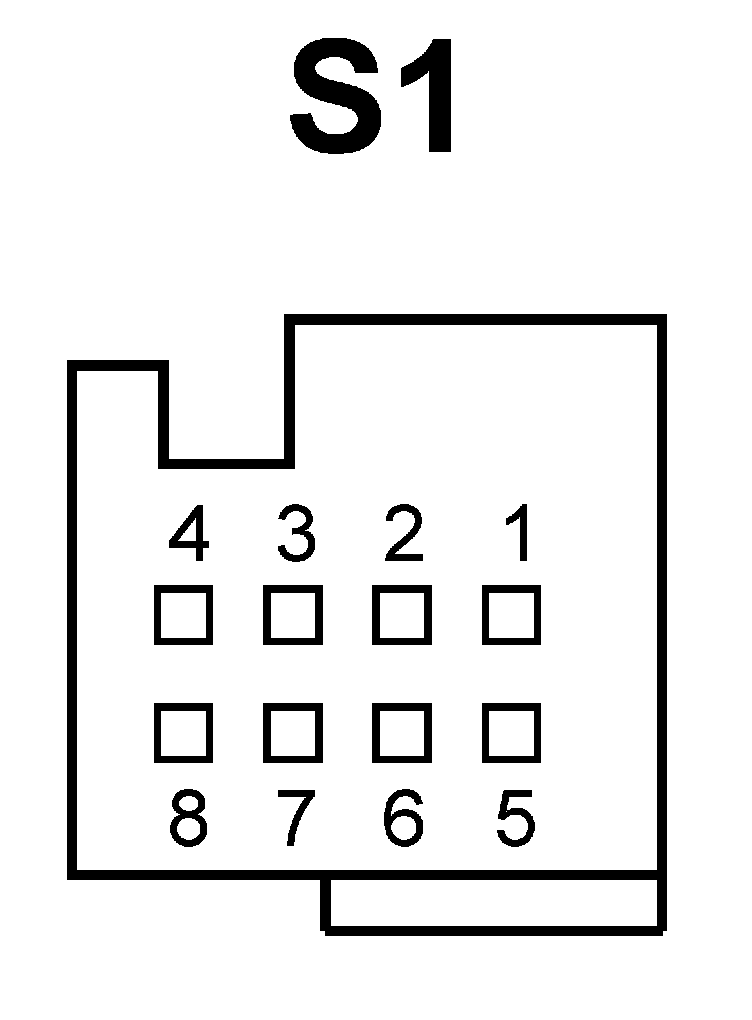

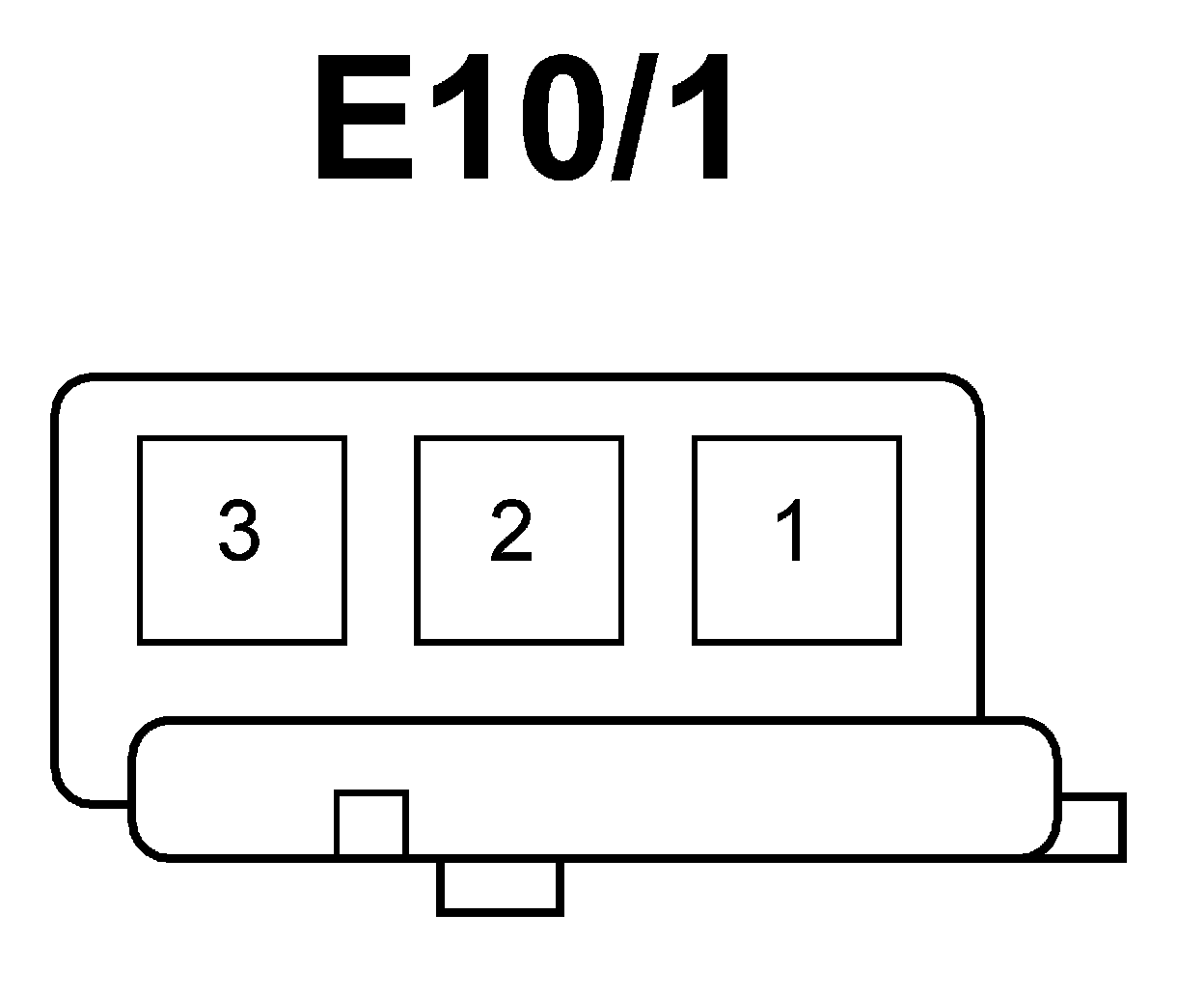

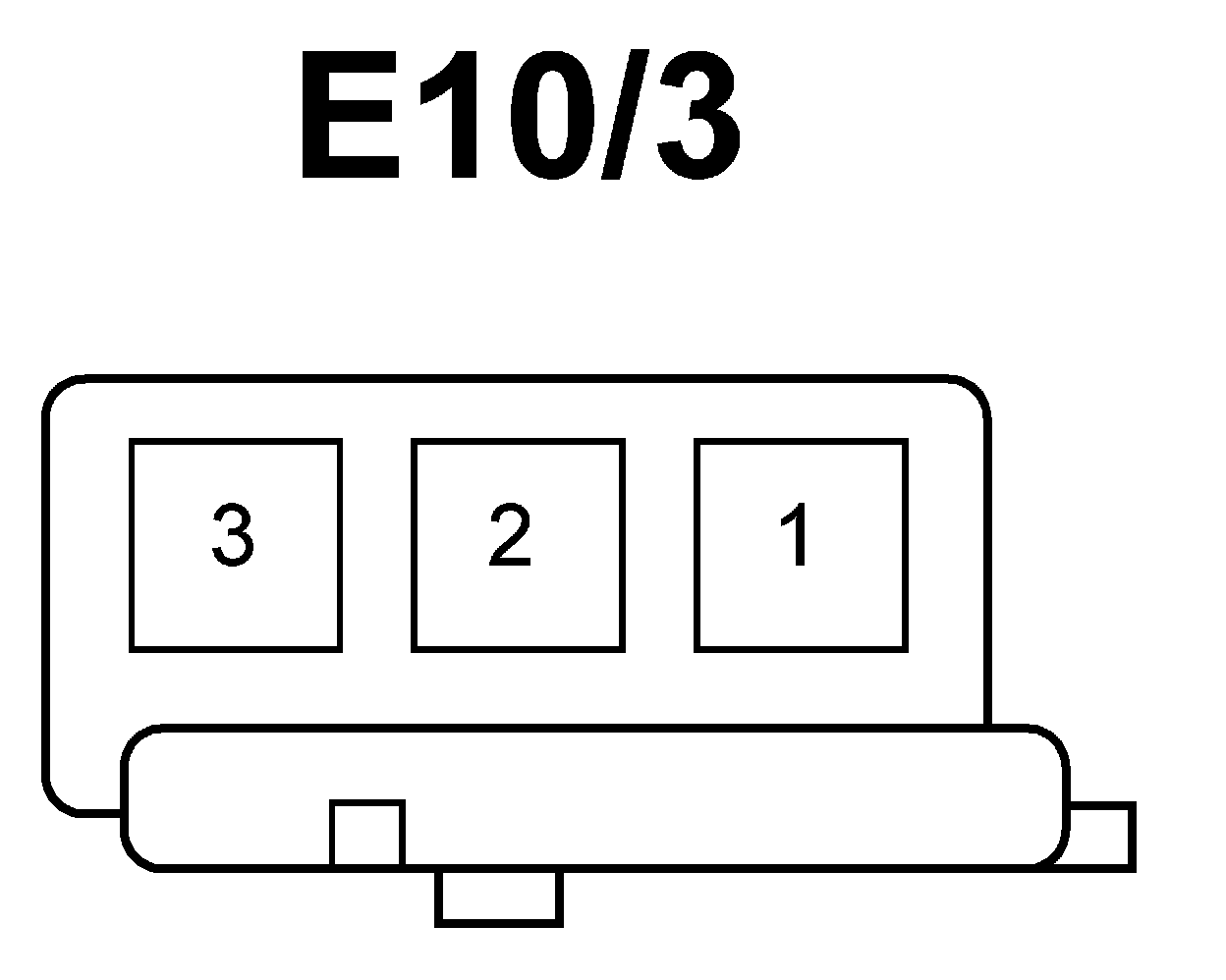

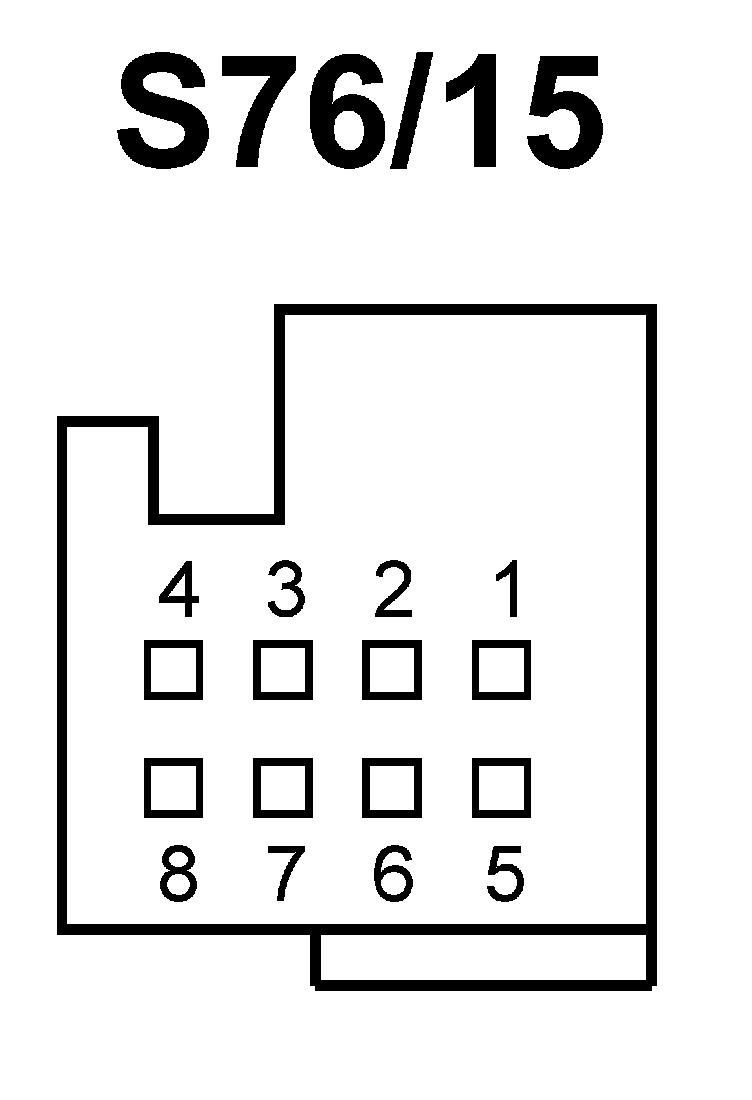

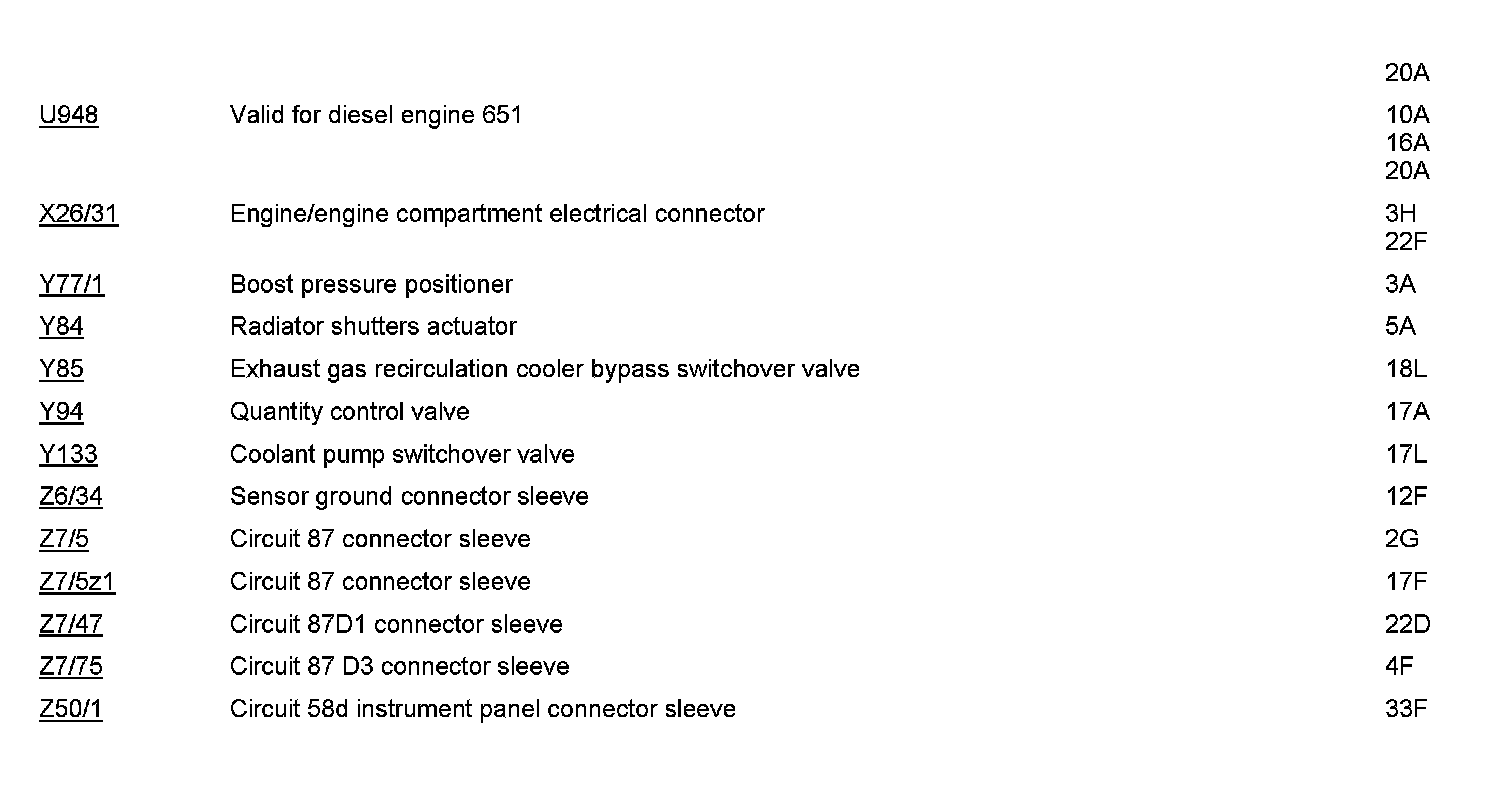

Z6/34, Z7/5z1, Z7/47, Z7/75, Z50/1


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
