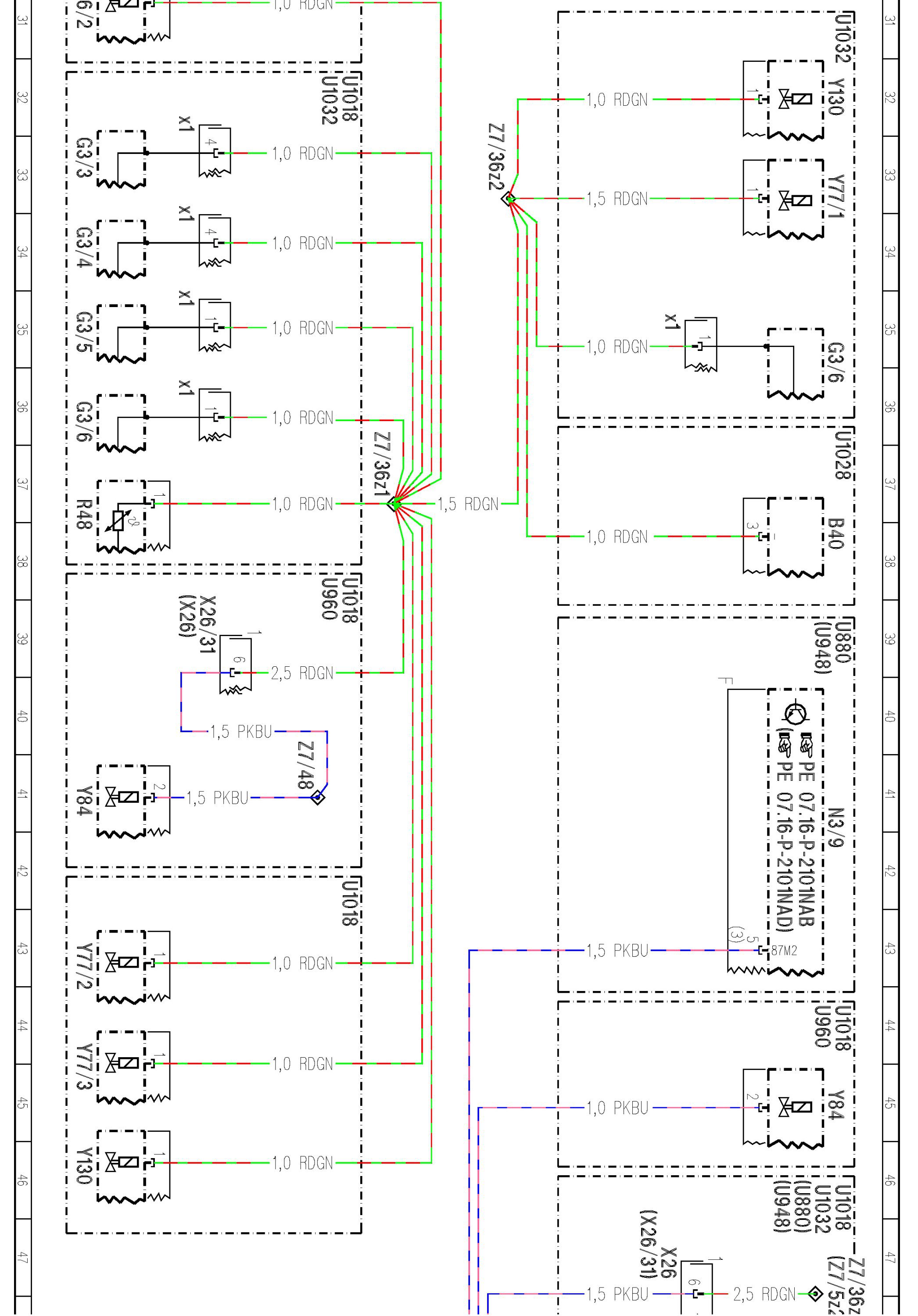

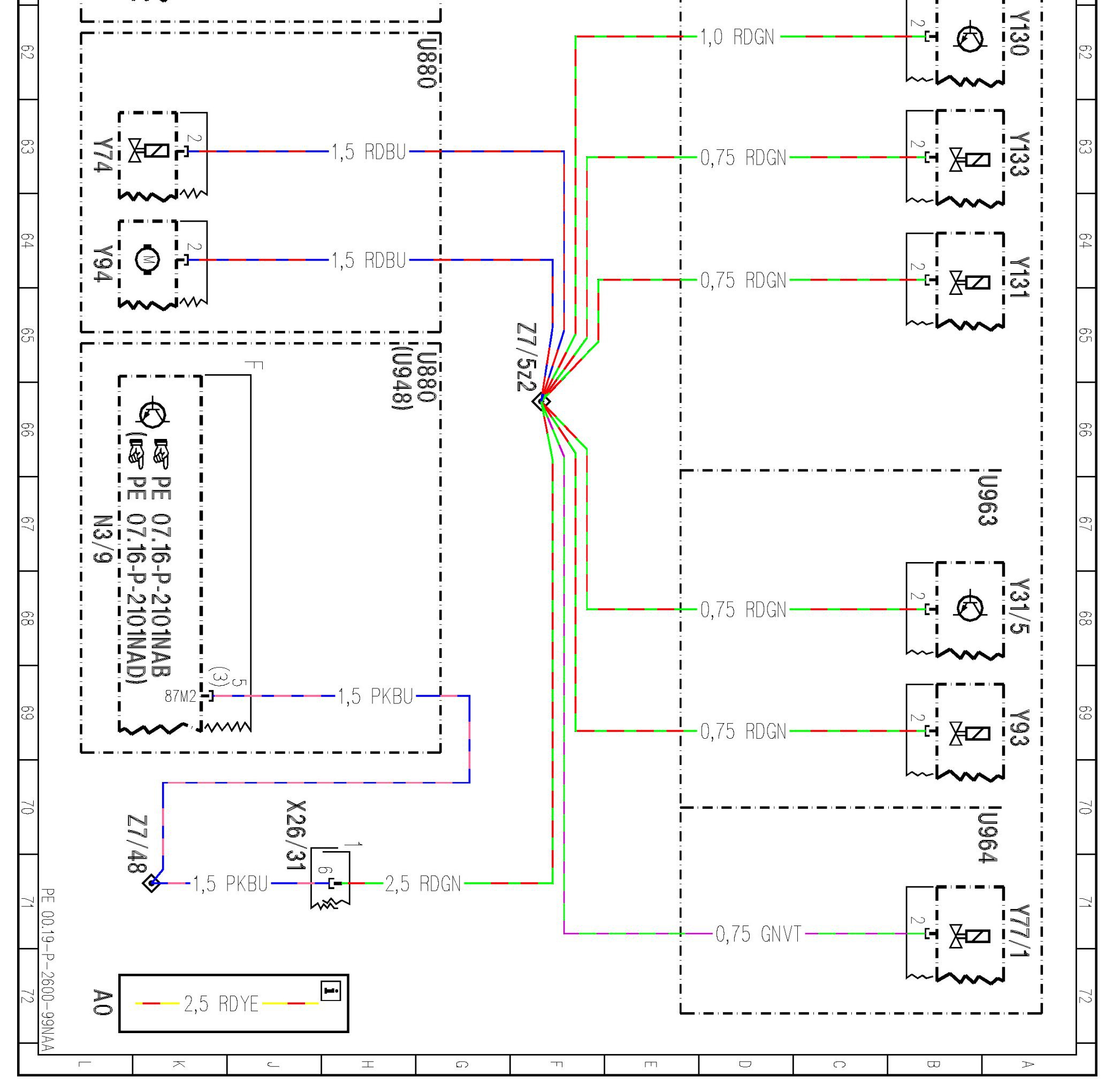

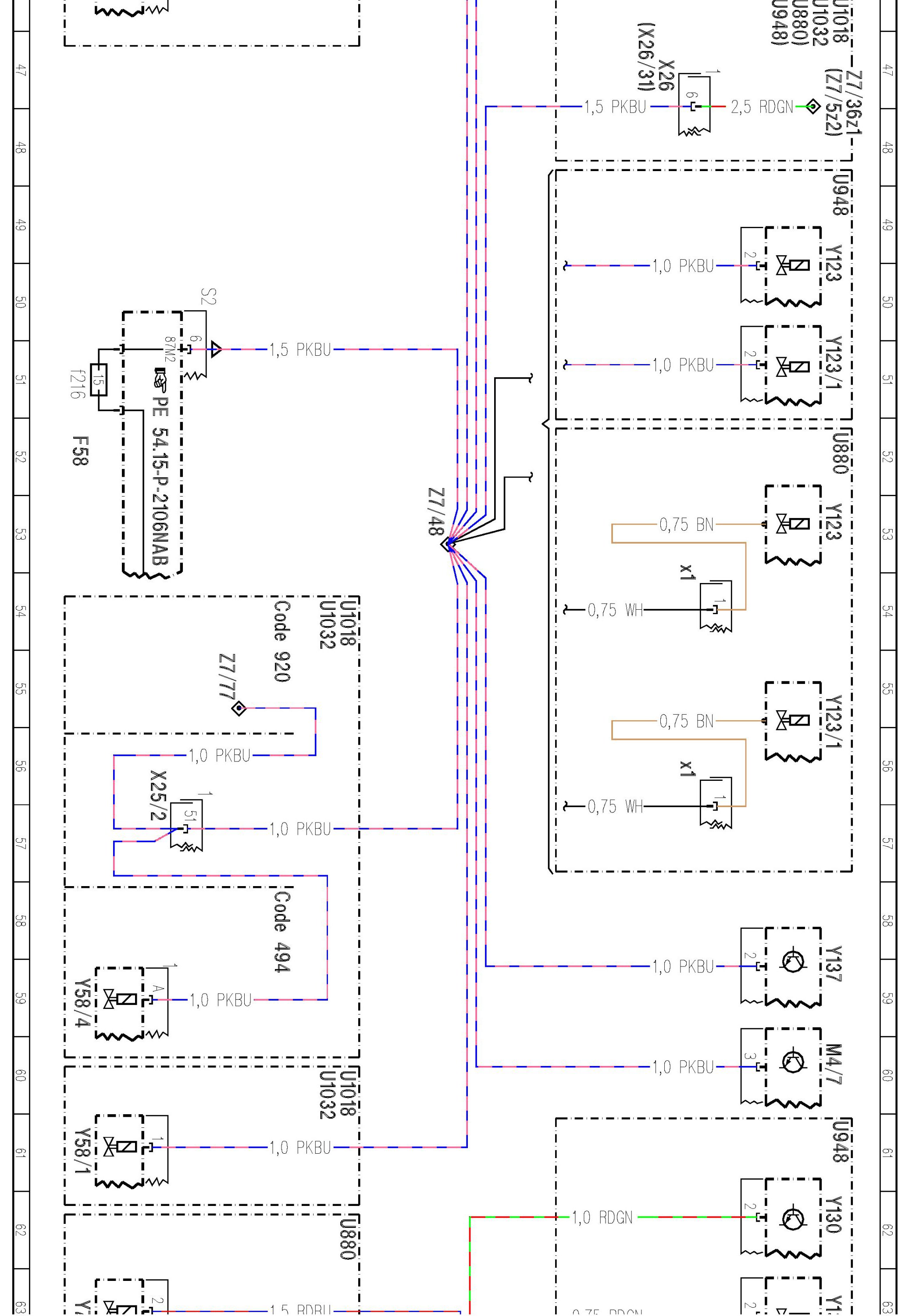

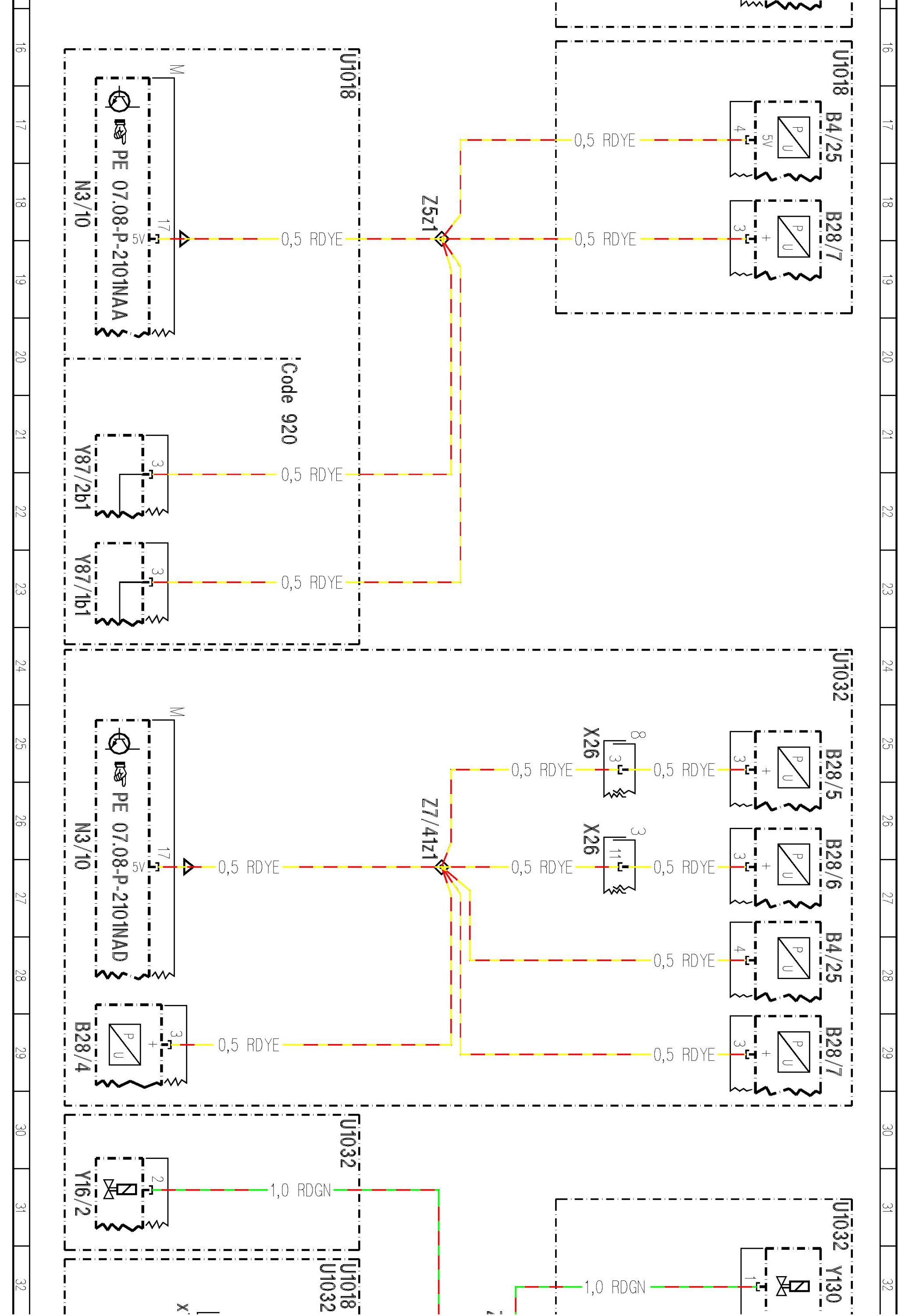

PE00.19-P-2600NAA Solder Points/Z-Connector Sleeves



PE00.19-P-2600NAA Solder Points/Z-Connector Sleeves
MODEL 166

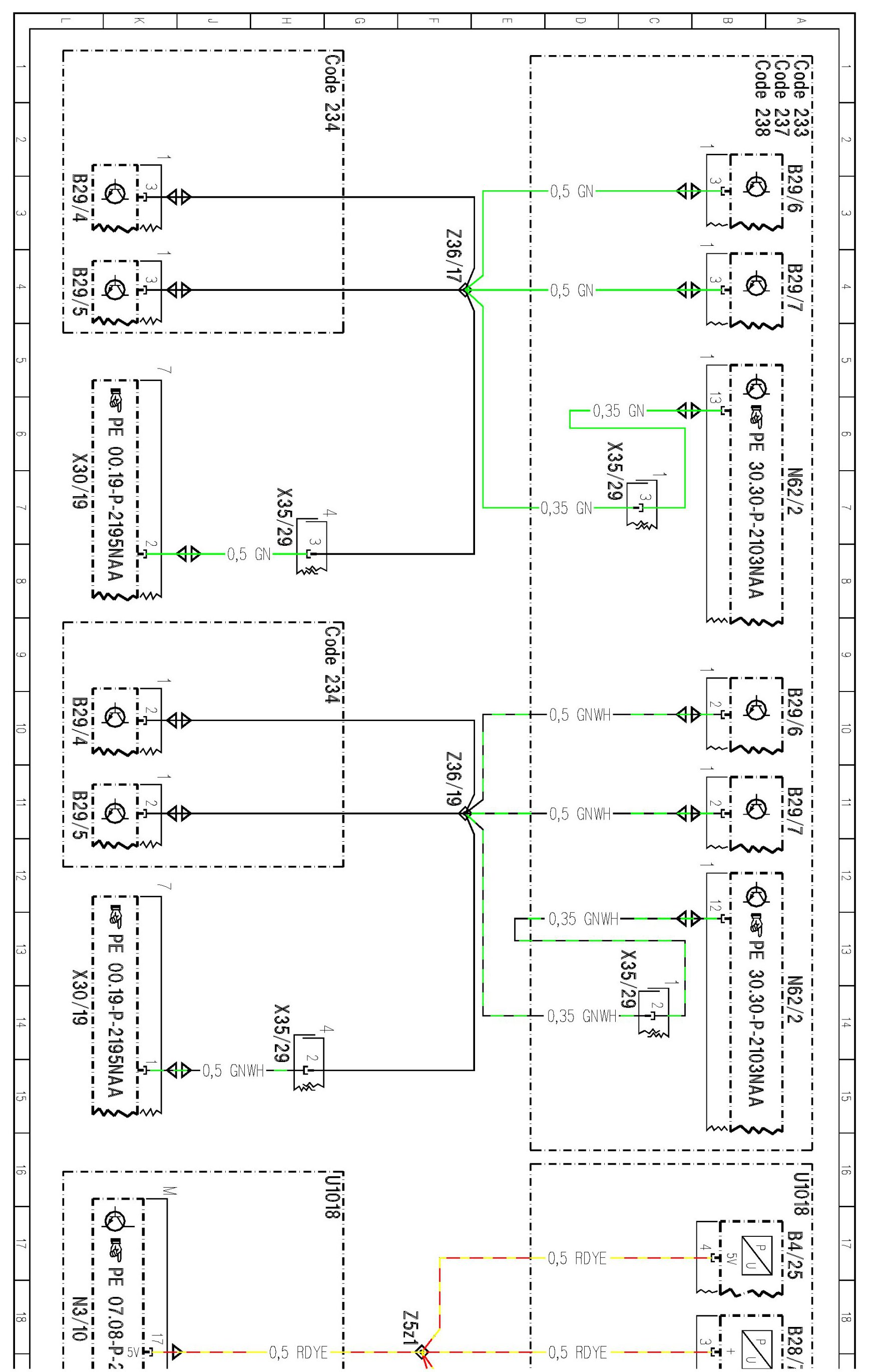

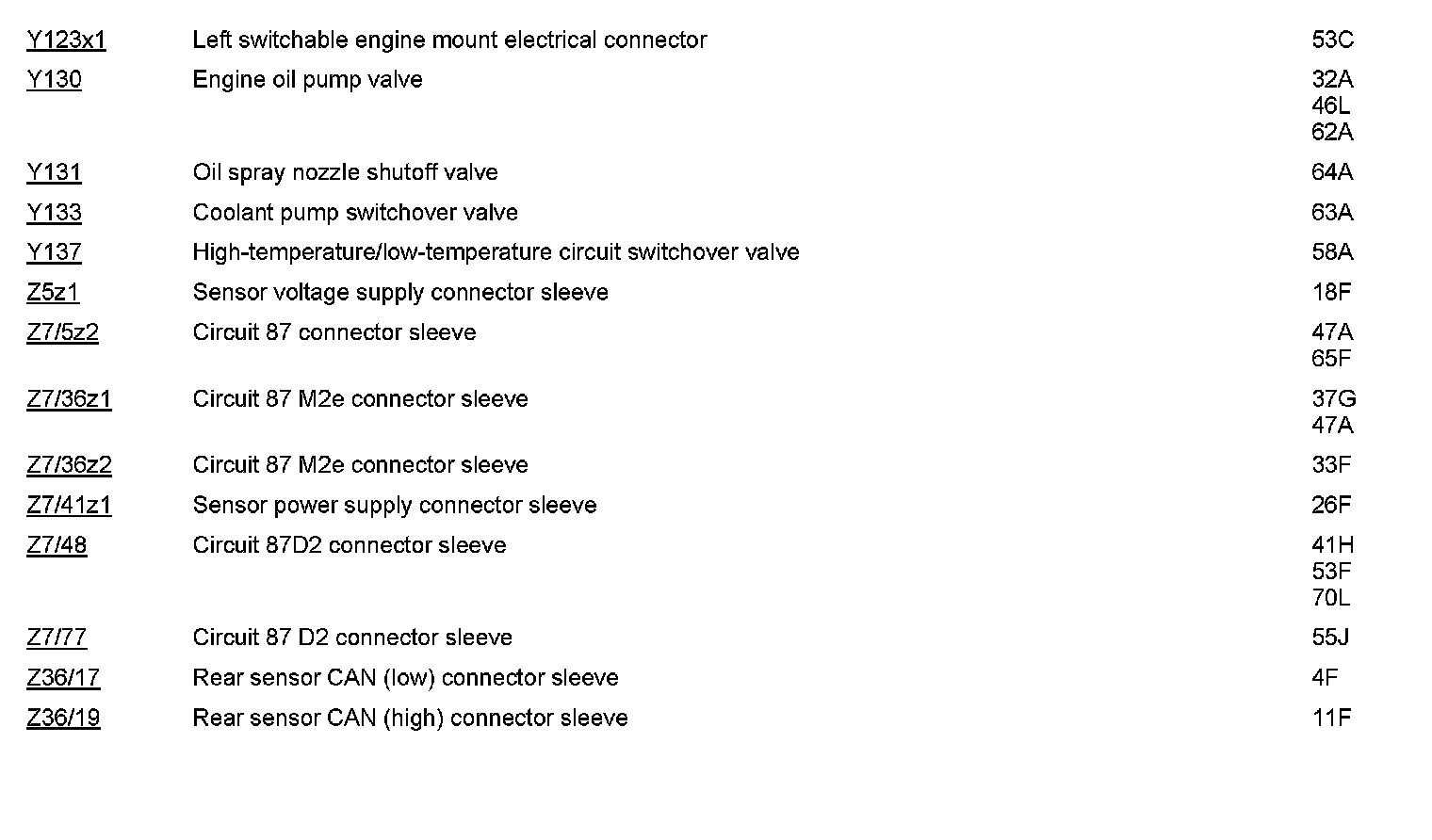

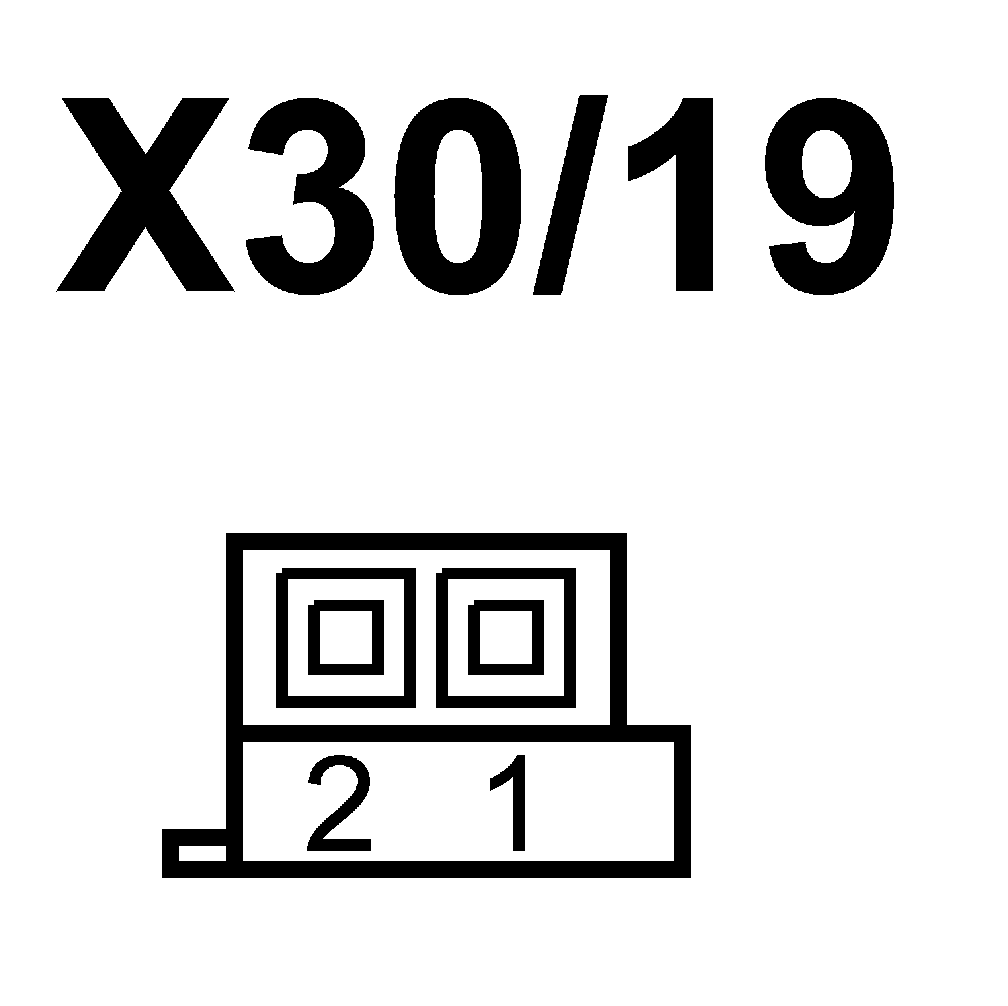

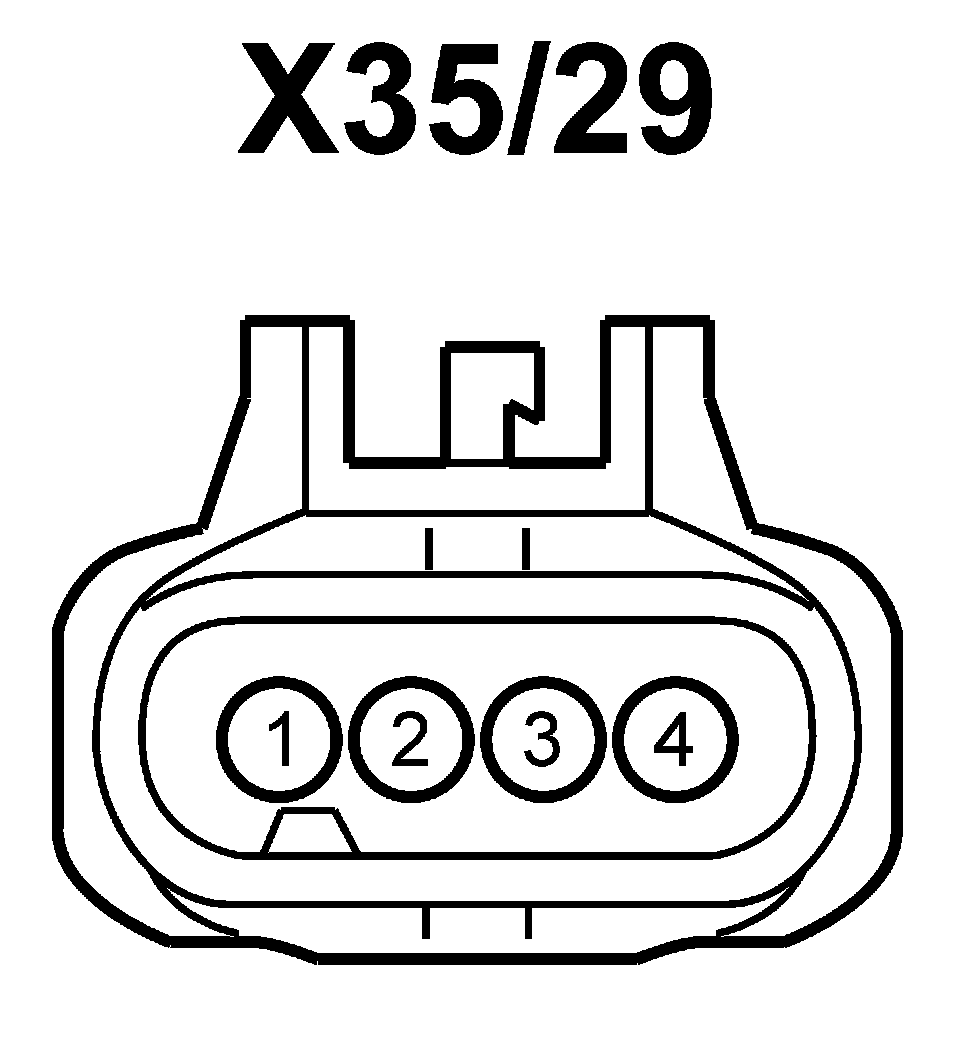

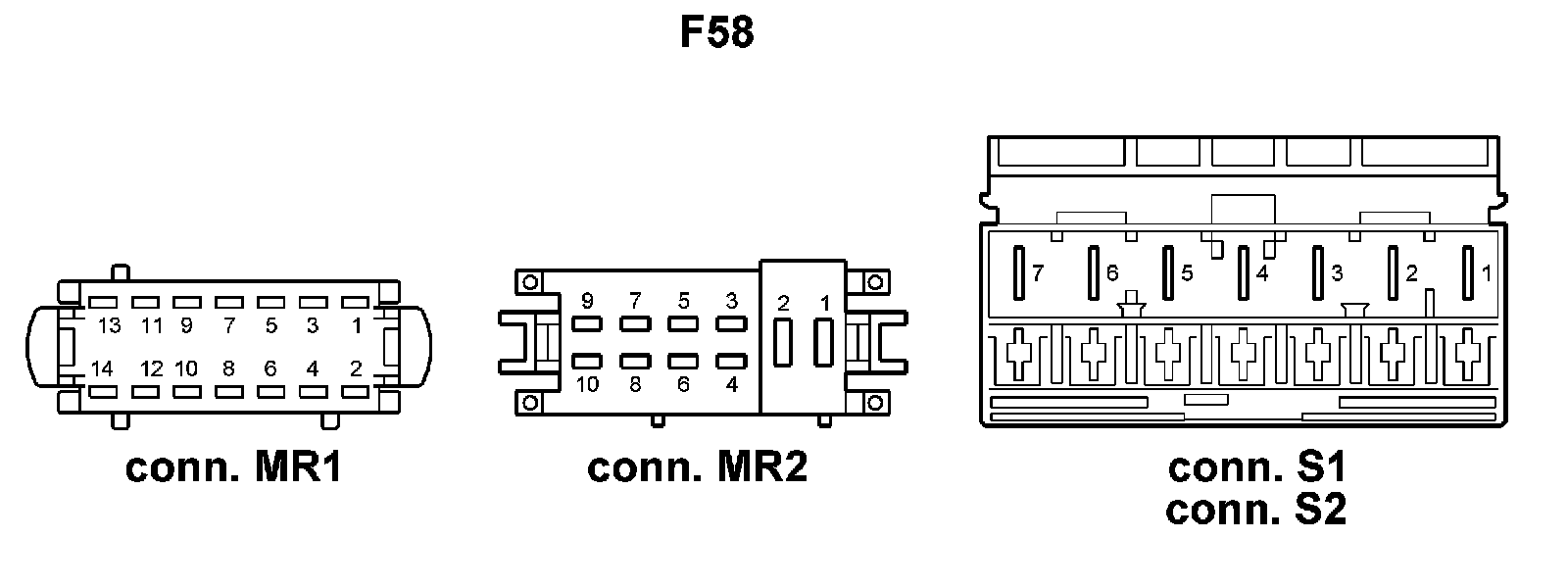

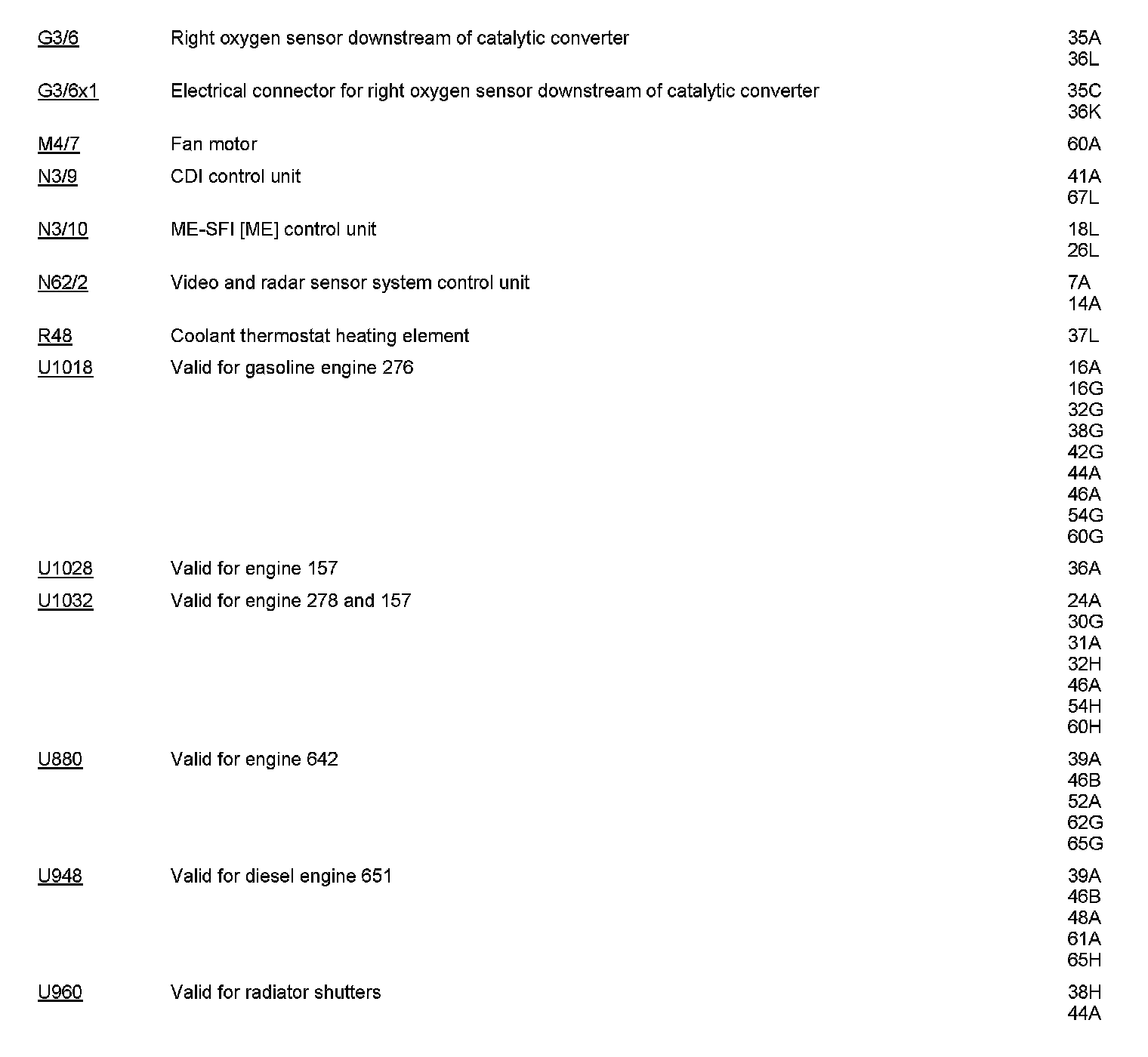

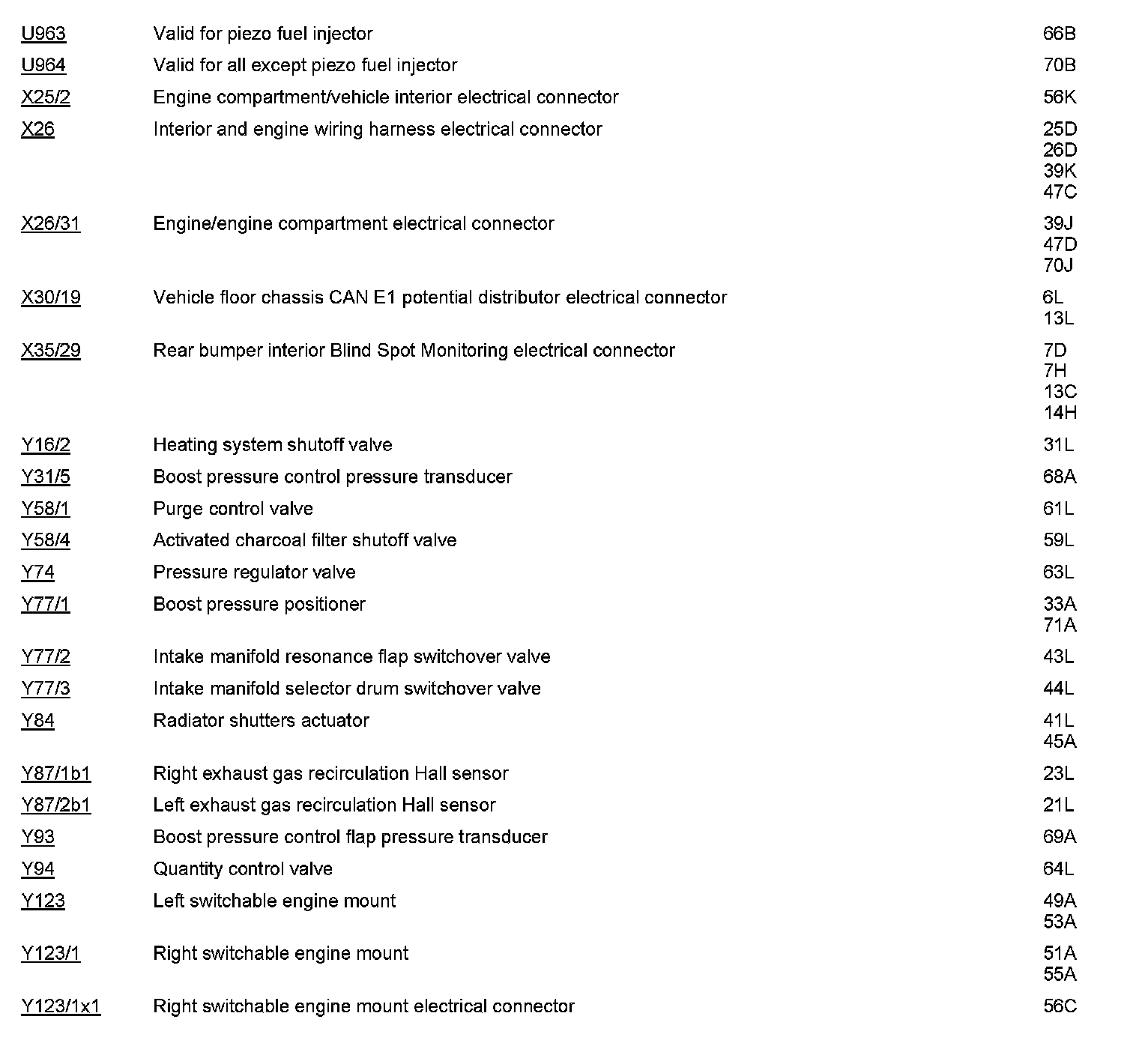

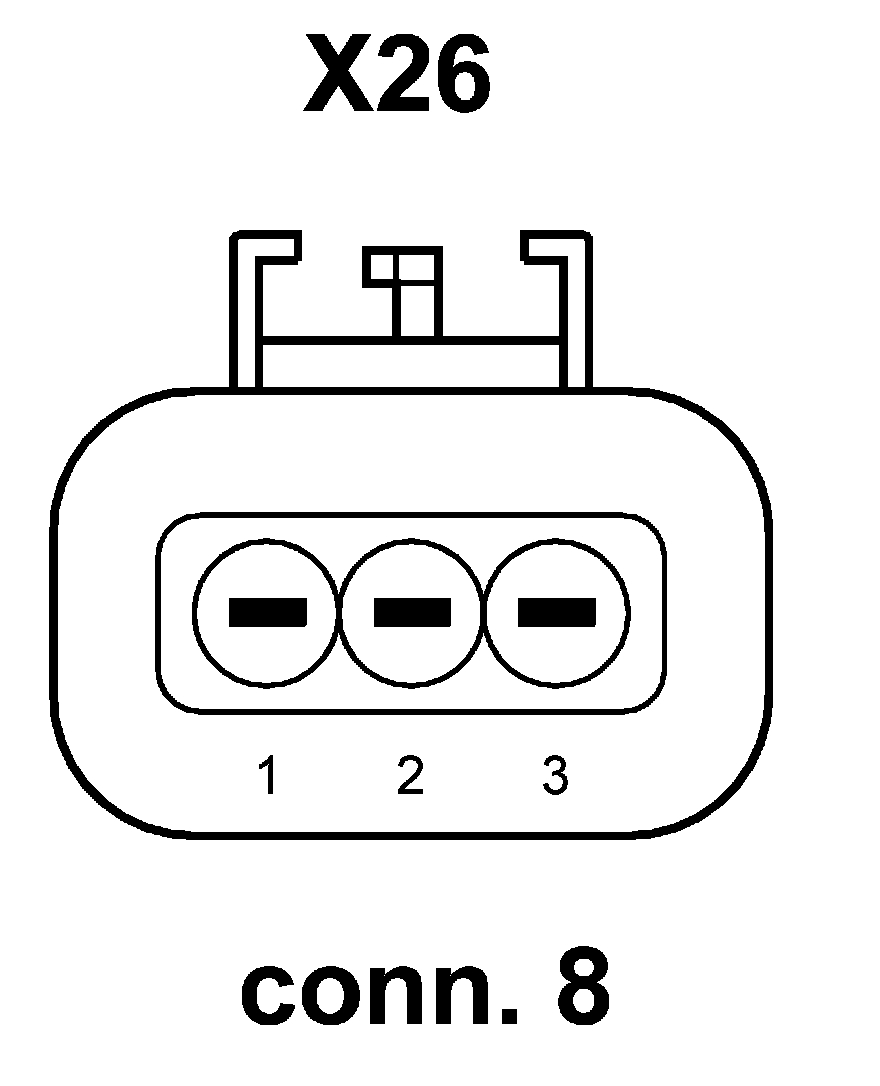

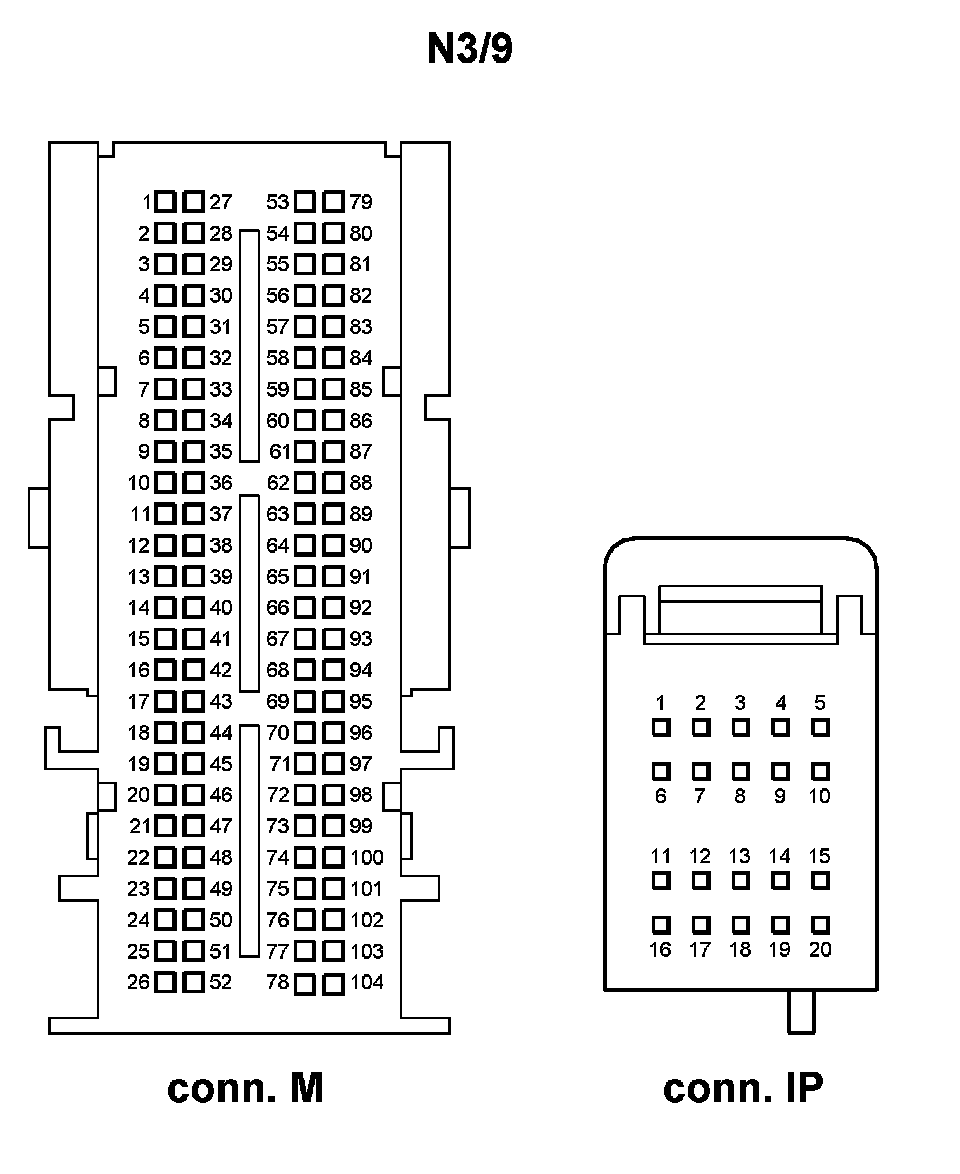

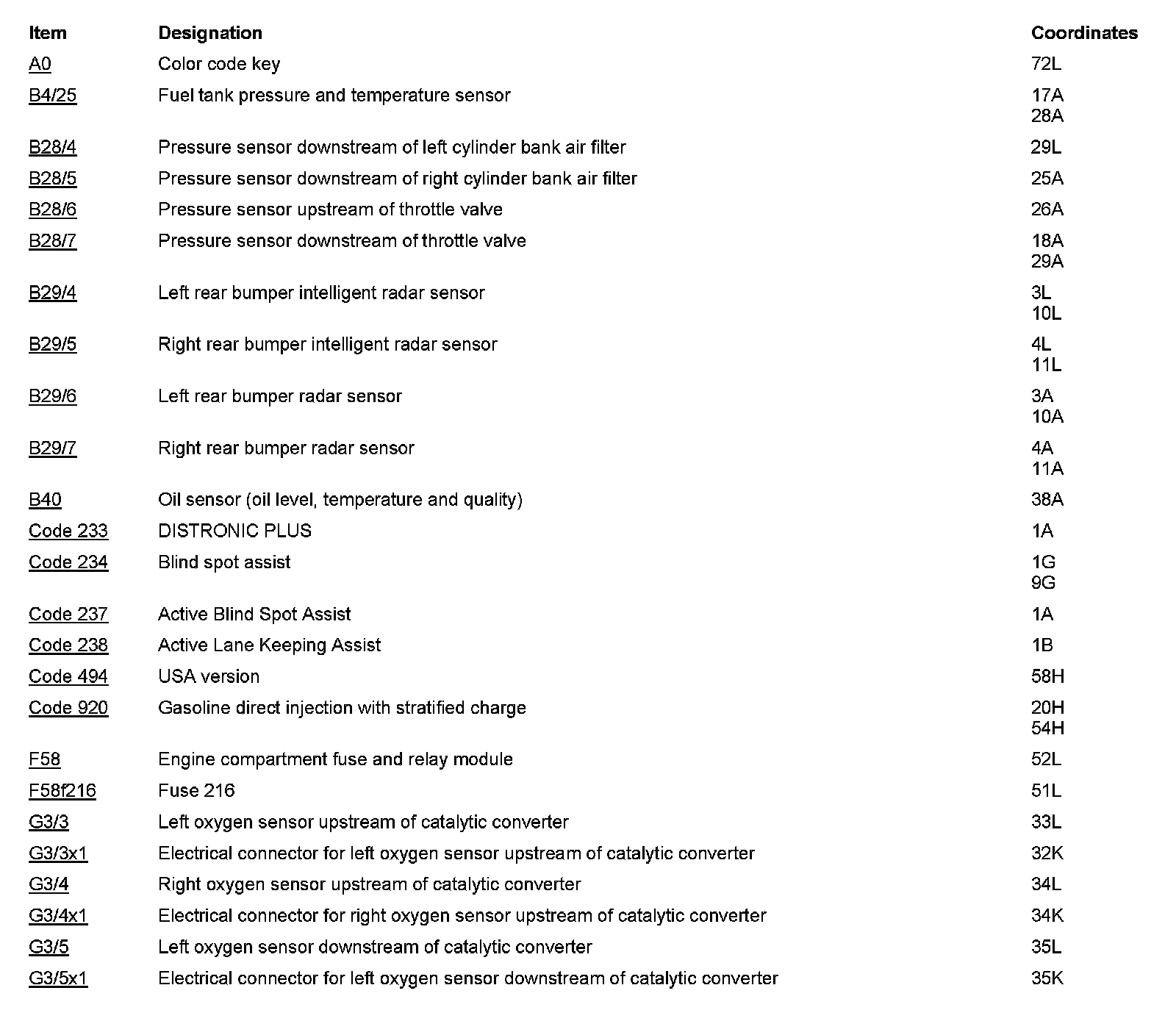

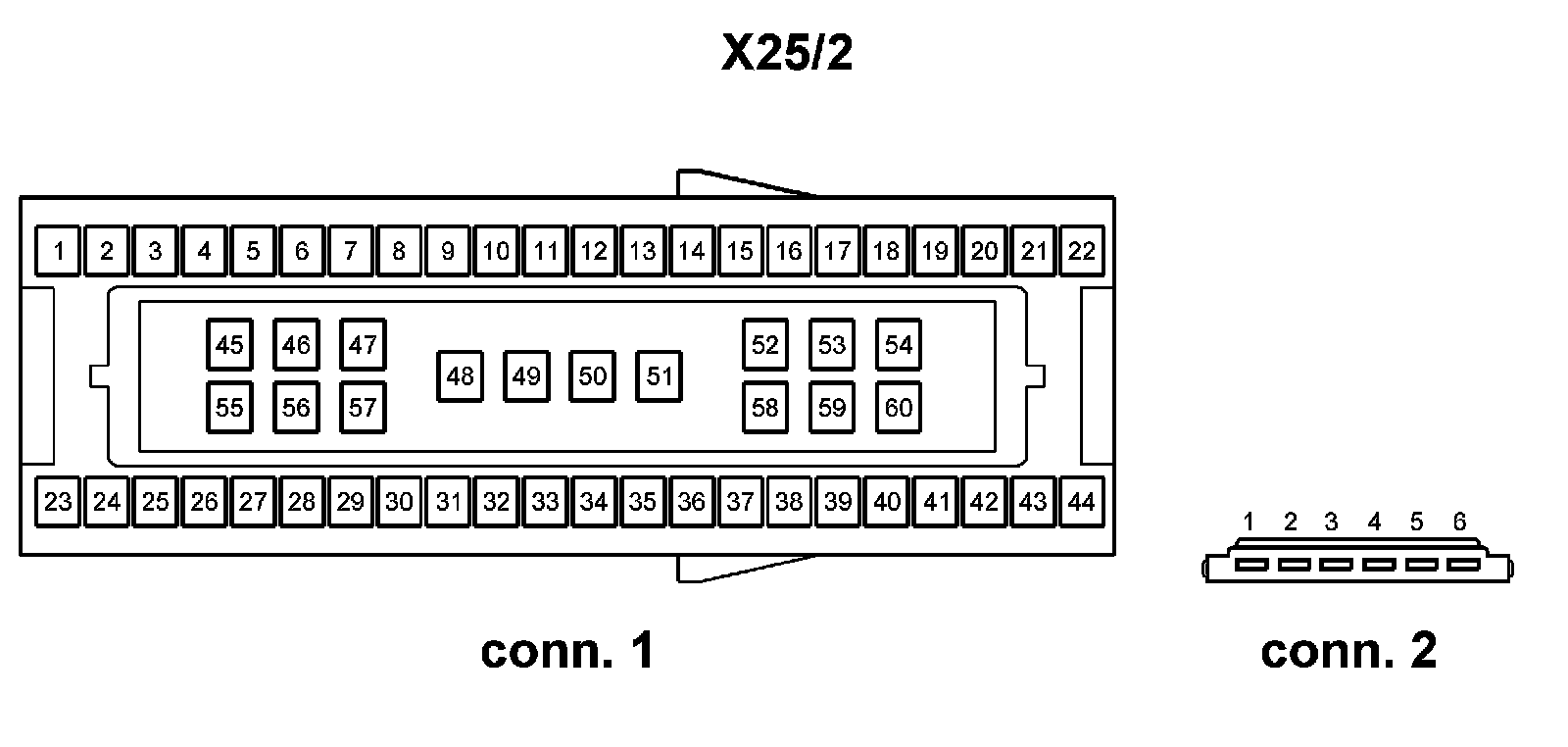

Z5z1, Z7/5z2, Z7/36z1, Z7/36z2, Z7/41z1, Z7/48, Z36/17, Z36/19






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
