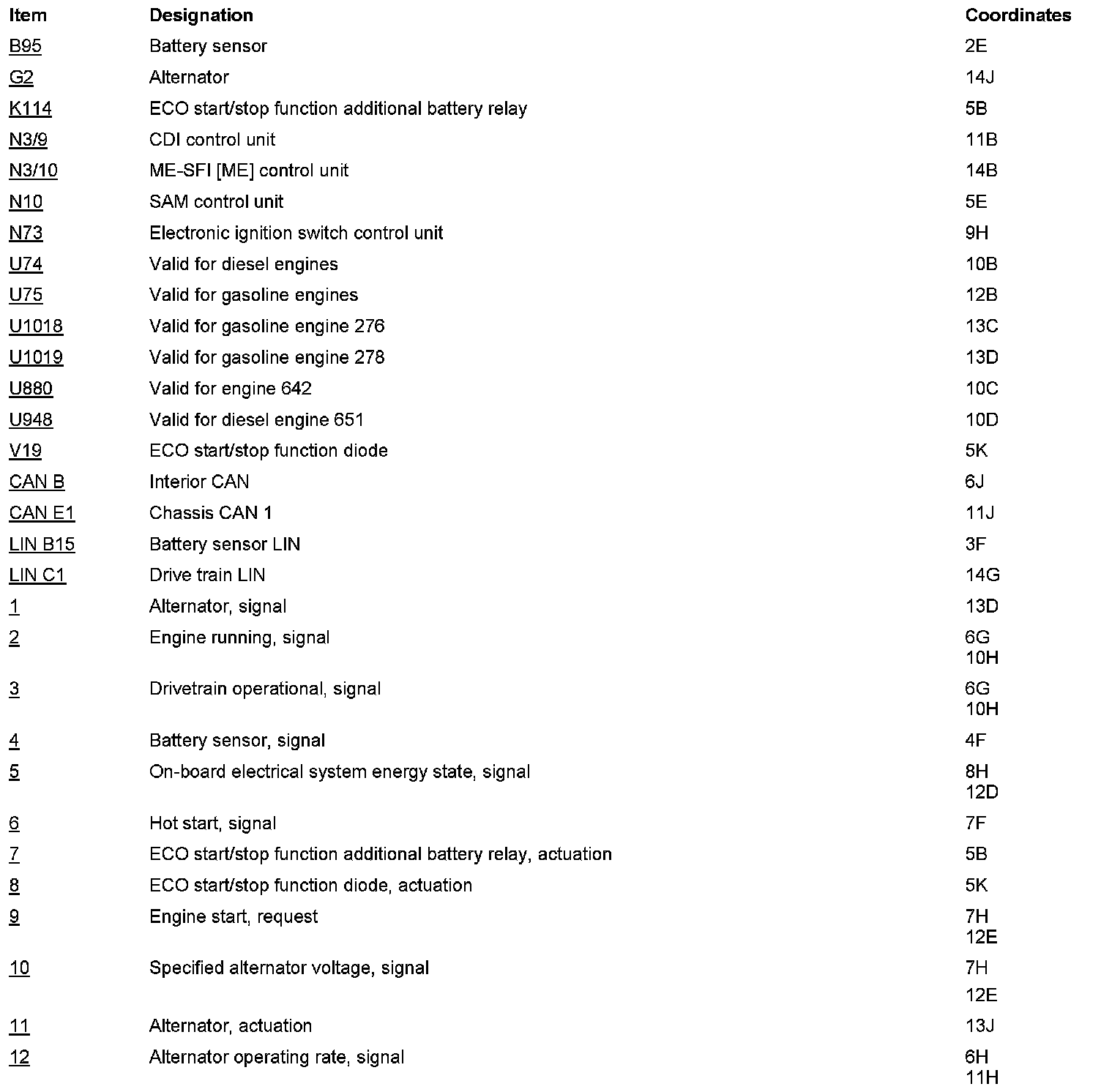

PE54.10-P-2070NAA Electrical Function Schematic For Energy Management For Engine Start/Stop

PE54.10-P-2070NAA Electrical Function Schematic For Energy Management For Engine Start/Stop
MODEL 166
with CODE (B03) ECO Start/Stop Function


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
