PE54.10-P-2055NAA Electrical Function Schematic For DC/AC Converter

PE54.10-P-2055NAA Electrical Function Schematic For DC/AC Converter
MODEL 166
with CODE (U80) 115 V socket

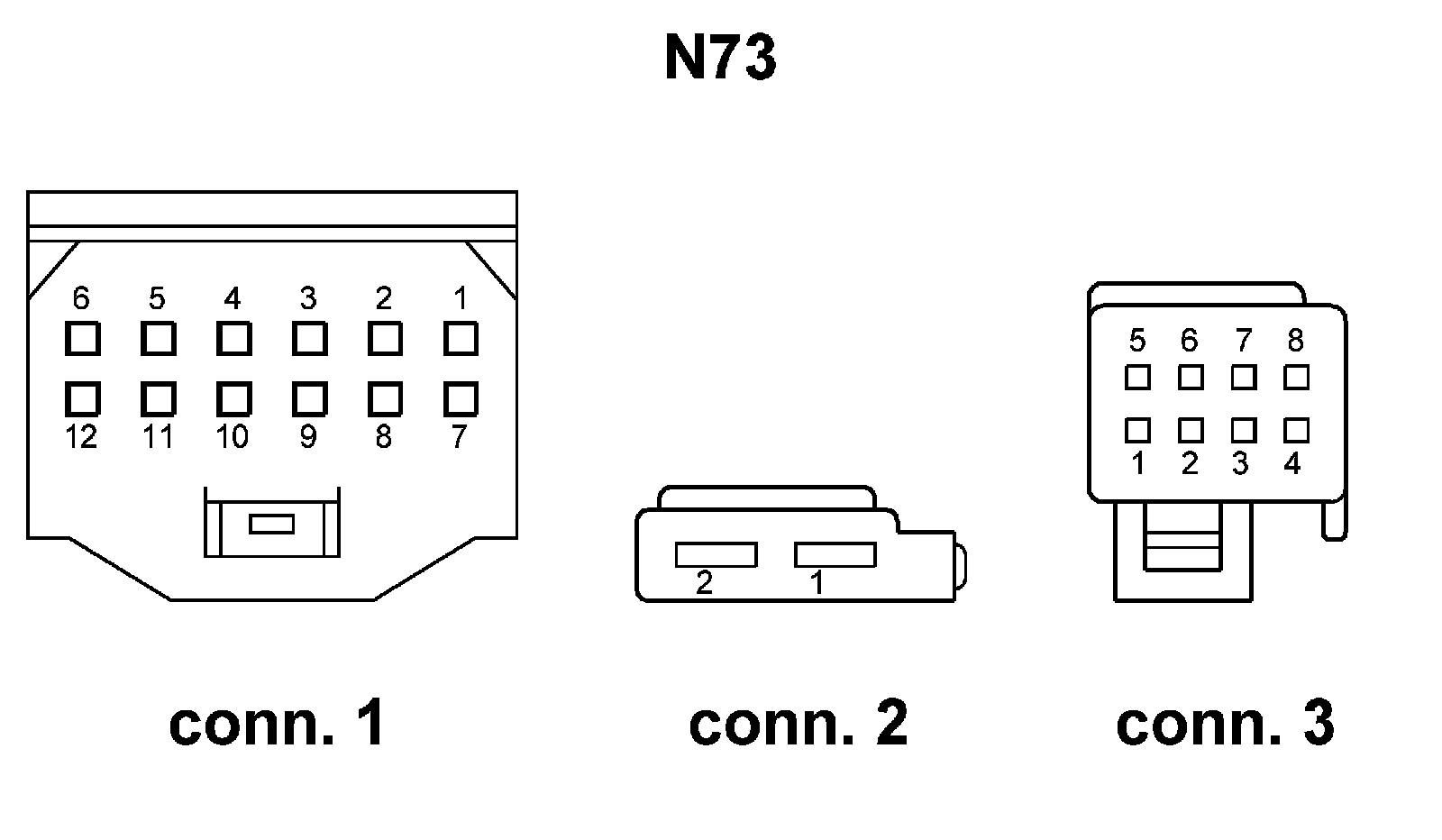

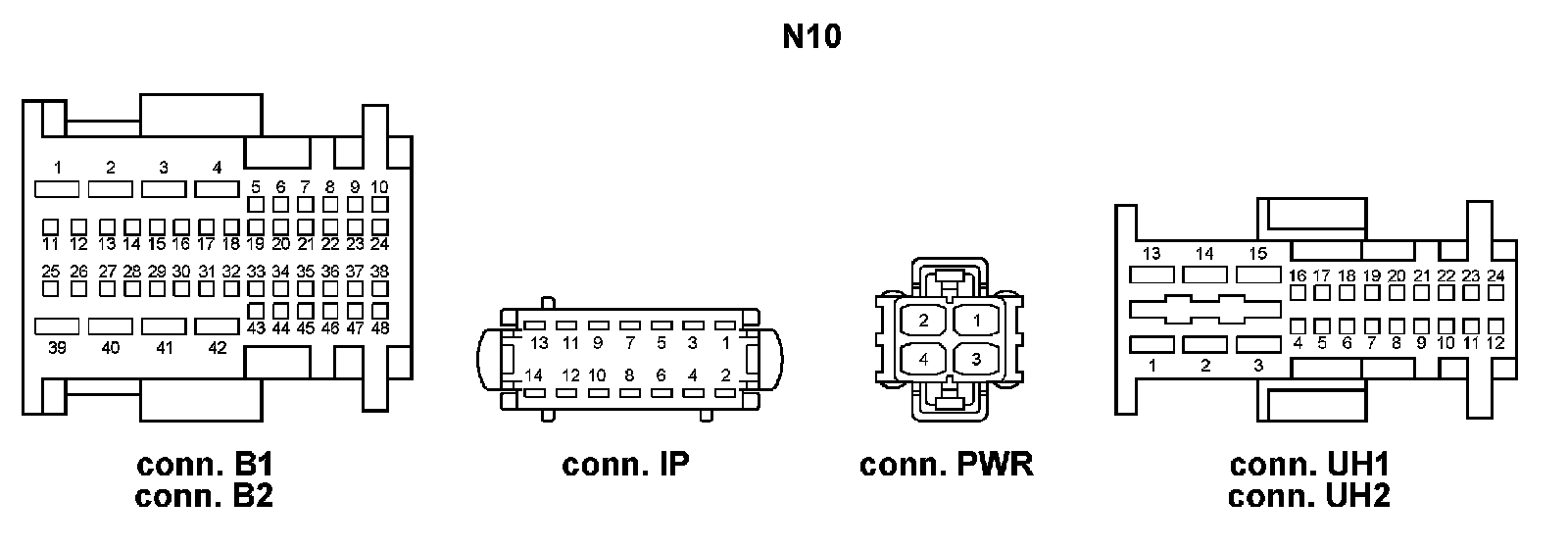

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
