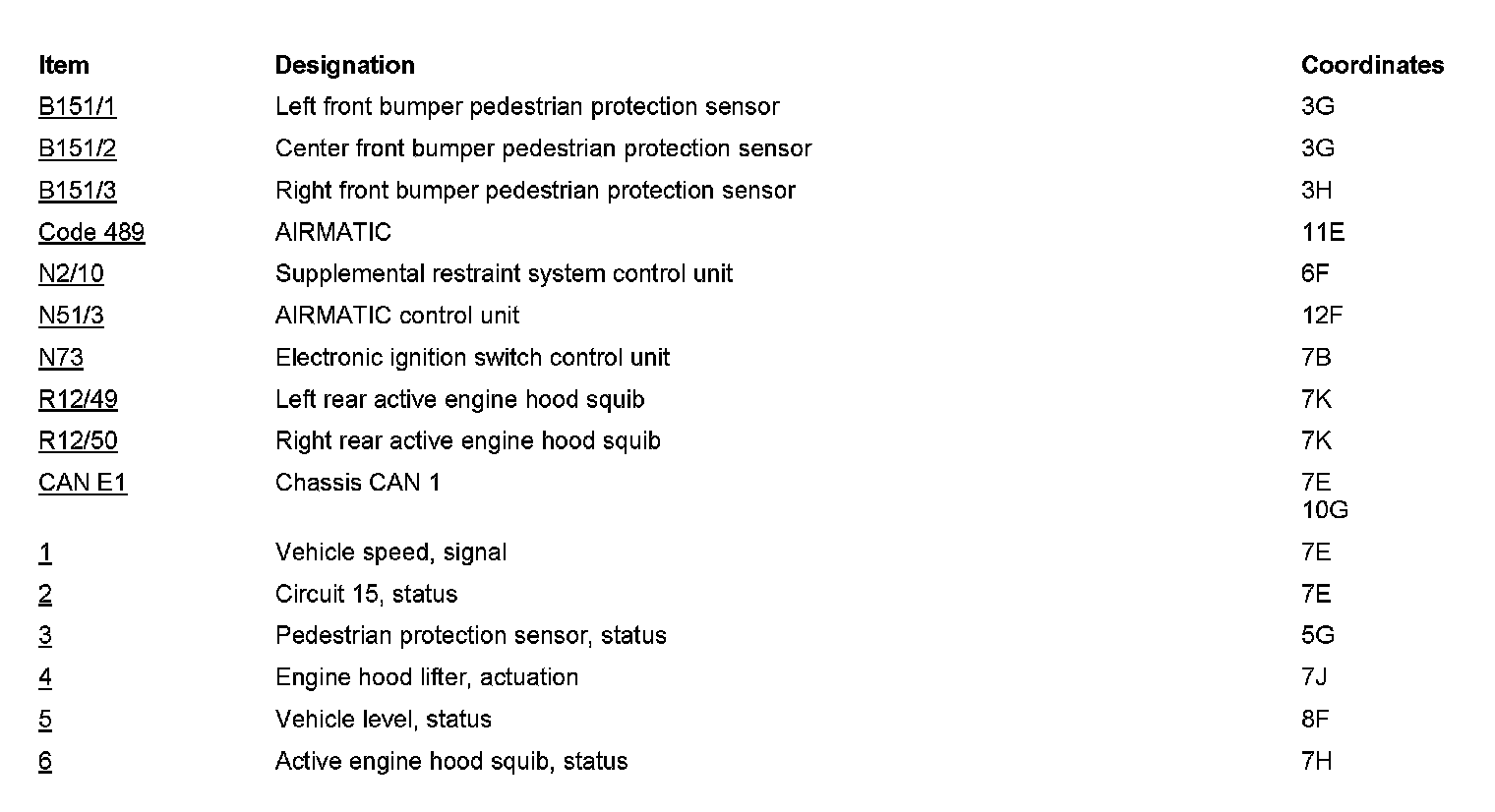

PE91.60-P-2054NAA Function Schematic For Electric Pedestrian Protection



PE91.60-P-2054NAA Function Schematic For Electric Pedestrian Protection
MODEL 166
with CODE (U60) Pedestrian Protection














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
