PE91.60-P-2106NAA Supplemental Restraint System Control Unit



PE91.60-P-2106NAA Supplemental Restraint System Control Unit
MODEL 166

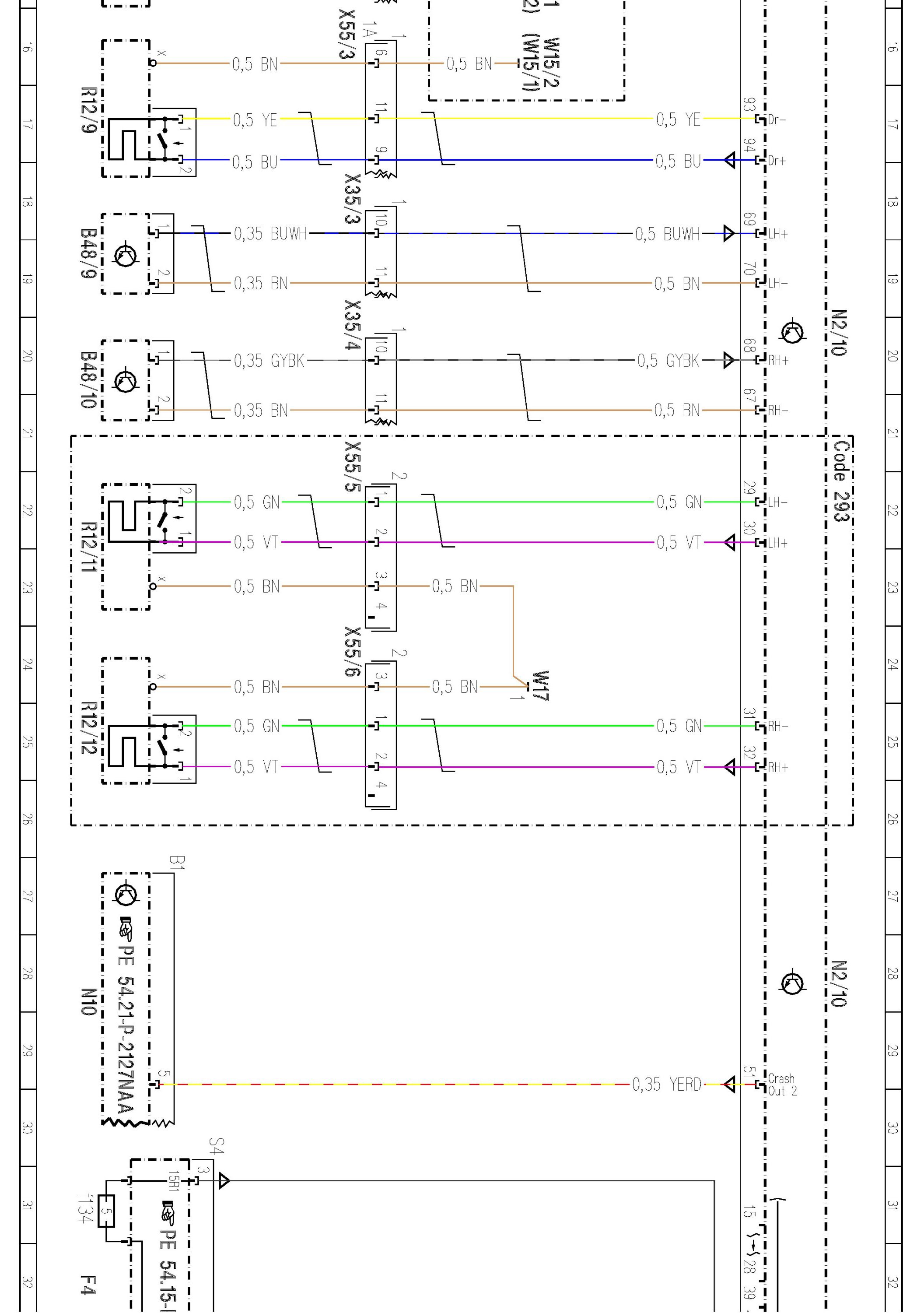

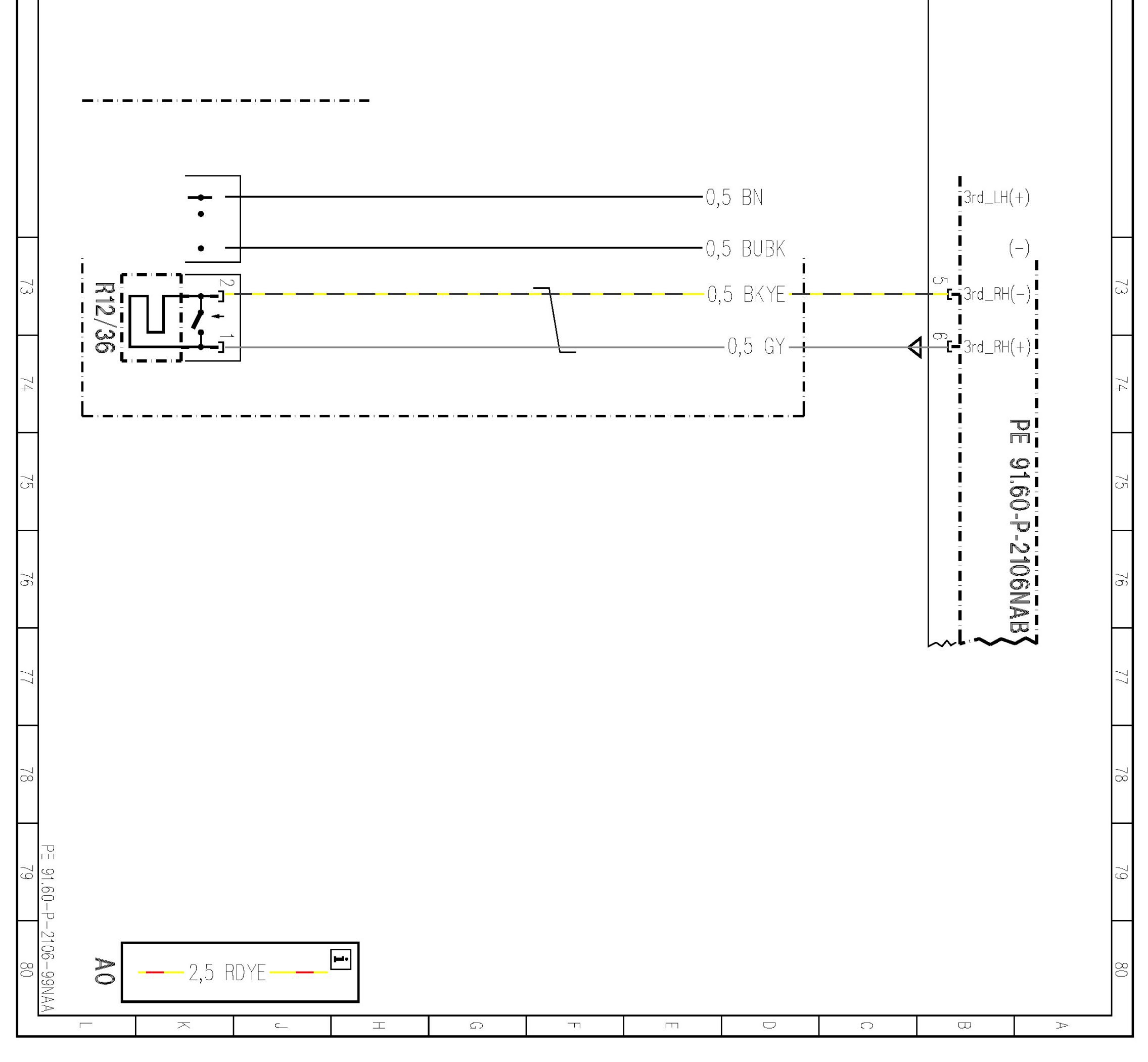

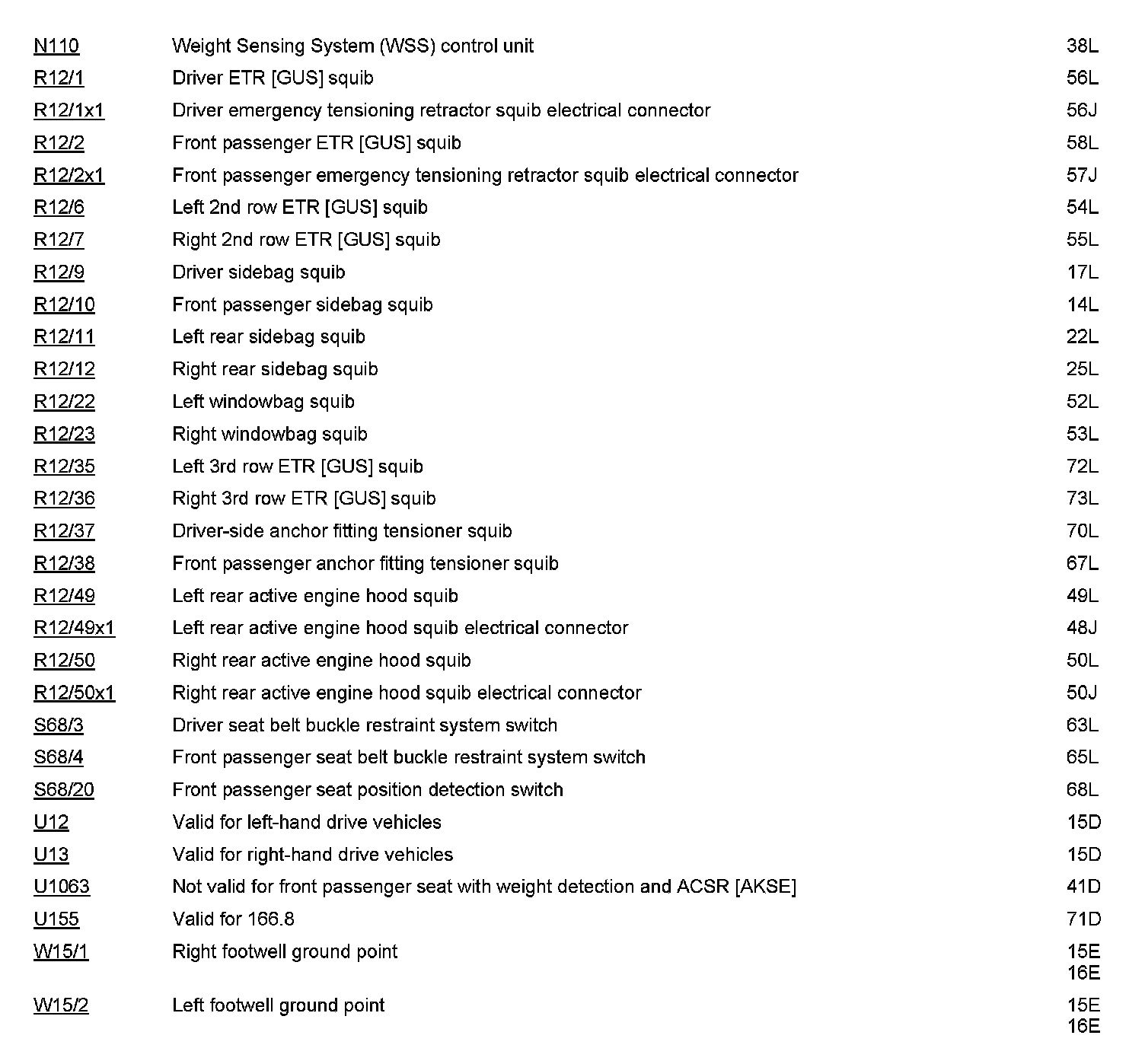

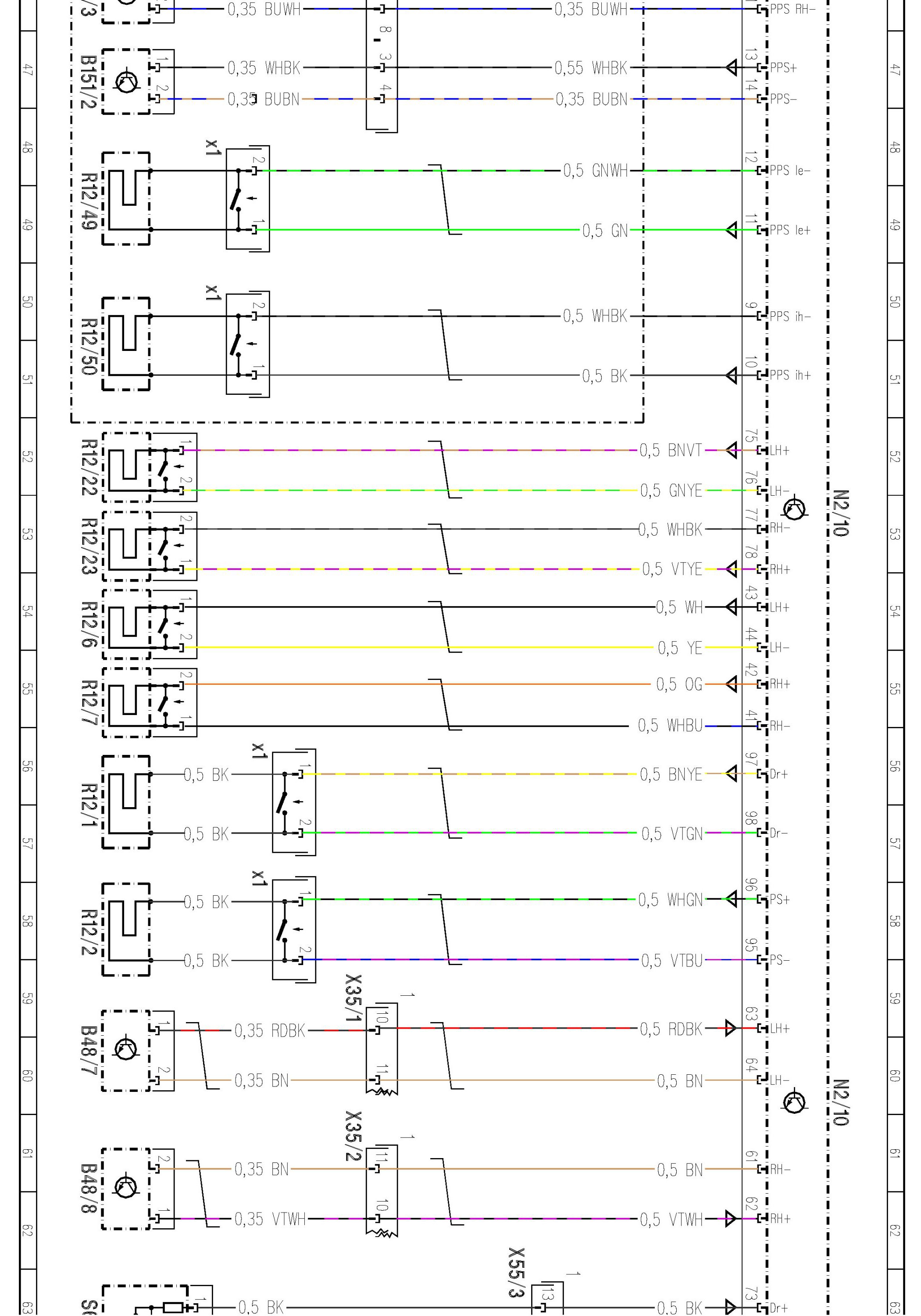

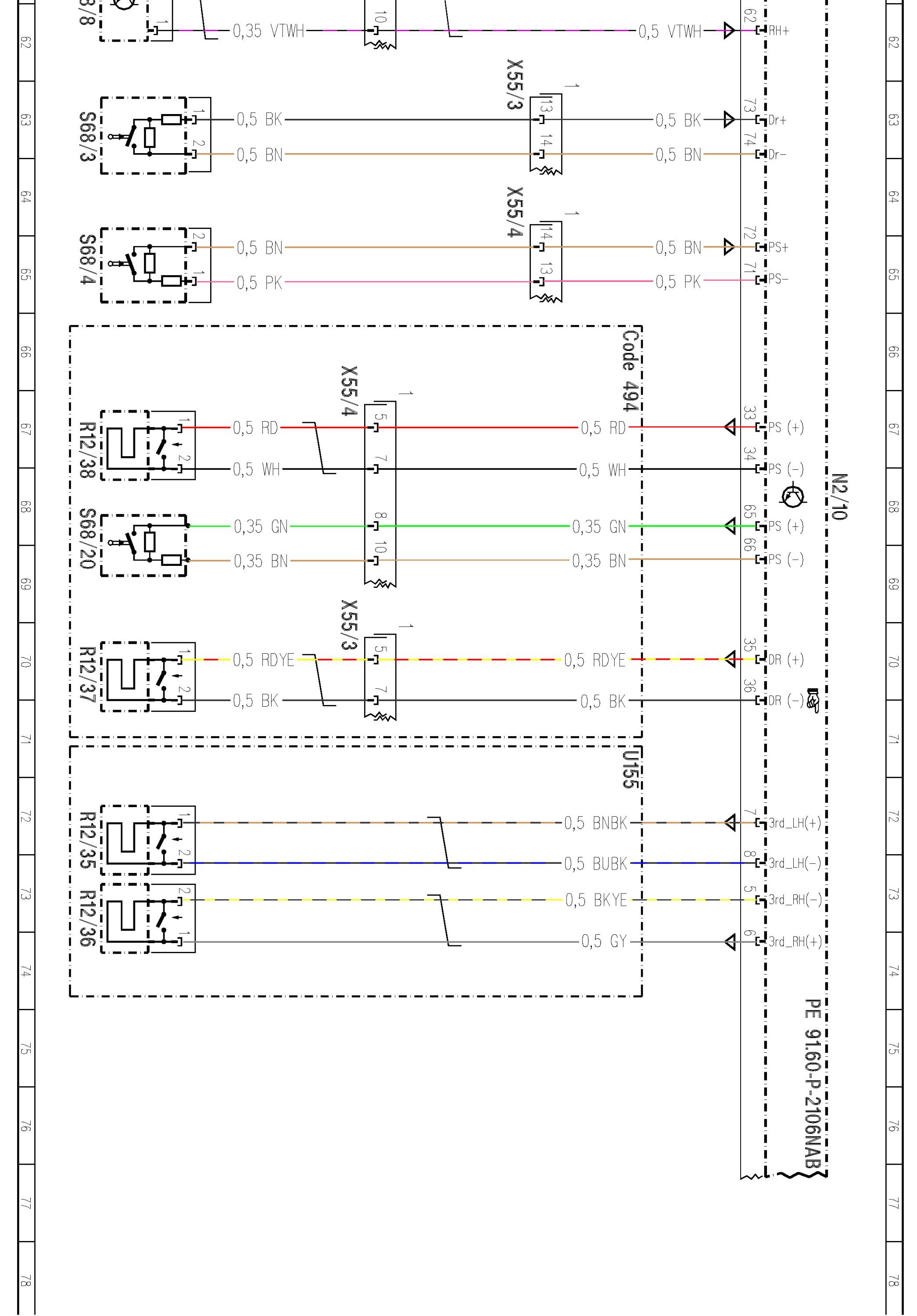

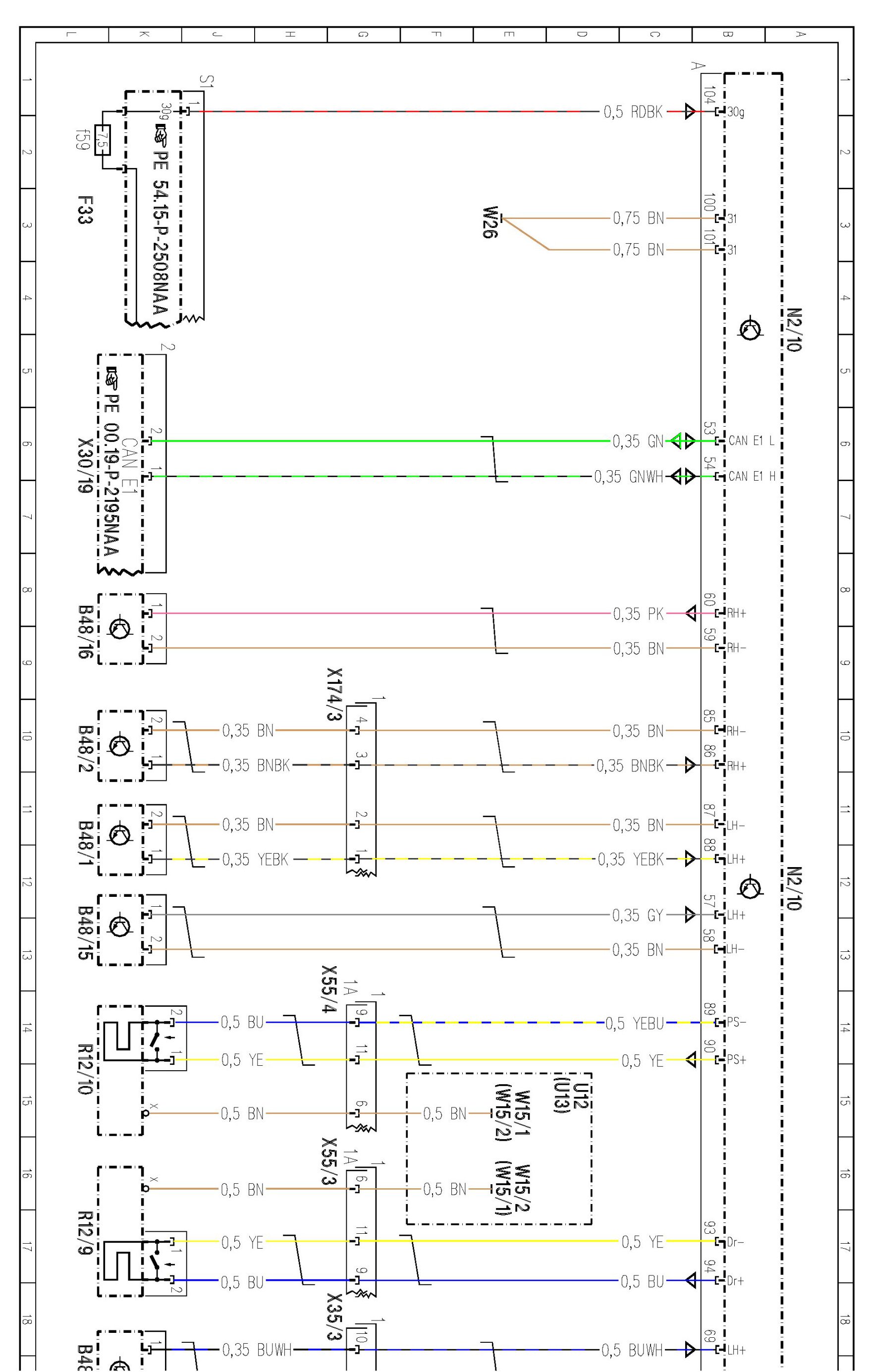

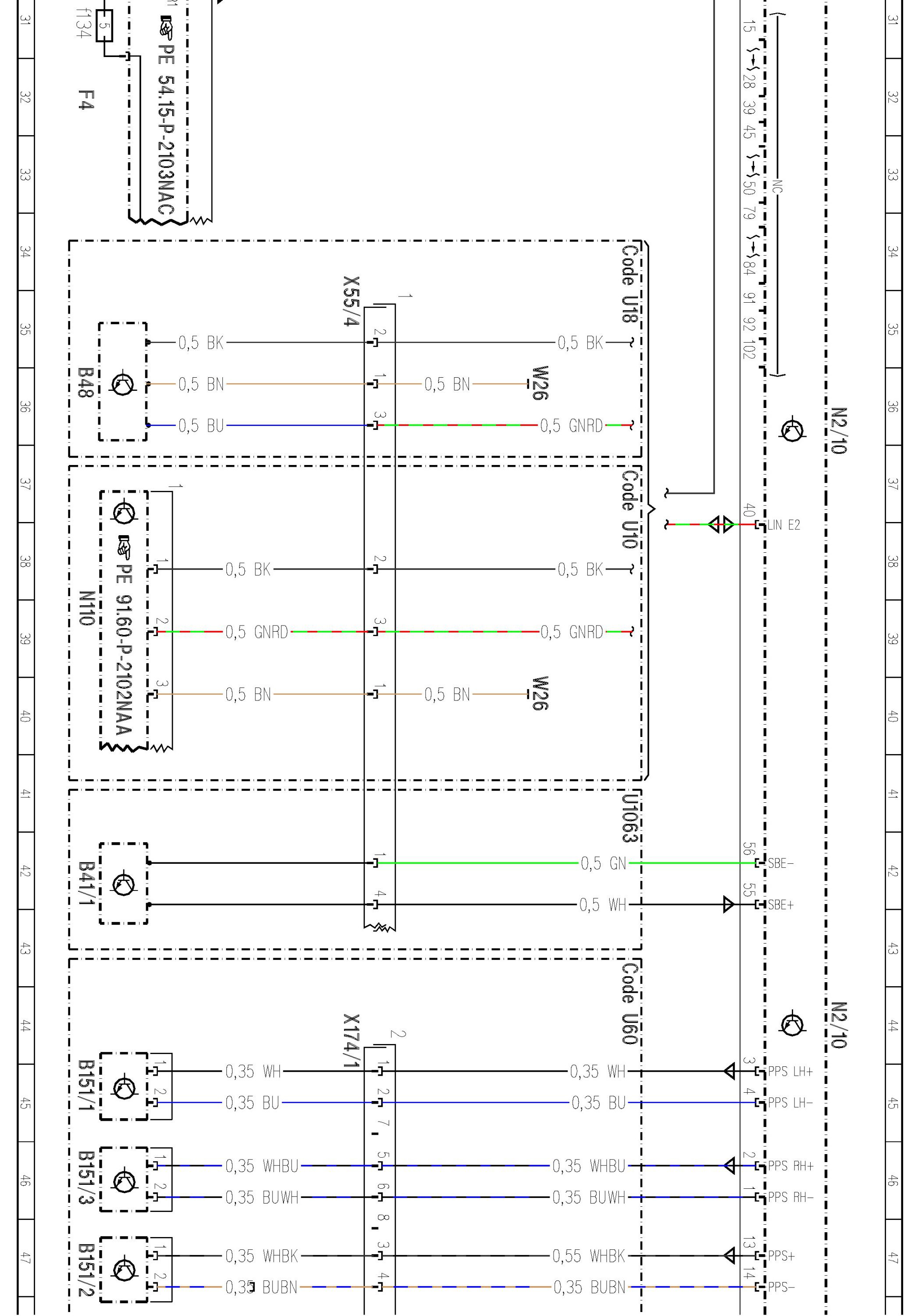

- Control Unit N2/10, Sheet 1


















































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
