PE82.60-P-2058NAA Electrical Function Diagram For Audio Mode, Function



PE82.60-P-2058NAA Electrical Function Diagram For Audio Mode, Function

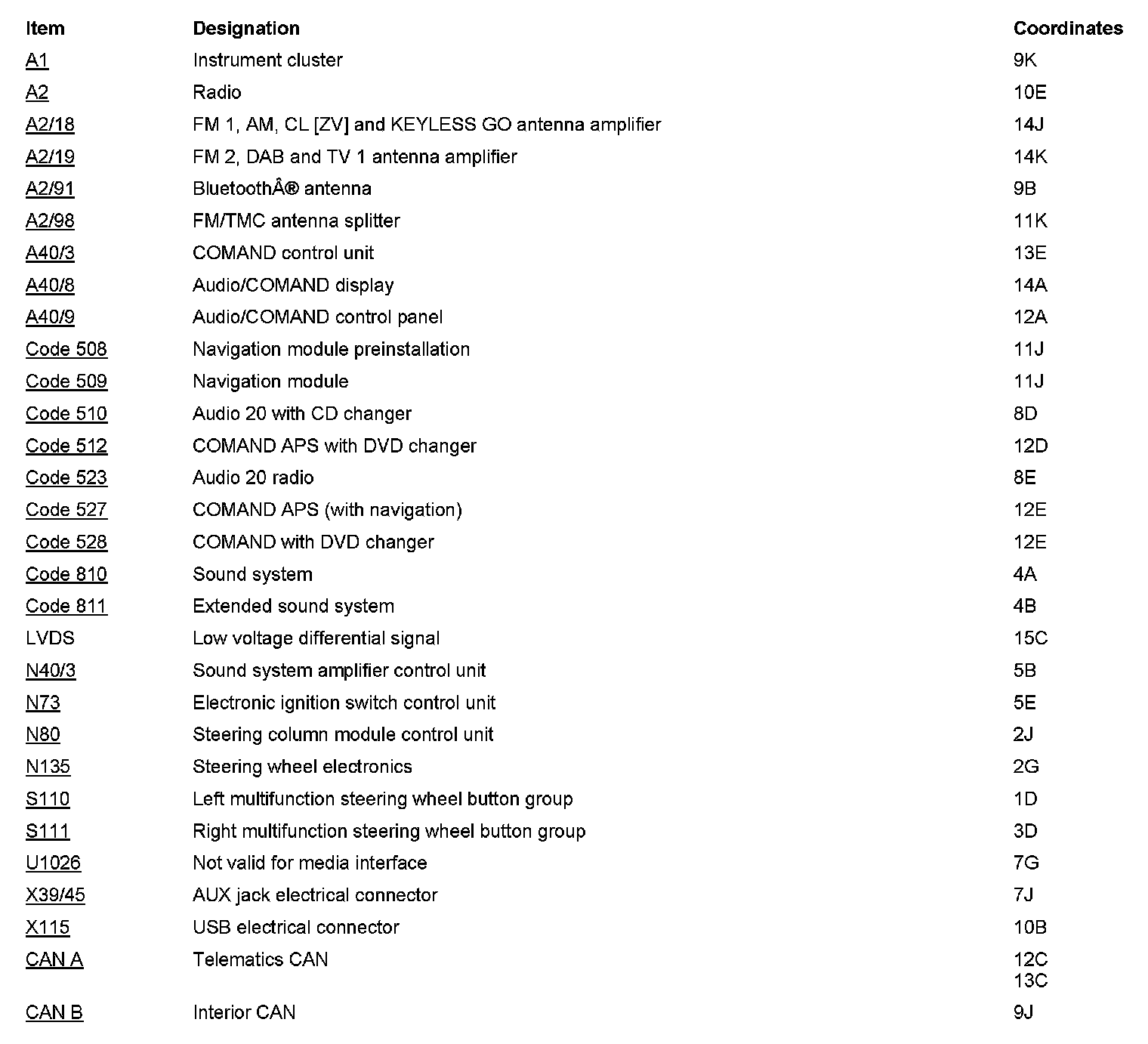

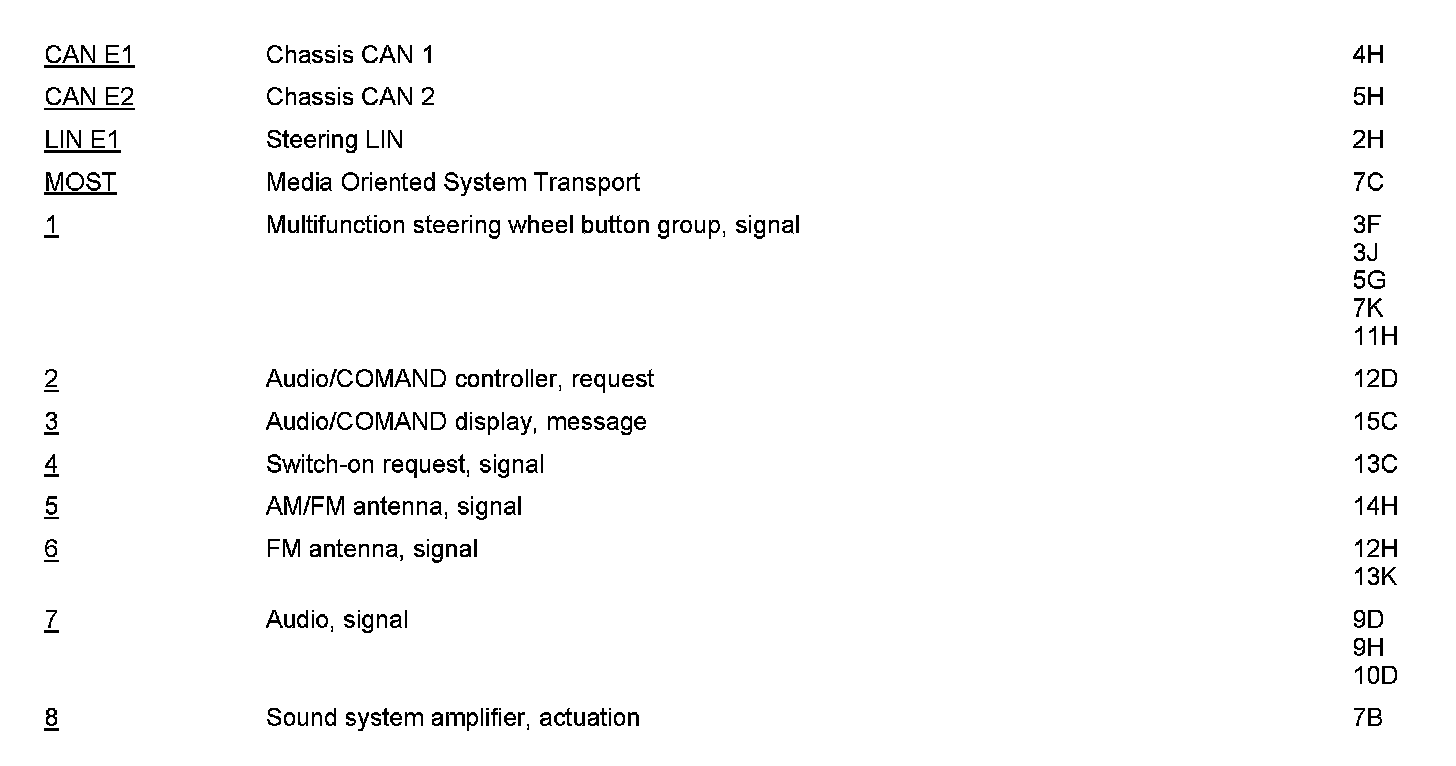

MODEL 166


















































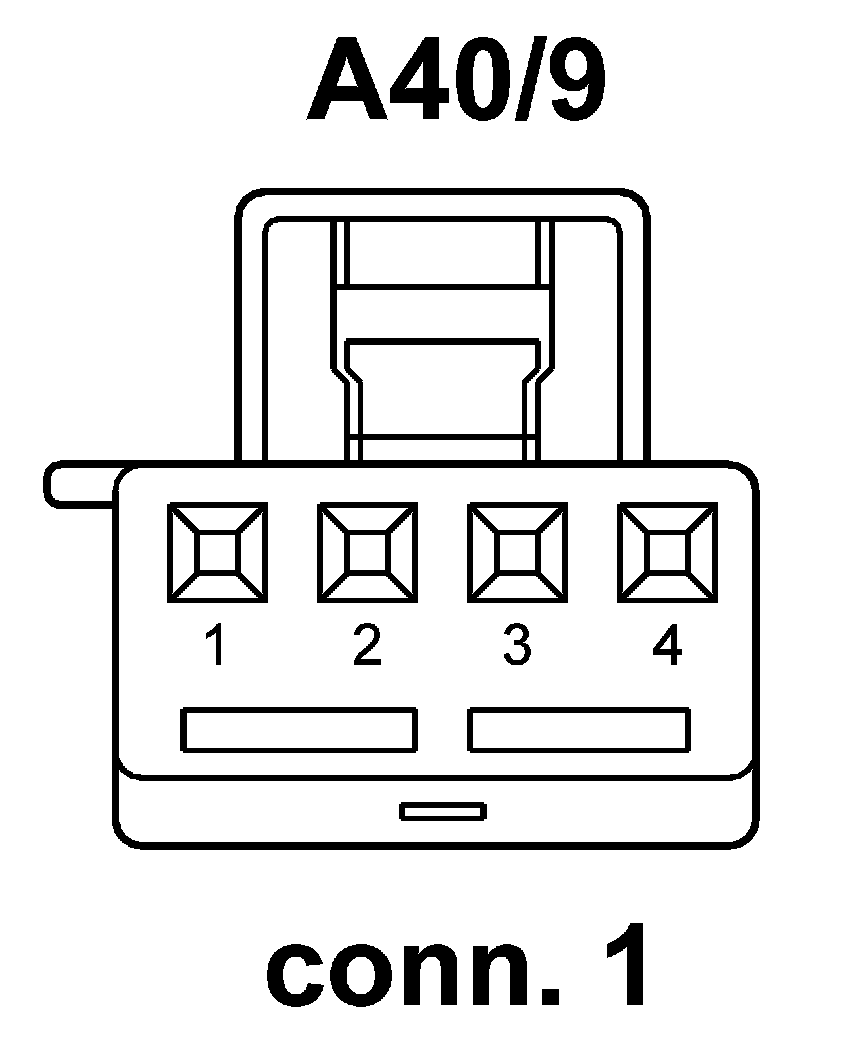

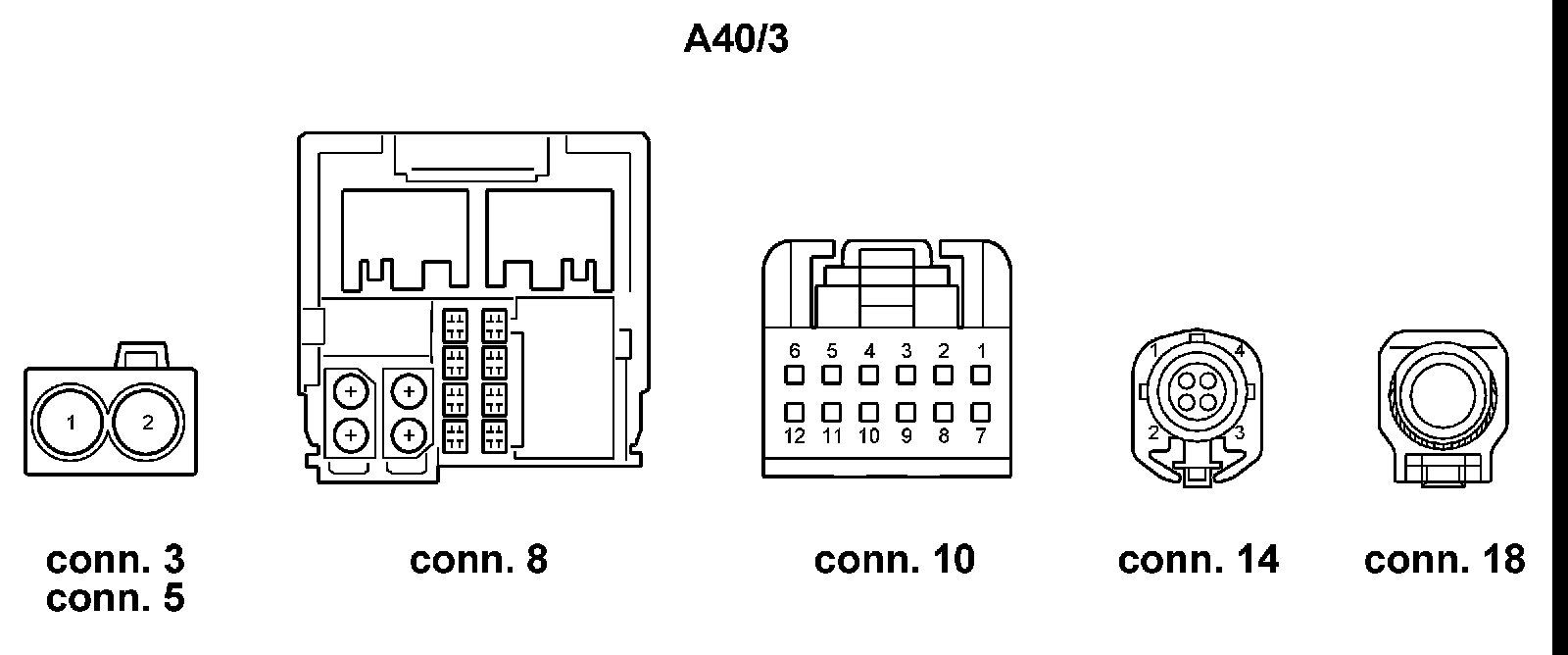

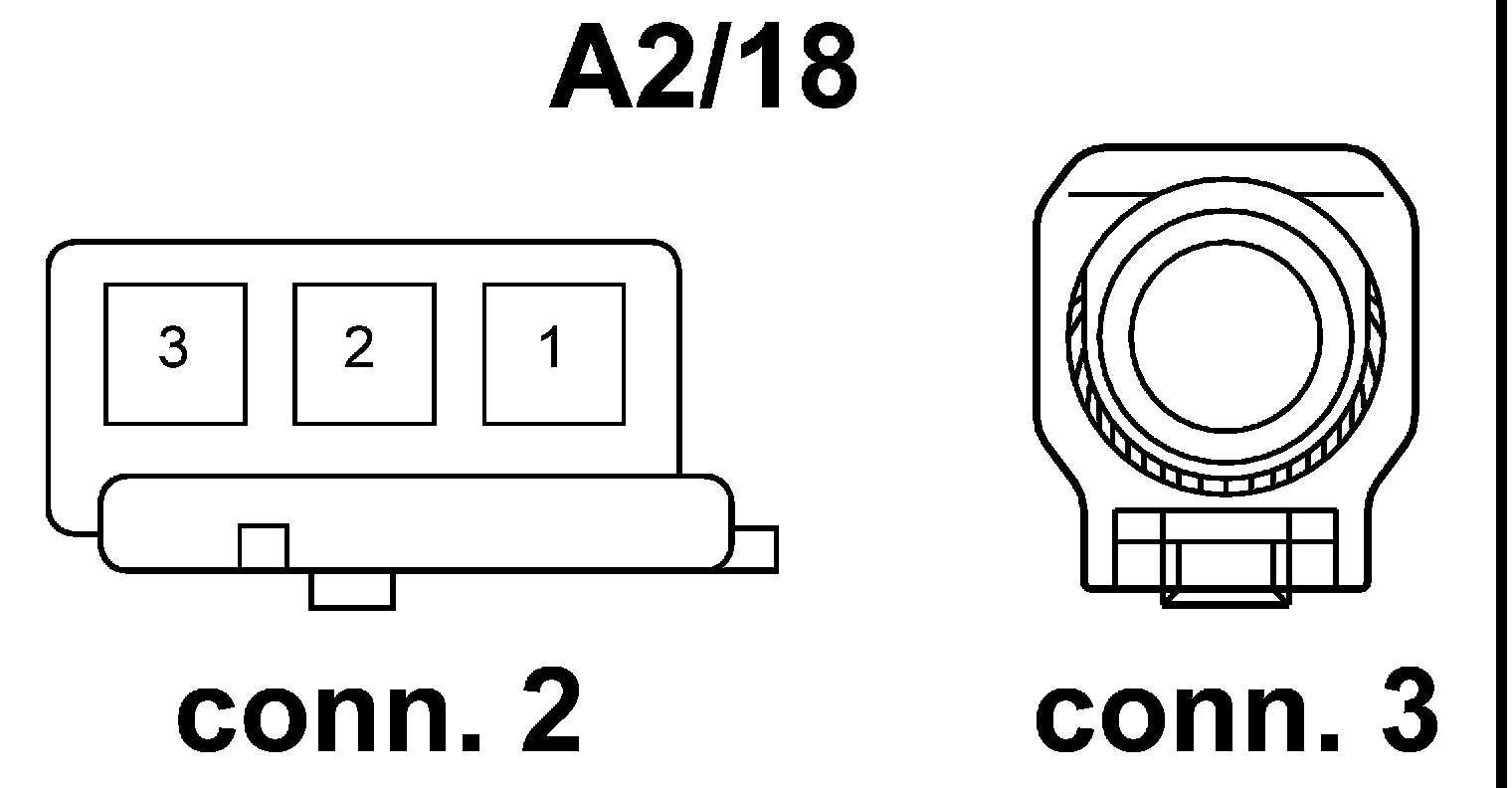

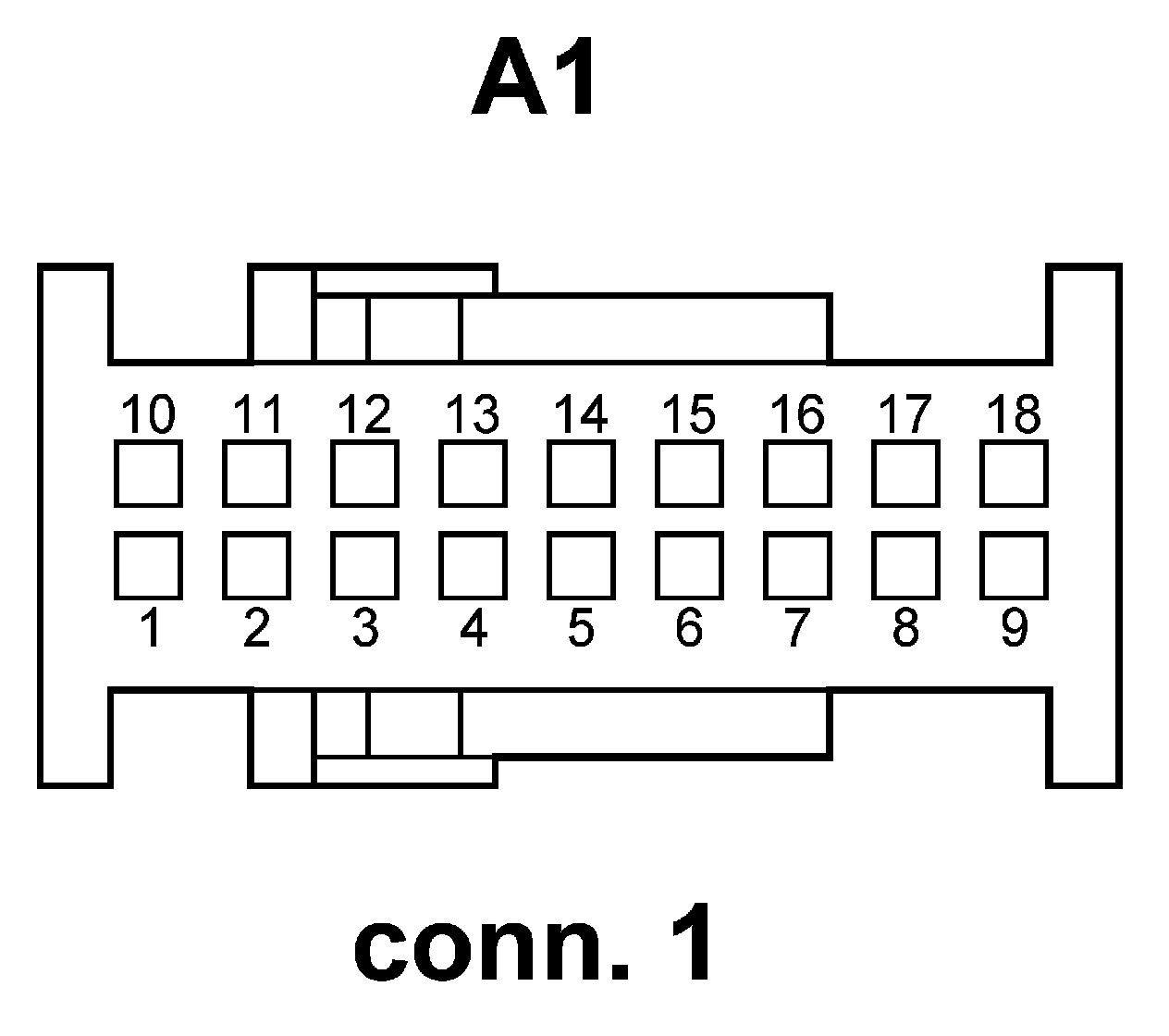

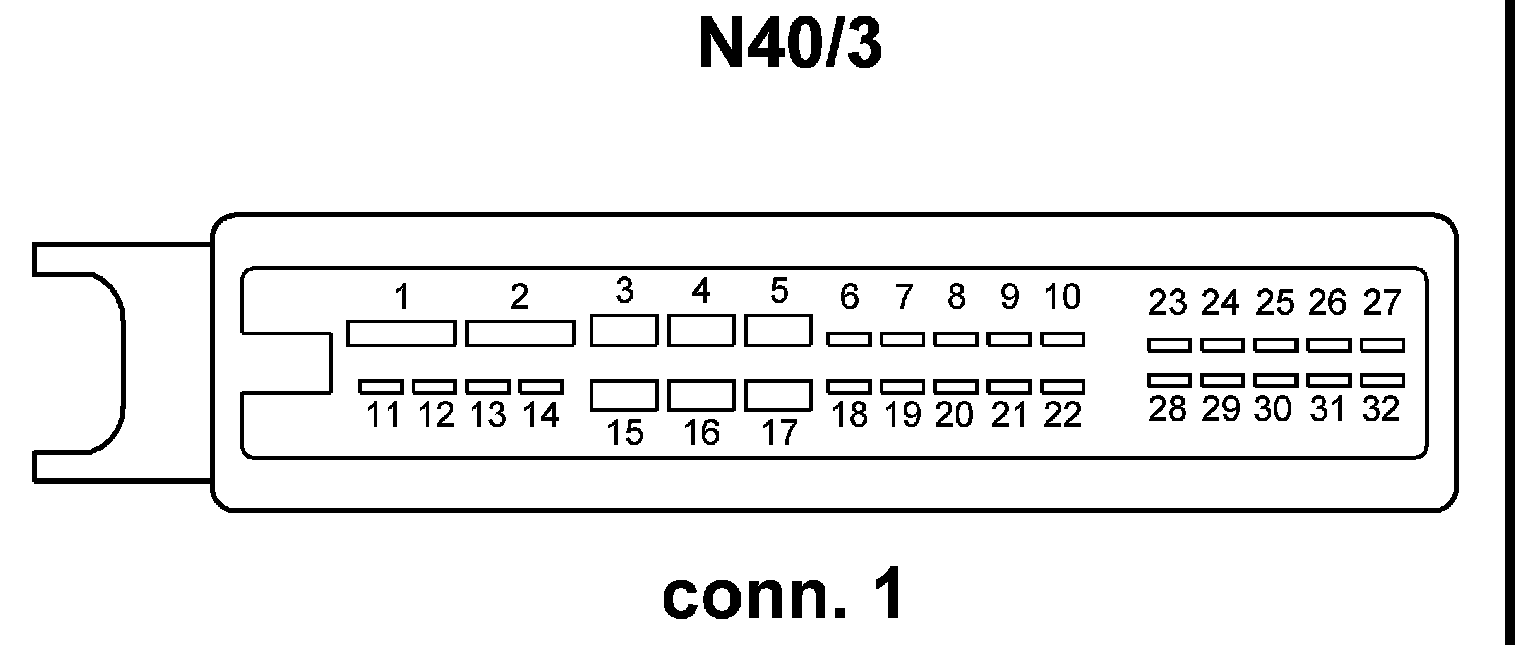

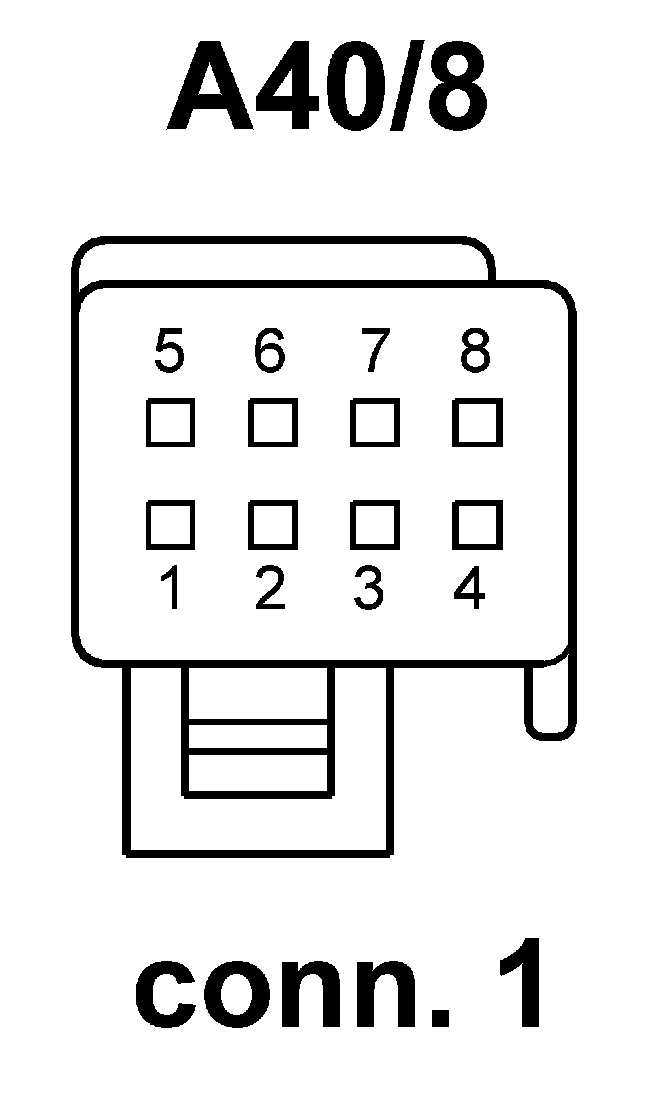

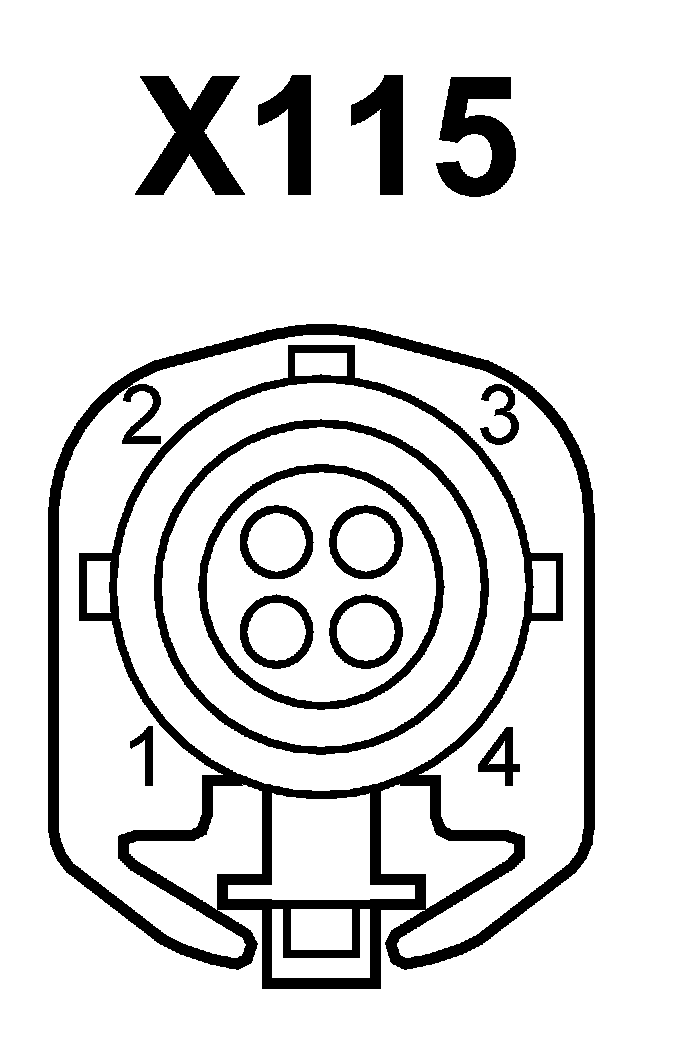

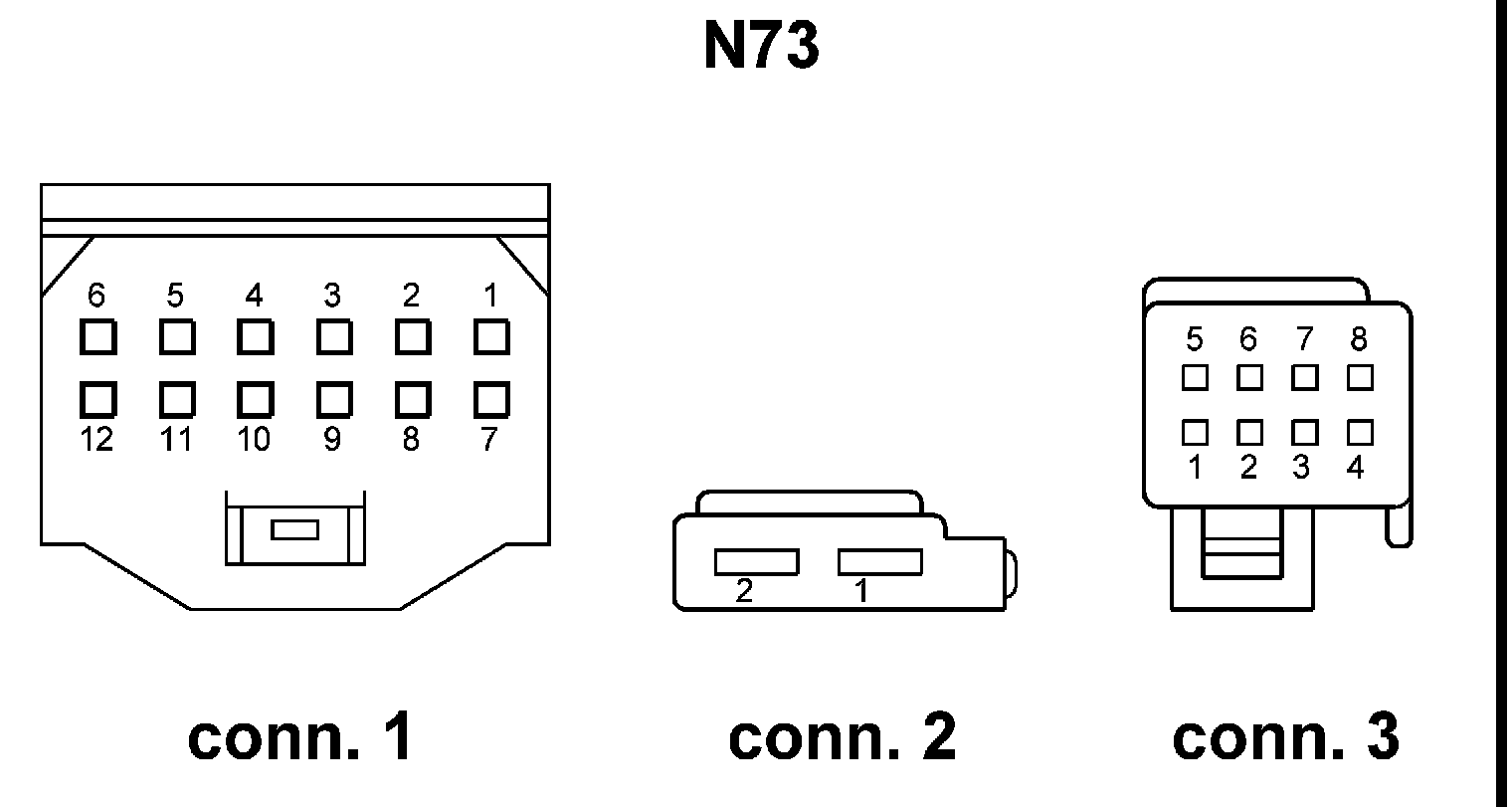

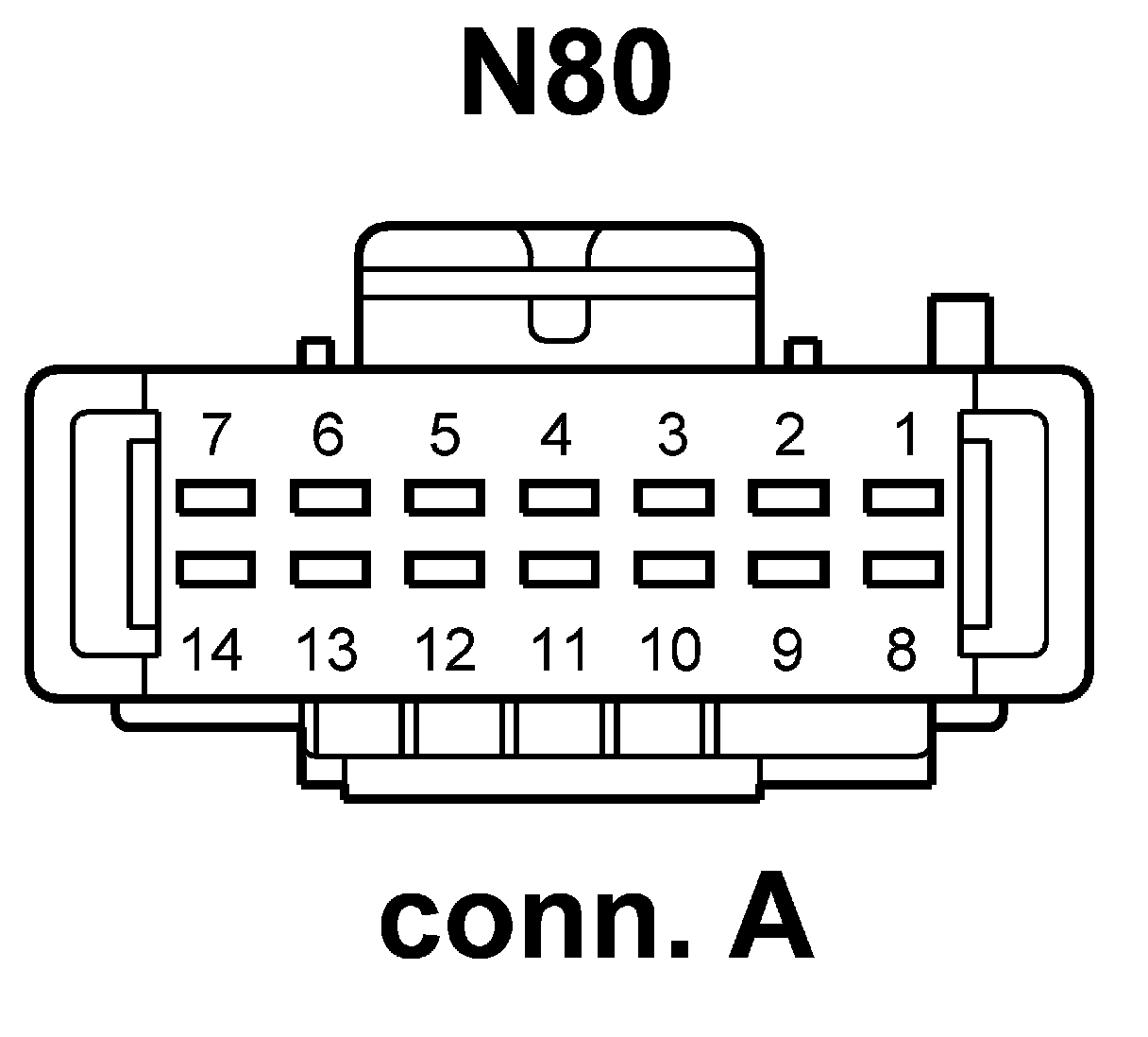

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
