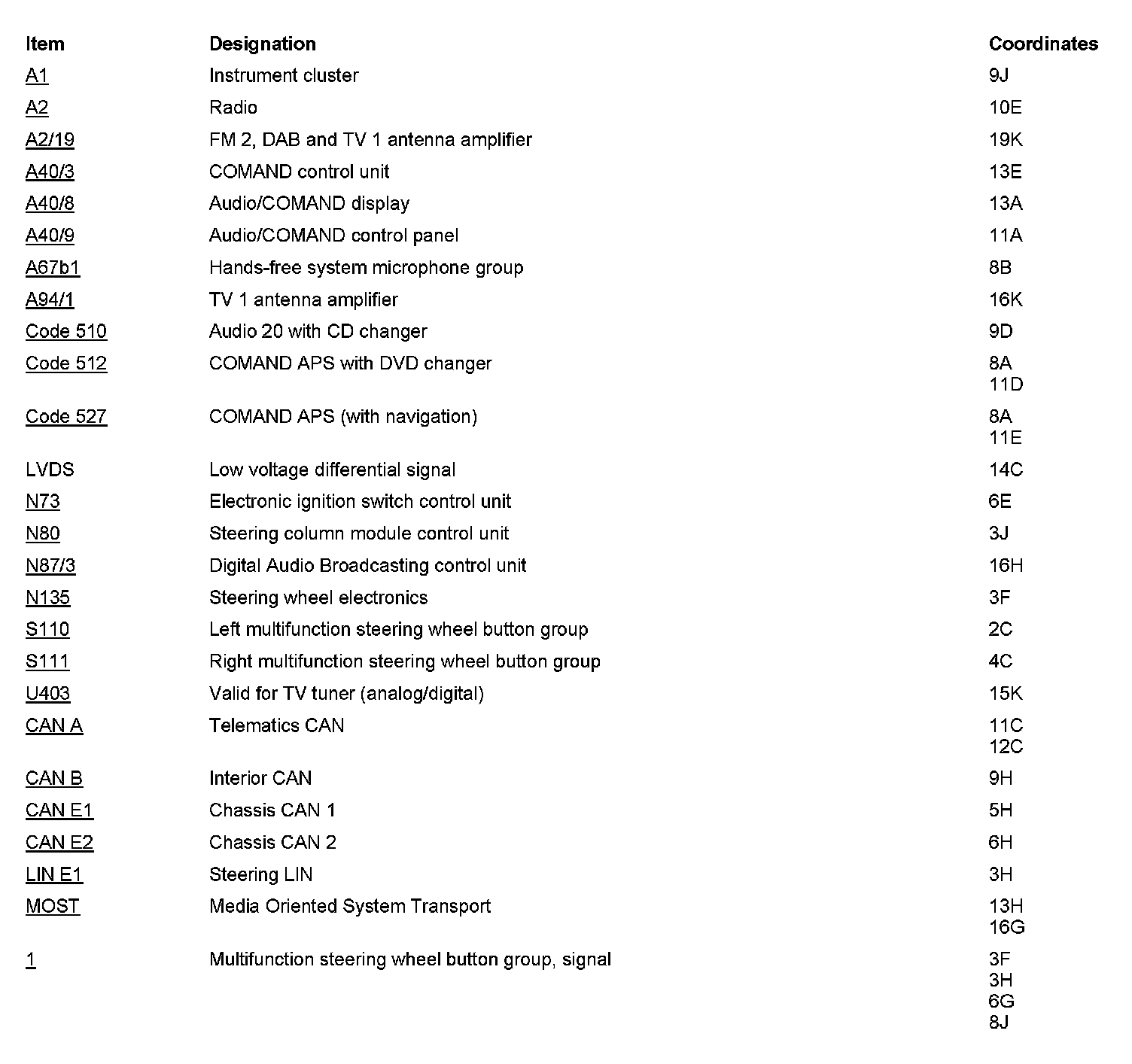

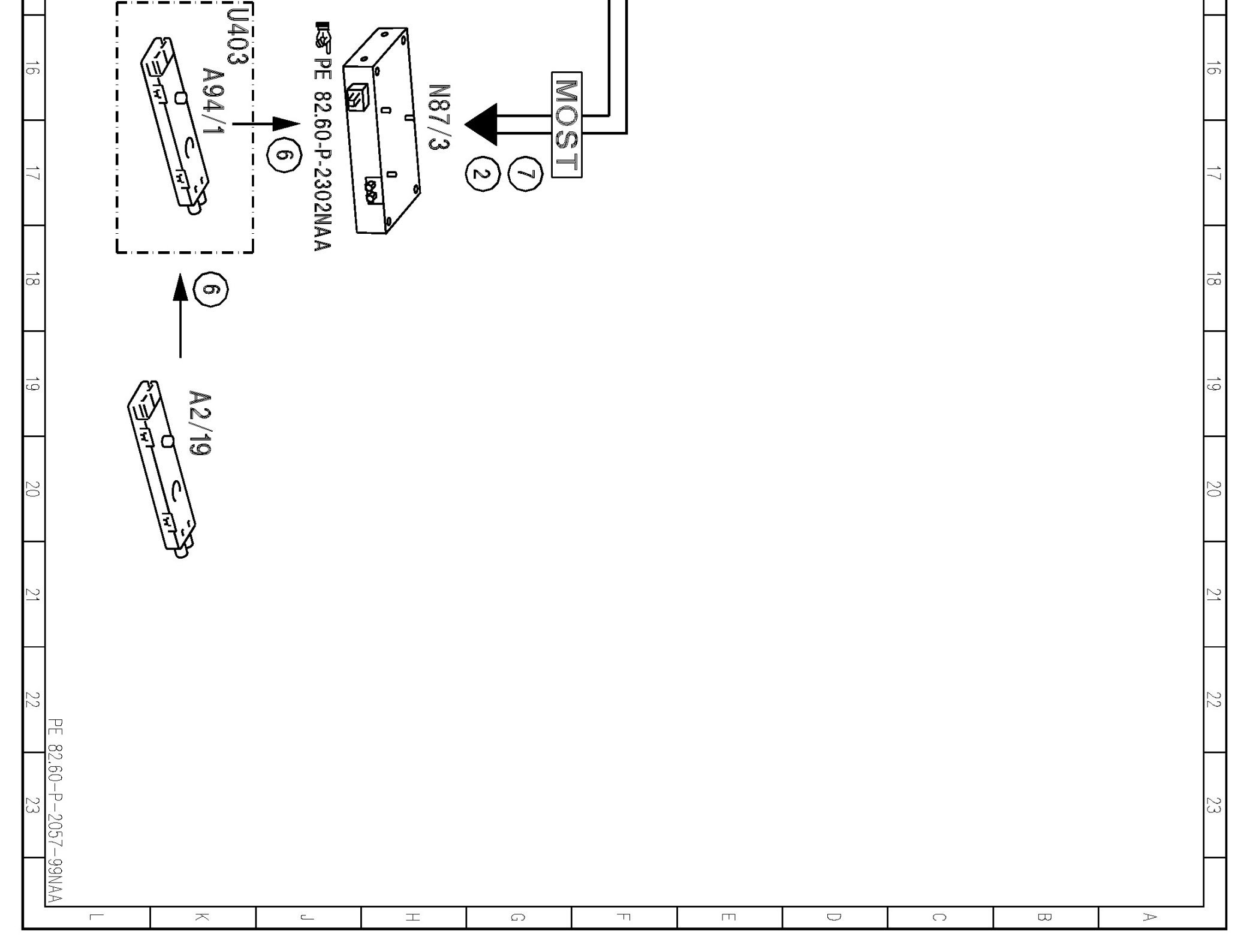

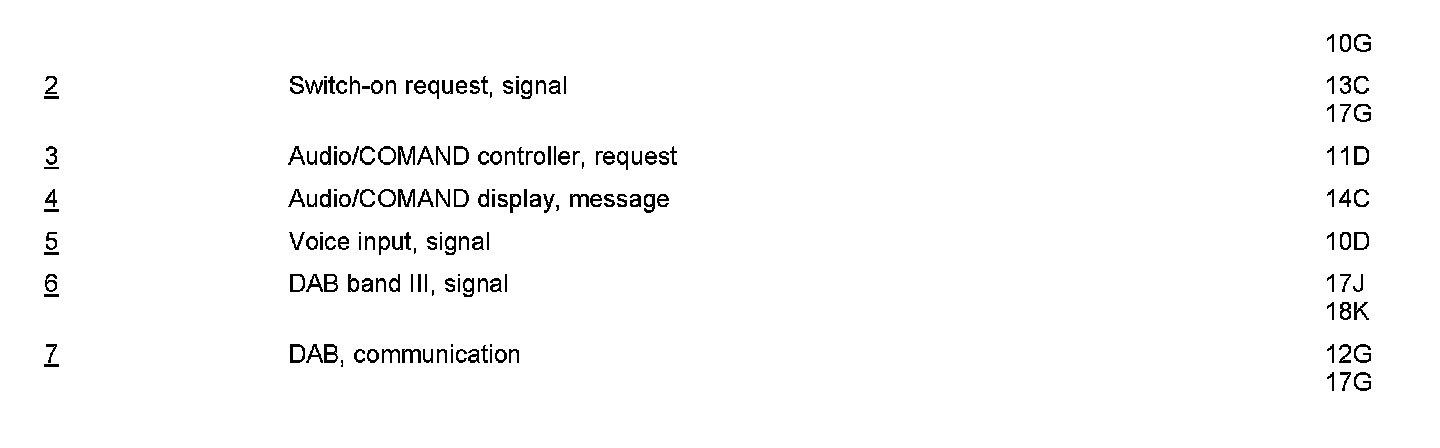

PE82.60-P-2057NAA Electrical Function Diagram For Digital Audio Broadcasting, Function

PE82.60-P-2057NAA Electrical Function Diagram For Digital Audio Broadcasting, Function
MODEL 166
with CODE (537) Digital Radio

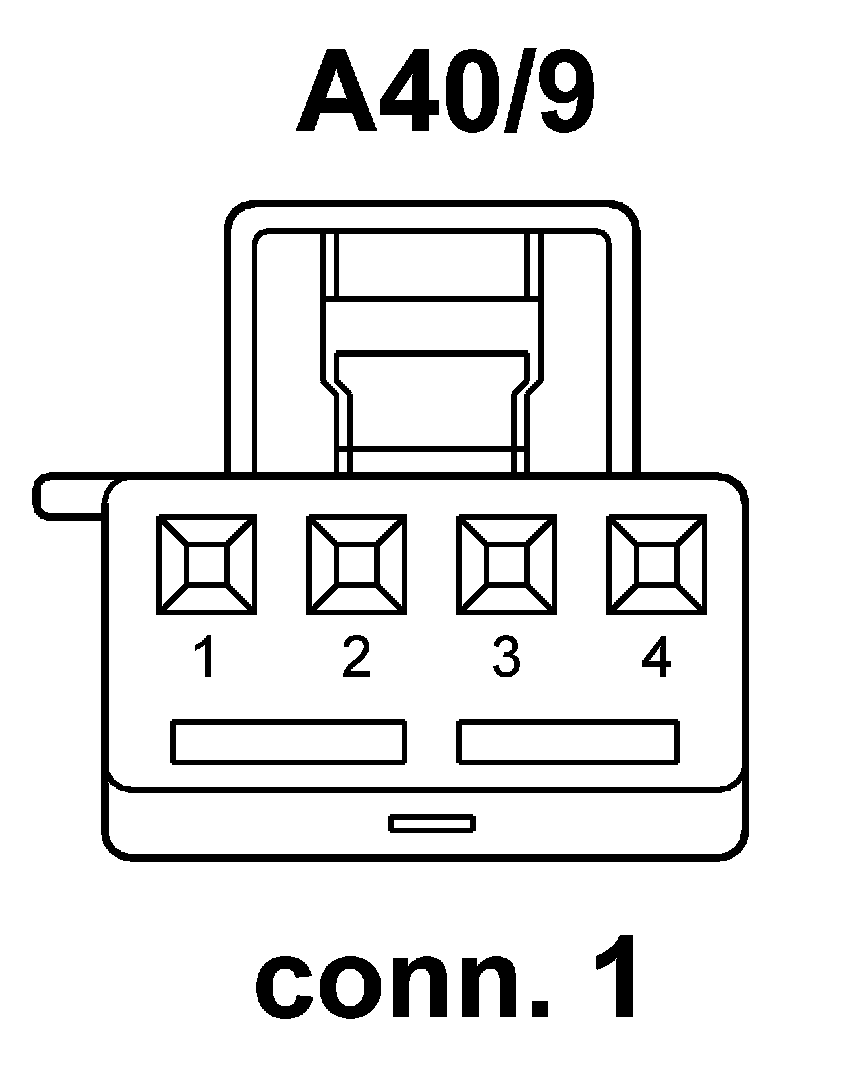

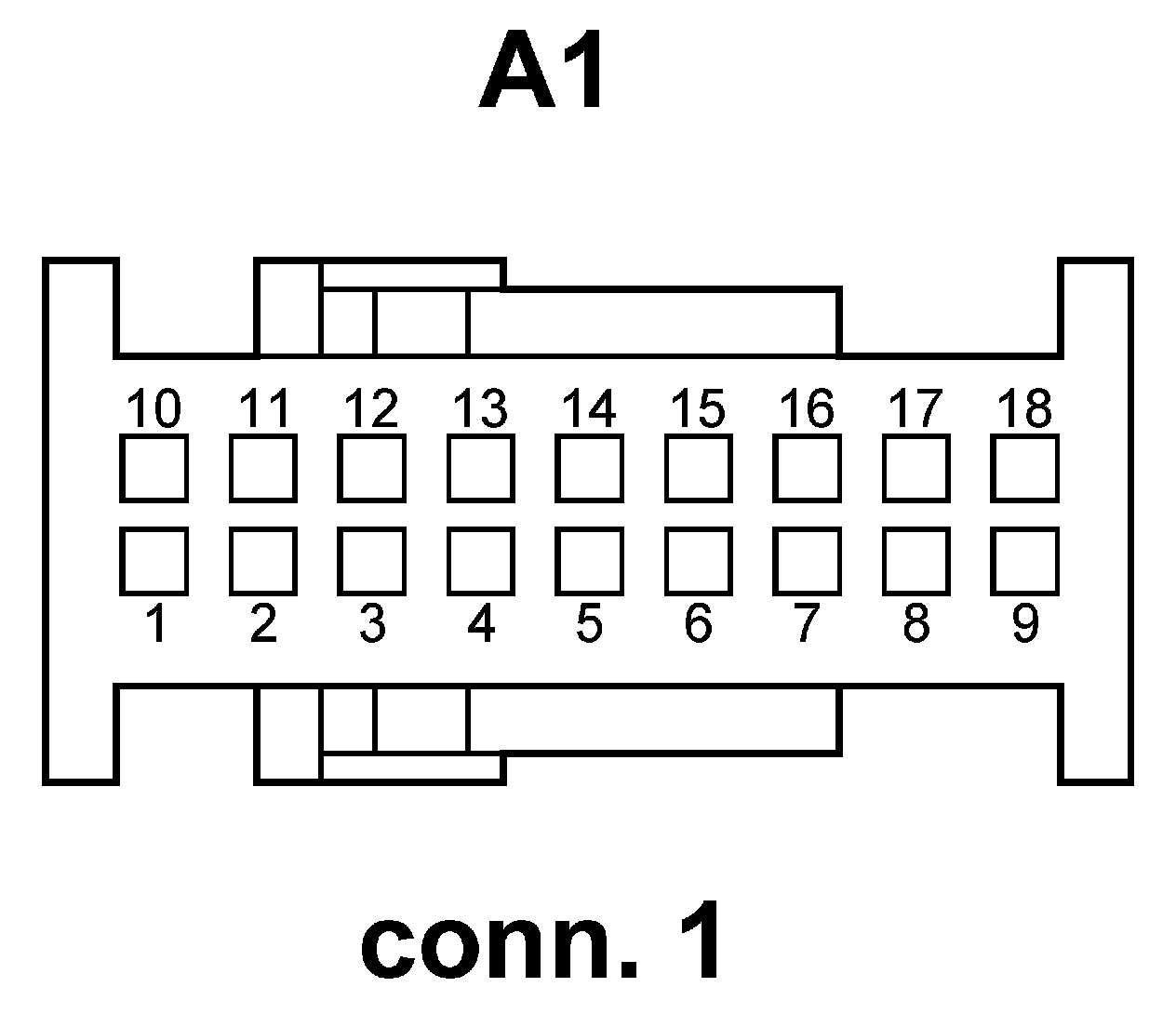

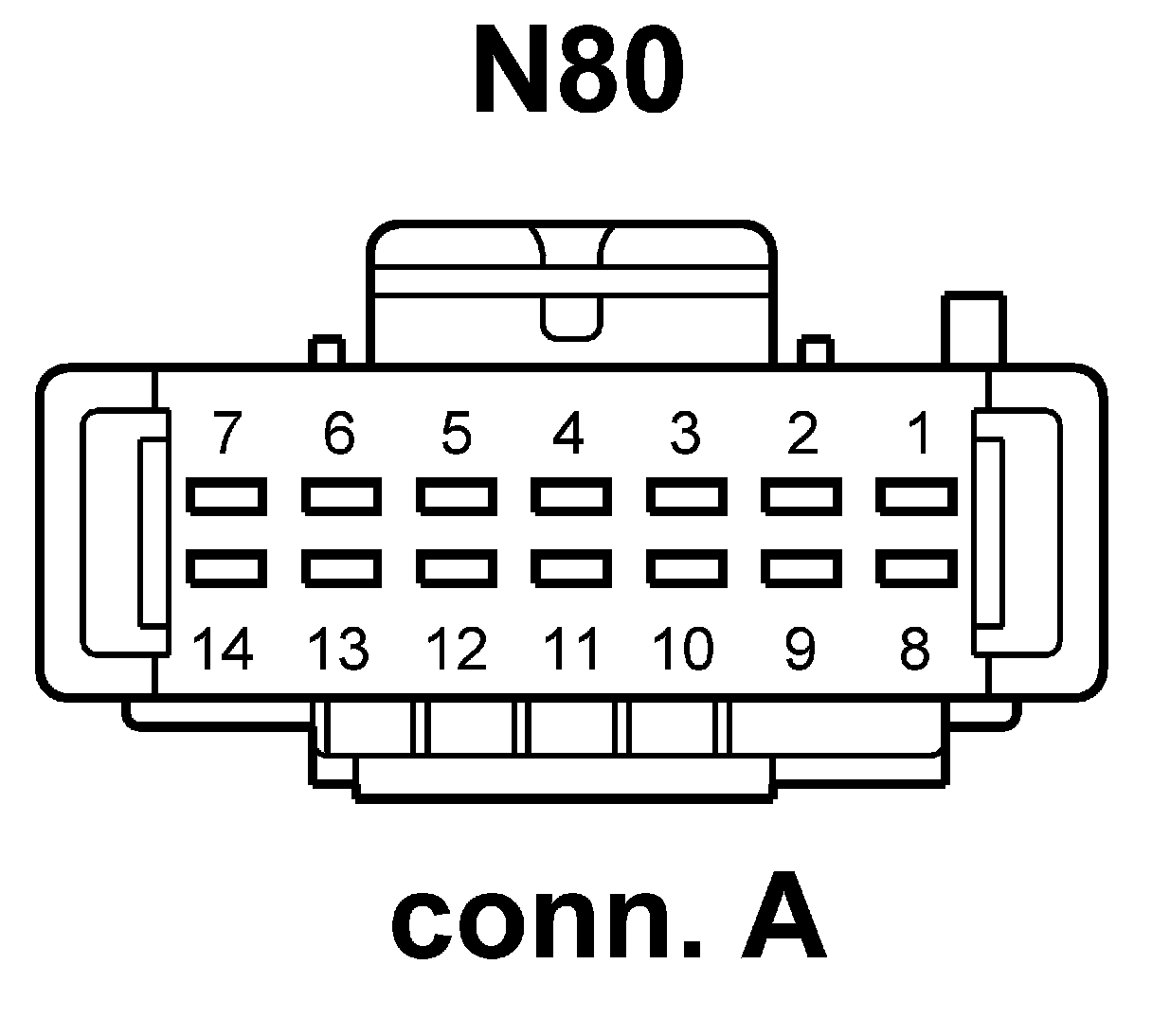

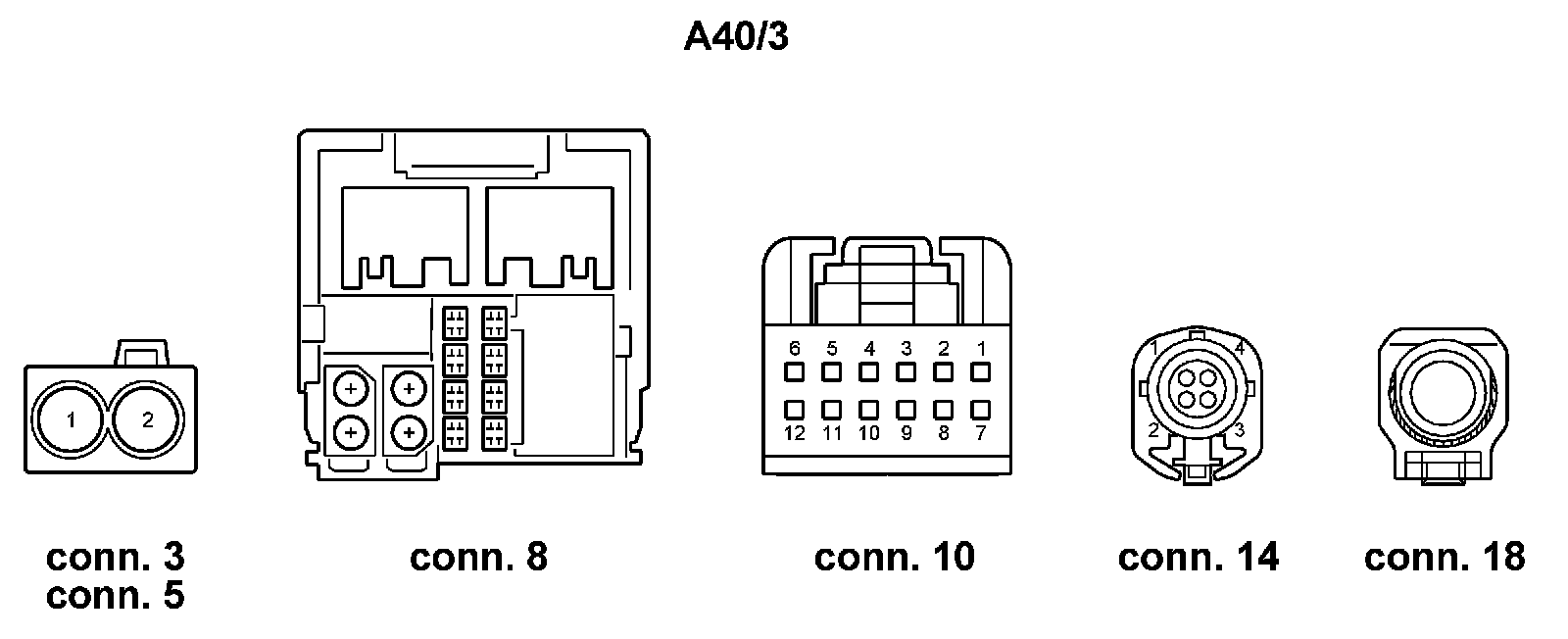

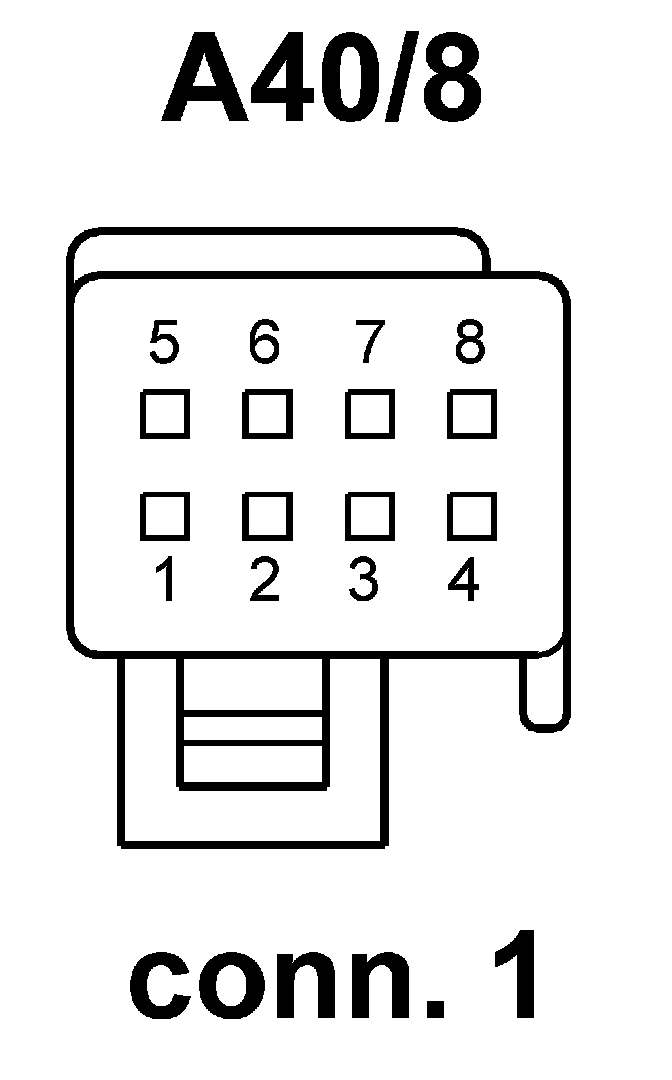

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
