Amplifier, Sound System

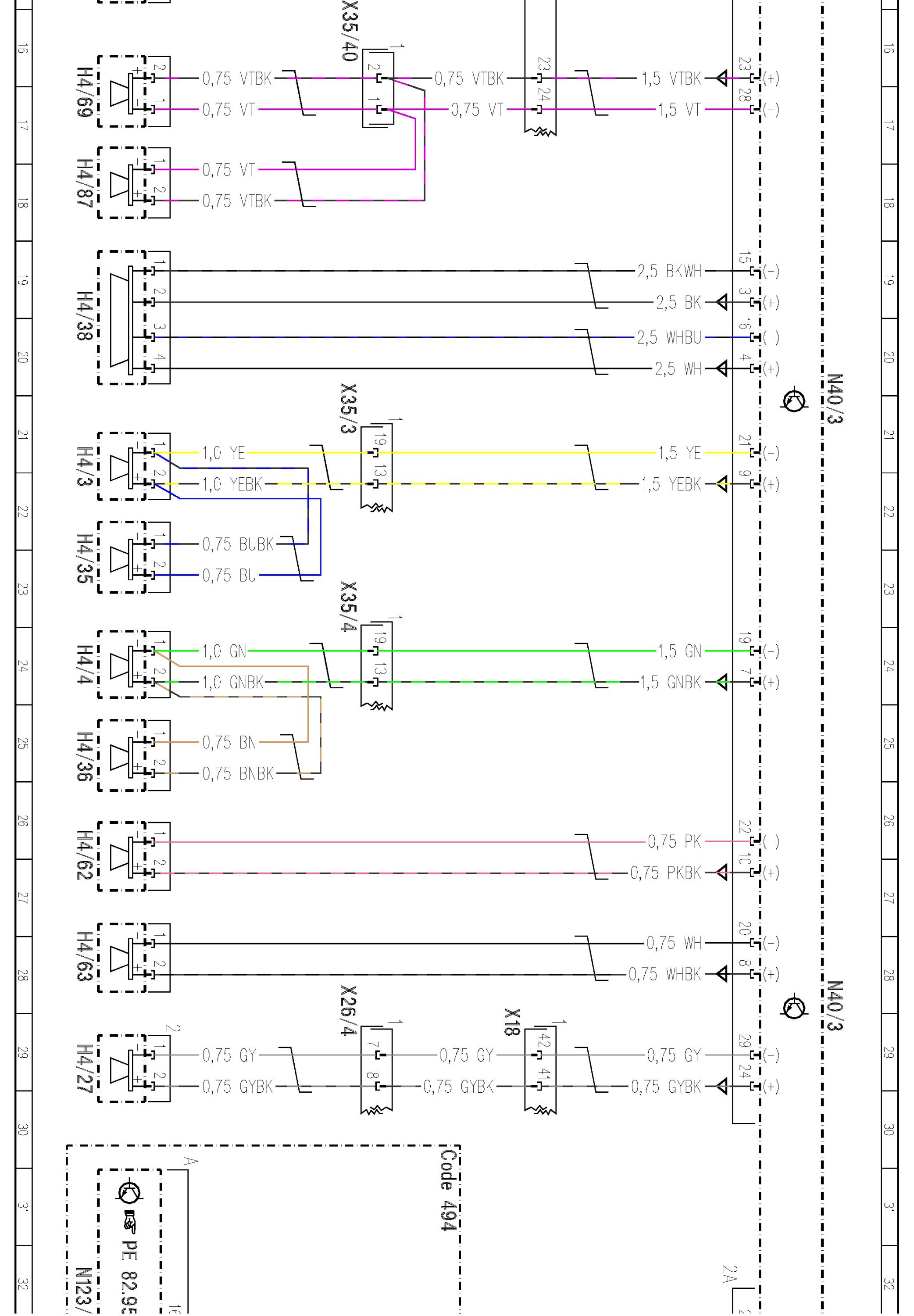

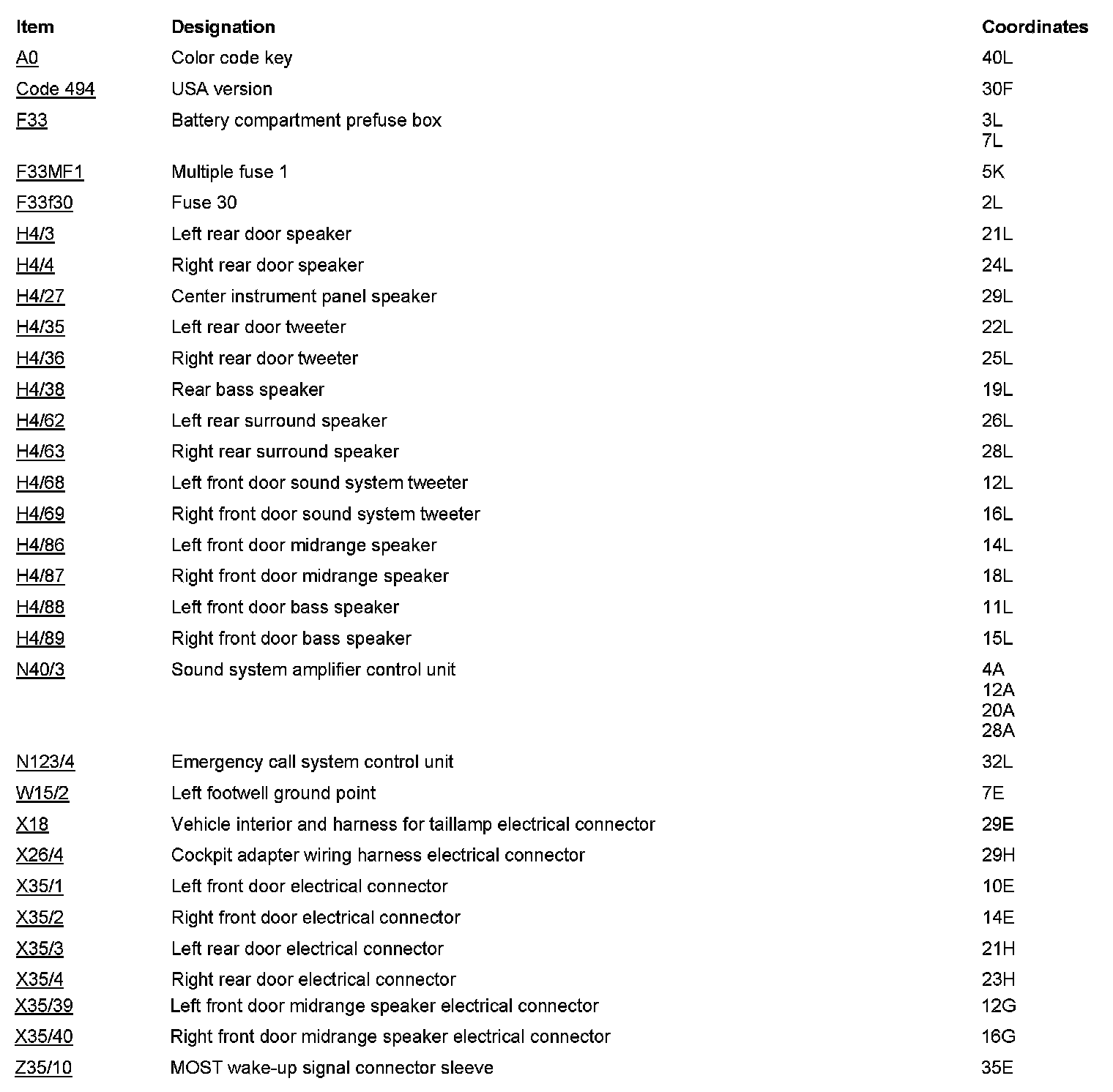

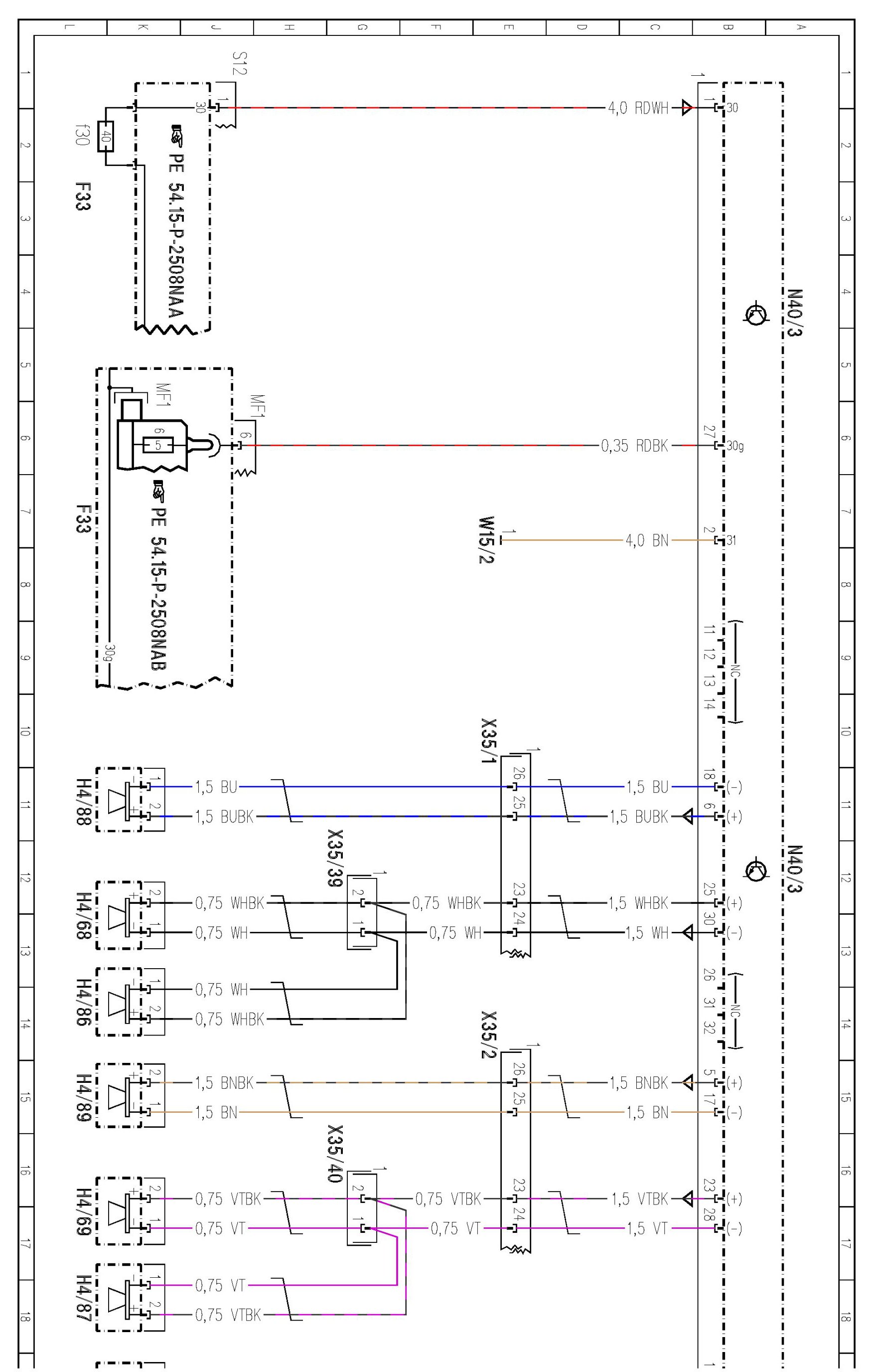

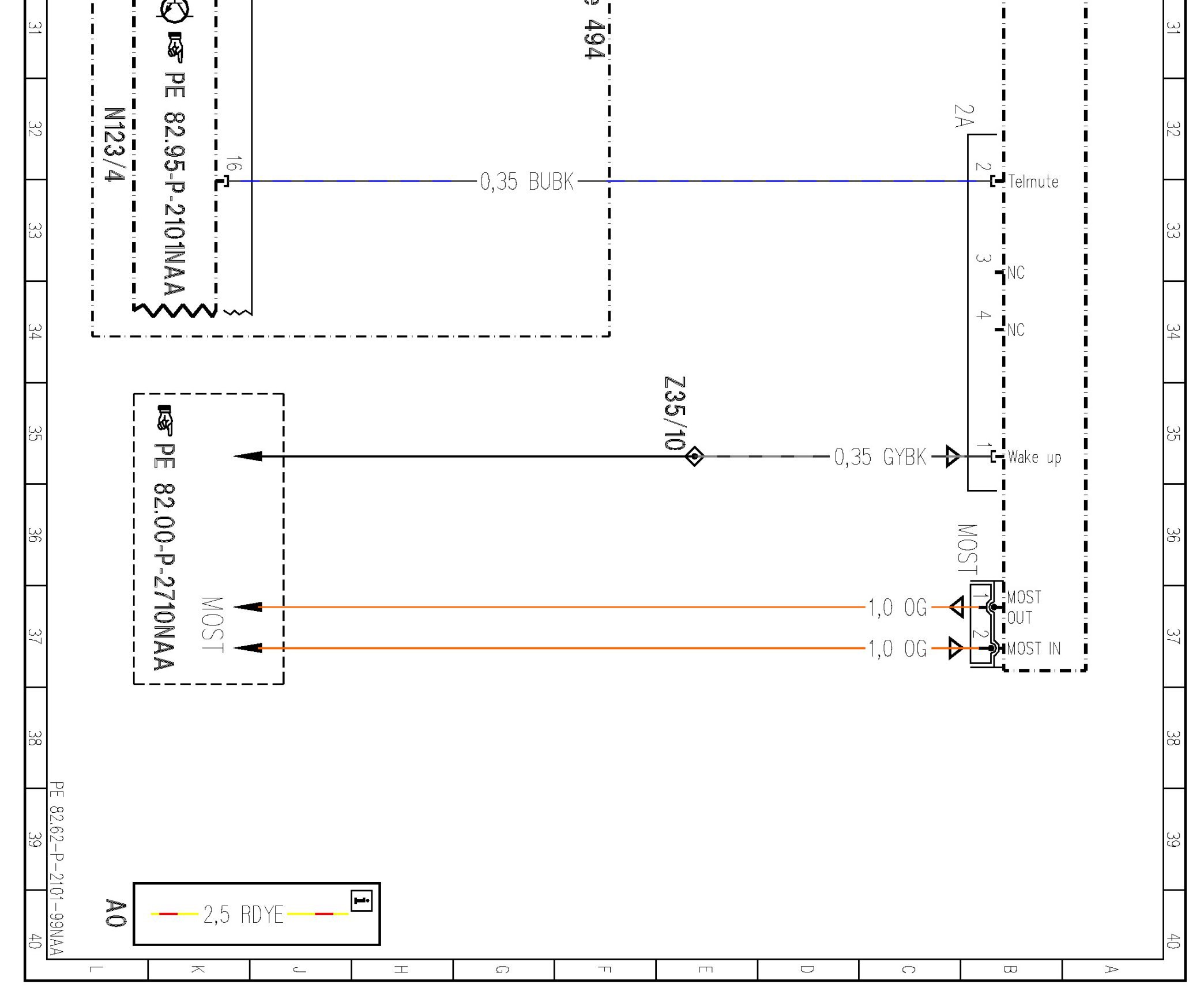

PE82.62-P-2101NAA Sound Amplifier Control Unit Wiring Diagram
MODEL 166
- with CODE (810) Sound System

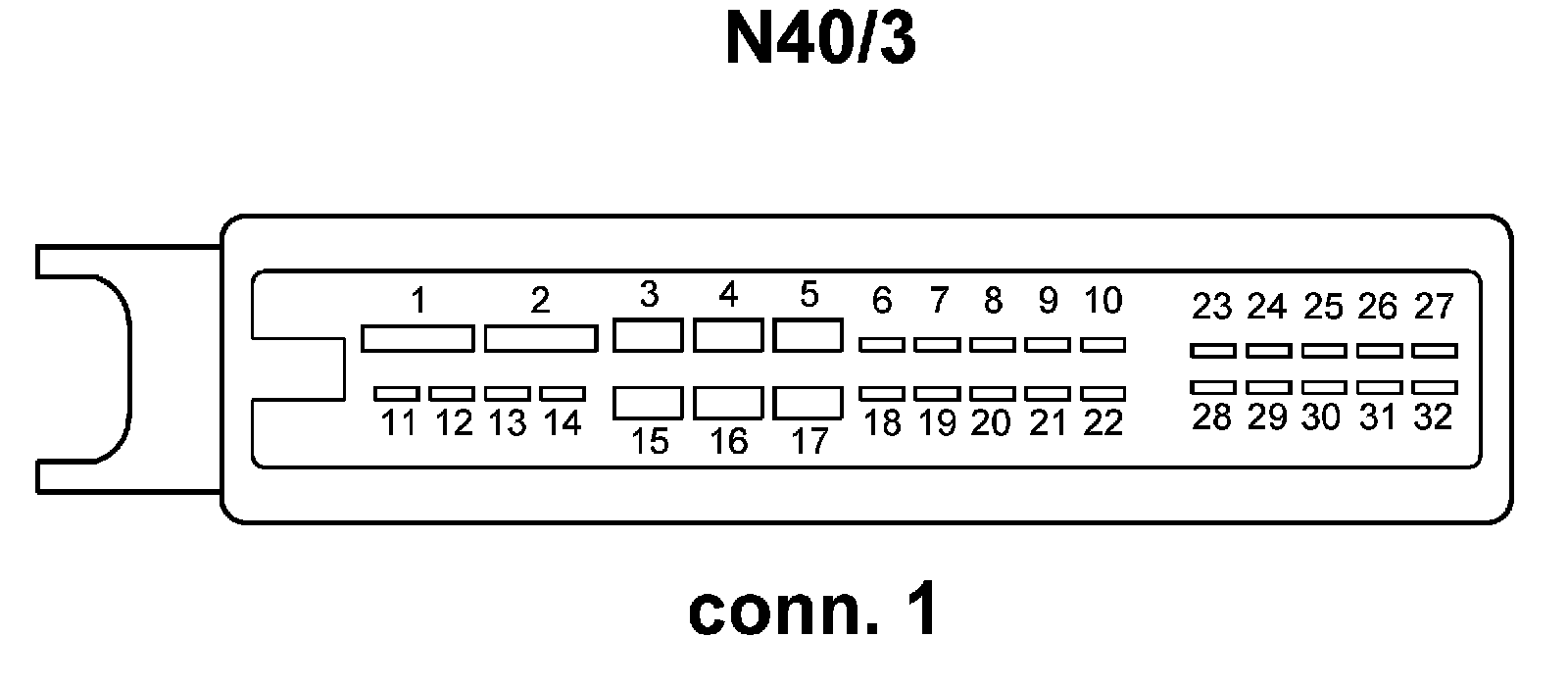

- Control Unit N40/3

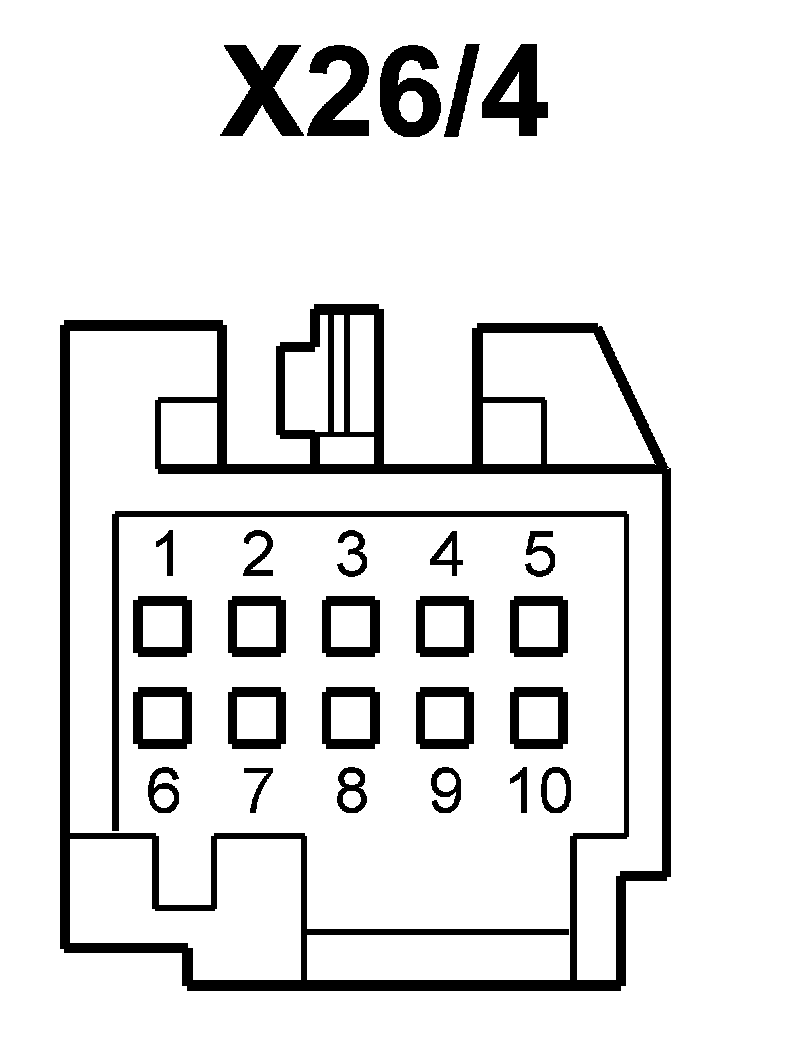

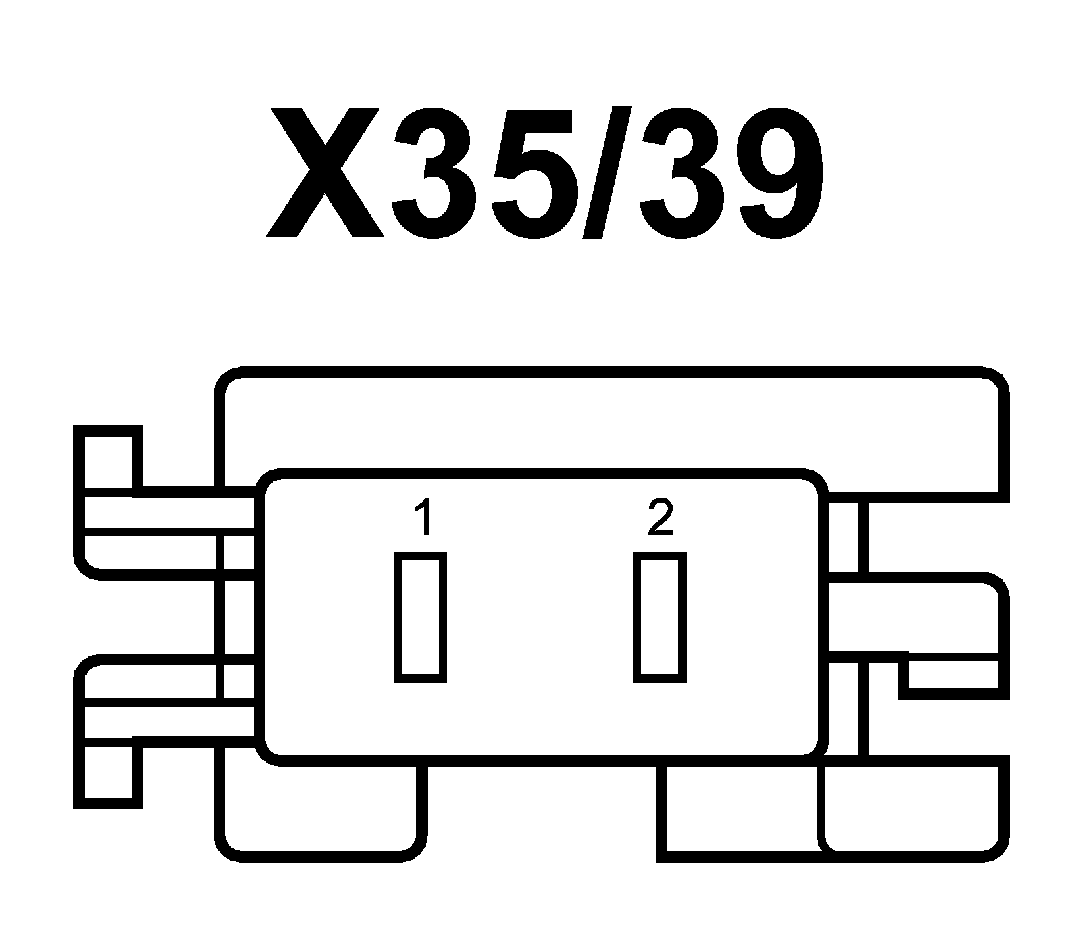

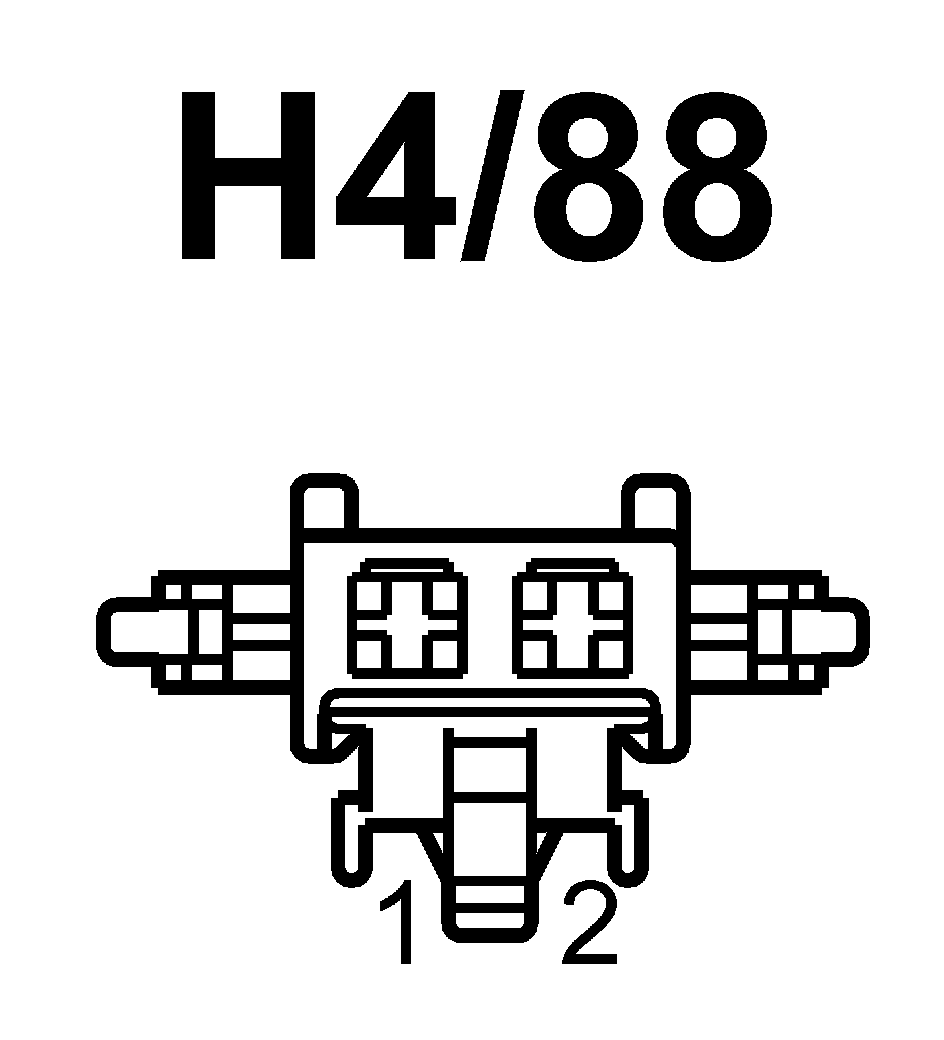

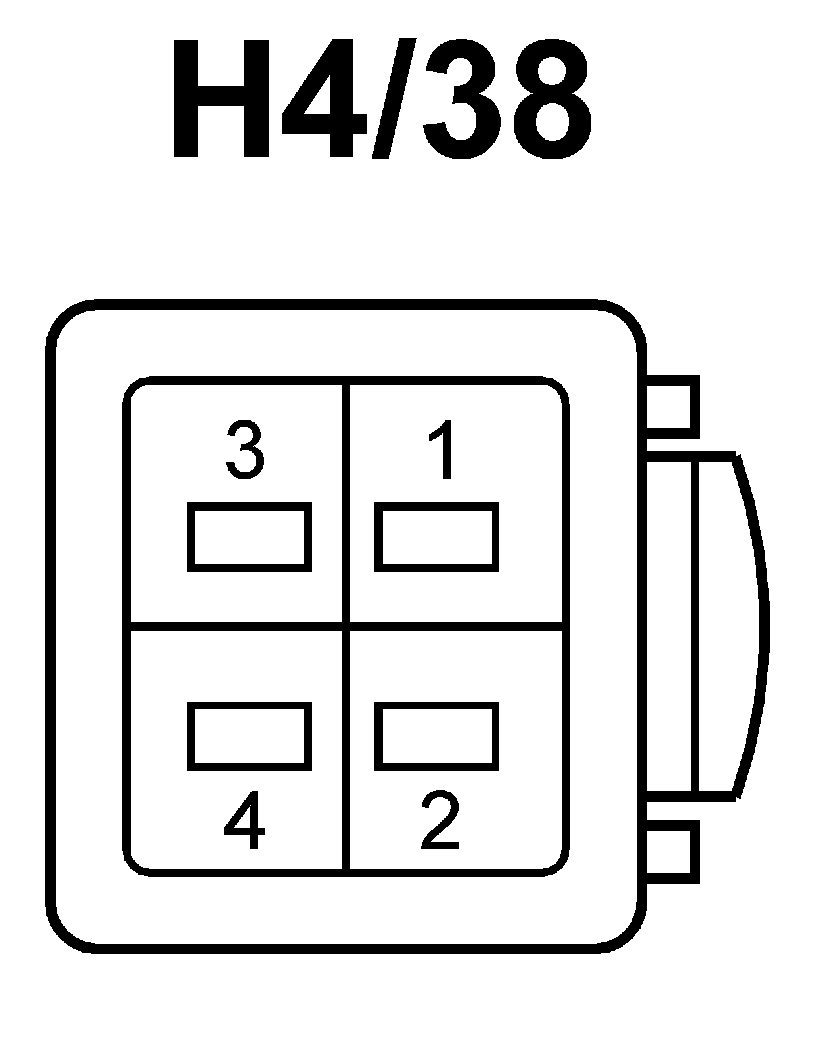

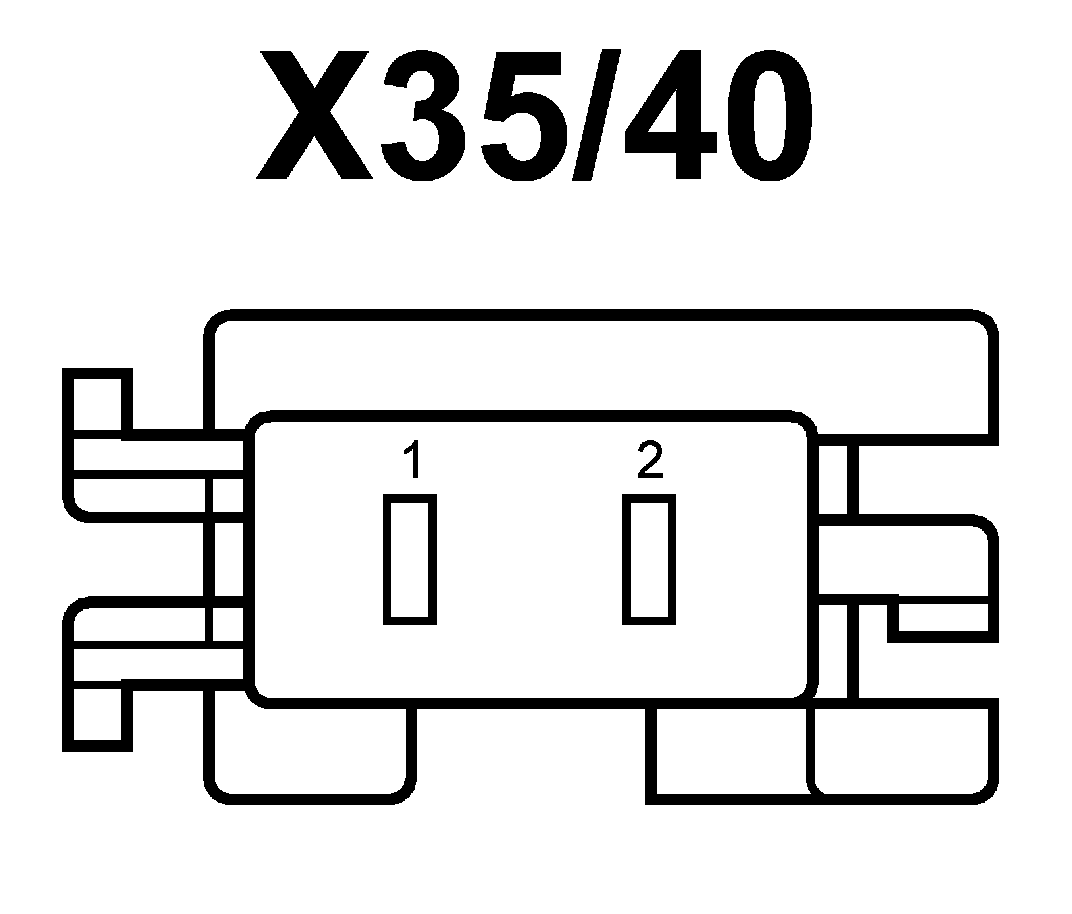

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
