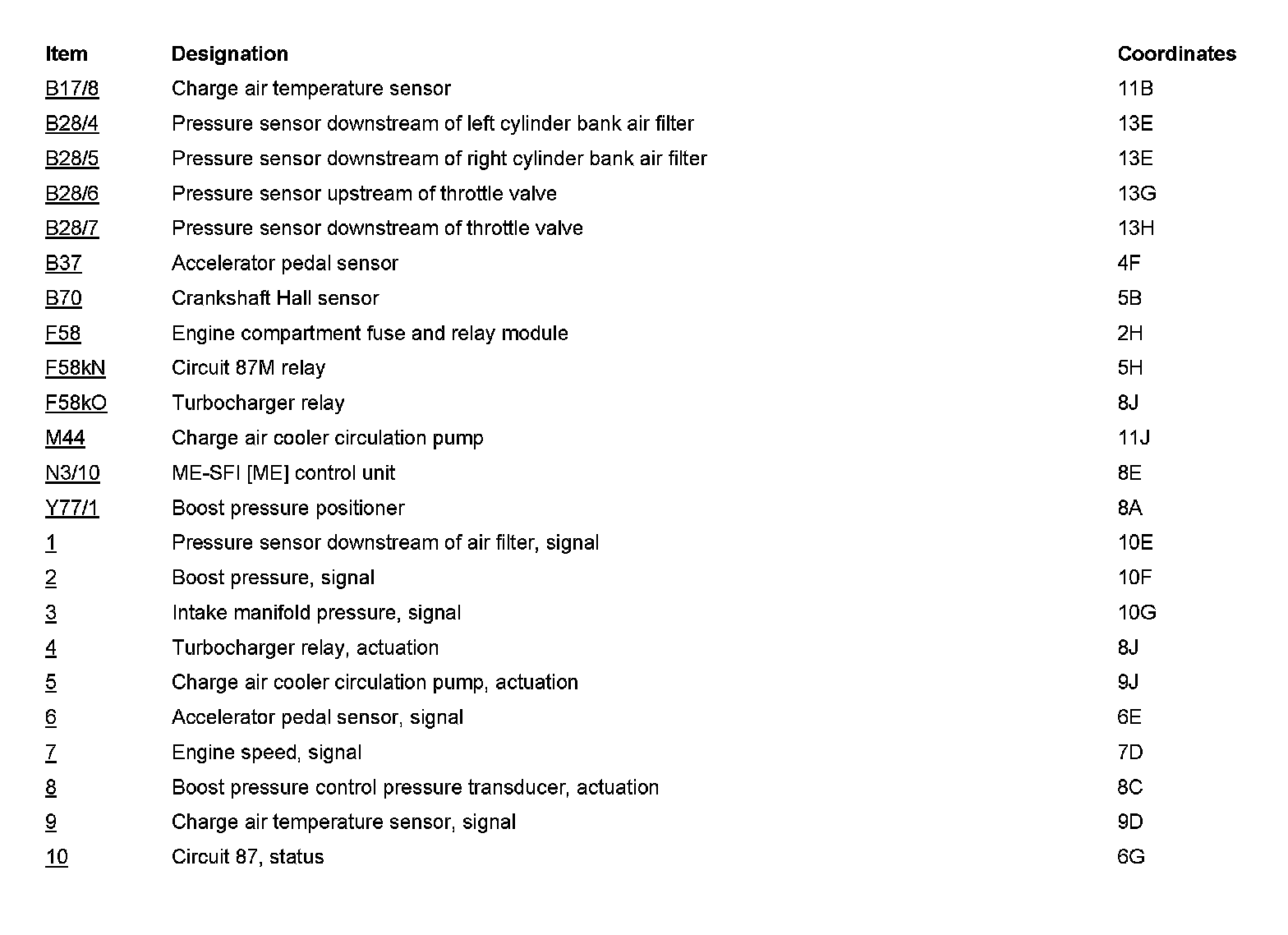

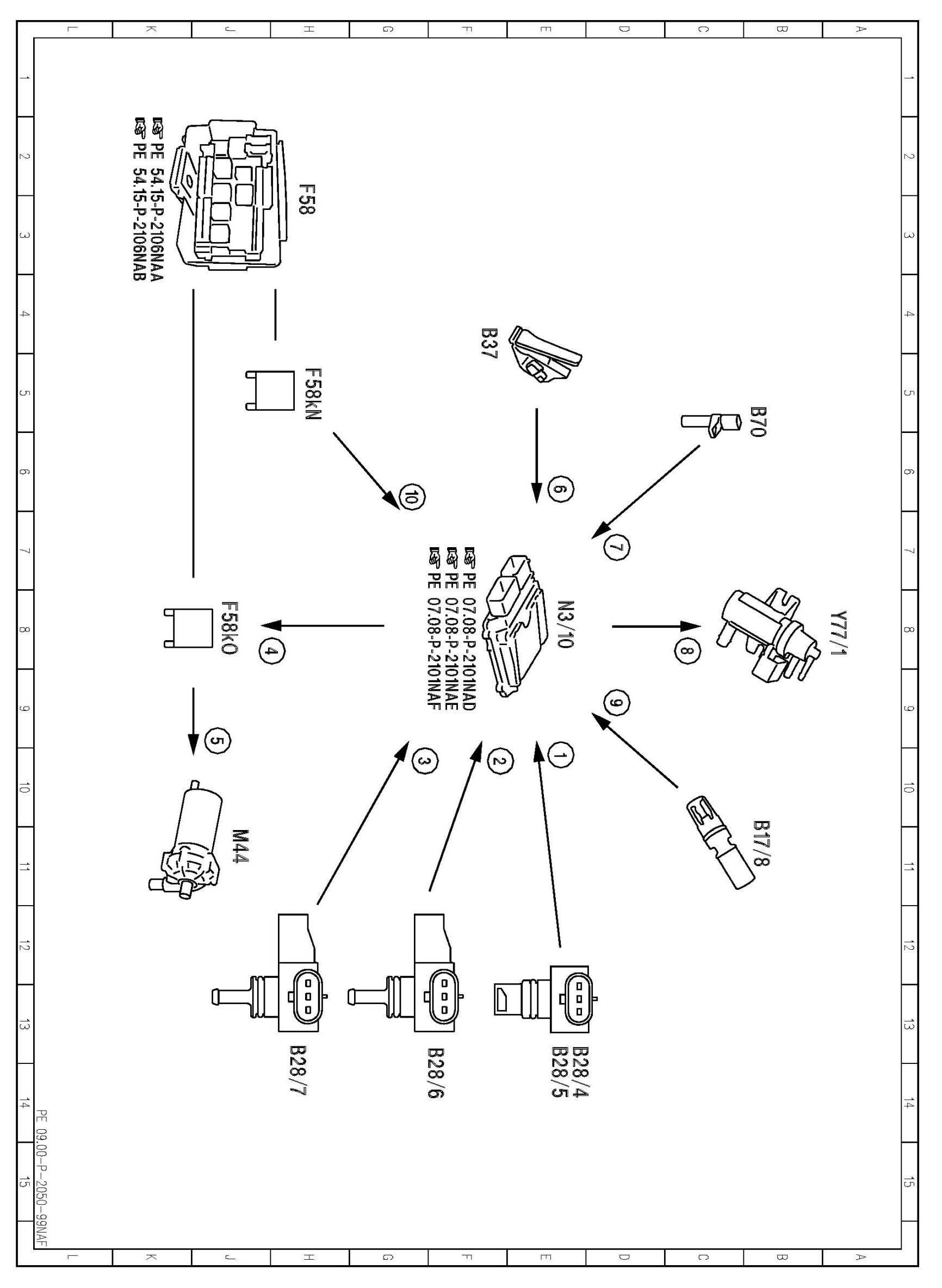

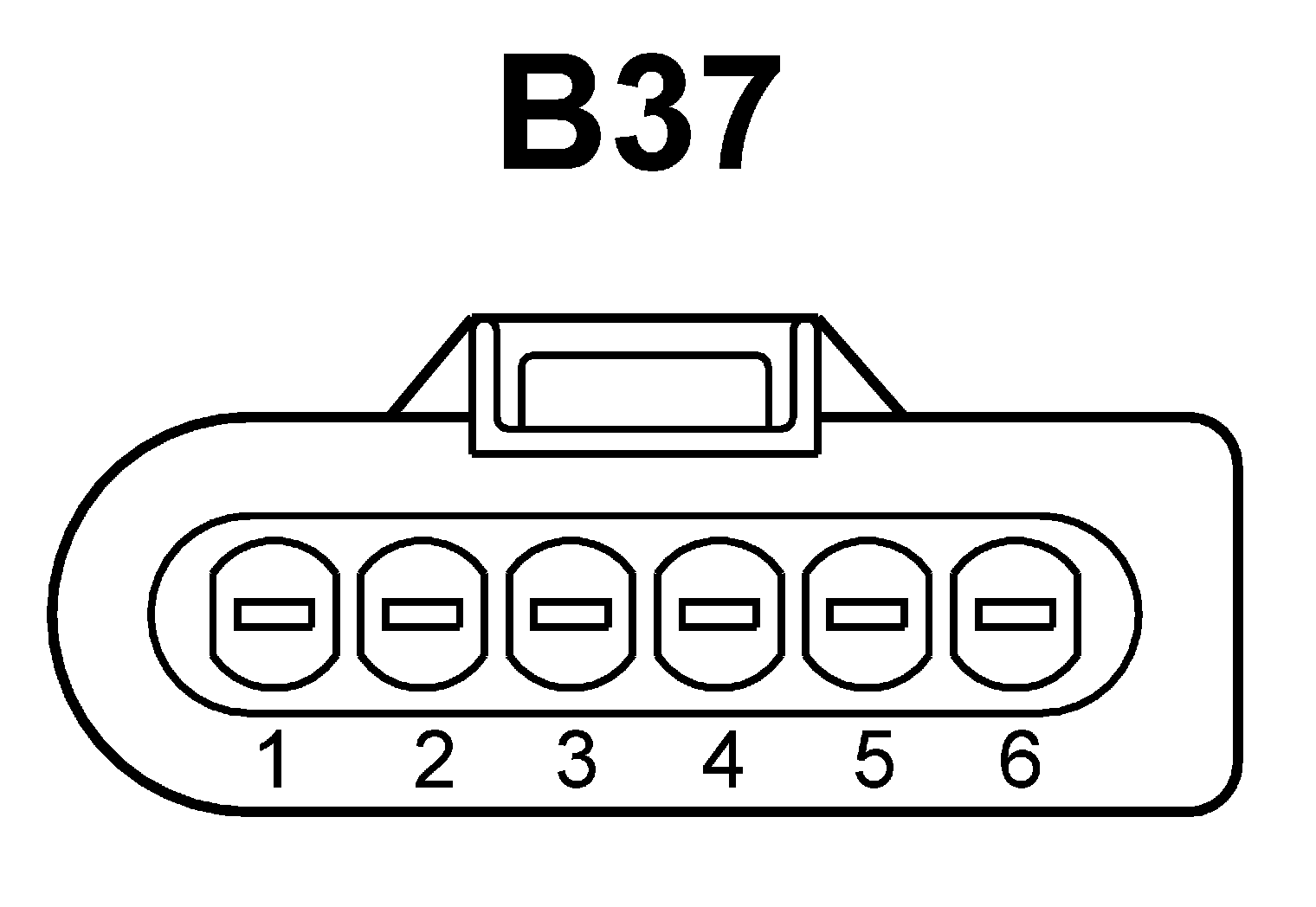

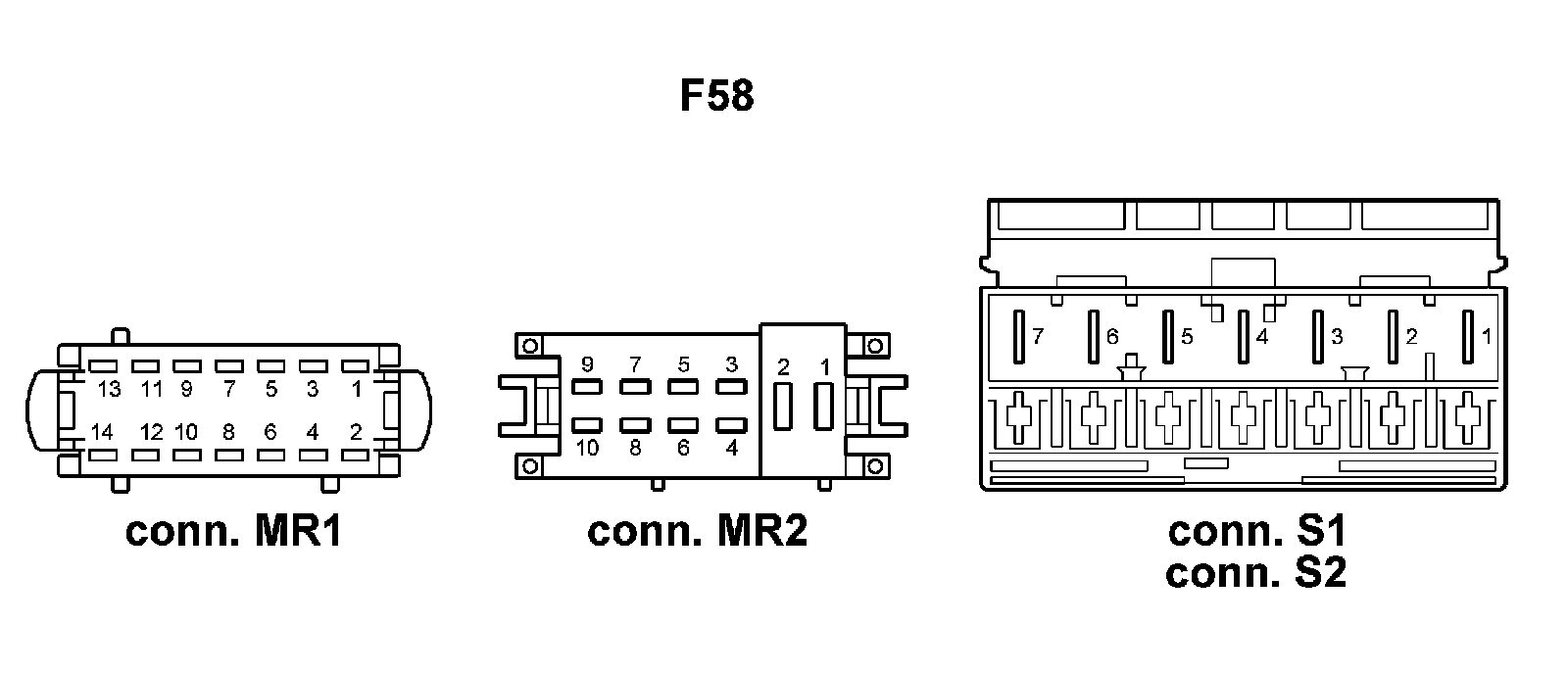

PE09.00-P-2050NAF Electrical Function Schematic For Charging



PE09.00-P-2050NAF Electrical Function Schematic For Charging
MODEL 166
- ENGINES 157, 278 in MODEL 166


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
