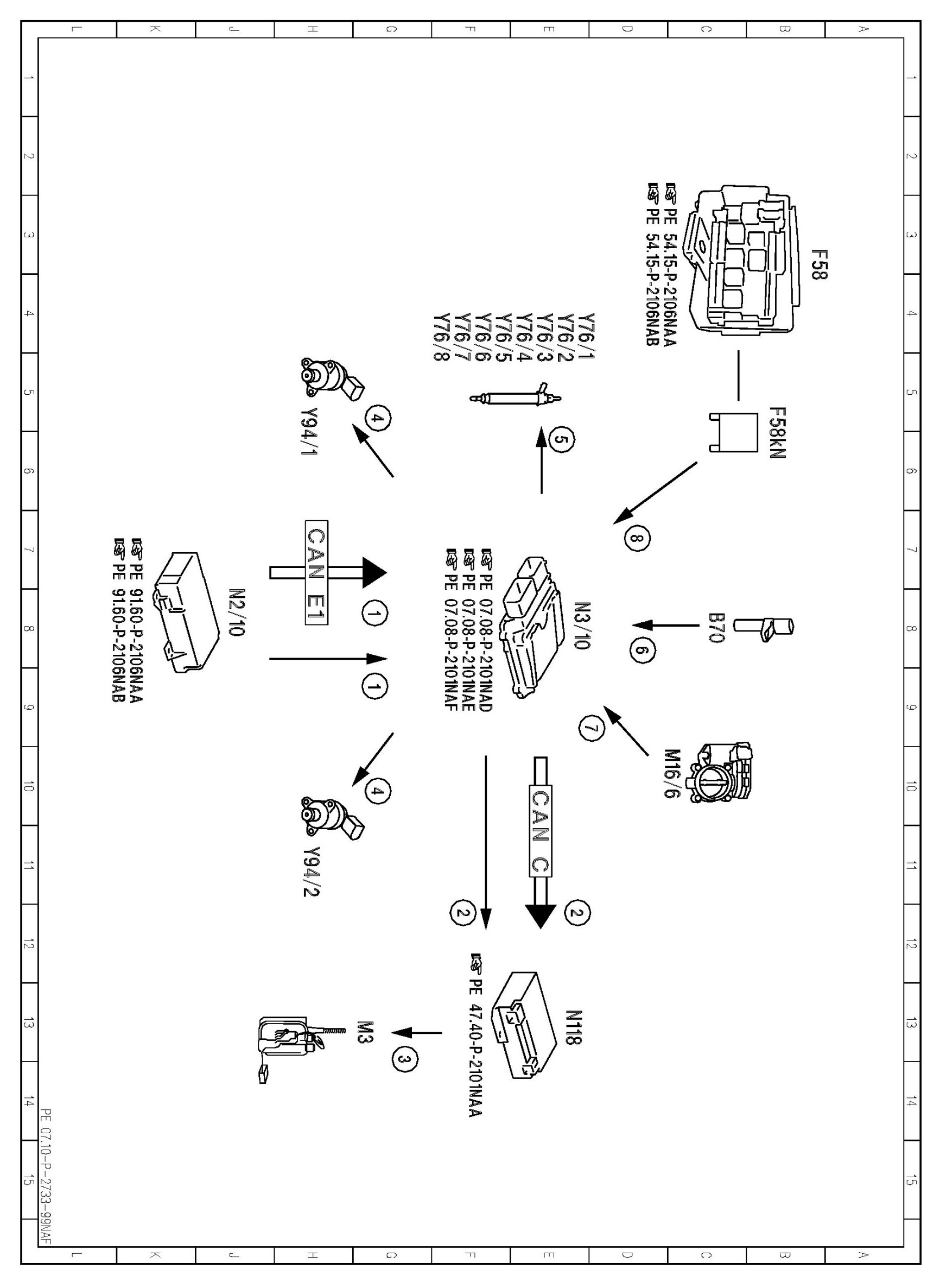

PE07.10-P-2733NAF Electrical Function Schematic For Safety Fuel Shutoff

PE07.10-P-2733NAF Electrical Function Schematic For Safety Fuel Shutoff
ENGINES 157, 278 in MODEL 166


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
