PE07.10-P-2715NAF Electrical Function Schematic For Knock Control

PE07.10-P-2715NAF Electrical Function Schematic For Knock Control
ENGINES 157, 278 in MODEL 166

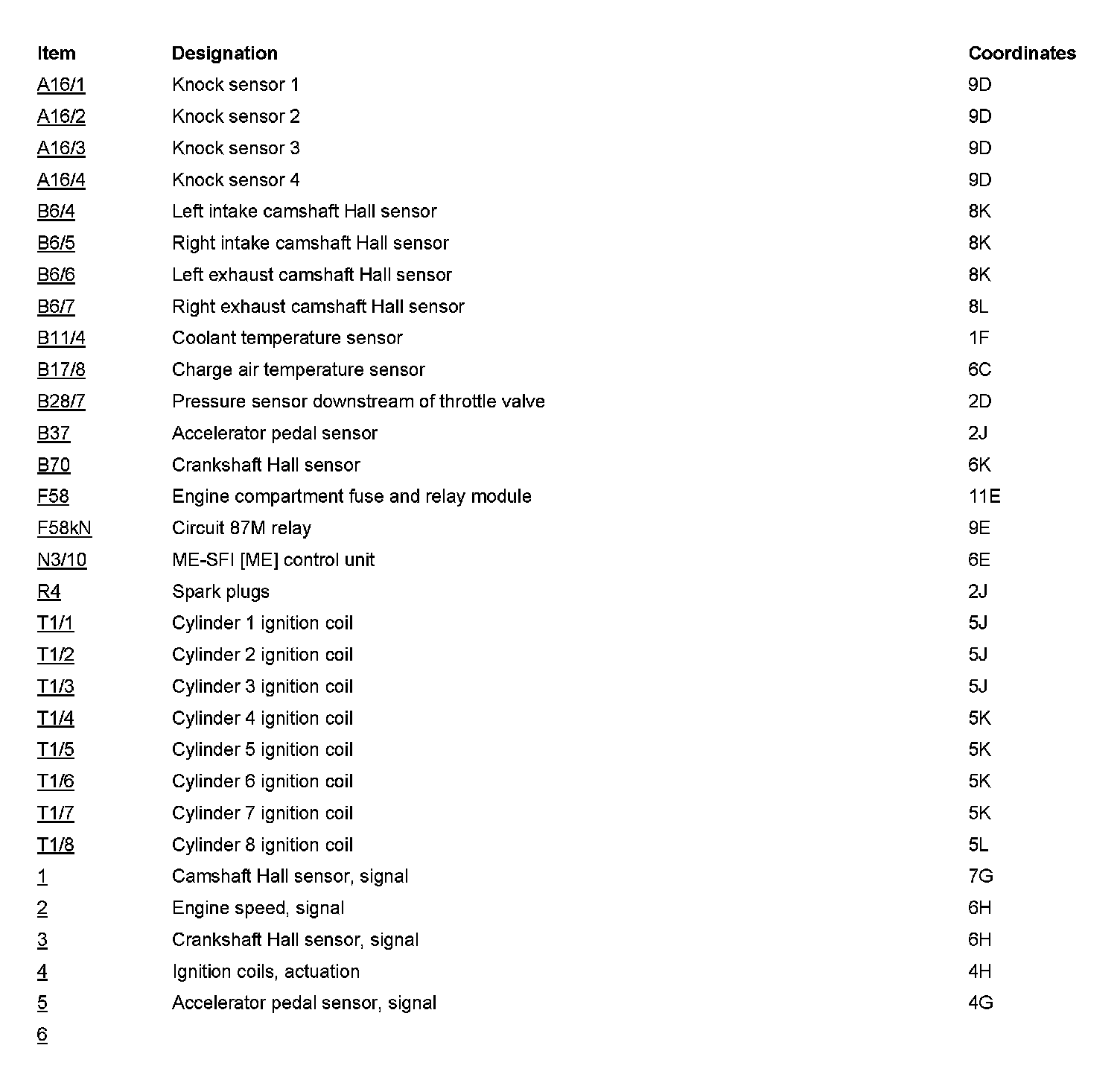

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
