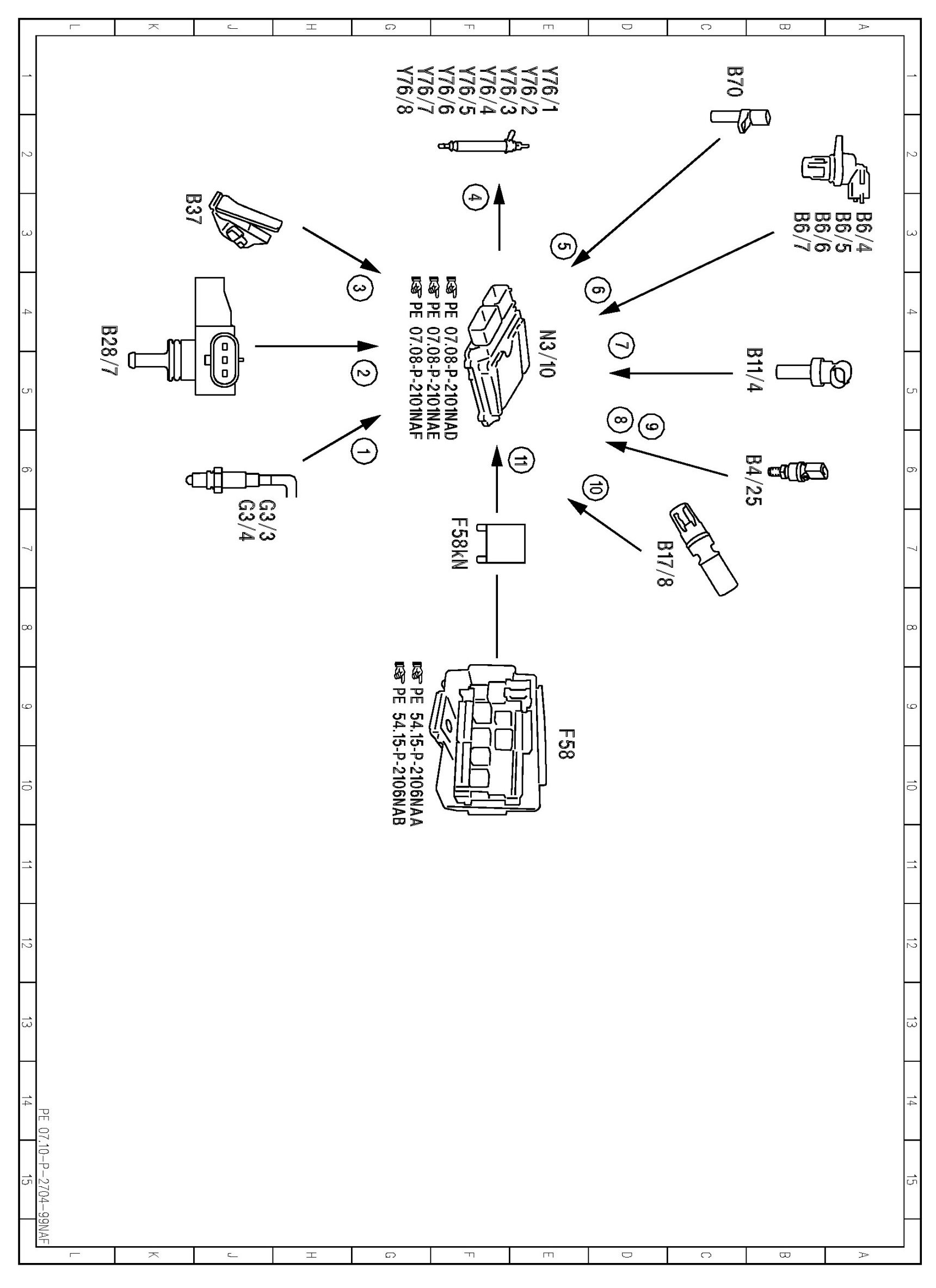

PE07.10-P-2704NAF Electrical Function Diagram For Injection Control

PE07.10-P-2704NAF Electrical Function Diagram For Injection Control
ENGINES 157, 278 in MODEL 166


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
