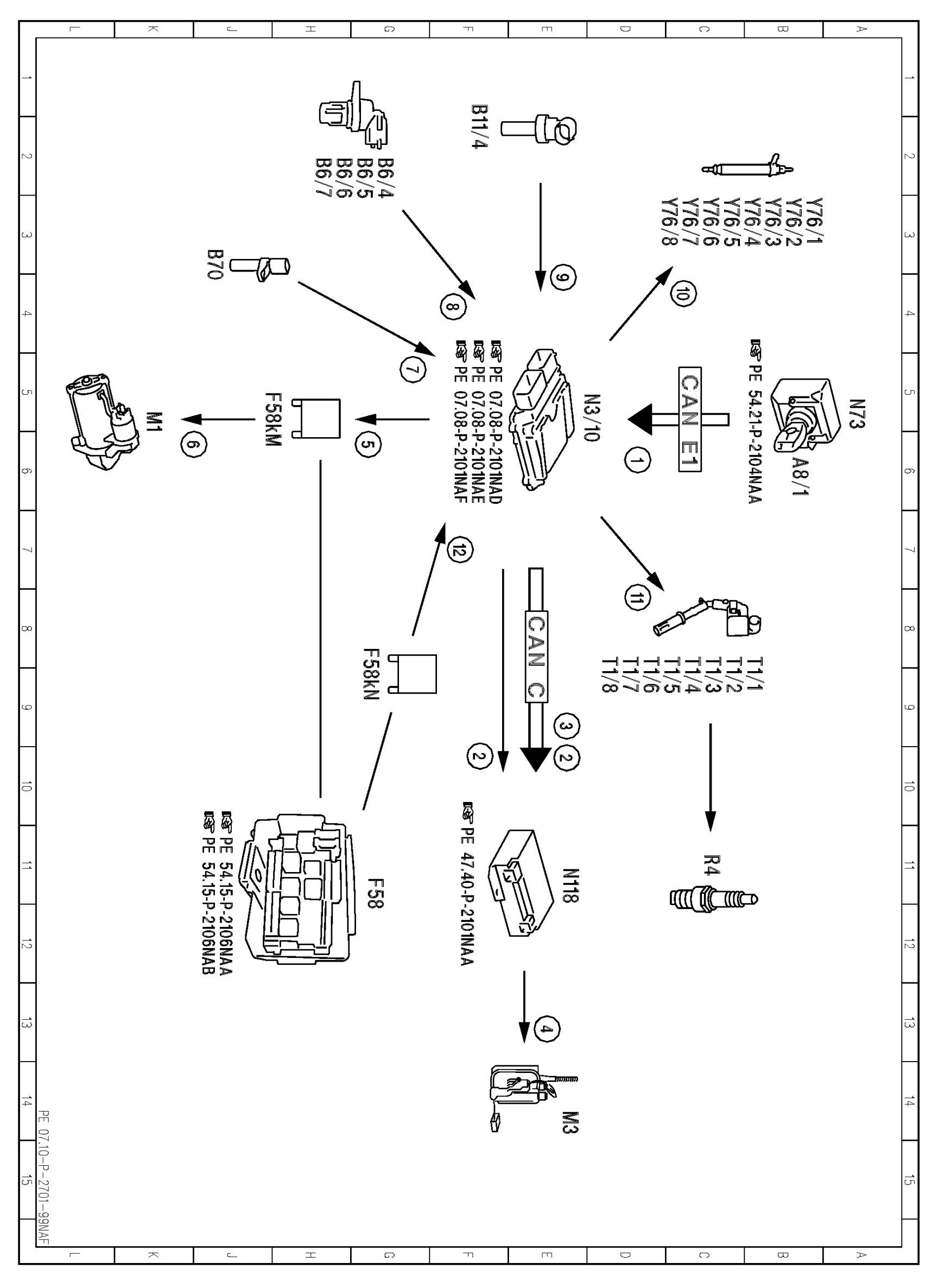

PE07.10-P-2701NAF Electrical Function Schematic, For Starting

PE07.10-P-2701NAF Electrical Function Schematic, For Starting
ENGINES 157, 278 in MODEL 166


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
