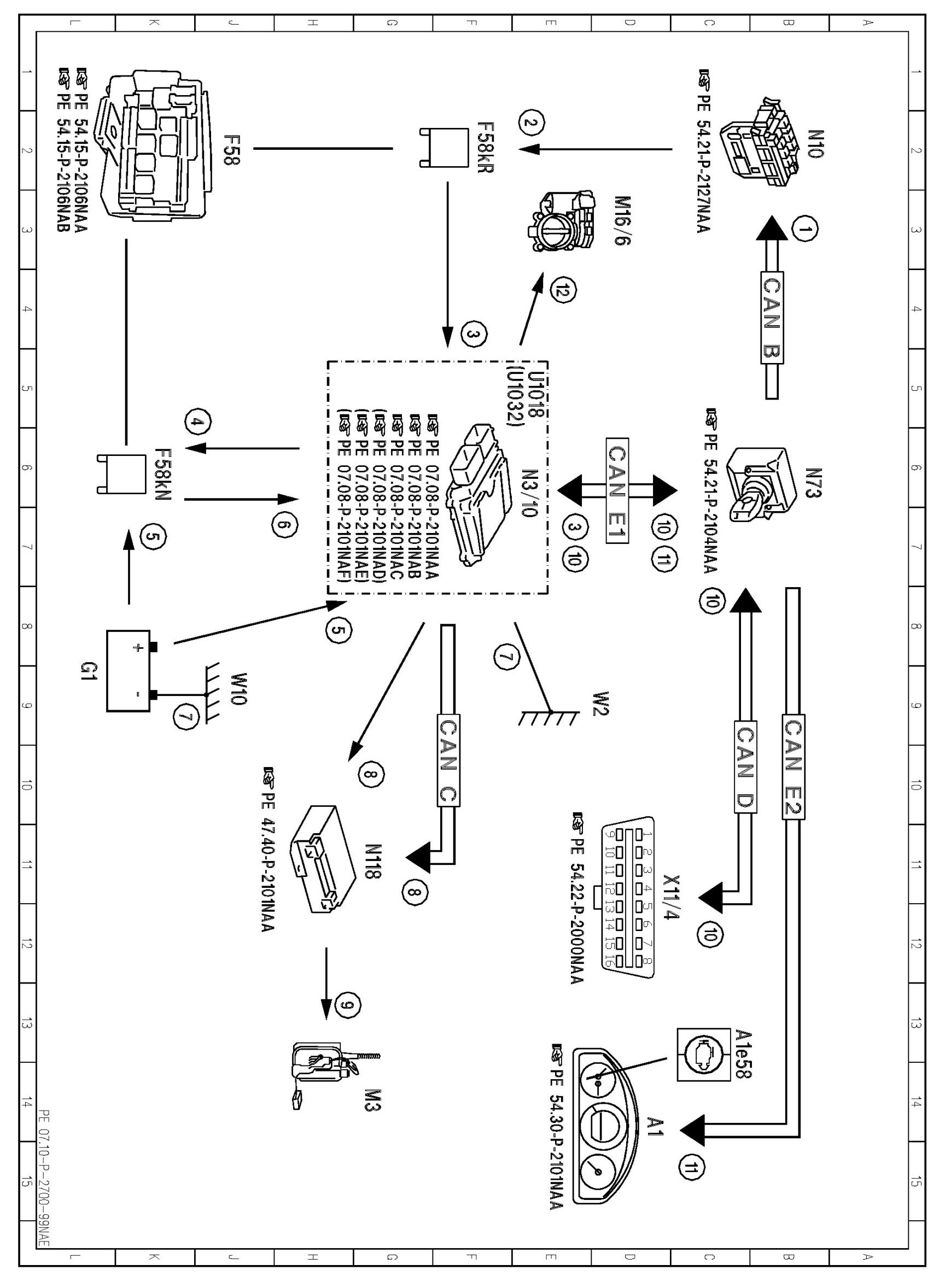

PE07.10-P-2700NAE Electrical Function Schematic, Ignition ON

PE07.10-P-2700NAE Electrical Function Schematic, Ignition ON
ENGINES 157, 276, 278 in MODEL 166


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
