PE07.08-P-2101NAD Gasoline Direct Injection System Control Unit

PE07.08-P-2101NAD Gasoline Direct Injection System Control Unit
ENGINES 278.9, 157.9 in MODEL 166

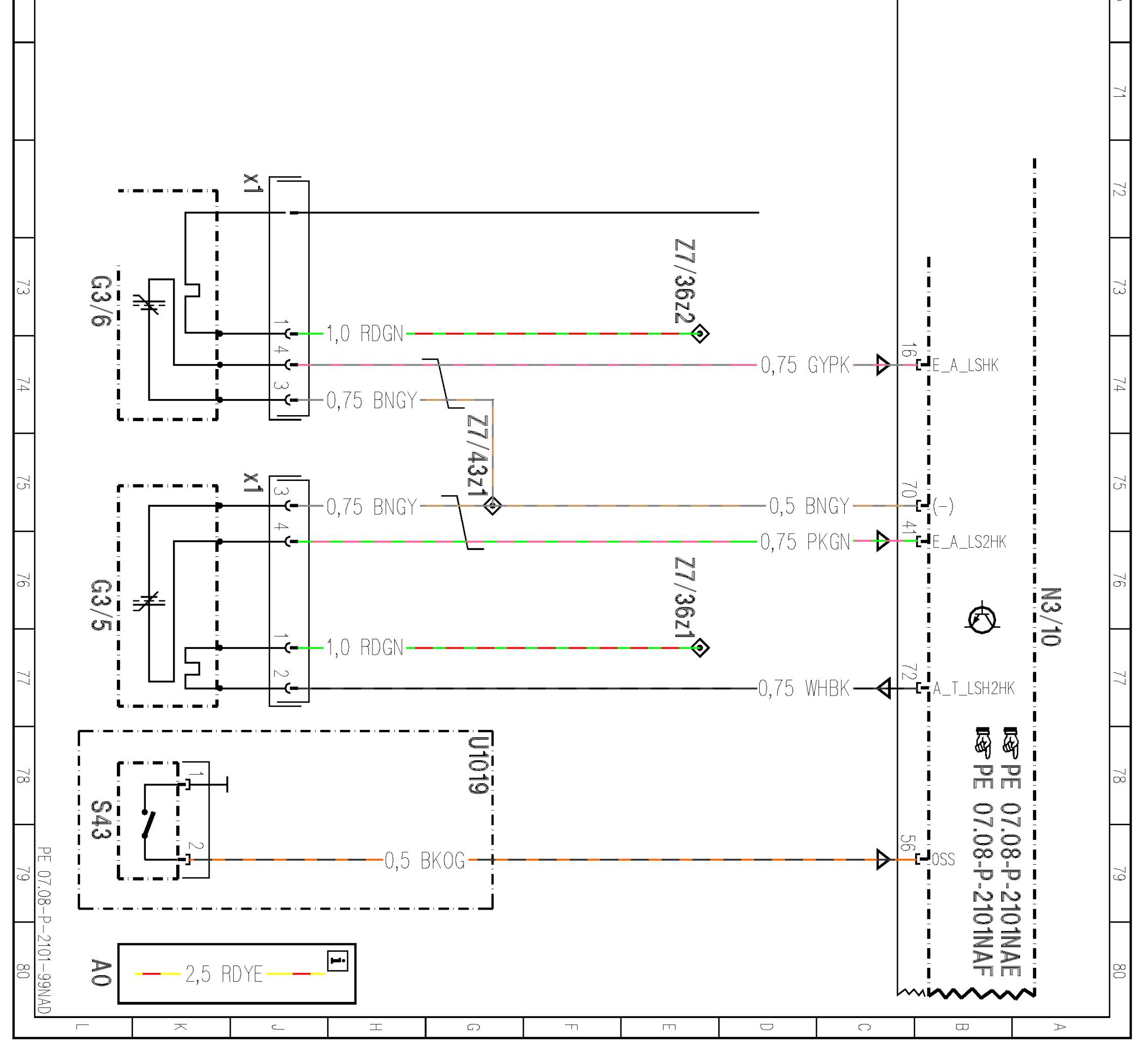

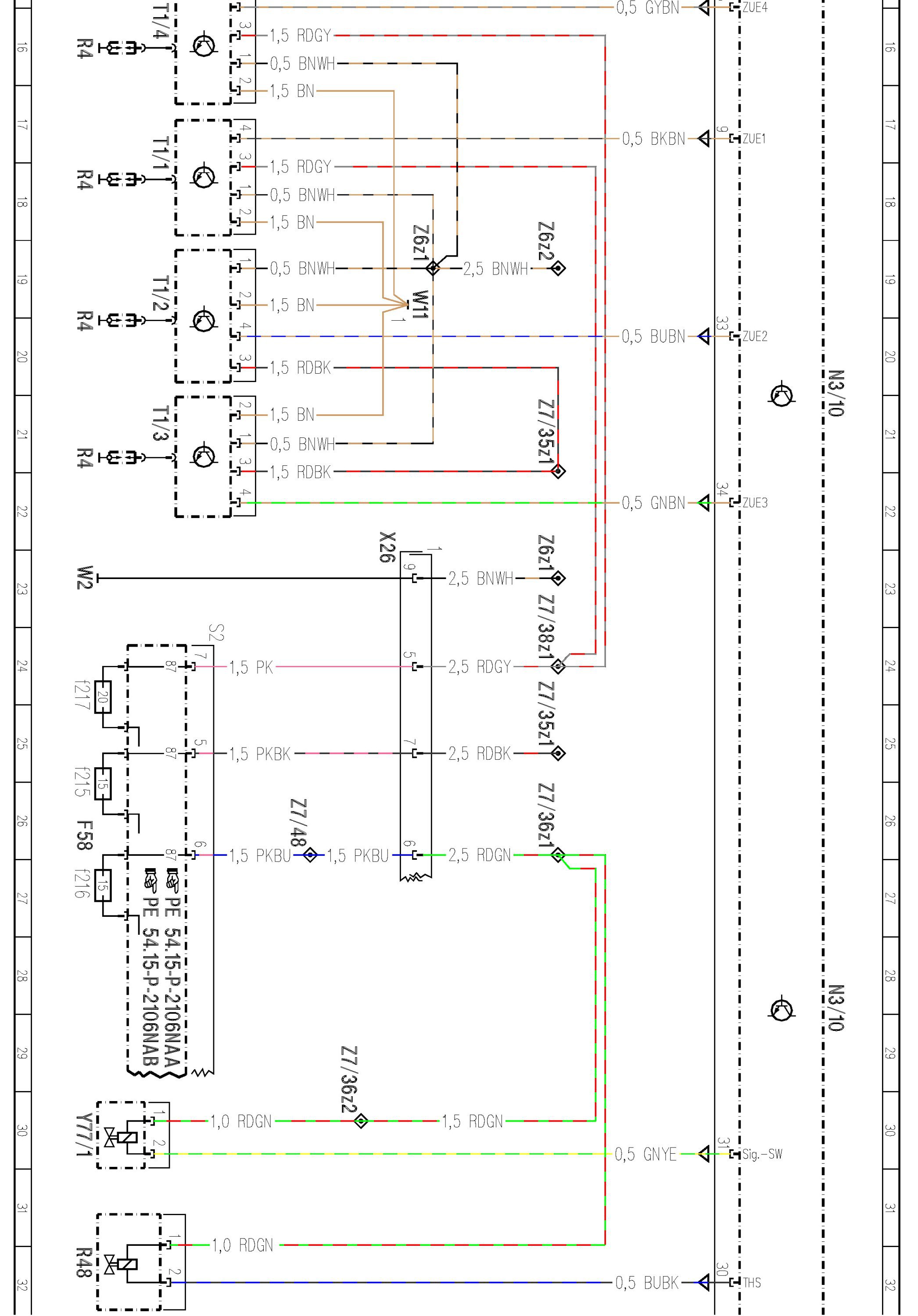

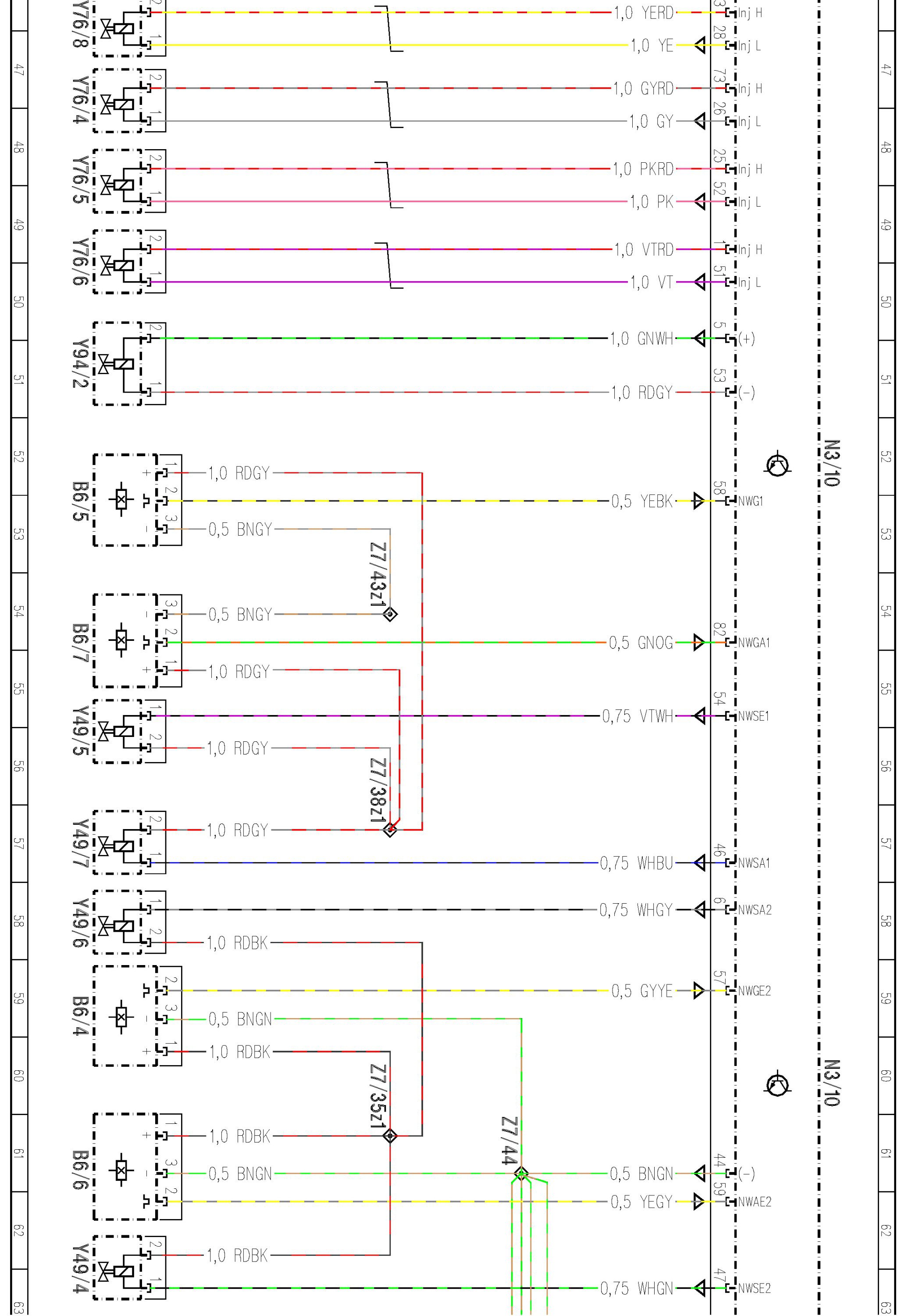

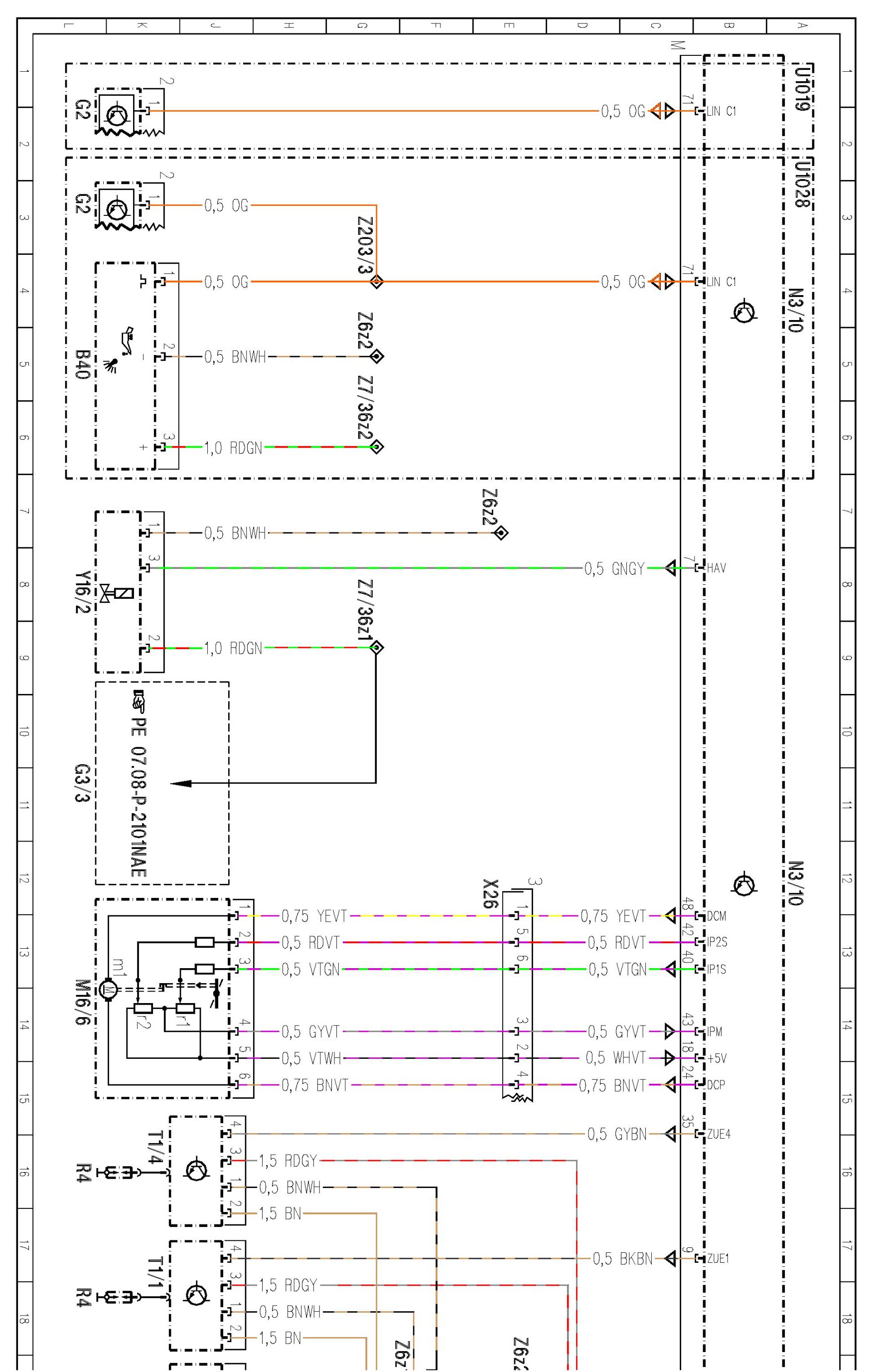

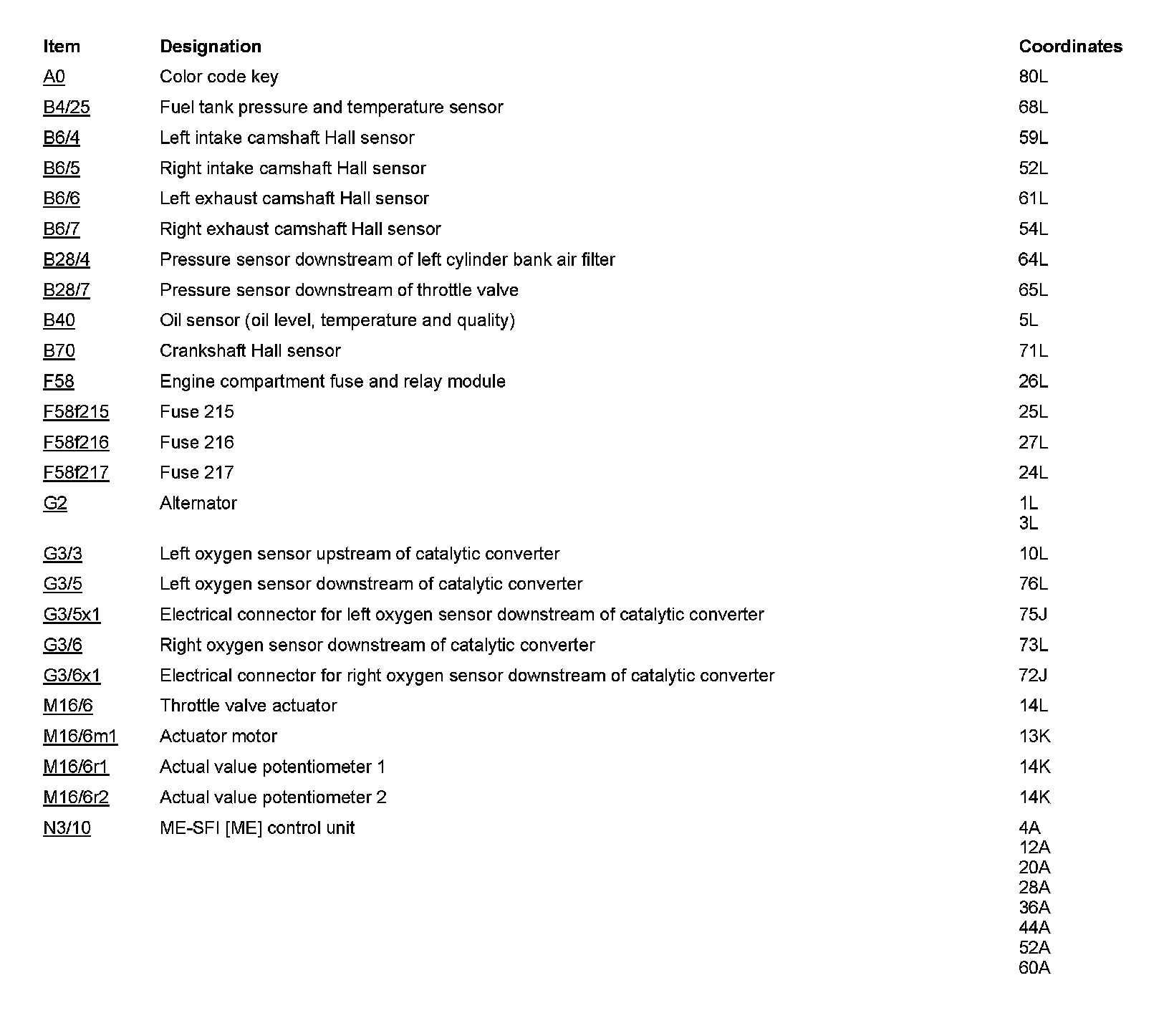

- Control Unit N3/10, Engine Plug, Sheet 1










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
