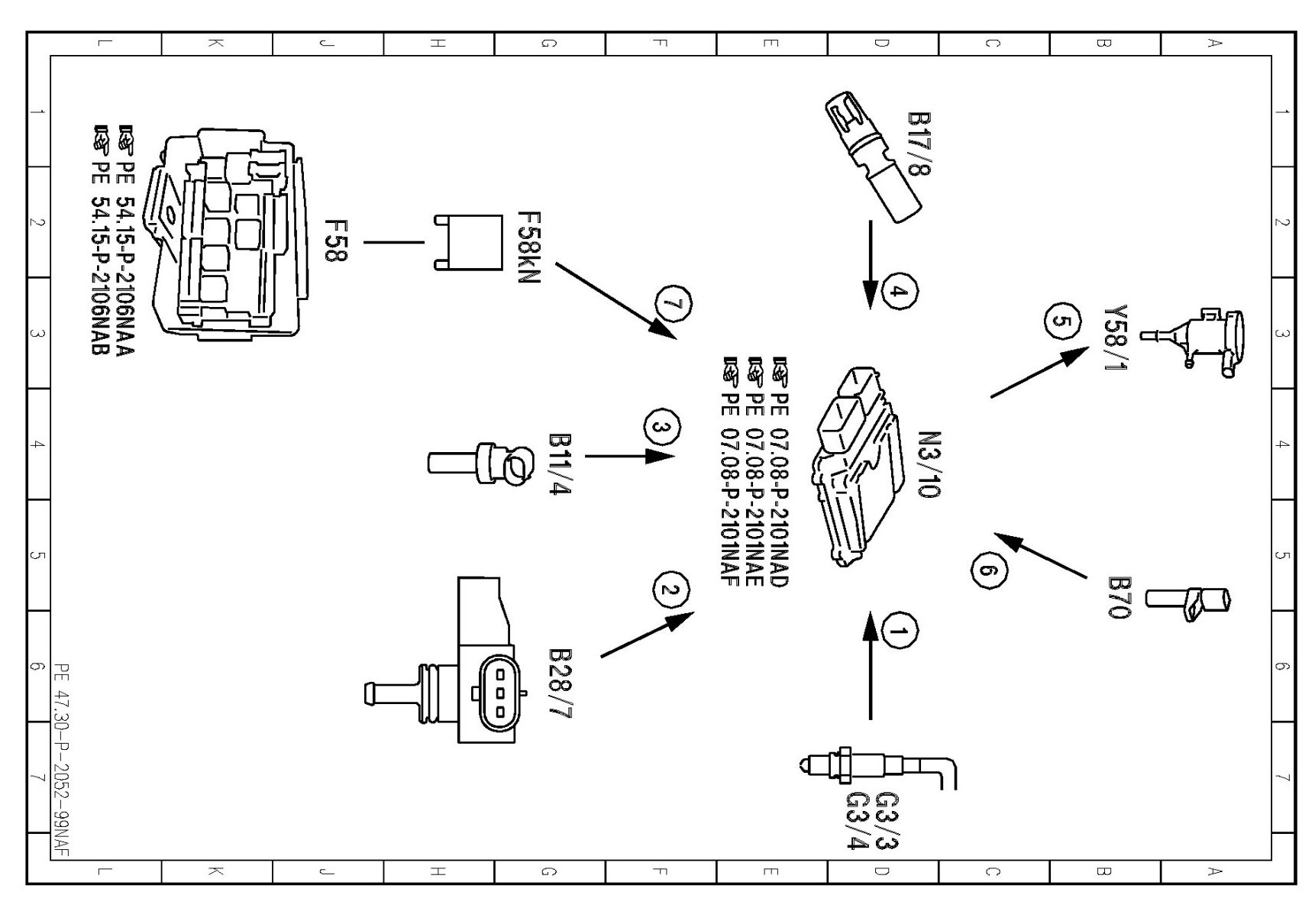

PE47.30-P-2052NAF Electrical Function Schematic For Purging Function

PE47.30-P-2052NAF Electrical Function Schematic For Purging Function
MODEL 166 with ENGINE 157, 278

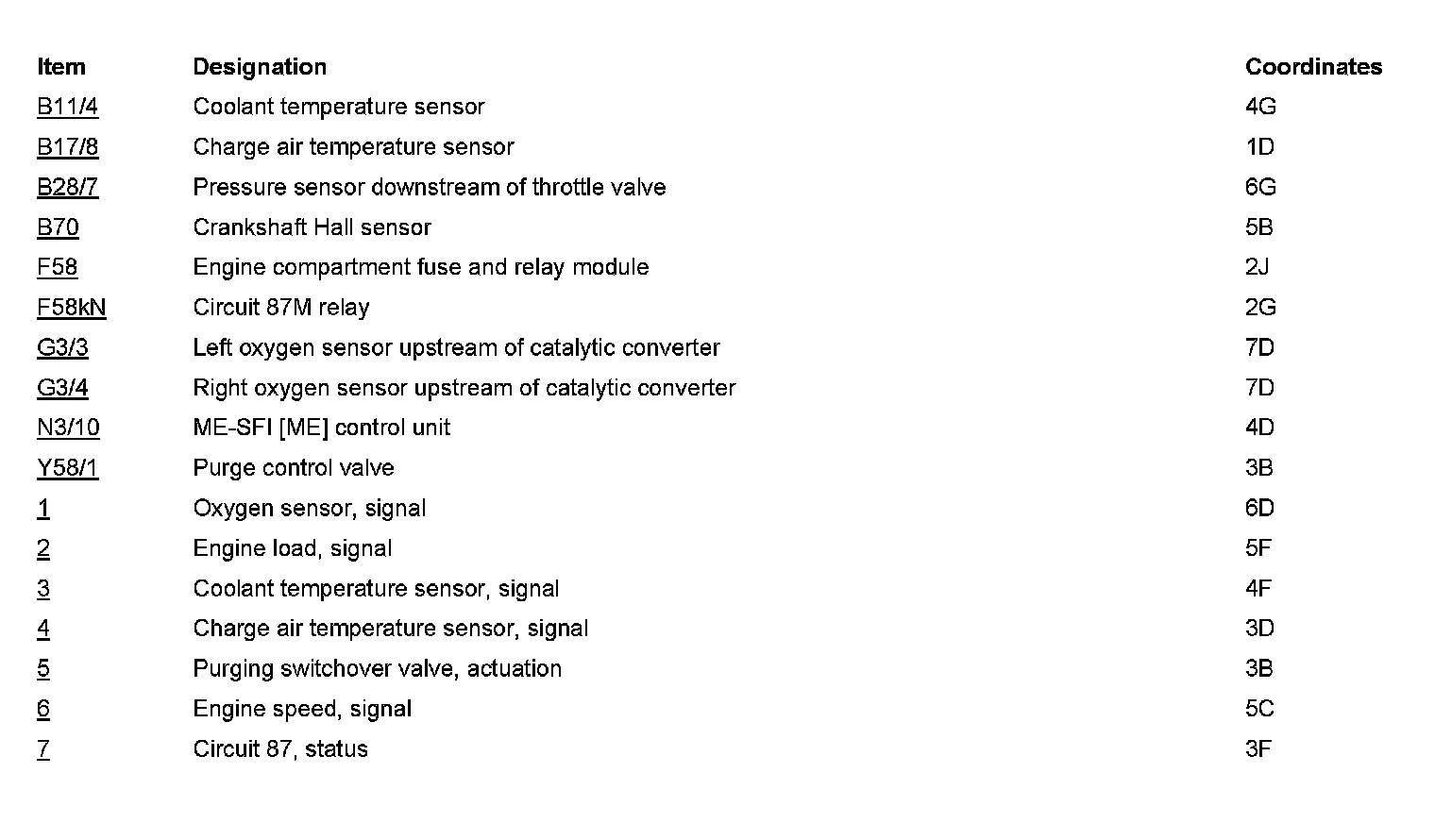

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
