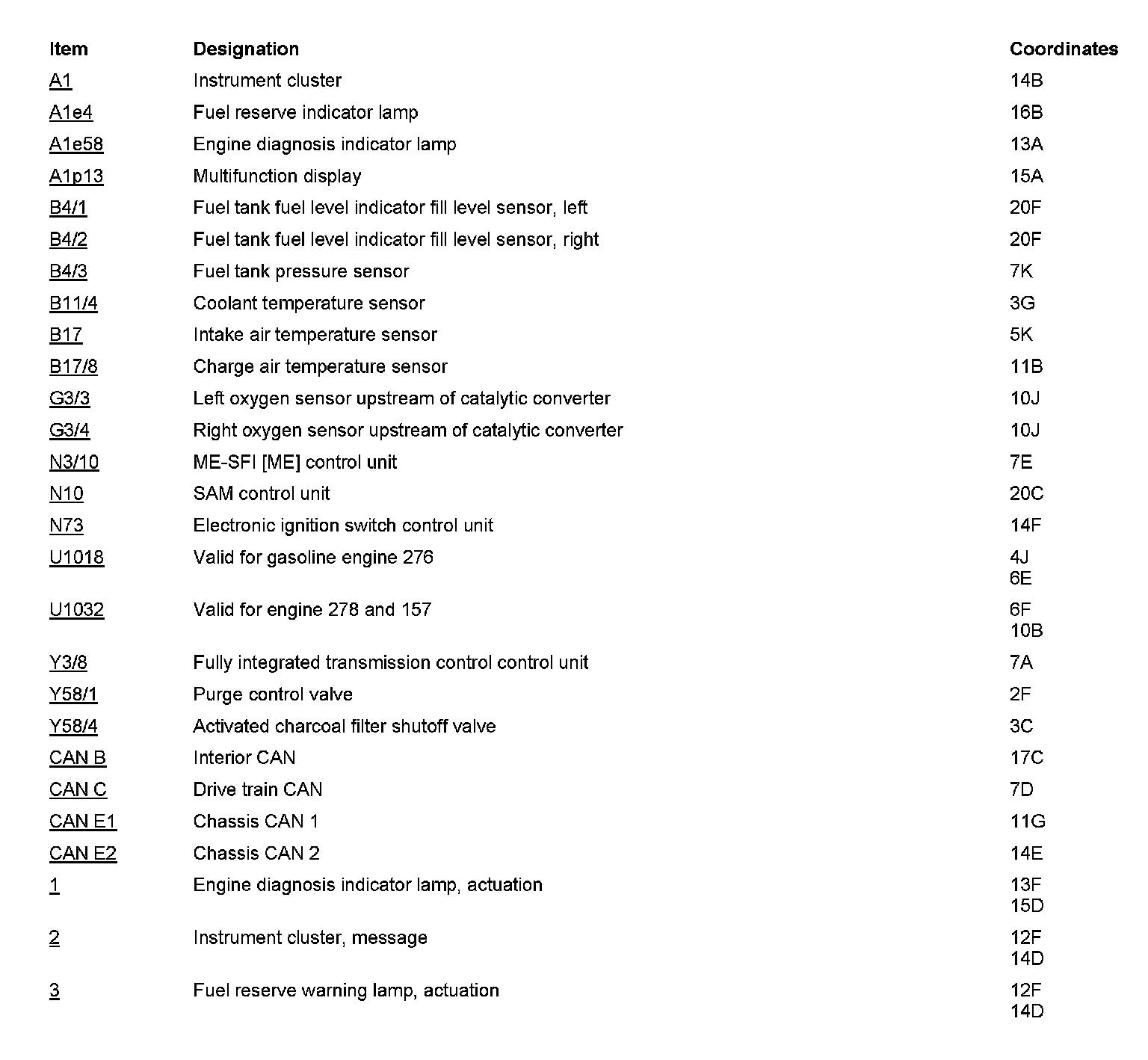

PE47.30-P-2051NAE Electrical Function Schematic For System Purging With Leak Test

PE47.30-P-2051NAE Electrical Function Schematic For System Purging With Leak Test
MODEL 166 with ENGINE 157, 276, 278
with CODE (494) USA version






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
